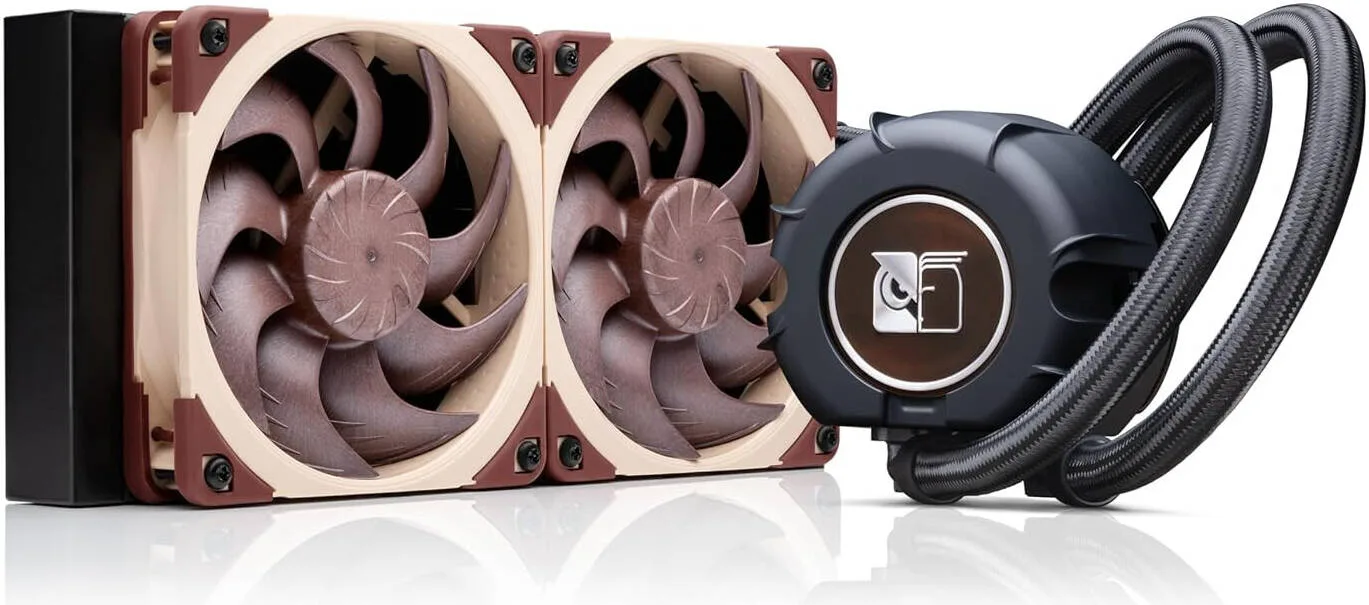

Noctua 240mm AIO Liquid CPU Cooler, Premium Quiet Cooling System with Asetek Emma V2 Pump, NF A12x25 G2 Fans, SecuFirm2 Plus Mounting, Low Noise, Black/Brown/Beige
NOCTUA
- Premium quality Asetek Emma V2 closed-loop liquid cooling platform provides industry-leading thermal performance and reliability

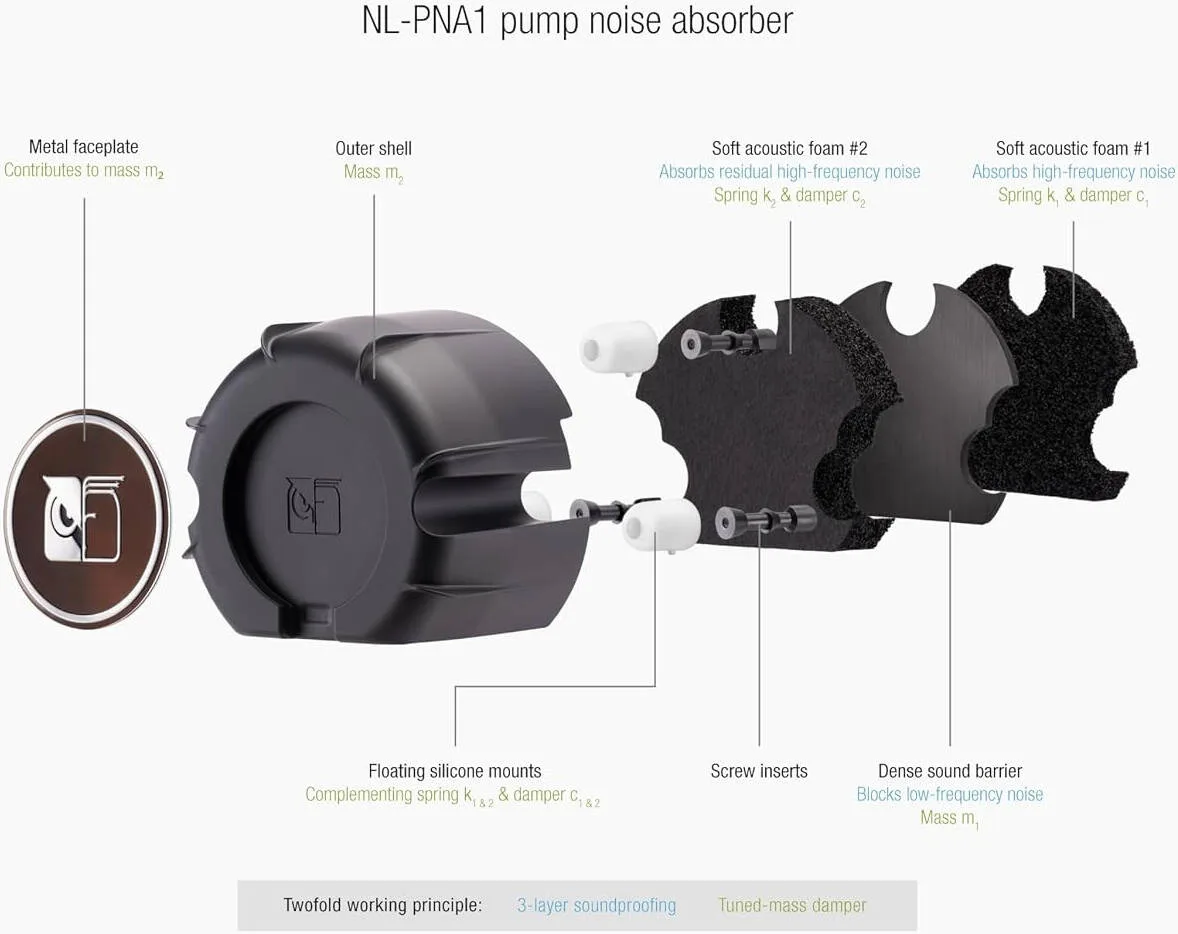

- Innovative pump noise absorber utilises a 3-layer acoustic soundproofing structure and the tuned-mass damper effect for quieter pump operation and lower vibration levels

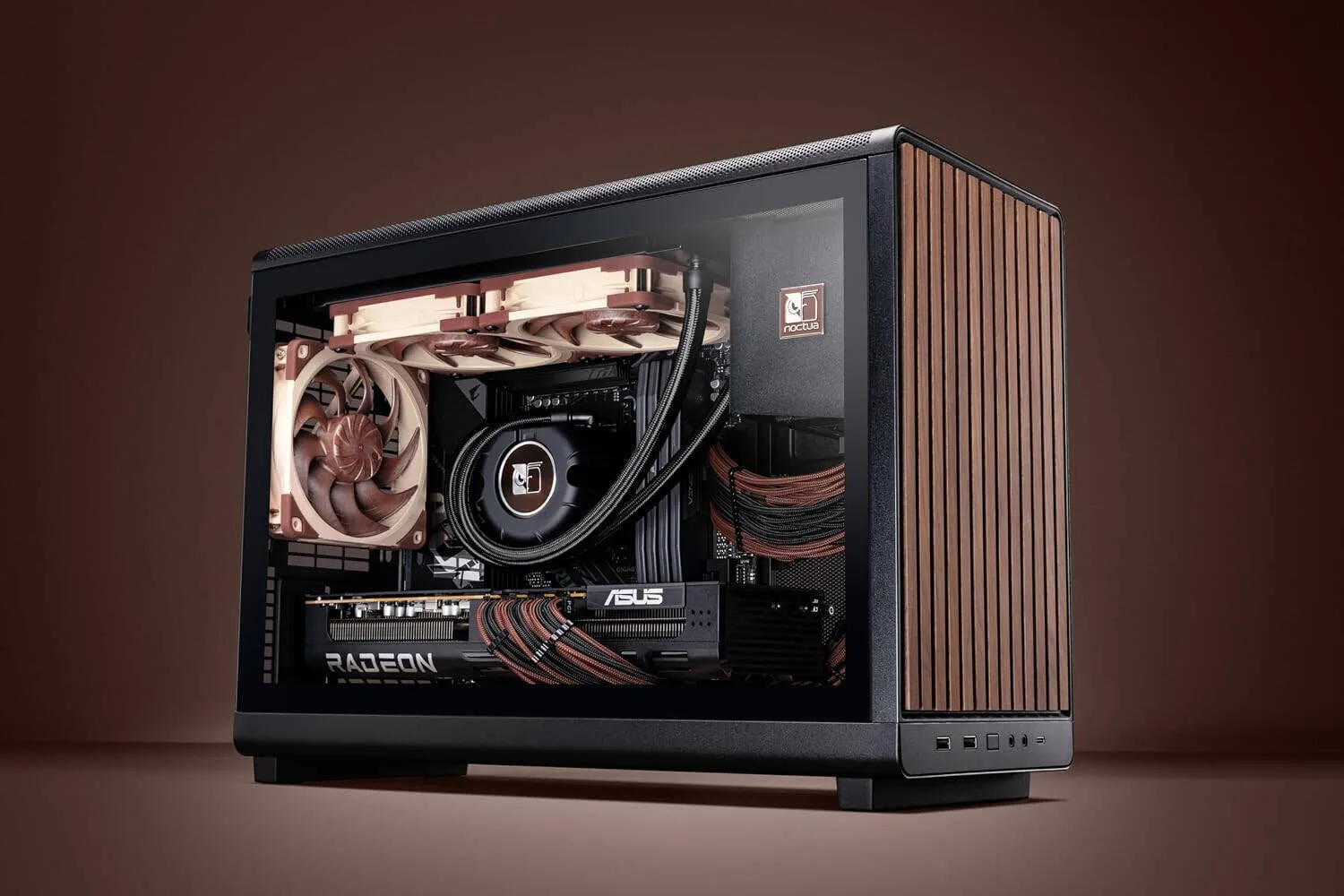

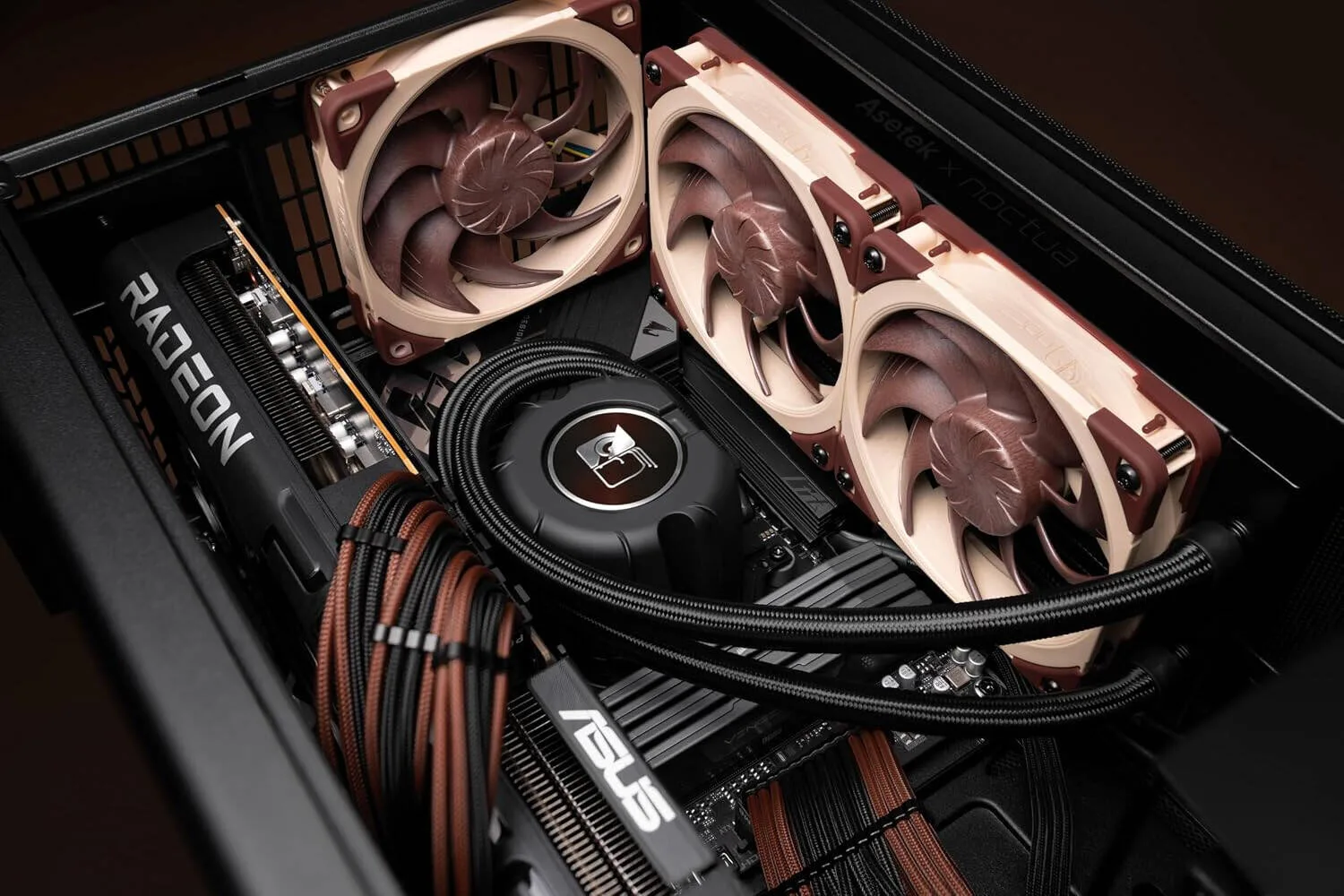

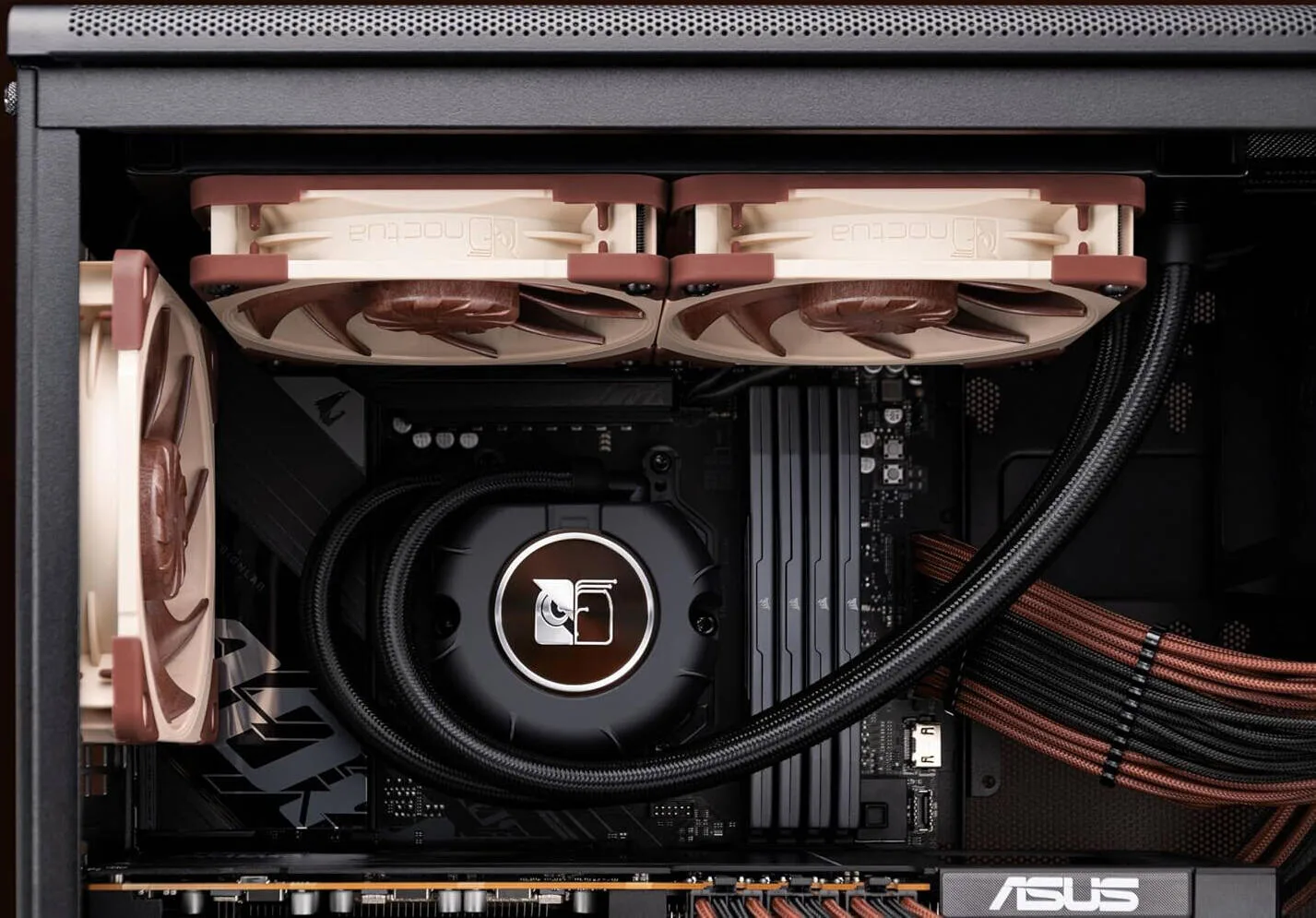

- Compact 240mm size radiator and two award-winning, state-of-the-art Noctua NF-A12x25 G2 PWM 120mm fans with speed-offset for acoustic optimisation ensure cutting-edge efficiency at low noise levels – perfect for building near-silent Small Form Factor (SFF) PCs

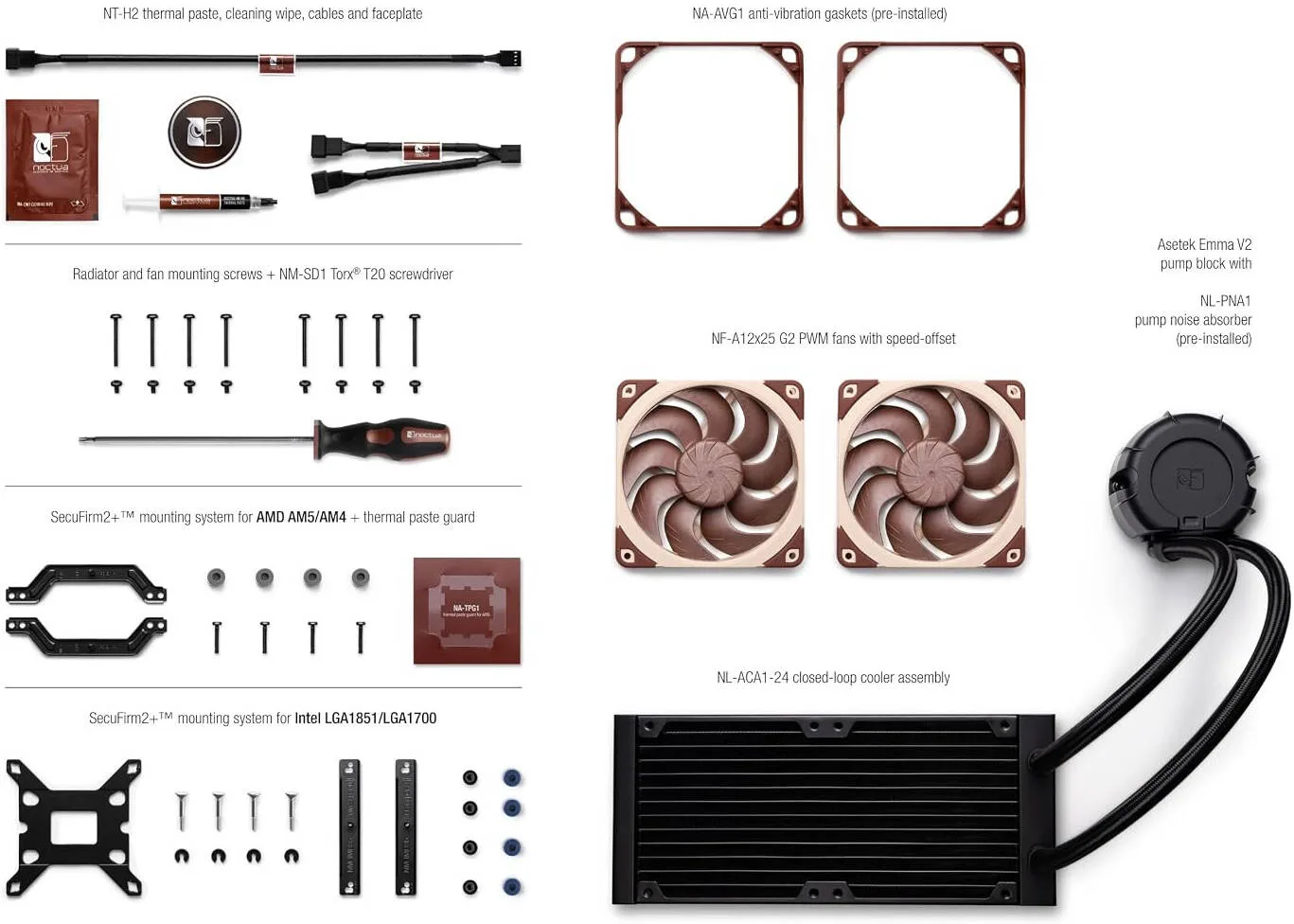

- Easy-to-install SecuFirm2 multi-socket mounting system with offset options for hotspot optimisation on AMD AM5 and Intel LGA1851, ideal for Ryzen 9800X3D, 9900X3D, 9950X3D, 9950X, Core Ultra 285K, 265K, 245K, etc.
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Led color
- No
- Cooling type
- Liquid CPU Coolers
- Radiator size
- 240 mm
Details
- Shipping Weight
- 2.60 Kg
- Shipping Dimensions
- 22.50 cm x 46.00 cm x 15.00 cm
- CPU Socket Type
- AM5 AM4 LGA 1700 LGA 1851 LGA 1954
- Color
- Brown
- Fan Airflow
- 63.15 CFM
- Fan RPM
- 1800 RPM
- Number of Fans
- 2 Fans
- Size (Form factor)
- 120 x 120 x 25 mm (square)
- Speed range
- 0 – 1800 rpm
- Airflow (max.)
- 107.3 m³/h (63.15 CFM)
- Acoustical noise (max.)
- 22.5 dB(A)
- Static pressure (max.)
- 3.14 mm H₂O
- Rated voltage (fan)
- 12 V
- Connector (fan)
- 4-pin
- Colour
- Brown
- Pump block height
- 70 mm
- Motor type
- Three phase
- Impeller type
- Centrifugal (closed)
- Bearing
- Ceramic sleeve and shaft
- Pump rated voltage
- 12 V
- Starting voltage
- 9.5 V
- Max operating voltage
- 13.2 V
- Input power (max)
- 6 W
- Input power (typical)
- 2 W
- Input current (max)
- 1.7 A
- Input current (typical)
- 0.5 A
- Max pump speed (manual)
- 3400 rpm
- Max pump speed (balanced)
- 2600 rpm
- Max pump speed (quiet)
- 2100 rpm
- Pump speed @ 20% PWM
- 750 rpm
- Pump speed @ 0% PWM
- 750 rpm
- Max noise (manual)
- 14.9 dB(A)
- Max noise (balanced)
- 7.8 dB(A)
- Cable length
- 500 mm
- Connector type
- 4-pin PWM
- Pin 1
- Ground (GND)
- Pin 2
- Voltage (Vcc)
- Pin 3
- RPM Signal
- Pin 4
- PWM Signal
- Cold plate material
- Copper CU1100 (99.95% high purity)
- Cold plate size
- 55.5 x 55.5 mm
- Construction
- Skived fin micro channels
- Mounting system
- SecuFirm2+
- Mounting hole pitch
- 78 mm
- Pump noise absorber
- NL-PNA1
- Auxiliary cooling fan
- Optional (NL-ACF1)
- Coolant composition
- 22% propylene glycol, 78% water
- Coolant additives
- Anti-freeze, anti-corrosion, anti-biological
- Coolant compatibility
- Non-toxic, electrically conductive
- Tube material
- EPDM (braided)
- Tube length
- 400 mm
- Outer diameter
- 12.5 mm
- Inner diameter
- 7 mm
- Minimum bend radius
- 26 mm
- Radiator form factor
- 240 mm
- Radiator material
- Aluminium fins and tubes, steel frame
- Fins per inch (FPI)
- 20
- Fan configuration
- 2x 120 x 120 x 25 mm
- Screw threads
- UNC 6-32
- NSPR
- 210
- Operating temperature
- 2°C to 50°C
- Compliance
- EN62368-1, CE, UKCA, REACH, RoHS
