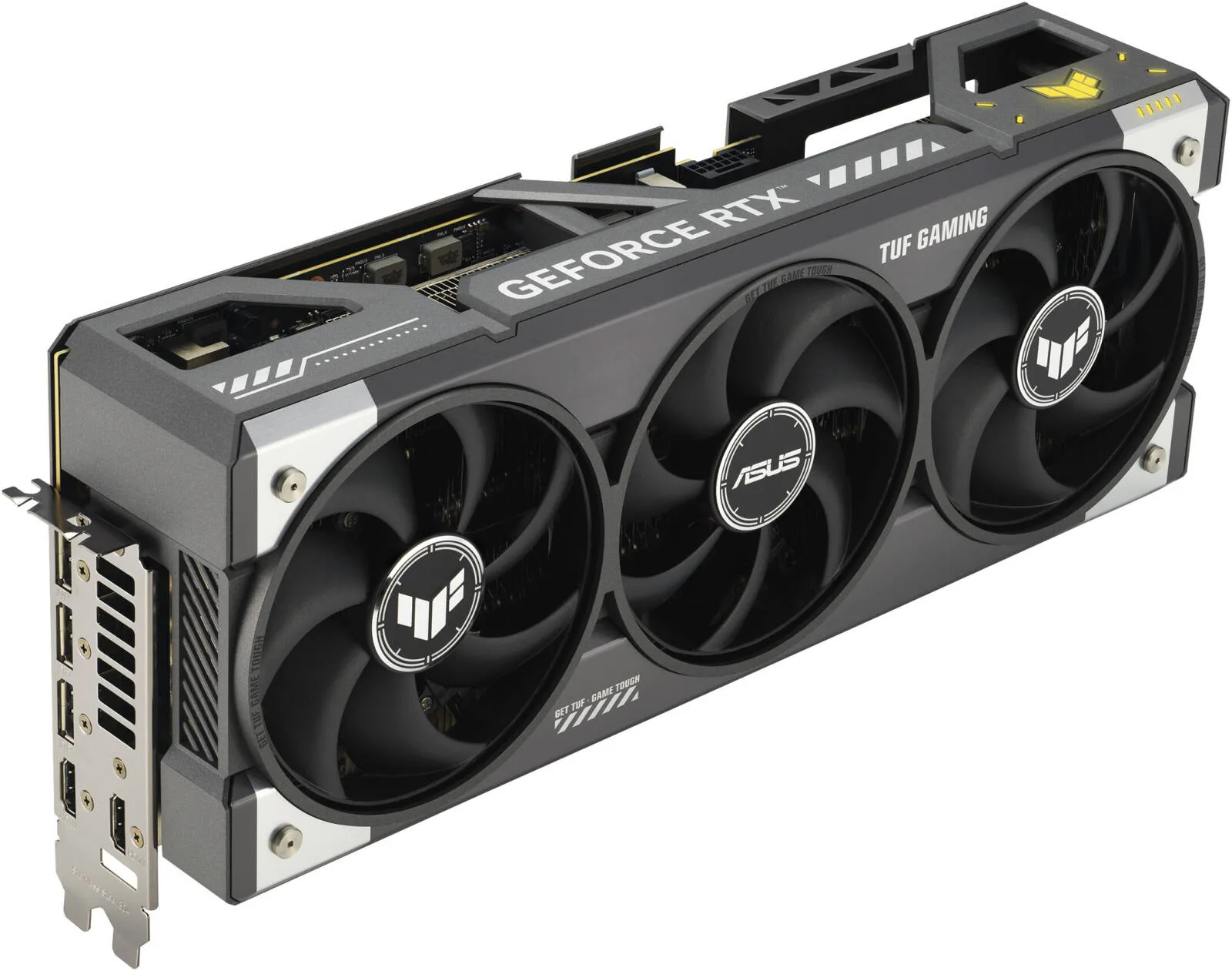

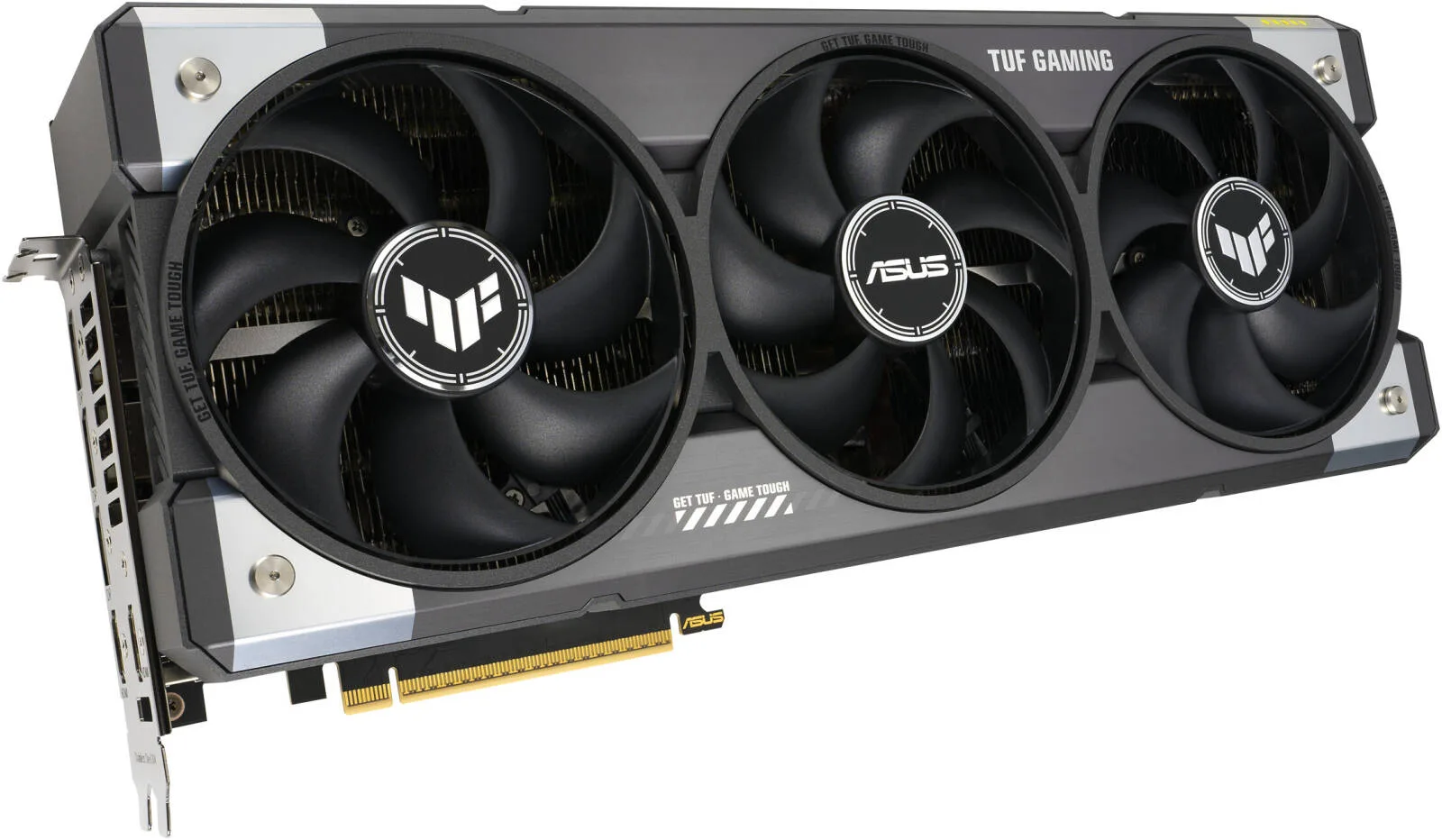

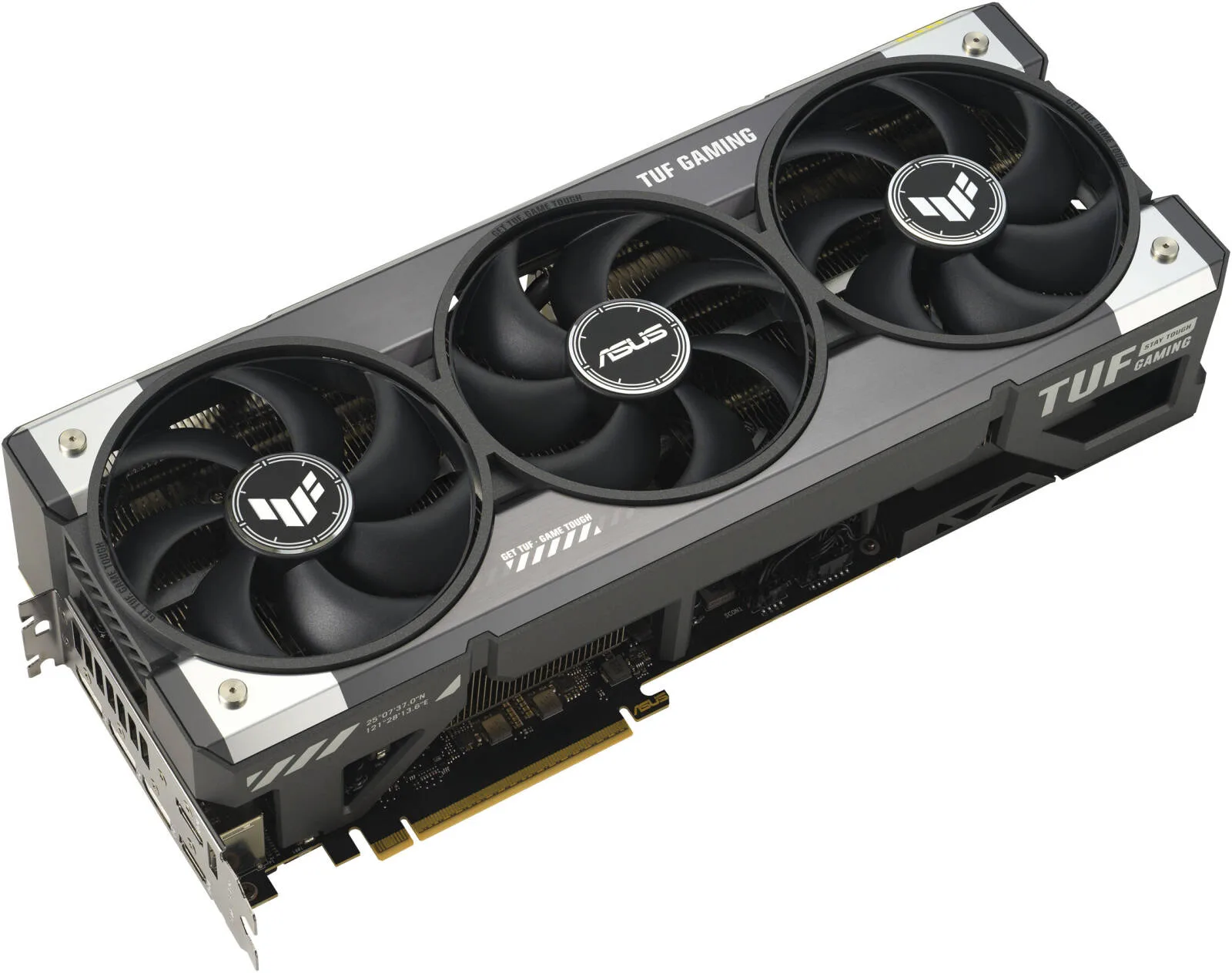

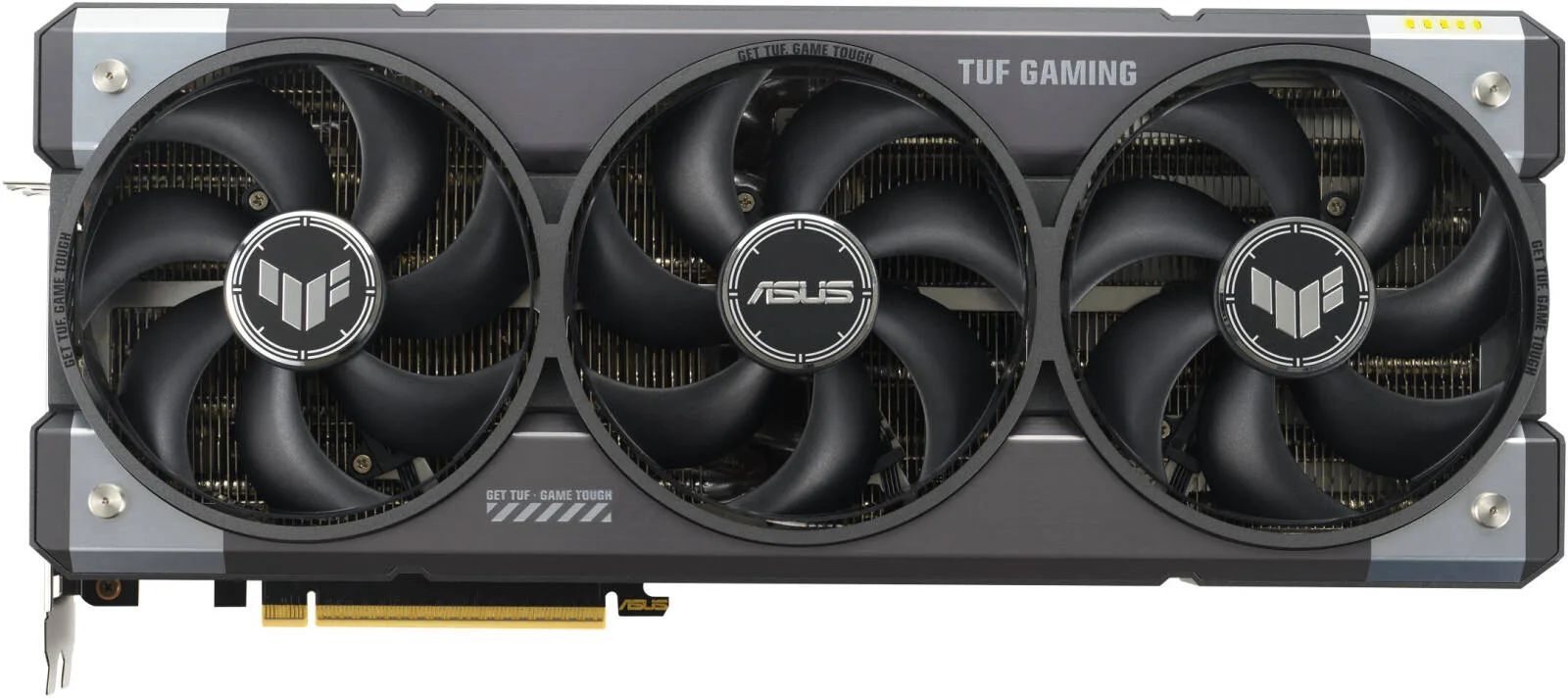

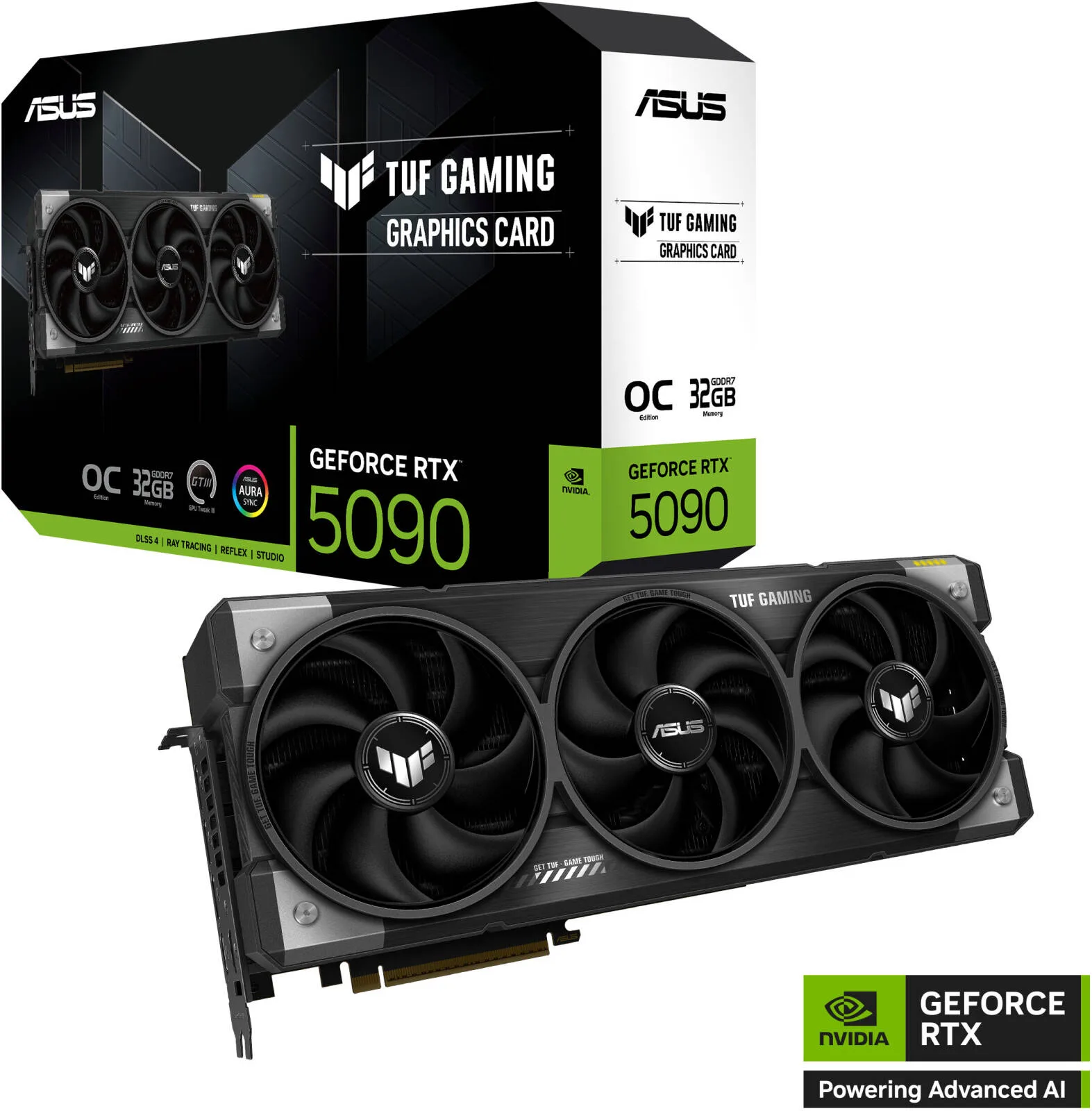

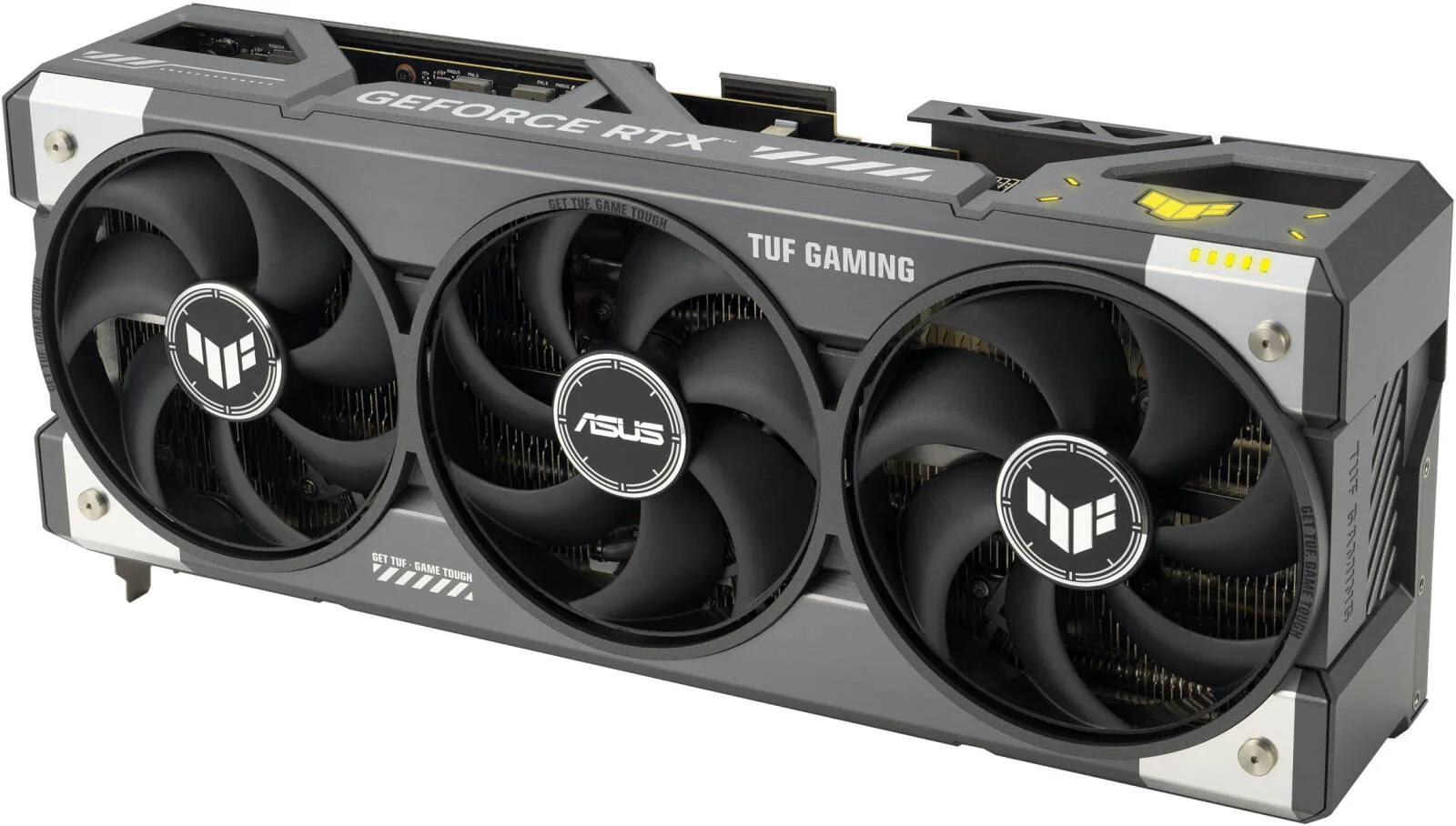

ASUS TUF Gaming GeForce RTX 5090 OC Edition Graphics Card, 32GB GDDR7 512-Bit Memory, 2550 MHz Boost Clock, 21760 CUDA Cores, PCI Express 5.0
- Military-Grade Components Premium durability
- Protective PCB Coating Against moisture and debris
- 12 Heatpipes & Vapor Chamber 3.6-slot design with optimal heat transfer
- Axial-Tech Fans Up to 23% more air than standard fans
- Phase-Change GPU Thermal Pad Optimal heat dissipation for GPU longevity
- Dual BIOS Toggle Quiet or Performance mode
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Gpu
- RTX 5090
- Memory size
- 32 GB
- Memory type
- GDDR7
- Memory interface
- 512 Bit
- Chipset manufacturer
- NVIDIA
Details
- Shipping Weight
- 4.55 Kg
- Shipping Dimensions
- 13.00 cm x 42.00 cm x 23.00 cm
- Max Resolution
- 7680 x 4320
- HDMI
- Yes
- DVI
- No
- D-SUB (VGA)
- No
- Display Port
- Yes
- Effective Memory Clock
- 28 Gbps
- Form Factor
- RTX
- Interface
- PCI Express 5.0
- TDP
- 1000 W
- Maximum Display Support
- 4
- Cooling
- 3x Fans
- Power Connectors
- 1 x 16-pin
- Graphic Engine
- NVIDIA® GeForce RTX™ 5090
- AI Performance
- 3551 TOPs
- Bus Standard
- PCI Express 5.0
- OpenGL
- OpenGL® 4.6
- Video Memory
- 32GB GDDR7
- Engine Clock
- OC Mode: 2580 MHz Default Mode: 2550 MHz (Boost clock)
- CUDA Cores
- 21760
- Memory Speed
- 28 Gbps
- Resolution
- Digital Max Resolution: 7680 x 4320
- HDCP Support
- Yes (2.3)
- NVLink / Crossfire Support
- No
- Accessories
- - 1x Speedsetup Manual - 1x TUF Graphics Card Holder - 1x TUF Velcro Hook & Loop - 1x TUF Magnet - 1x TUF Gaming Certificate - 1x Thank You Card - 1x Adapter Cable (1 to 4)
- Software
- ASUS GPU Tweak III, MuseTree, GeForce Game Ready Driver & Studio Driver (Download from support site)
- Dimensions
- 348 x 146 x 72 mm 13.7 x 5.7 x 2.8 inch
- Recommended PSU
- 1000 W
- Slot
- 3.6 Slot
- AURA SYNC
- ARGB
4.410 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Maya N. Used for: 3–6 months
Pros
Incredibly quick
Cons
Power draw is silly
Comment
Fantastic in every way, but the electricity bill has certainly noticed it
Poppy L. Used for: Less than a month
Pros
4K at 120 without turning anything down
Cons
Check your PSU before you order
Comment
Everything on ultra at 4K and it does not blink. Make sure you have 1000W or more and the right cable, because the transients are real!
Grace M. Used for: 1–3 months
Pros
Everything
Cons
Price
Comment
No notes, other than the obvious one
George D. Used for: 6–12 months
Pros
Cold and fast
Cons
Ridiculous size
Comment
Utterly brilliant, and it barely fits in a full tower!
Maya D. Used for: 6–12 months
Pros
Zero-RPM at the desktop and near silent under load
Comment
For a 575W card the noise is remarkable. Nothing at all at the desktop, and under a full load the fans sit around 1150rpm which disappears behind the case fans. A power limit of 80 per cent costs about four per cent performance and takes another eight degrees off it.
Freya B. Used for: 1–3 months
Pros
Nothing else touches it for 4K, and the cooler is world class
Comment
Two contradictory things are true about this card and I have gone back and forth on the rating for weeks. The first is that it is magnificent. 4K at maximum settings with path tracing is simply not a problem, the 32GB across a 512-bit bus means nothing I do ever runs short, and the cooler holds it at 64C while staying quieter than the 4080 it replaced. The engineering is not in question. The second is that it costs more than a decent second hand car, and the difference on my 4K 144Hz panel against a 5080 at a third of the price is real but nothing like three times. Add the wider case, the new power supply and the native cable and you are well past six thousand pounds for a graphics card. Three stars is a judgement on that arithmetic, not on the hardware, which would be five.
Ava P. Used for: 3–6 months
Cons
Needs a native 12V-2x6 cable, not the bundled adapter
Comment
Card is exceptional and I have no criticism of it, but do yourself a favour and buy the proper cable for your PSU. The included adapter is a fistful of octopus that will not bend inside a normal case and I was not comfortable forcing it.
Leo A. Used for: 6–12 months
Pros
32GB, faultless drivers, and a cooler that never gets loud
Comment
Runs a 4K 240Hz panel and a second monitor for work, and nothing has come close to troubling it. The 32GB matters more for the video projects than the games, where timelines that used to need proxies now scrub natively. Thermals are the quiet achievement here, with the core in the low sixties under an eight hour render and no clock drop at all. It has been completely stable on every driver release so far.
Theo K. Used for: 3–6 months
Pros
Cooler is enormous and it shows in the numbers
Cons
Four slots wide, so the bottom of the board is unusable
Comment
Under a sustained 4K load the core sits at 63C and the hotspot at 74C, which is a delta most cards would be proud of at half the power. Fans hold around 1100rpm to do it. The trade is width, because it covers four slots and my capture card had to come out to make room! Five months in and the numbers have not drifted at all.
Noah W. Used for: Less than a month
Pros
When it works it is astonishing
Cons
Repeated driver timeouts on multi-monitor at mixed refresh rates
Comment
Not the experience I expected at this money. With a 4K 240Hz panel and a 1440p 60Hz second screen the display driver has crashed and recovered eleven times so far, always on the desktop and never in a game. Setting both to the same refresh rate stops it, which is not really a solution when the whole point of two monitors is that they are different. Clean installs and three driver versions have not fixed it. The hardware is clearly capable and the cooler is superb, but two stars is where a fault this basic lands.
