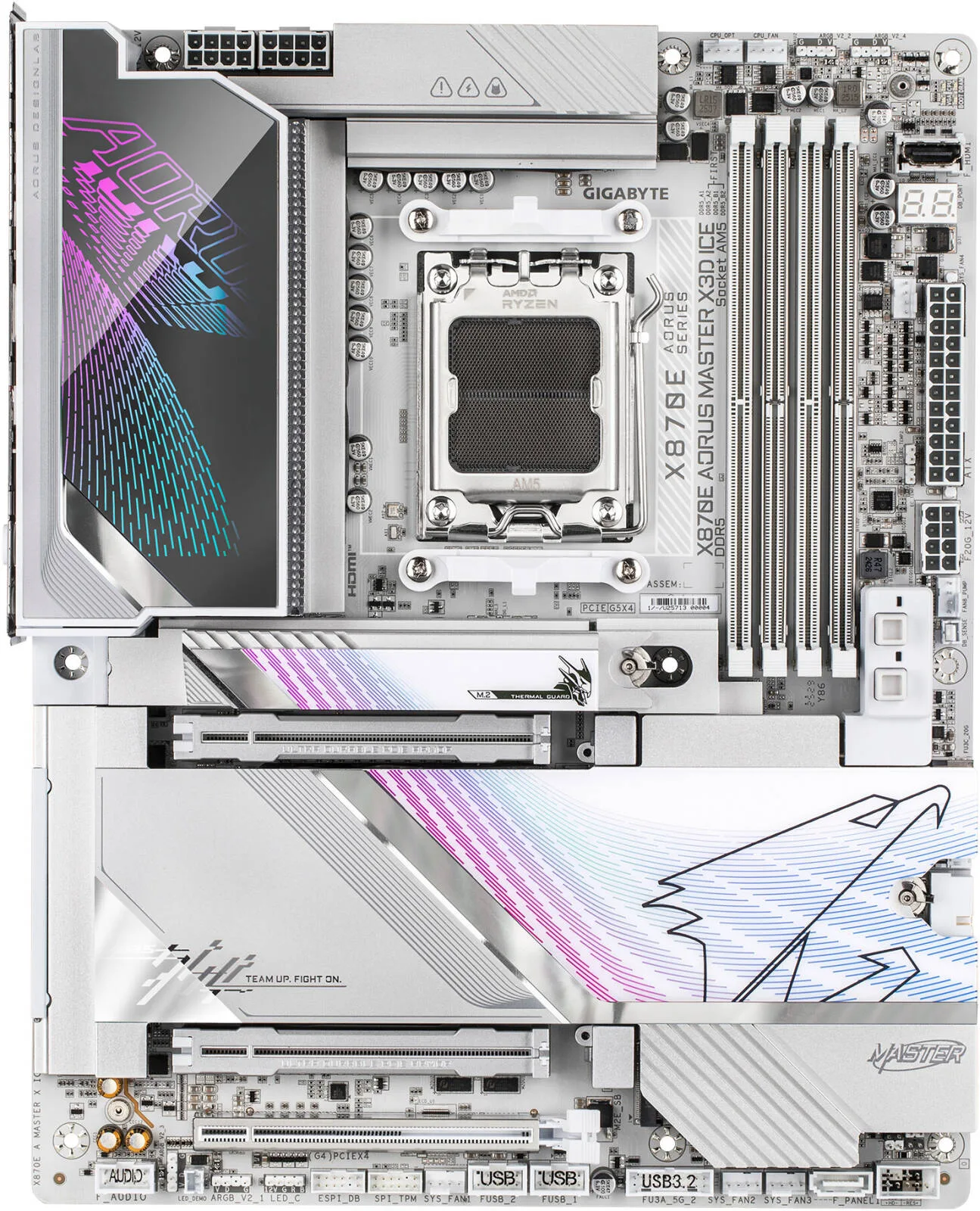

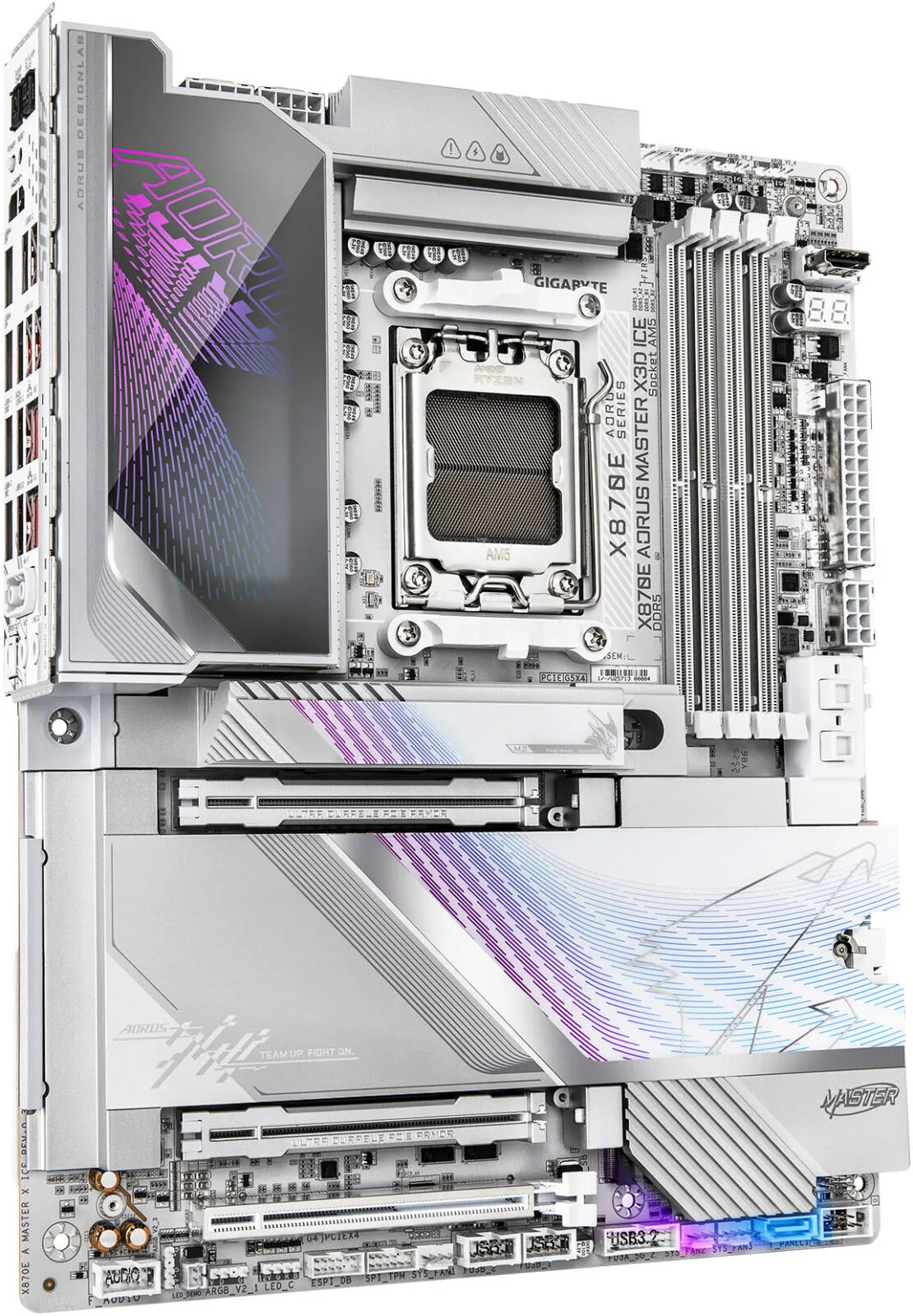

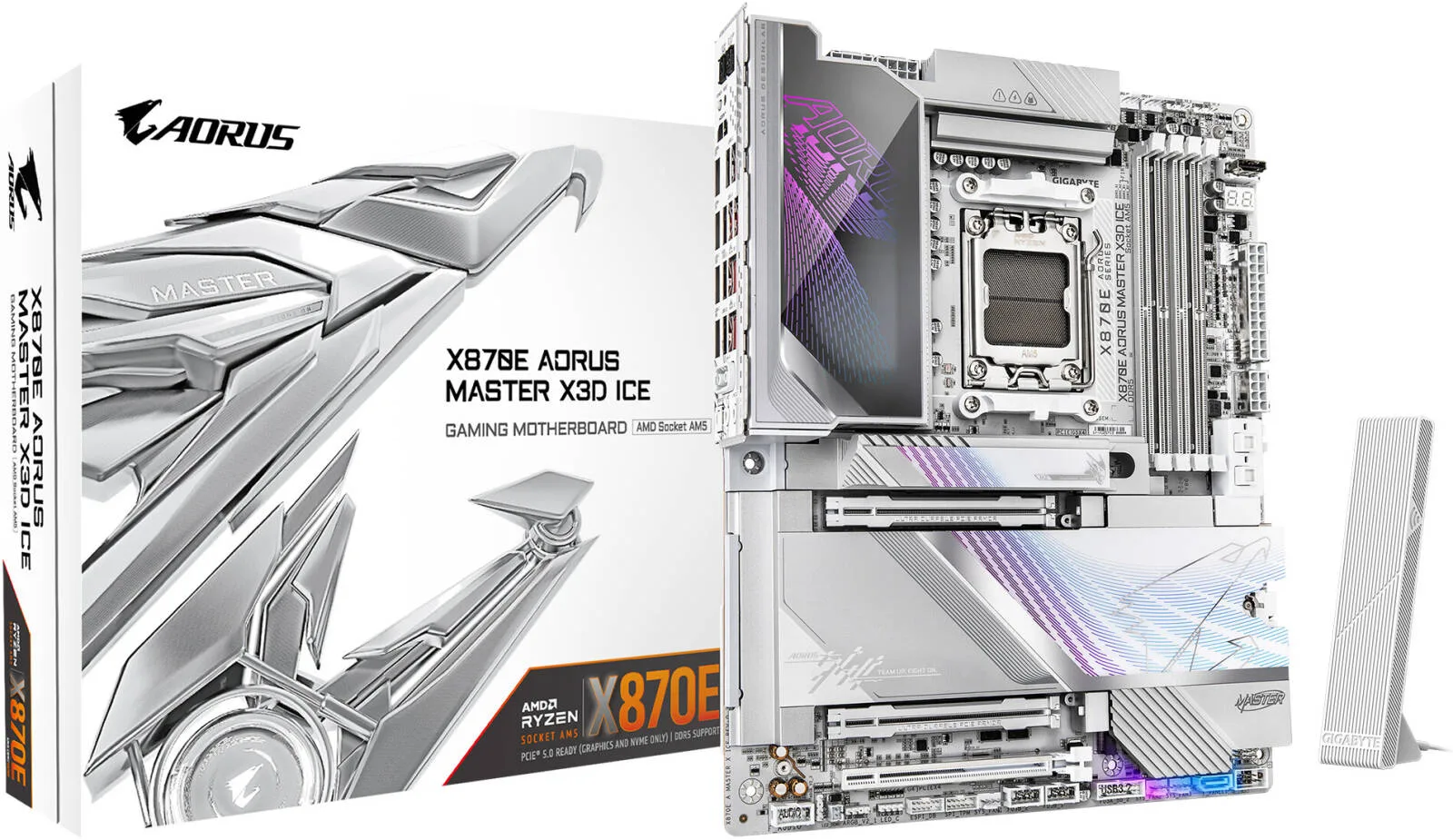

GIGABYTE X870E AORUS MASTER X3D ICE ATX AM5 Motherboard, AMD X870E Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 with PCIe UD Slot X, 5x M.2 Slots
- X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
- DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Dual Channel DDR5 : 4x DIMMs with AMD EXPO™Memory Module Support
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Socket
- AM5
- Chipset
- AMD X870E
- Form factor
- ATX
- Memory type
- DDR5
- Memory slots
- 4
Details
- Shipping Weight
- 3.80 Kg
- Shipping Dimensions
- 9.50 cm x 34.00 cm x 35.00 cm
- M.2 Slots
- 5
- Maximum Memory
- 256 GB
- PCI Express x16
- 1
- CPU
- AMD Socket AM5, supports AMD Ryzen™ 9000 / 8000 / 7000 Series
- Memory
- 4× DDR5 DIMM, up to 256 GB, Dual Channel, DDR5 4800–9000+ MT/s (OC), EXPO™ / XMP, non-ECC
- Onboard Graphics
- Integrated AMD Radeon™ Graphics (CPU dependent)
- Video Outputs
- 2× USB4 Type-C (DP 1.4, up to 4K@240Hz), 1× HDMI 2.1 (4K@60Hz), 1× front HDMI 1.4 (1080p@30Hz)
- Audio
- Realtek ALC1220 + ESS ES9118 DAC, DTS:X Ultra, 2/4/5.1-channel, S/PDIF Out
- LAN
- Realtek 5GbE (LAN1) + Realtek 10GbE (LAN2)
- Wireless

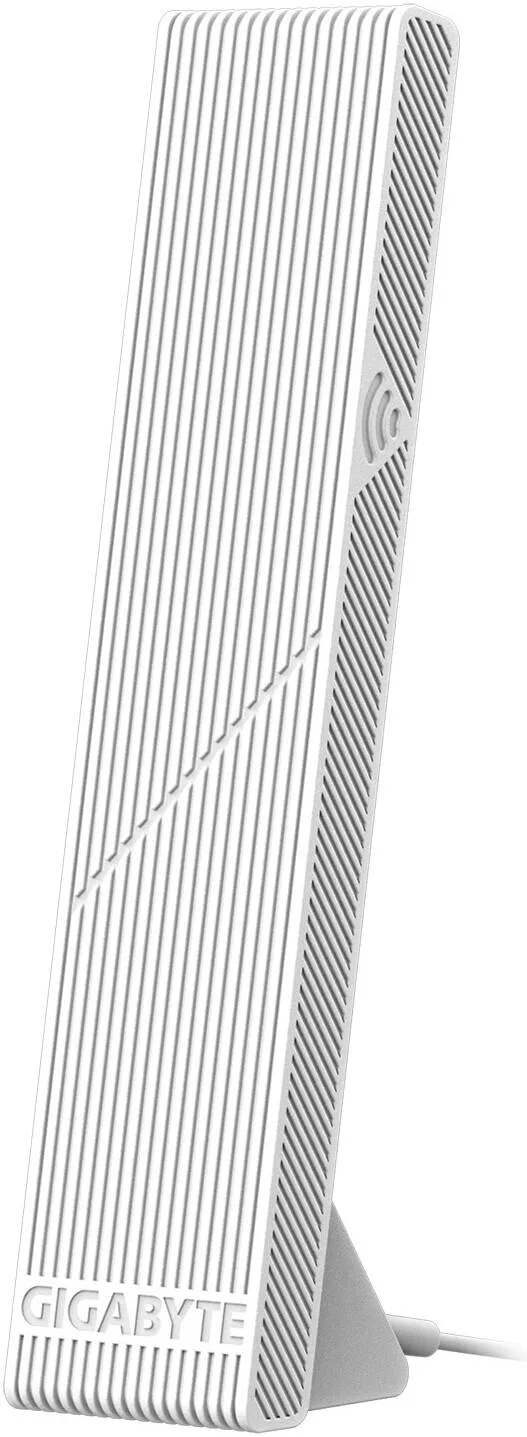

- MediaTek Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be), Bluetooth 5.4
- Expansion Slots
- 1× PCIe x16 (PCIe 5.0/4.0), 1× PCIe x8 (CPU), 1× PCIe 4.0 x4 (chipset)
- Storage
- 5× M.2 (PCIe 5.0 / 4.0), 2× SATA 6 Gb/s
- RAID
- NVMe: 0/1/5/10 (RAID 5 Ryzen 9000 only); SATA: 0/1
- USB (Rear)
- 2× USB4 Type-C, 2× USB-C (Gen2 & Gen2x2), 7× USB-A 3.2 Gen2
- USB (Internal)
- USB-C Gen2x2 (65W PD), 2× USB 3.2 Gen1 headers, 2× USB 2.0 headers
- Internal Connectors
- ATX 24-pin, 2× 8-pin CPU, PCIe power, fan/pump headers, RGB headers, TPM, sensors

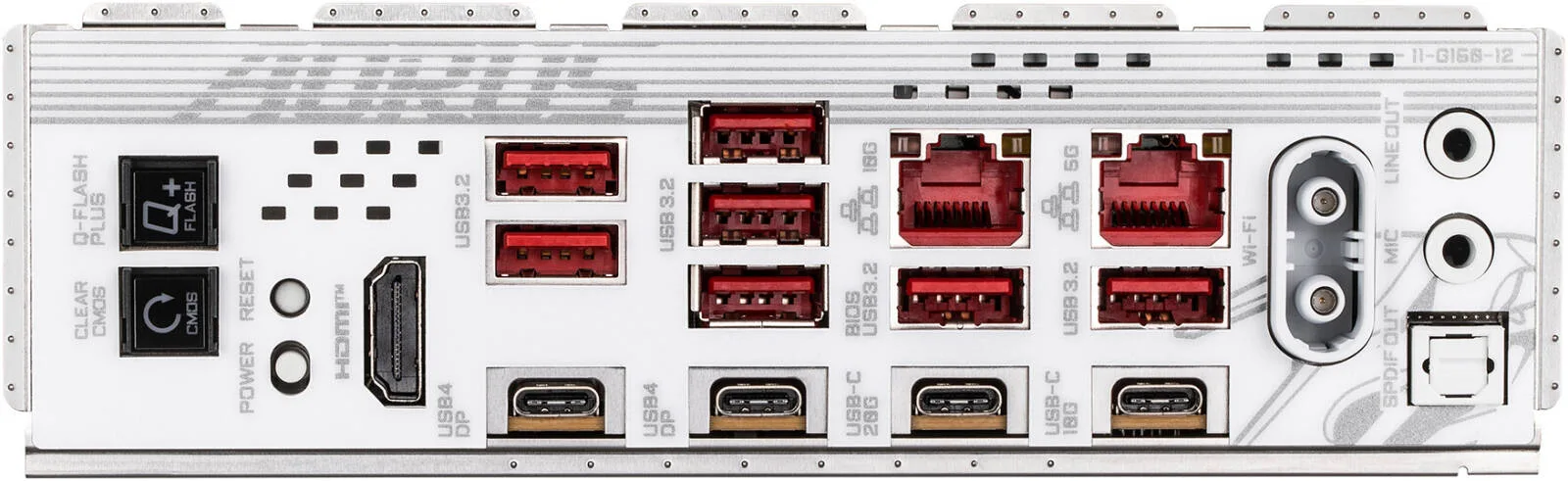

- Back Panel I/O
- HDMI, USB4, USB-C, USB-A, 2× RJ-45, Wi-Fi antenna, audio jacks, Optical S/PDIF
- Monitoring
- Voltage, temperature, fan & pump speed, noise detection
- BIOS
- 512 Mbit AMI UEFI
- Special Features
- Q-Flash Plus, Clear CMOS, Smart Fan, Noise Detection
- Operating System
- Windows 11 64-bit
5.01 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Oliver W. Used for: 3–6 months
Pros
White boards usually cost more and look worse, this one does neither
Cons
White cables are on you, and they are not cheap
Comment
Built a white themed machine around this and it is the first white board I have seen where the finish is consistent, no grey plastic pretending to match. Beyond the looks it is a proper Master board underneath, VRM in the low forties with a 9800X3D, memory at 6000 on the first boot, four M.2 slots with tool free heatsinks. Four months of use and the white has not yellowed anywhere near the VRM, which was my one worry. Worth saying that the aesthetic gets expensive quickly. Once the board is white, every cable and fan you own suddenly looks wrong.
