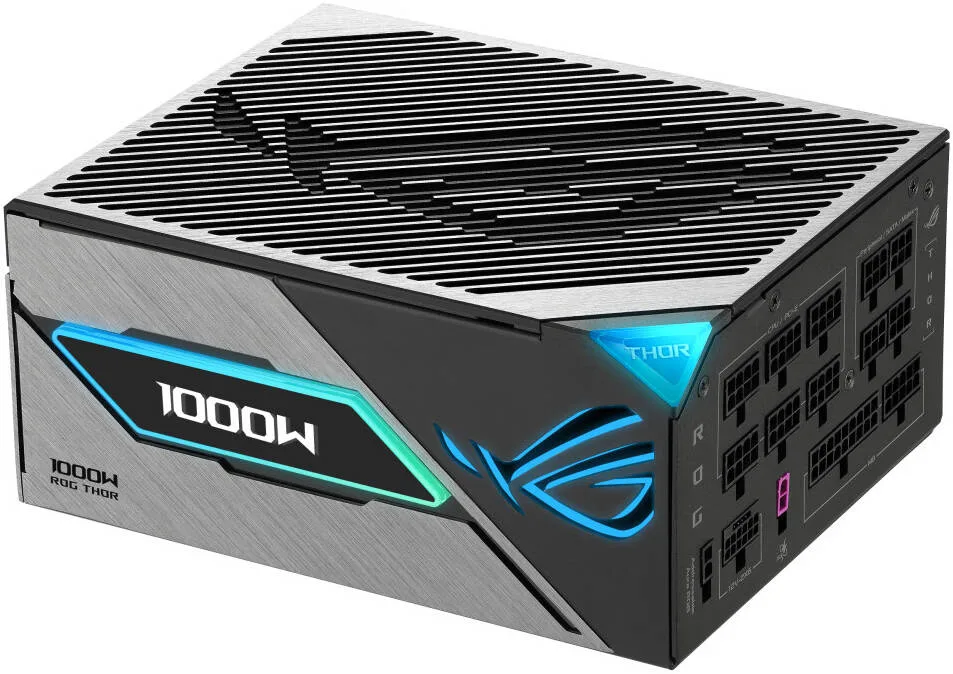

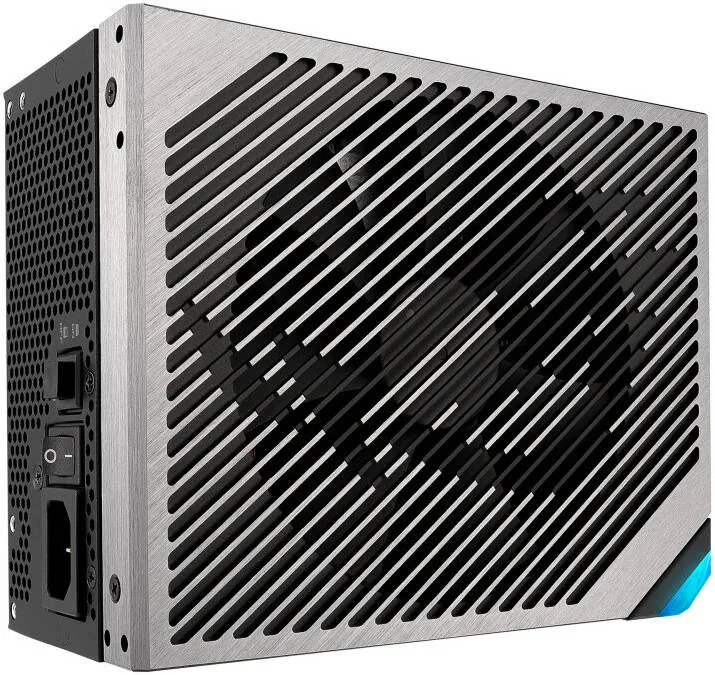

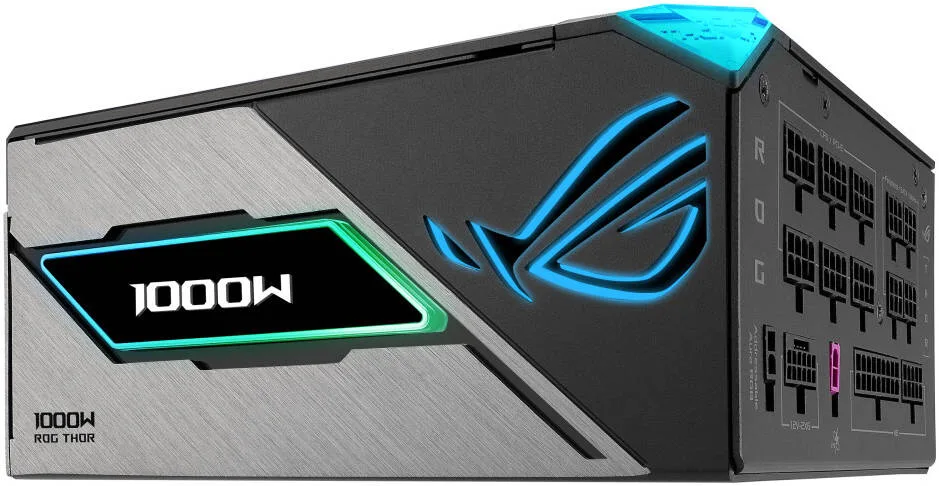

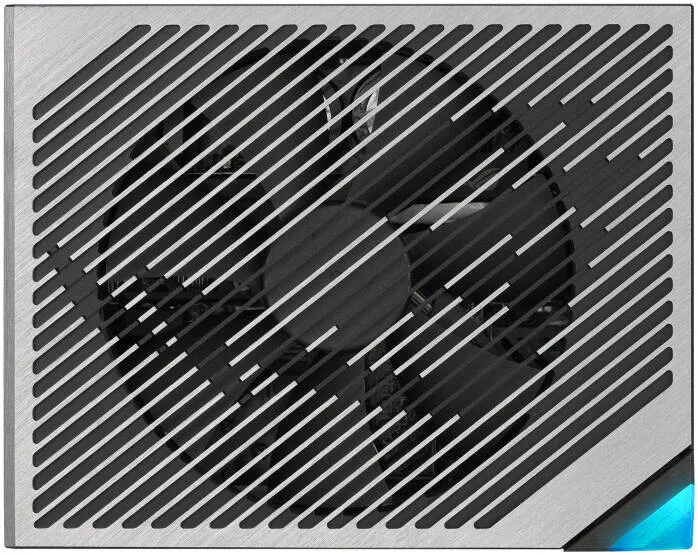

ASUS ROG Thor 1000W Platinum III Fully Modular Power Supply, 1000W Power, 80 Plus Platinum Efficiency, Dual-ball-fan bearings, ARGB Aura Sync, Active PFC, ATX 3.1, Black
- GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation.
- "GPU-First" voltage sensing with patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance.

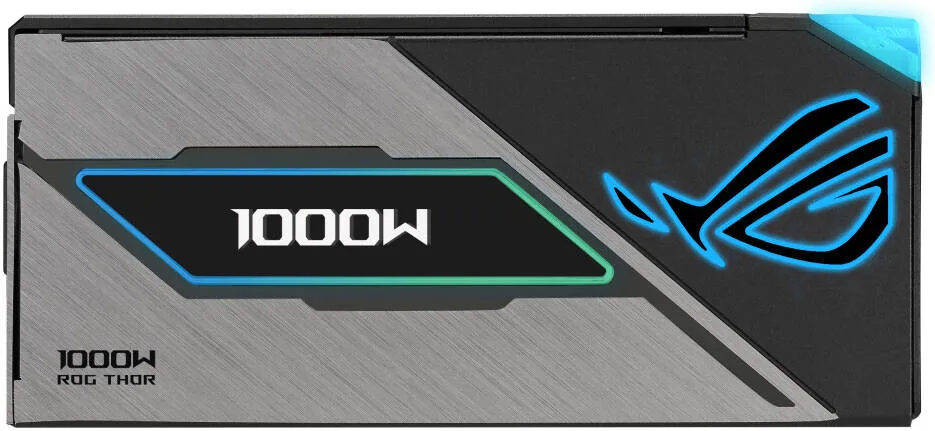

- Magnetic OLED display shows a real-time power draw and can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- Black
- Power
- 1000 W
- Modular
- Full Modular
- Efficiency
- 80 Plus Platinum
- Form factor
- ATX
Details
- Shipping Weight
- 4.95 Kg
- Shipping Dimensions
- 13.00 cm x 38.00 cm x 24.00 cm
- PFC
- Active
- Fanless
- No
- Length
- 190 mm
- Main Connectors
- 1 x 24 pin (20+4) ATX
- EPS/CPU Connectors
- 2 x 8 pin (4+4) EPS (CPU)
- SATA Power Connectors
- 7
- Molex Connectors
- 6
- PCIe 6-Pin Connectors
- 0
- PCIe 6+2-Pin Connectors
- 4
- PCIe 8-Pin Connectors
- 0
- PCIe 12-Pin Connectors
- 0
- PCIe 12+4-Pin 12VHPWR Connectors
- 1
- PFC Type
- Active PFC
- ATX Standard
- ATX 3.1
- Dimensions
- 190 × 150 × 86 mm
- MTBF
- >120000 hrs @ 25°C
- Protection Features
- OPP, OVP, UVP, SCP, OCP, OTP
- Hazardous Materials
- ROHS
- AC Input Range
- 100–240 Vac
- DC Output Voltage
- +3.3V, +5V, +12V, -12V, +5Vsb
- Maximum Load
- 30A, 25A, 83.33A, 0.3A, 3A
- Combined Load
- 125W, 125W, 1000W, 3.6W, 15W
- Total Output
- 1000 W
- Cable Connectors
- MB 24/20-pin ×1CPU 4+4-pin ×2PCI-E 16-pin ×1PCI-E 6+2-pin ×4SATA ×7PERIPHERAL ×6

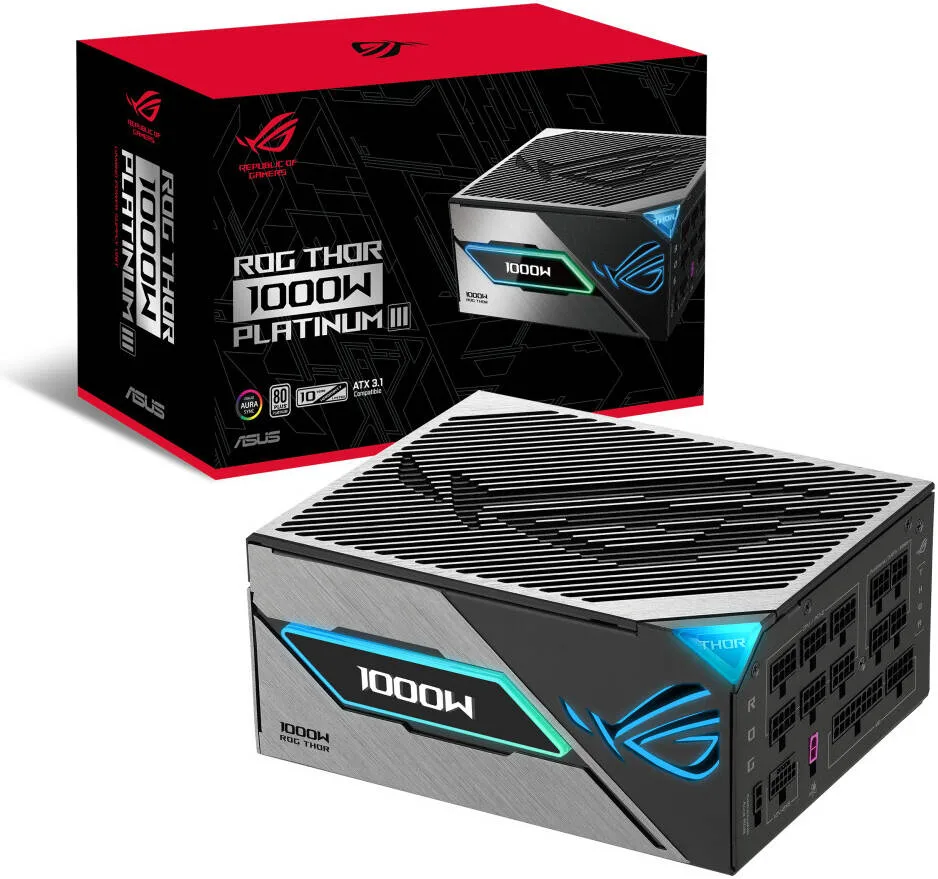

- Package Contents
- Power Cord ×1Motherboard Power Cable ×1 (610 mm)CPU Cable ×2 (1000 mm)PCI-E Gen 5.1 16-pin Cable ×1 (750 mm)PCI-E Cable 1-to-1 ×4 (750 mm)SATA Cable 1-to-4 ×1 (400+120+120+120 mm)SATA Cable 1-to-3 ×1 (400+120+120 mm)Peripheral 1-to-3 ×2 (400+150+150 mm)Addressable RGB Cable ×1 (800 mm)ROG Sticker ×1ROG Cable Tie ×6Chassis Screws Package ×1Cable Tie ×12User Manual ×1
- Weight
- 2.37 kg
- AURA SYNC
- ARGB
- Cybenetics Noise Level Certification
- A++
- 0dB Technology
- Supported – fan shuts off under certain load
- 0dB Fan Button
- Yes – ON: fan spins only at higher loads, OFF: fan spins at all loads
