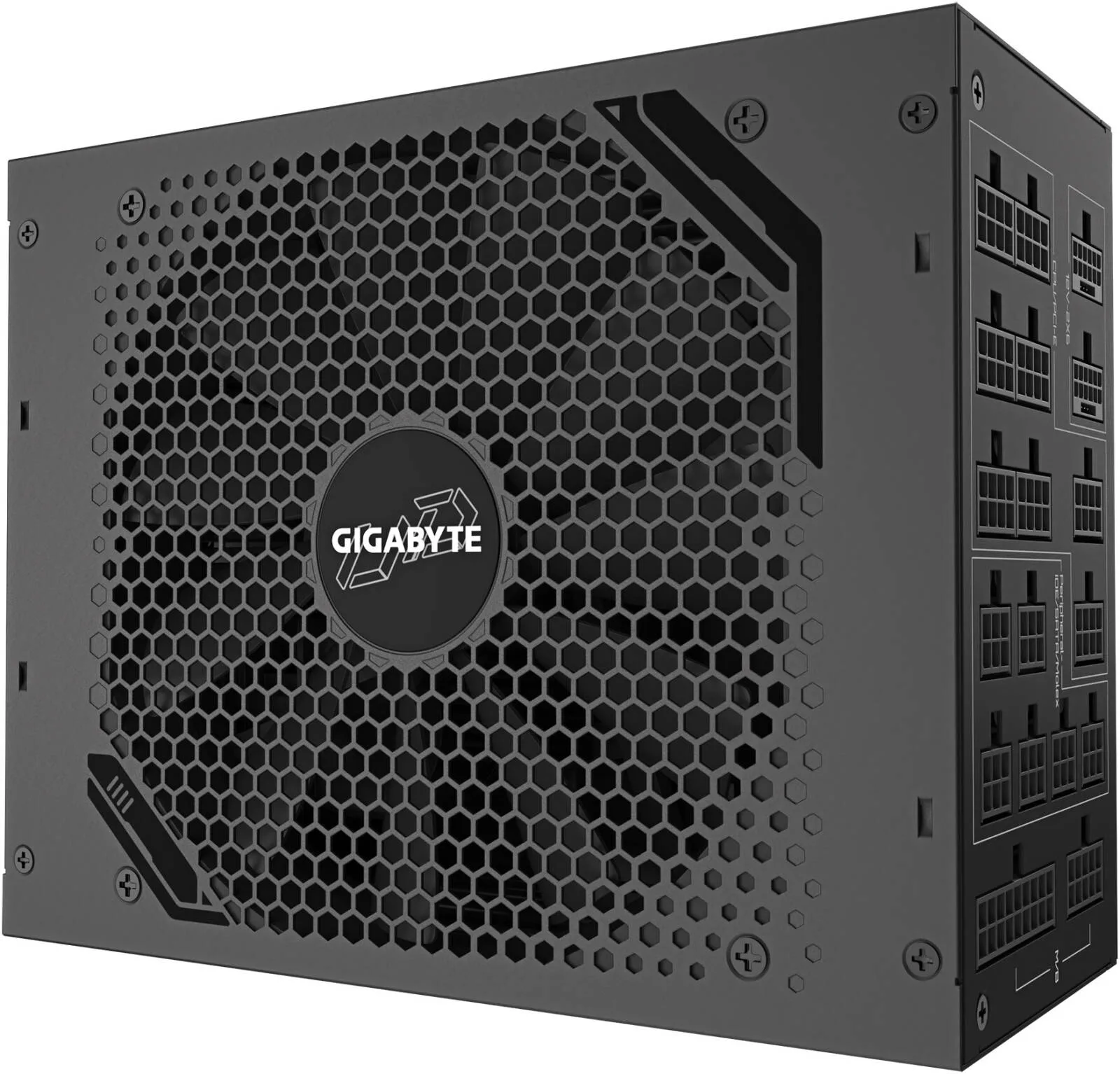

GIGABYTE UD1600PM PG5 AI TOP Fully Modular Power Suppler, 1600W Power, 80 PLUS Platinum Efficiency, 140mm Double Ball Bearing Fan, ATX 12V v3.1, PCIe Gen 5.0, Black
- 16-pin PCIe cable * 4 support PCIe Gen 5.0 graphic cards
- ATX 3.1 and PCIe Gen 5.0 ready
- Server-grade Ultra Durable
- Main Japanese capacitors
- Enhanced thermal solution
- 140mm smart double ball bearing fan
- OVP/OPP/SCP/UVP/OCP/OTP protection
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- Black
- Power
- 1600 W
- Modular
- Full Modular
- Efficiency
- 80 Plus Platinum
- Form factor
- ATX
Details
- Shipping Weight
- 4.80 Kg
- Shipping Dimensions
- 14.50 cm x 41.00 cm x 22.00 cm
- PFC
- Active
- Fanless
- No
- Length
- 190 mm

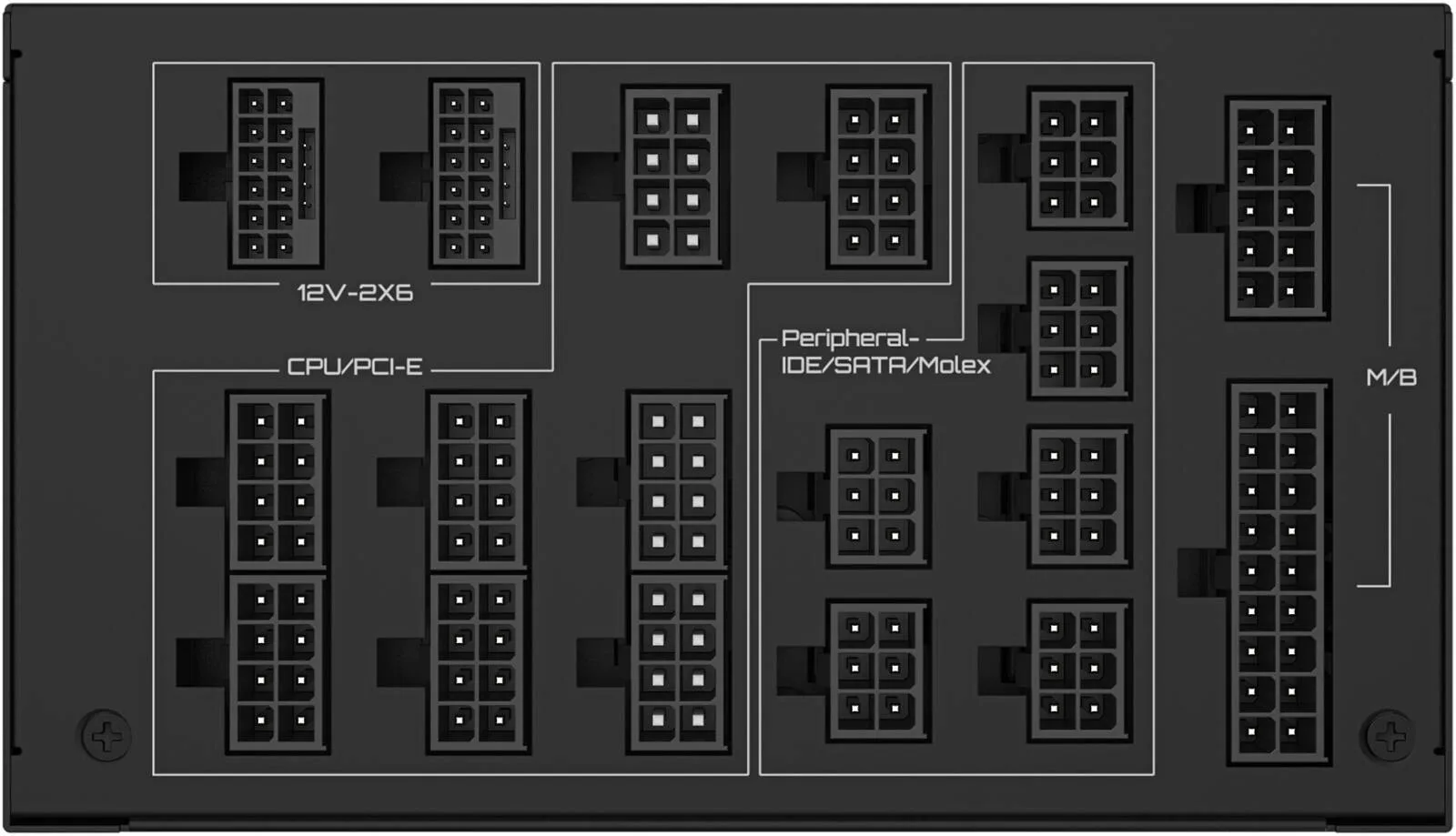

- Main Connectors
- 1 x 24 pin (20+4) ATX
- EPS/CPU Connectors
- 2 x 8 pin (4+4) EPS (CPU)
- SATA Power Connectors
- 16
- Molex Connectors
- 6
- PCIe 6-Pin Connectors
- 0
- PCIe 6+2-Pin Connectors
- 8
- PCIe 8-Pin Connectors
- 0
- PCIe 12-Pin Connectors
- 2
- PCIe 12+4-Pin 12VHPWR Connectors
- 2
- Type
- Intel Form Factor ATX 12V v3.1
- Input Voltage
- 100-240 Vac (full range)
- Input Current
- 15-7.5A
- Input Frequency
- 60-50 Hz
- Output Capacity
- 1600 W
- Dimension
- 150 x 190 x 86 mm
- Fan Type
- 140mm Double Ball Bearing Fan
- 80 PLUS Certification
- Platinum
- MTBF
- >100000 hours
- Protection
- OVP/OPP/SCP/UVP/OCP/OTP
- Power Good Signal
- 100-150 ms
- Hold Up Time
- >16 ms
- Cable Type
- Flat, All black
- Connectors
- - ATX/MB 20+4 Pin x 1: 610mm
