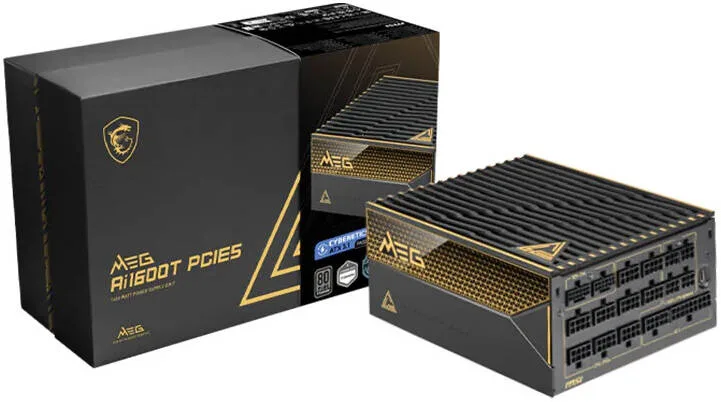

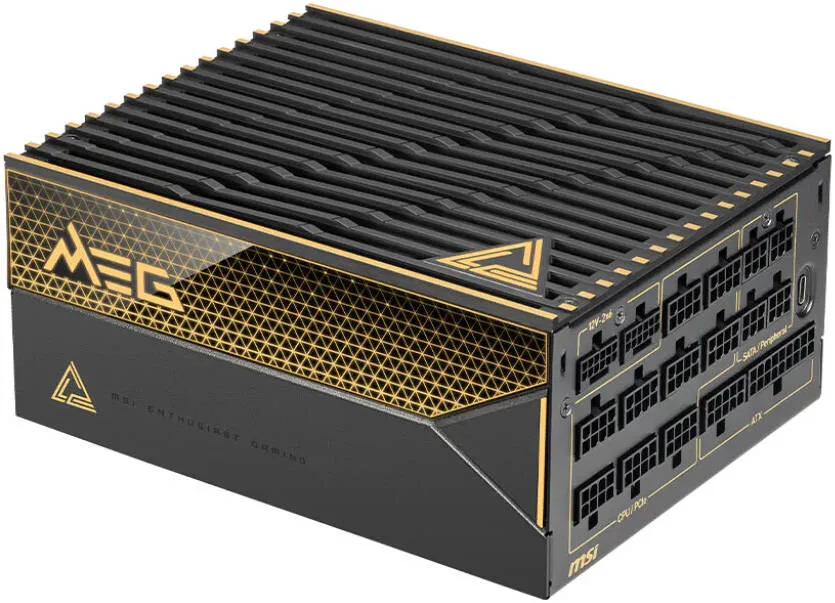

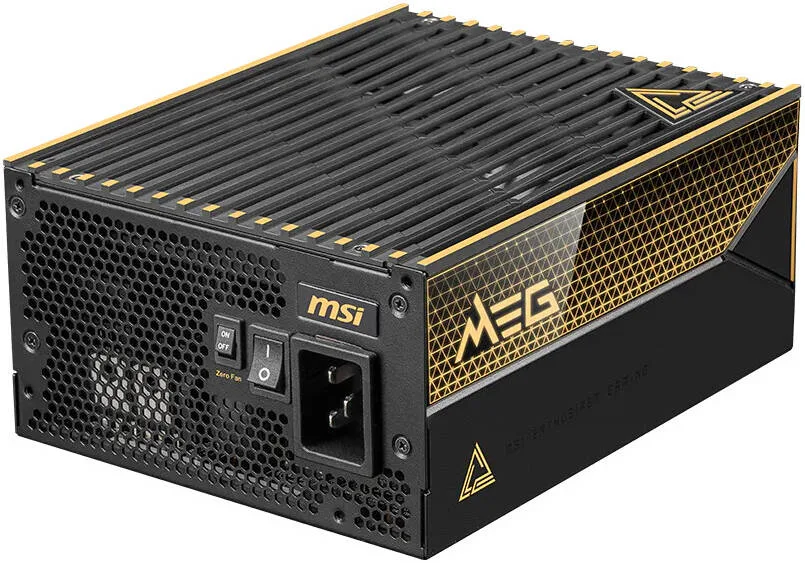

MSI MEG Ai1600T PCIE5 Fully Modular Power Supply, 1600W Power, 80 PLUS Titanium Efficiency, Double Ball Bearing, Interleaved PFC, Black
- Supports Nvidia® GeForce RTXTM 50 Series graphics cards
- Dual-native 12V-2x6 Connectors
- Server-grade materials, SiC interleaved PFC MOSFET
- Tri-certified Titanium certification (80 PLUS / Cybenetics / PPLP)
- PCIe 5.1 and ATX 3.1 Ready
- Dual-color 12V-2x6 cables
- 100% all Japanese 105oC capacitor
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- Black
- Power
- 1600 W
- Modular
- Full Modular
- Efficiency
- 80 Plus Titanium
- Form factor
- ATX
Details
- Shipping Weight
- 6.00 Kg
- Shipping Dimensions
- 25.00 cm x 39.00 cm x 15.00 cm
- PFC
- Active
- Fanless
- No
- Length
- 190 mm
- Main Connectors
- 1 x 24 pin ATX
- EPS/CPU Connectors
- 2 x 8 pin (4+4) EPS (CPU)
- SATA Power Connectors
- 8
- Molex Connectors
- 8
- PCIe 6-Pin Connectors
- 0
- PCIe 6+2-Pin Connectors
- 9
- PCIe 8-Pin Connectors
- 0
- PCIe 12-Pin Connectors
- 0
- PCIe 12+4-Pin 12VHPWR Connectors
- 2
- Efficiency Rating
- 80 PLUS Titanium (up to 94%)

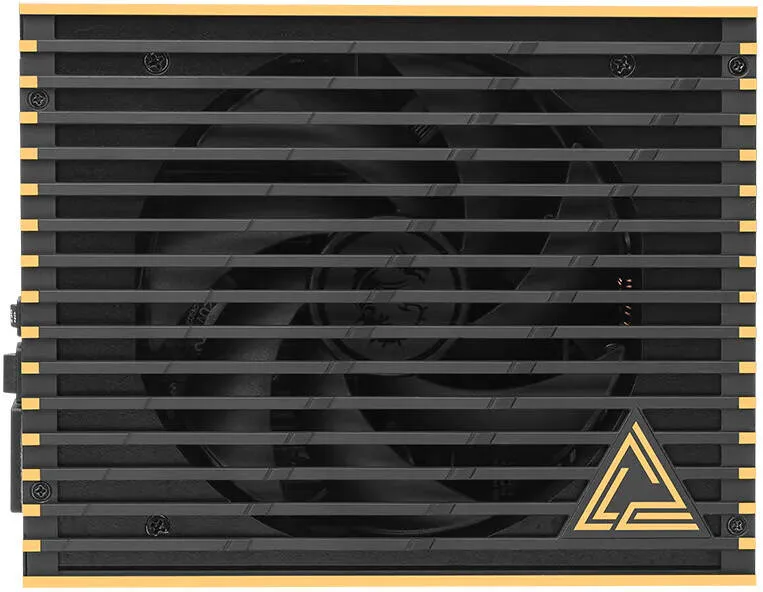

- Fan Size
- 135 mm
- Fan Bearing
- Double Ball Bearing
- Dimensions (D×W×H)
- 190 × 150 × 86 mm
- PFC Type
- Interleaved PFC
- Input Voltage Range
- 100–240 V
- Power Watt
- 1600 W
- Power Excursion
- 3840 W (up to 240% for 100 μs)
- Input Frequency Range
- 50–60 Hz
- Protection
- OCP / OTP / OPP / SCP / OVP / UVP / SIP / NLO

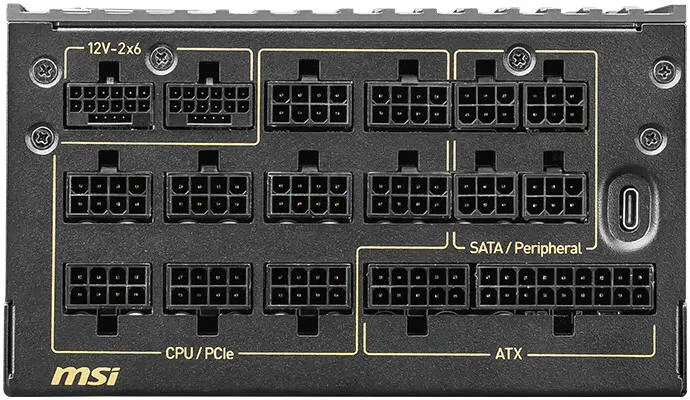

- ATX (24-pin)
- 1
- EPS (4+4 pin)
- 2
- PCI-E 5.1 (16 pin)
- 2 (600 W)
- PCI-E (6+2 pin)
- 9
- SATA (15 pin)
- 8
- Peripheral (4 pin)
- 8
4.77 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Henry A. Used for: Less than a month
Pros
Fan does not turn at all in normal use
Cons
Monitoring wants a spare USB header
Comment
Fresh build, first boot, no drama. The zero RPM mode means the loudest thing in the case is a hard drive I should have replaced years ago!
Maya C. Used for: 3–6 months
Cons
Needs 40mm of clearance behind it for the leads to turn
Comment
Long review because there is one thing worth warning about. The unit is 180mm deep. That is fine on paper, but with the flat cables plugged in you need another 40mm behind it before the leads will turn, and in a mid tower that is 40mm you do not have. I ended up cutting away part of the PSU shroud to get the 24 pin to sit flat. Measure properly, not from the spec sheet. Electrically it has been superb. A 9950X and a 5090 together peak somewhere around 850W by my meter and the unit does not care, no droop, no fan, no whine at any load I can generate. The monitoring software is also better than I expected, though it wants a USB header you may not have spare. Five months on, no drift, no noise, nothing to report.
Florence H. Used for: 3–6 months
Pros
Two native 12V-2x6 sockets, no adapters
Cons
Flat cables crease rather than bend
Comment
Two native 12V-2x6 sockets on the unit itself, which is why I chose it over the ASUS. No adapter octopus behind the card any more, just one clean lead. Handles a 5090 with the fan sitting still most of the time. Four months in and it has not once made itself heard.
Willow N. Used for: 1–3 months
Pros
Draw graphs in the software are oddly addictive
Cons
Big unit for a mid tower
Comment
Runs a 4090 and a heavily overclocked 13900K off one unit with room to spare, and the software graph showing draw against time is oddly addictive. Cable quality is a step up from the MAG line.
Freddie P. Used for: 6–12 months
Pros
Genuinely silent, even a foot away
Cons
Lighting is minimal if you care about that
Comment
Machine sits under the desk about a foot from my leg and I have never once identified a sound coming from the supply. No whine, no click on shutdown, nothing.
Jack H. Used for: 3–6 months
Pros
Wall meter agrees with the software readout
Cons
Flat cables kink if you bend them tight
Comment
The electrical side is beyond reproach. My wall meter reads 640W at the socket for a machine the software says is drawing 615, which is about what TITANIUM promises. Fan stays off below roughly 700W and I have never once heard it in a normal evening. The cables are the weak point. They are flat ribbon style, which routes beautifully in a straight run but will not take a tight bend without kinking.
Louie D. Used for: 3–6 months
Comment
Titanium rated, dead silent, and it swallowed a 5090 transient spike that made my old unit sulk
