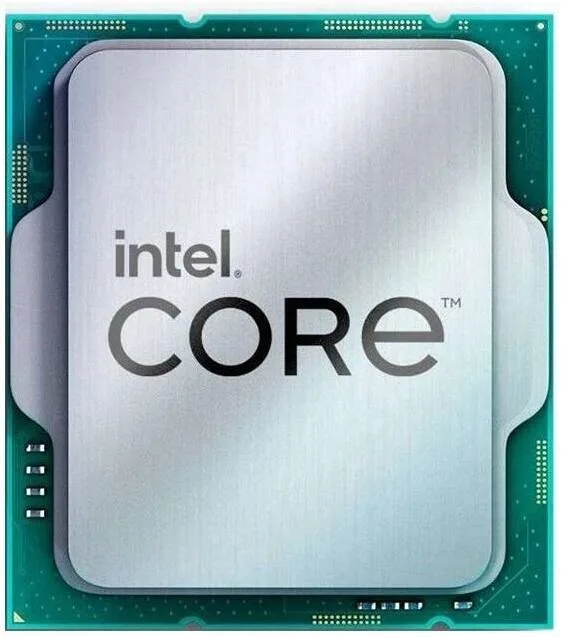

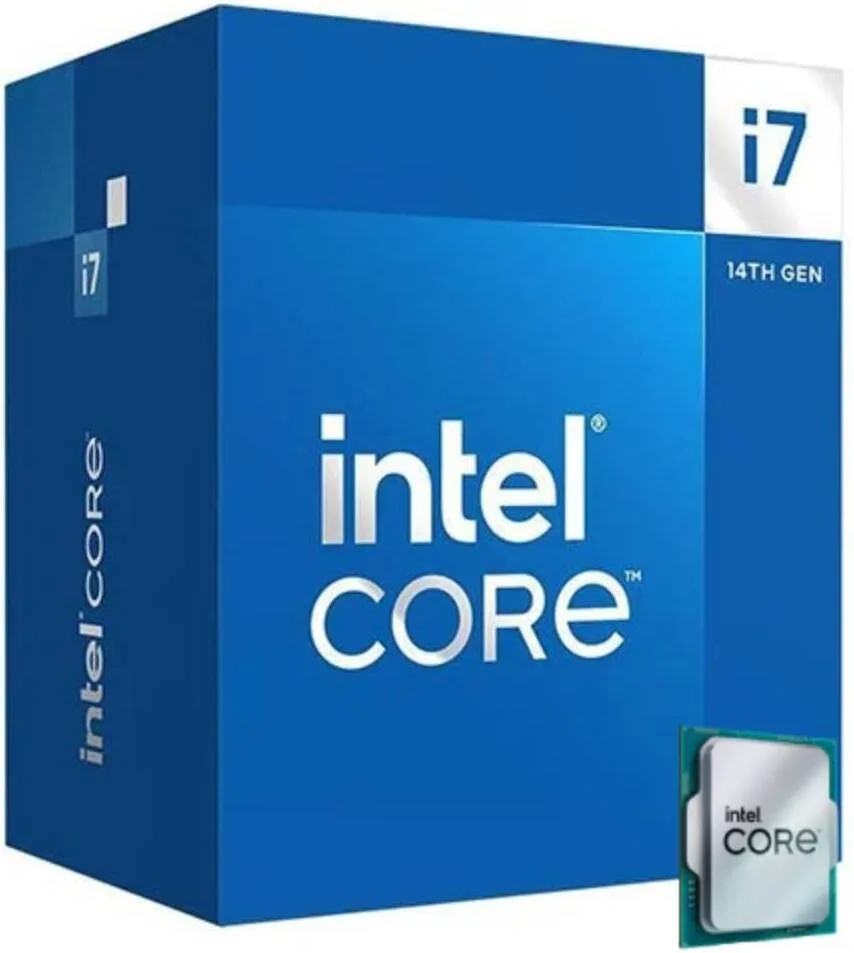

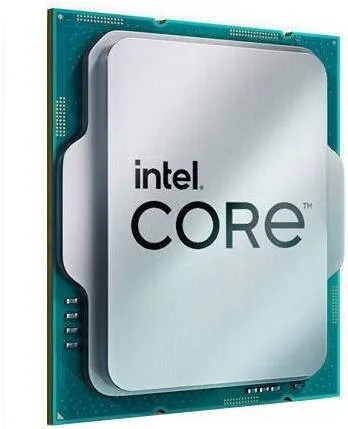

Intel Core i7-14700 2.1GHz LGA1700 Desktop Processor, 20 Core & 28 Threads, 5.4 GHz Max Turbo Boost, 33MB Cache, Integrated Intel UHD Graphics 770, 2CH DDR5 Memory / 192GB Max
- Intel Core i7-14700
- Features
- 20 Cores and 28 Threads
- 2.1 GHz Base P-Core Clock Speed
- 5.4 GHz Maximum Turbo Boost Frequency
- LGA 1700 Socket
- 33MB of cache memory
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Series
- Intel Core i7
- Cooling device
- Heatsink and fan included
- Cpu socket type
- Socket 1700
- Number of cores
- 20-Cores
- Integrated graphics
- Intel UHD Graphics 770
Details
- Shipping Weight
- 0.35 Kg
- Shipping Dimensions
- 8.00 cm x 11.00 cm x 12.50 cm
- Core Family
- i7
- Number of Threads
- 28
- L2 Cache
- 28 MB
- L3 Cache
- 33 MB
- Max Number of PCI Express Lanes
- 20
- TDP
- 65 W
- Manufacturing Technology
- 10 nm
- Virtualization Technology Support
- Yes
- Hyper Threading Support
- Yes
- Maximum Supported Memory
- 192 GB
- ECC Memory Supported
- Yes
- Total Cores
- 20
- # of Performance-cores
- 8
- # of Efficient-cores
- 12
- Total Threads
- 28
- Max Turbo Frequency
- 5.4 GHz
- Turbo Boost Max Technology 3.0 Frequency
- 5.4 GHz
- Performance-core Max Turbo Frequency
- 5.3 GHz
- Efficient-core Max Turbo Frequency
- 4.2 GHz
- Performance-core Base Frequency
- 2.1 GHz
- Efficient-core Base Frequency
- 1.5 GHz
- Cache
- 33 MB Intel Smart Cache
- Total L2 Cache
- 28 MB
- Processor Base Power
- 65 W
- Maximum Turbo Power
- 219 W
- Marketing Status
- Launched
- Launch Date
- Q1'24
- Embedded Options Available
- Yes
- Max Memory Size (dependent on memory type)
- 192 GB
- Memory Types
- Up to DDR5 5600 MT/s
- Max # of Memory Channels
- 2
- Max Memory Bandwidth
- 89.6 GB/s
- GPU Name
- Intel UHD Graphics 770
- Graphics Base Frequency
- 300 GHz
- Graphics Max Dynamic Frequency
- 1.6 GHz
- Graphics Output
- eDP 1.4b, DP 1.4a, HDMI 2.1
- Execution Units
- 32
- Max Resolution (HDMI)
- 4096 x 2160 @ 60Hz
- Max Resolution (DP)
- 7680 x 4320 @ 60Hz
- Max Resolution (eDP - Integrated Flat Panel)
- 5120 x 3200 @ 120Hz
- DirectX Support
- 12
- OpenGL Support
- 4.5
- OpenCL Support
- 3.0
- Multi-Format Codec Engines
- 2
- Intel Quick Sync Video
- Yes
- Intel Clear Video HD Technology
- Yes
- # of Displays Supported
- 4
- Device ID
- 0xA780
- DMI Revision
- 4.0
- Max # of DMI Lanes
- 8
- Scalability
- 1S Only
- PCI Express Revision
- 5.0 and 4.0
- PCI Express Configurations
- Up to 1x16+4, 2x8+4
- Max # of PCI Express Lanes
- 20
- Sockets Supported
- FCLGA1700
- Max CPU Configuration
- 1
- Thermal Solution Specification
- PCG 2020C
- TJUNCTION
- 100°C
- Package Size
- 45.0 mm x 37.5 mm
- Intel Gaussian & Neural Accelerator
- 3.0
- Intel Thread Director
- Yes
- Intel Deep Learning Boost (Intel DL Boost)
- Yes
- Intel Speed Shift Technology
- Yes
- Intel Turbo Boost Max Technology 3.0
- Yes
- Intel Turbo Boost Technology
- 2.0
- Intel Hyper-Threading Technology
- Yes
- Intel 64
- Yes
- Instruction Set
- 64-bit
- Instruction Set Extensions
- Intel SSE4.1, Intel SSE4.2, Intel AVX2
- Idle States
- Yes
- Enhanced Intel SpeedStep Technology
- Yes
- Thermal Monitoring Technologies
- Yes
- Intel Volume Management Device (VMD)
- Yes
- Intel Standard Manageability (ISM)
- Yes
- Intel Control-Flow Enforcement Technology
- Yes
- Intel AES New Instructions
- Yes
- Secure Key
- Yes
- Intel OS Guard
- Yes
- Execute Disable Bit
- Yes
- Intel Boot Guard
- Yes
- Mode-based Execute Control (MBEC)
- Yes
- Intel Virtualization Technology (VT-x)
- Yes
- Intel Virtualization Technology for Directed I/O (VT-d)
- Yes
- Intel VT-x with Extended Page Tables (EPT)
- Yes
