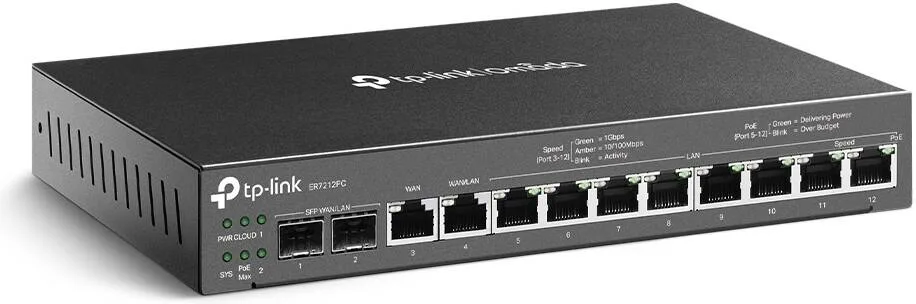

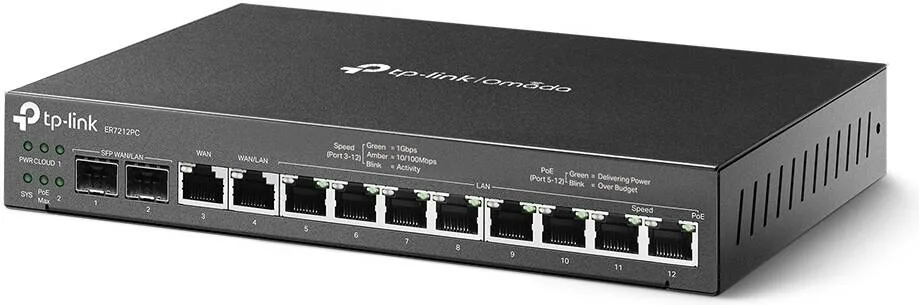

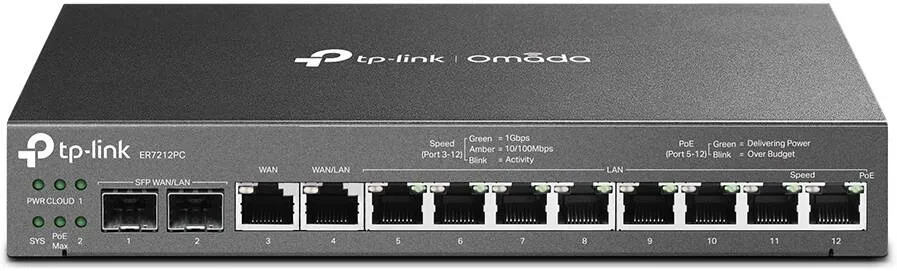

TP-Link ER7212PC Omada 3-in-1 Gigabit VPN Router, Up to 4 WAN Ports, 110W PoE Budget, High-Security VPN, Fanless Design, URL Filtering, Black
TP-LINK
- Omada 3-in-1 Gigabit VPN Router
- Key Features
- 3-in-1 Router: Integrates router, PoE+ output, and Omada centralized management ability altogether. Up to 10 EAPs can be centrally managed.
- Professional Hardware: Dual-Core CPU with 1GB DDR3 memory provides stellar performance for up to 12× Gigabit ports.
- Up to 4× WAN Ethernet Ports: Equipped with 2× Gigabit SFP WAN/LAN ports, 1× Gigabit RJ45 WAN port, and 1× Gigabit RJ45 WAN/LAN port.
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- Black
Details
- Shipping Weight
- 1.95 Kg
- Shipping Dimensions
- 7.50 cm x 38.00 cm x 23.00 cm
- Access Control
- Source/Destination IP Based Access Control
- Filtering
- URL Filtering
- Attack Defense
- TCP/UDP/ICMP Flood Defense
- Standards and Protocols
- IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
- Interface
- 2 Gigabit SFP WAN/LAN ports
- Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
- Fan Quantity
- Fanless
- Button
- Reset Button
- Power Supply
- 53.5VDC/2.43A Adapter
- PoE Budget
- 8 ports PoE+ output, 110 W PoE Budget
- Flash
- 8Mb Nor + 4 GB EMMC
- DRAM
- 1 GB DDR3
- LED
- PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
- Dimensions (W x D x H)
- 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
- Protection
- 4 kV surge protection
- Enclosure
- Steel
- Mounting
- Desktop/Wall-mount
- Max Power Consumption
- 133.2W with PoE Max
- Concurrent Session
- 24980
- New Sessions/Second
- 1900
- NAT (Static IP)
- 935.5 Mbps / 942.1 Mbps
- NAT(DHCP)
- 940.2 Mbps / 941.7 Mbps
- NAT(PPPoE)
- 913.1 Mbps / 935.2 Mbps
- NAT (L2TP)
- 545.0 Mbps / 912.7 Mbps
- NAT (PPTP)
- 523.0 Mbps / 912.8 Mbps
- IPsec VPN Throughput (AES256)
- 168.5 Mbps
- IPsec VPN Throughput
- AES256: 168.5 Mbps
- OpenVPN
- 34 Mbps
- L2TP VPN Throughput
- Unencrypted: 845.3 Mbps
- PPTP VPN Throughput
- Unencrypted: 1012.6 Mbps
- 66 Byte Packet forwarding rate
- 154069 pps / 156977 pps
- 1,518 Byte Packet forwarding rate
- 81193 pps / 81193 pps
- WAN Connection Type
- Static IP
- MAC Clone
- Modify WAN MAC Address
- DHCP
- DHCP Server
- IPv6
- Support
- VLAN
- 802.1Q VLAN
- IPTV
- IGMP v2/v3 Proxy
- ACL
- IP/Port/Protocol/Domain Name Filtering
- Advanced Routing
- Static Routing
- Bandwidth Control
- IP/Port-based Bandwidth Control
- Load Balance
- Intelligent Load Balance
- NAT
- Multi-Net NAT
- Session Limit
- IP-based Session Limit
- IPsec VPN
- 20 IPSec VPN Tunnels
- PPTP VPN
- PPTP VPN Server
- L2TP VPN
- L2TP VPN Server
- Web Authentication
- No Authentication
- Omada App
- Yes
- Centralized Management
- Management of up to 2 Omada switches, and 10 Omada access points
- Cloud Access
- Yes
- Service
- Dynamic DNS (Dyndns, No-IP)
- Maintenance
- Web Management Interface
- Zero-Touch Provisioning
- Yes. Requiring the use of Omada Cloud-Based Controller.
- Management Features
- Automatic Device Discovery
- Certification
- CE, FCC, RoHS
- Package Contents
- ER7212PC
- System Requirements
- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
- Environment
- Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
