Heritage Audio i73 PRO Edge USB-C Audio Interface, 12-In / 16-Out, Class-A 73-Style Mic Preamps, 32-bit/192kHz, DSP Mixer, Blue
- Provides up to 70 dB of gain to work with any microphone, including low-output passive ribbon microphones.

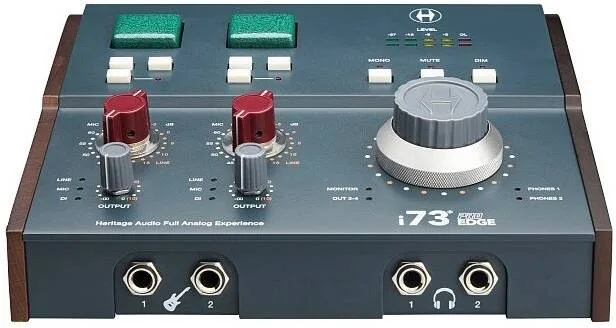

- Front panel features a dedicated Hi-Z input for connecting acoustic guitars with piezo pickups, electric guitars, bass guitars, and headphone outputs.

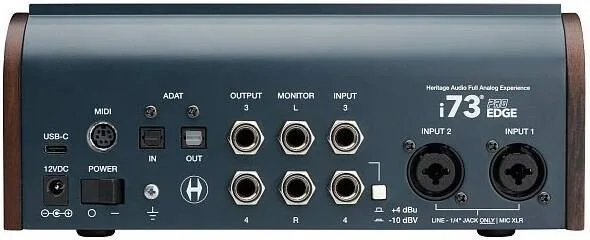

- Rear panel allows connection of various line sources via 1/4-inch XLR combo jacks.
- Built-in DSP-based virtual mixer with ultra-low latency allows flexible sound control through studio monitors or headphones, with the ability to adjust individual mixes.
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- Blue
- Connection
- USB-C
Details
- Shipping Weight
- 4.30 Kg
- Shipping Dimensions
- 30.00 cm x 46.00 cm x 16.50 cm
- Product Type
- 12-In / 16-Out USB-C Audio Interface
- Mic Preamps
- 2 × Class A 73-style preamps with up to 70 dB of gain for true studio-quality recordings
- Inputs
- 2 × Mic/Line combo XLR with dedicated JFET DI for Hi-Z instruments
- Additional Inputs
- 2 × Extra line inputs
- Outputs
- 2 × Analog stereo monitor outputs (TRS) independently controlled by Heritage Audio’s MIXER (1 mix per stereo out)
- Headphone Outputs
- 2 × Independent stereo headphone outputs with dedicated cue
- Audio Resolution
- Up to 32-bit / 192 kHz
- Phantom Power
- +48V Phantom Power
- Additional Controls
- PAD, PHASE, MONO, MUTE, DIM
- Direct Monitoring
- Real-time direct monitoring with Heritage Audio’s MIXER (unnoticeable latency)
- DSP Processing
- Full Analog Experience powered by DSP for real-time tracking processing with undetectable latency
- Included Effects
- Heritage Audio effects modeled after Heritage Audio’s own outboard and private gear collection
- Recording Modes
- Can record both WET and DRY streams from the MIXER to DAW simultaneously
- AD/DA Conversion
- Class-leading 32-bit AD/DA converters
- Digital Expansion
- Expandable over ADAT (up to 8 channels)
- MIDI Connectivity
- Mini-DIN MIDI IN/OUT connector
- Computer Connection
- USB-C (cable included)
- Design
- Classic attractive European console design
- Compatibility
- macOS (Catalina 10.15.7 or later) and Windows 10/11 — same hardware for both PC and Mac
- Mic Input Dynamic Range
- 116 dB (A-weighted)
- Gain Range
- Up to 70 dB
- Equivalent Input Noise (EIN)
- -125 dB
- Line/Instrument Dynamic Range
- 116 dB (A-weighted)
- Headphone Output Dynamic Range
- Greater than 120 dB (A-weighted)
- Monitor Output Dynamic Range
- 122 dB (A-weighted)
- Maximum Output Level
- +24.0 dBu (configurable down to +12 dBu in steps)
4.86 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Thomas C. Used for: More than a year
Pros
Still the best vocal chain I have owned
Cons
Not the interface to take to a coffee shop
Comment
It sits under the monitor and gets used on everything, vocals, bass DI, acoustic, and it flatters all of them. Nothing has drifted or gone noisy in the time I have had it, which is more than a year of fairly hard use now. The metering is the only part I ignore, though that is probably on me.
Oliver E. Used for: 1–3 months
Pros
Transformer preamps that put weight on a thin vocal without a plugin
Cons
It runs off an external supply, so it is not a laptop bag interface
Comment
Bought it as the front end for a spare room studio after years of clean, characterless preamps, and the difference is not subtle. Wind the gain past halfway and a flat condenser starts sounding like a record, with the low mids filling in and the top softening off. Worth knowing before you buy though: this is not a bus powered box. There is a mains supply, it is not tiny, and the blue chassis runs warm enough that I would not stack anything on top of it. Driver on Windows has been solid at a 128 sample buffer with a full session running, and round trip measures 6 ms which is fine for tracking. Two months in and the only thing I have not worked out is why the headphone volume is quite so fierce in the first quarter of the dial.
Arthur B. Used for: 1–3 months
Pros
The blue looks properly smart on a desk full of black boxes
Cons
Nothing on the box tells you which cable you need
Comment
Guitar into the instrument input, gain up, and it does that thick Neve thing everyone bangs on about. It really does. Never heard a DI sound like this out of a laptop interface!
Millie H. Used for: 1–3 months
Pros
Gain knobs have proper resistance, no wobble at all
Cons
The supply brick takes a second socket on the strip
Comment
It has replaced a rack of outboard and the rack has gone
Freddie L. Used for: More than a year
Pros
Two channels of proper Neve flavour for less than one channel of the real thing
Comment
Two years of vocal sessions through it and the thing has never been switched off for more than a night. The transformers do most of the work: a singer who used to need a compressor and an EQ now needs neither, because the weight is already there when the take lands. The practical notes. It wants its own mains socket, it is heavier than the photographs suggest, and the USB-C connection has been faultless on both a Mac and a PC. Buffer sits at 64 for tracking and I have never had a click. If the blue puts you off, buy it anyway.
Arthur L. Used for: Less than a month
Pros
Gain range enough for a ribbon with nothing else in the chain
Comment
Sounds like a proper studio rather than a computer accessory, which is the whole point!
