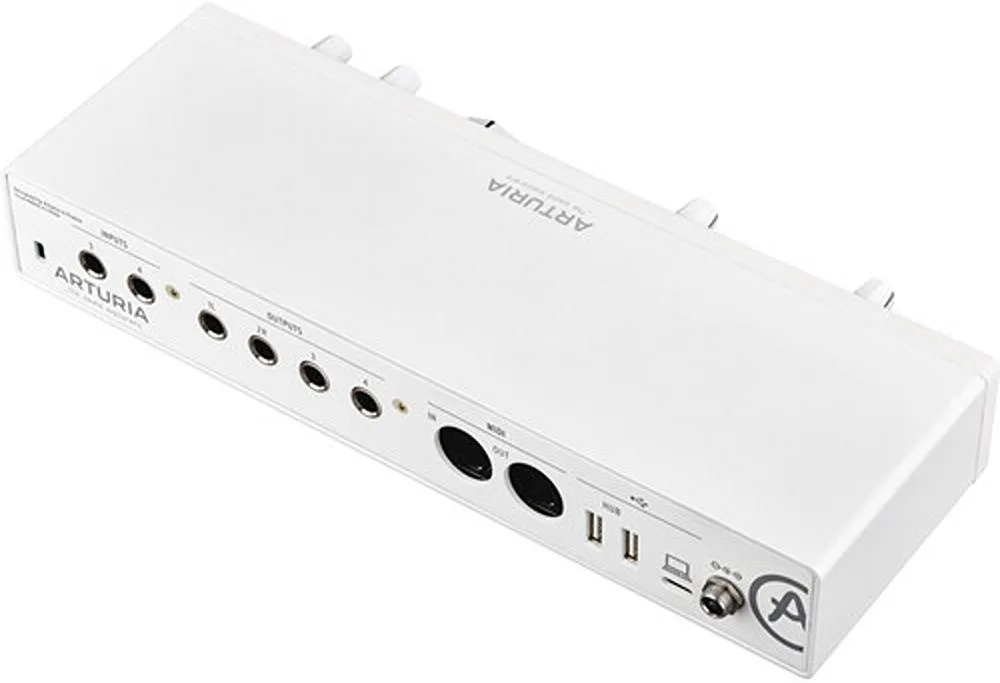

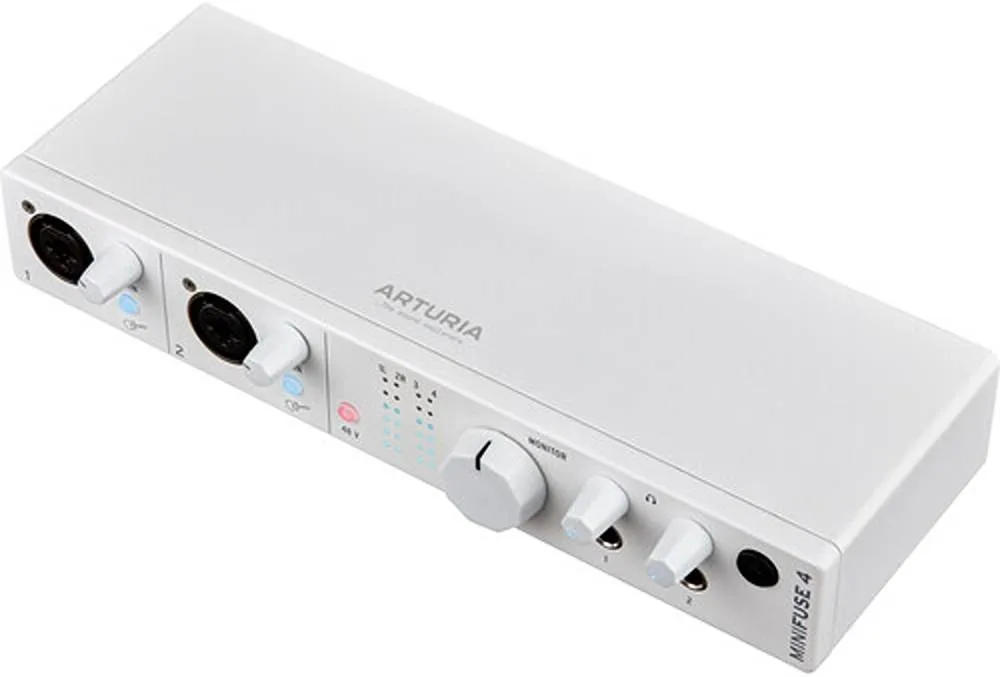

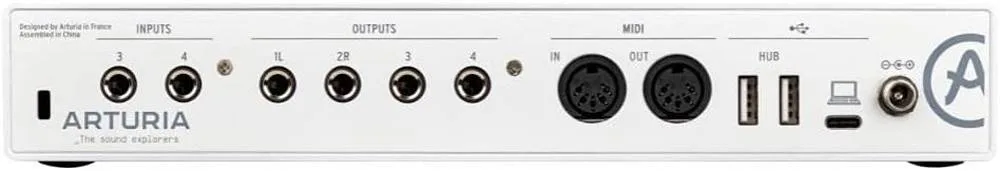

Arturia MiniFuse 4 Portable 4x4 USB Type-C Audio/MIDI Interface, 2 USB Hub For Keyboard Controllers, Phantom Power & MIDI I/O, USB Type-C, 2 Headphone Outs, 24-Bit/192 kHz Converters, White
Arturia
- Dual Combo XLR/¼″ Mic‑Inst‑Line Inputs (Phantom‑Powered) – Ideal for recording vocals, guitars, keys, or mics with clean gain control and real-time level LEDs
- Two Independent Headphone Outputs – Each with its own volume knob, perfect for collaborative sessions or performers monitoring separately
- 4x4 Audio I/O with Stereo Loopback – Supports multitrack IO while capturing computer audio for streaming, podcasting, and more
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- White
- Connection
- USB-C
Details
- Shipping Weight
- 0.90 Kg
- Shipping Dimensions
- 5.00 cm x 27.00 cm x 19.00 cm
- Form Factor
- Desktop
- Display
- 4 x Multi-Segment LED Meter
- Channels of I/O
- Analog:4 Inputs / 4 Outputs
- Built-In DSP
- None
- Maximum Sampling Rate
- 192 kHz / 24-Bit
- Number of Microphone Preamps
- 2 Preamps
- Built-In Microphone
- None
- Input Level Adjustment
- 2 x Knob
- Expansion Slots
- None
- Pad
- None
- Gain/Trim Range
- Mic/Line/Hi-Z Inputs:56 dB
- High-Pass Filter
- None
- Solo/Mute
- None
- Analog Audio I/O
- 2 x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel)2 x 1/4" TRS Balanced/Unbalanced Line Input4 x 1/4" TRS Balanced Line/Monitor Output2 x 1/4" TRS Unbalanced Headphone Output (Front Panel)
- Phantom Power
- 48 V, Selectable On/Off (Applied to All Inputs)
- Digital Audio I/O
- None
- Host Connection / USB
- 1 x USB-C
- Host Connection Protocol
- USB 2.0
- USB (Non-Host)
- 2 x USB-A (USB 2.0, Device Connection)
- Sync I/O
- None
- Network I/O
- None
- MIDI I/O
- 1 x DIN 5-Pin Input1 x DIN 5-Pin Output
- Wireless Connectivity
- None
- Frequency Response
- Mic Inputs:20 Hz to 20 kHz ±0.06 dB (Min Gain)Hi-Z Inputs:20 Hz to 20 kHz ±0.06 dB (Min Gain)Line Inputs:20 Hz to 20 kHz ±0.05 dB (Min Gain)Line Outputs:20 Hz to 20 kHz ±0.09 dBHeadphone Outputs:20 Hz to 20 kHz ±0.09 dB
- Maximum Input Level
- Mic Inputs:+9 dBuHi-Z Inputs:+11.5 dBuLine Inputs:+22 dBu
- Maximum Output Level
- Line Outputs:+12 dBuHeadphone Outputs:+11.4 dBu
- Headphone Output Power
- 137 mW into 33 Ohms
- Impedance
- Mic Inputs:2.5 KilohmsHi-Z Inputs:1 MegohmLine Inputs:16 KilohmsLine Outputs:94 OhmsHeadphone Outputs:10 Ohms
- Dynamic Range
- Mic/Line/Hi-Z Inputs:110 dB (A-Weighted)Line Outputs:107.5 dB (A-Weighted)Headphone Outputs:104 dB (A-Weighted)
- THD+N
- Mic Inputs:-100 dB (Unweighted, 1 kHz, Typical)Hi-Z Inputs:-91 dB (Unweighted, 1 kHz, Typical)Line Inputs:-100 dB (Unweighted, 1 kHz, Typical)Line Outputs:-101 dB (Unweighted, 1 kHz, Typical)
- EIN
- Mic Inputs:-129 dB A-Weighted
- Sample Rates
- 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
- Sample Rate Conversion
- None
- Bit Depths
- 24-Bit
- Sync Sources
- Internal
- Memory Card Slot
- None
