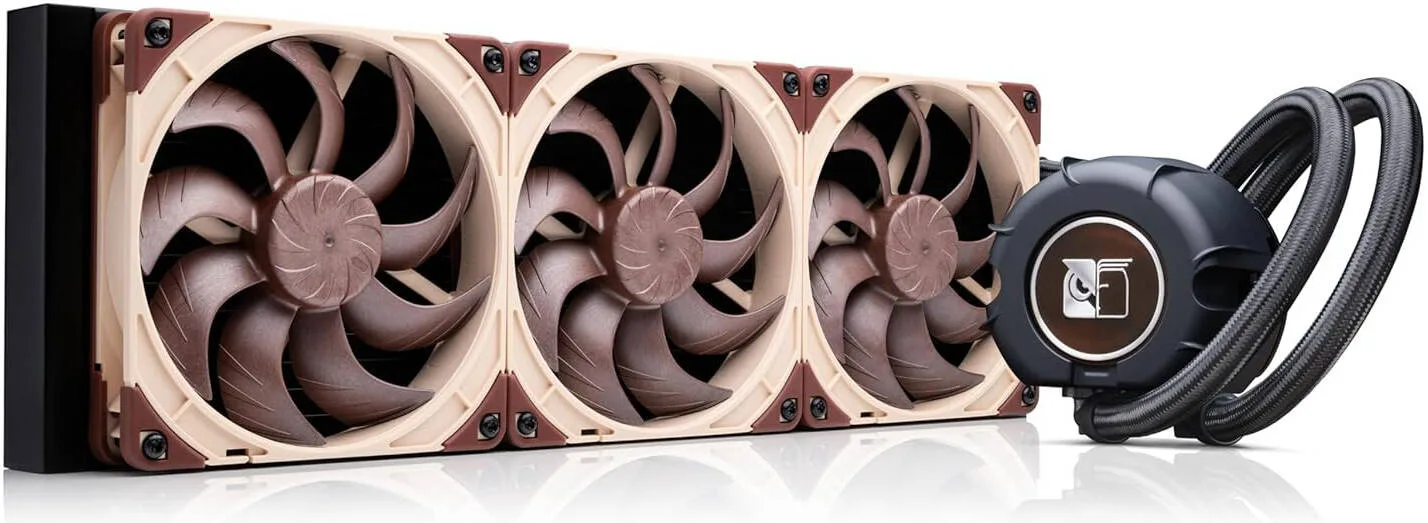

Noctua 420mm AIO Liquid CPU Cooler, Triple NF A14x25 G2 PWM Fans, Asetek Emma V2 Pump, Ultra Quiet High Performance Water Cooling, SecuFirm2 Plus Mounting, Black/Brown/Beige
- Premium quality Asetek Emma V2 closed-loop liquid cooling platform provides industry-leading thermal performance and reliability

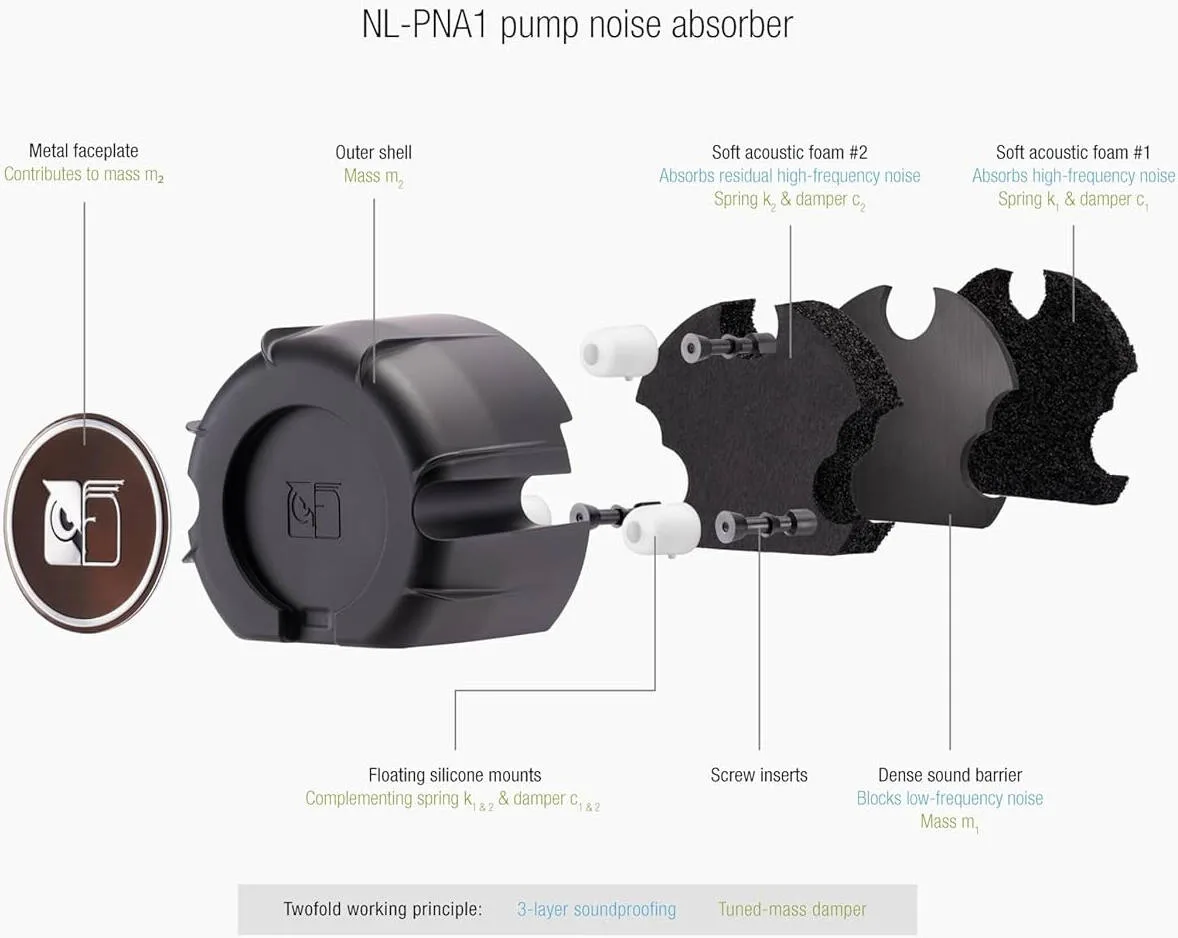

- Innovative pump noise absorber utilises a 3-layer acoustic soundproofing structure and the tuned-mass damper effect for quieter pump operation and lower vibration levels
- Extra-large 420mm size radiator and three award-winning, state-of-the-art Noctua NF-A14x25 G2 PWM 140mm fans with speed-offset for acoustic optimisation ensure cutting-edge efficiency at low noise levels – perfect for building near-silent gaming PCs or workstations
- Easy-to-install SecuFirm2 multi-socket mounting system with offset options for hotspot optimisation on AMD AM5 and Intel LGA1851, ideal for Ryzen 9800X3D, 9900X3D, 9950X3D, 9950X, Core Ultra 285K, 265K, 245K, etc.
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Led color
- No
- Cooling type
- Liquid CPU Coolers
- Radiator size
- 420 mm
Details
- Shipping Weight
- 3.65 Kg
- Shipping Dimensions
- 23.00 cm x 55.00 cm x 16.50 cm
- CPU Socket Type
- AM5 AM4 LGA 1700 LGA 1851 LGA 1954
- Color
- Brown
- Fan Airflow
- 91.58 CFM
- Fan RPM
- 1500 RPM
- Number of Fans
- 3 Fans
- Fan Size (Form Factor)
- 140 × 140 × 25 mm (Square)
- Fan Speed Range
- 0–1500 RPM
- Maximum Airflow
- 155.6 m³/h (91.58 CFM)
- Maximum Noise Level
- 24.8 dB(A)
- Maximum Static Pressure
- 2.56 mm H₂O
- Fan Rated Voltage
- 12 V
- Fan Connector
- 4-pin
- Fan Color
- Brown
- Pump Block Height
- 70 mm
- Motor Type
- Three Phase
- Impeller Type
- Centrifugal (Closed)
- Bearing
- Ceramic Sleeve and Shaft
- Pump Rated Voltage
- 12 V
- Starting Voltage
- 9.5 V
- Maximum Operating Voltage
- 13.2 V
- Maximum Input Power
- 6 W
- Typical Input Power
- 2 W
- Maximum Input Current
- 1.7 A
- Typical Input Current
- 0.5 A
- Maximum Pump Speed (Manual Mode)
- 3400 RPM
- Maximum Pump Speed (Balanced Mode)
- 2600 RPM
- Maximum Pump Speed (Quiet Mode)
- 2100 RPM
- Pump Speed @ 20% PWM
- 750 RPM
- Pump Speed @ 0% PWM
- 750 RPM
- Maximum Pump Noise (Manual Mode)
- 14.9 dB(A)
- Maximum Pump Noise (Balanced Mode)
- 7.8 dB(A)
- Pump Cable Length
- 500 mm
- Pump Connector
- 4-pin PWM
- Pin 1
- Ground (GND)
- Pin 2
- Voltage (Vcc)
- Pin 3
- RPM Signal
- Pin 4
- PWM Signal
- Cold Plate Material
- Copper CU1100 (99.95% High-Purity)
- Cold Plate Size
- 55.5 × 55.5 mm
- Cold Plate Construction
- Skived Fin Micro Channels
- Mounting System
- SecuFirm2+
- Mounting Hole Pitch
- 78 mm
- Pump Noise Absorber
- NL-PNA1
- Auxiliary Cooling Fan
- Optional (NL-ACF1)
- Coolant Composition
- 22% Propylene Glycol, 78% Water
- Coolant Protection
- Anti-Freeze, Anti-Corrosion, Anti-Biological
- Coolant Compatibility
- Non-Toxic, Electrically Conductive
- Tube Material
- EPDM (Braided)
- Tube Length
- 450 mm
- Tube Outer Diameter
- 12.5 mm
- Tube Inner Diameter
- 7 mm
- Minimum Bend Radius
- 26 mm
- Radiator Form Factor
- 420 mm
- Radiator Dimensions
- 459.5 × 143.7 × 30 mm
- Radiator Material
- Aluminium Fins, Aluminium Tubes, Steel Frame
- Fins Per Inch (FPI)
- 20
- Fan Configuration
- 3 × 140 × 140 × 25 mm
- Screw Threads
- UNC 6-32
- NSPR Rating
- 268
- CPU Performance
- See Compatibility Tab
- Operating Temperature
- 2°C to 50°C
- Safety & Compliance
- EN62368-1, CE, UKCA, REACH, RoHS
4.37 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Willow N. Used for: More than a year
Cons
Sheer size makes fitting and cleaning a chore
Comment
The cooling has been flawless throughout, so this is a review about the practicalities rather than the performance. A 420 radiator is enormous and heavy. Mine needed the front drive cage removed, it obstructs the top two motherboard headers once fitted, and cleaning the dust off means taking the front panel and the filter off rather than a quick vacuum, a job I have done four times in two years. Worth knowing before you commit, because none of it is on the box!
Ava E. Used for: 3–6 months
Comment
I have settled into a slightly awkward opinion about this cooler. It is unquestionably the best cooling I have had. A 420 radiator gives the fans so little to do that the machine is quieter under load than my last build was at idle, and after four months the temperatures never move much regardless of what I throw at it. But I keep doing the sums. What I paid would have bought a very good 360 and a graphics card upgrade, and the difference between the two coolers in real use is a handful of degrees and a bit of noise. It is the right product, bought slightly beyond the point of sense!
Harry P. Used for: Less than a month
Pros
Immaculate build quality and not an LED in sight
Comment
Fit and finish are exactly what you expect from this brand. Everything is machined properly, the fittings turn smoothly, and there is not a single LED anywhere, which was a large part of why I bought it. The mounting hardware is the best I have used, a screw down bracket that holds the block square while you tighten it rather than a spring that fights you. Cooling is excellent, obviously, with that much radiator! Nine days in and I have not found a thing to criticise.
Alfie M. Used for: Less than a month
Pros
Silence
Cons
The price
Comment
I genuinely cannot hear the machine from across the room any more
Oliver L. Used for: Less than a month
Comment
With the 420 in the front of a very large case, it does exactly what a radiator that size should. The surface area is the whole argument. A 9950X under a sustained all core load sits in the seventies with the three fans turning at a speed I have to put my ear near the mesh to hear. On a 360 in the same machine the fans were audible from the sofa. If you want a silent workstation rather than a low number on a benchmark, this is how you get there. What keeps it off five stars is what you pay and what you have to own to use it. Very few cases take a 420 at all, the ones that do are big and expensive, and the cooler itself costs more than plenty of complete systems. Brilliant, but only if the rest of your build is already at that level. A fortnight in, I have no regrets about the outlay.
Ava C. Used for: 6–12 months
Pros
Silent
Cons
Costs a fortune
Comment
Comfortably the quietest cooler I have ever owned, by some distance
Charlie K. Used for: 3–6 months
Comment
Here is the honest assessment for anyone weighing this against a normal cooler. The cooling is not four times better than a good 360, because physics does not work like that. What you actually buy is headroom, and headroom turns into silence. With this much radiator the fans sit at the bottom of their range almost permanently, so a machine that used to make a noise during a long export now makes none. My CPU under sustained load runs about six degrees cooler than it did, which is nice but not the point. What is worth criticising is fit. It needs a case built for it, a front mount rather than a roof mount in most chassis, and the tubes are stiff enough that routing them into the block took real effort. Once in, it is faultless, but the installation was the hardest of any cooler I have fitted. Coming up on six months and it has been worth the afternoon it cost me.
