ASUS Dual GeForce RTX 5070 12GB OC Graphics Card, GDDR7 192-Bit Memory, 2542 MHz Boost Clock, 6144 CUDA Cores, 28 Gbps Memory Speed, PCI Express 5.0
- ASUS Dual GeForce RTX™ 5070 combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed with a compact profile, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

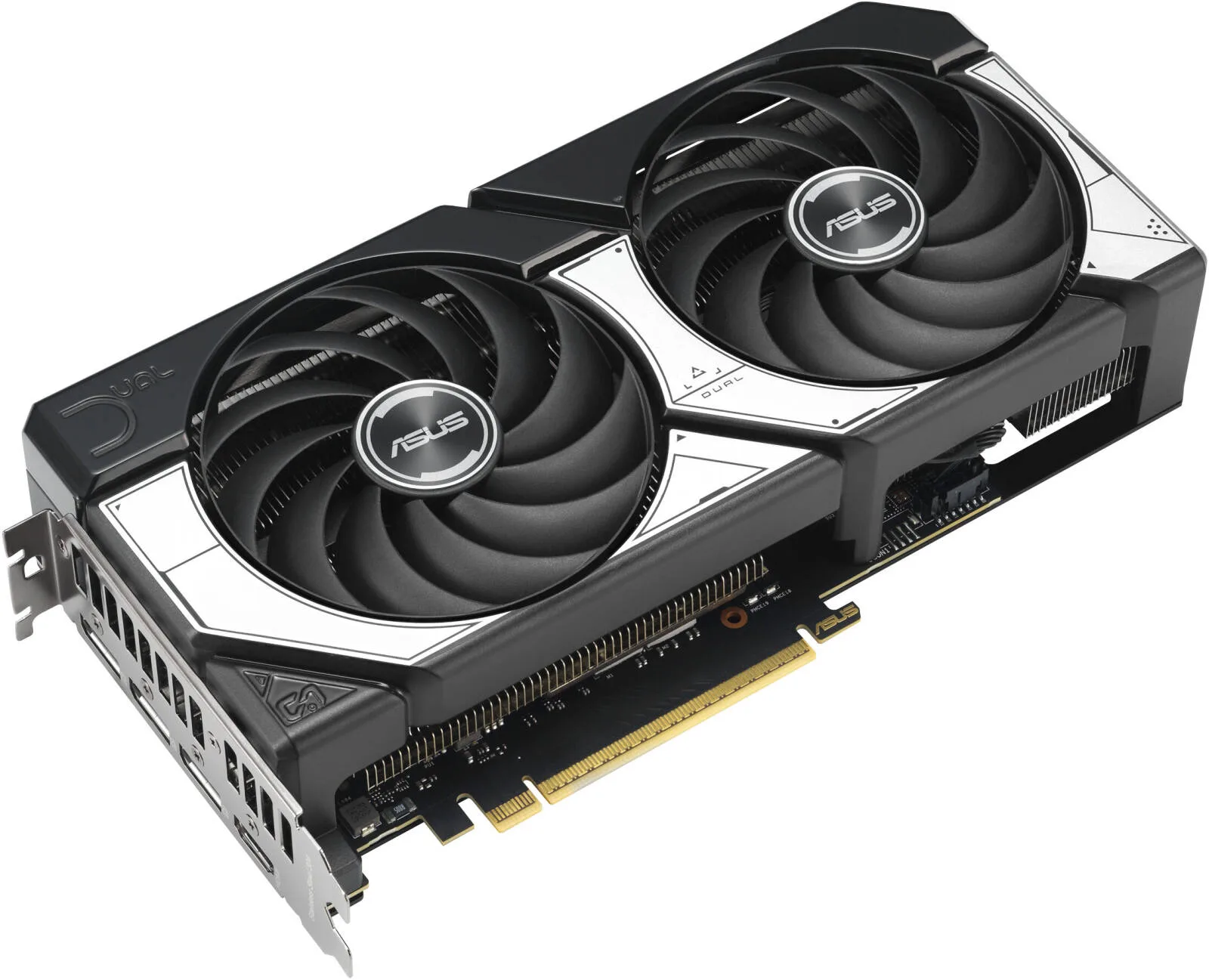

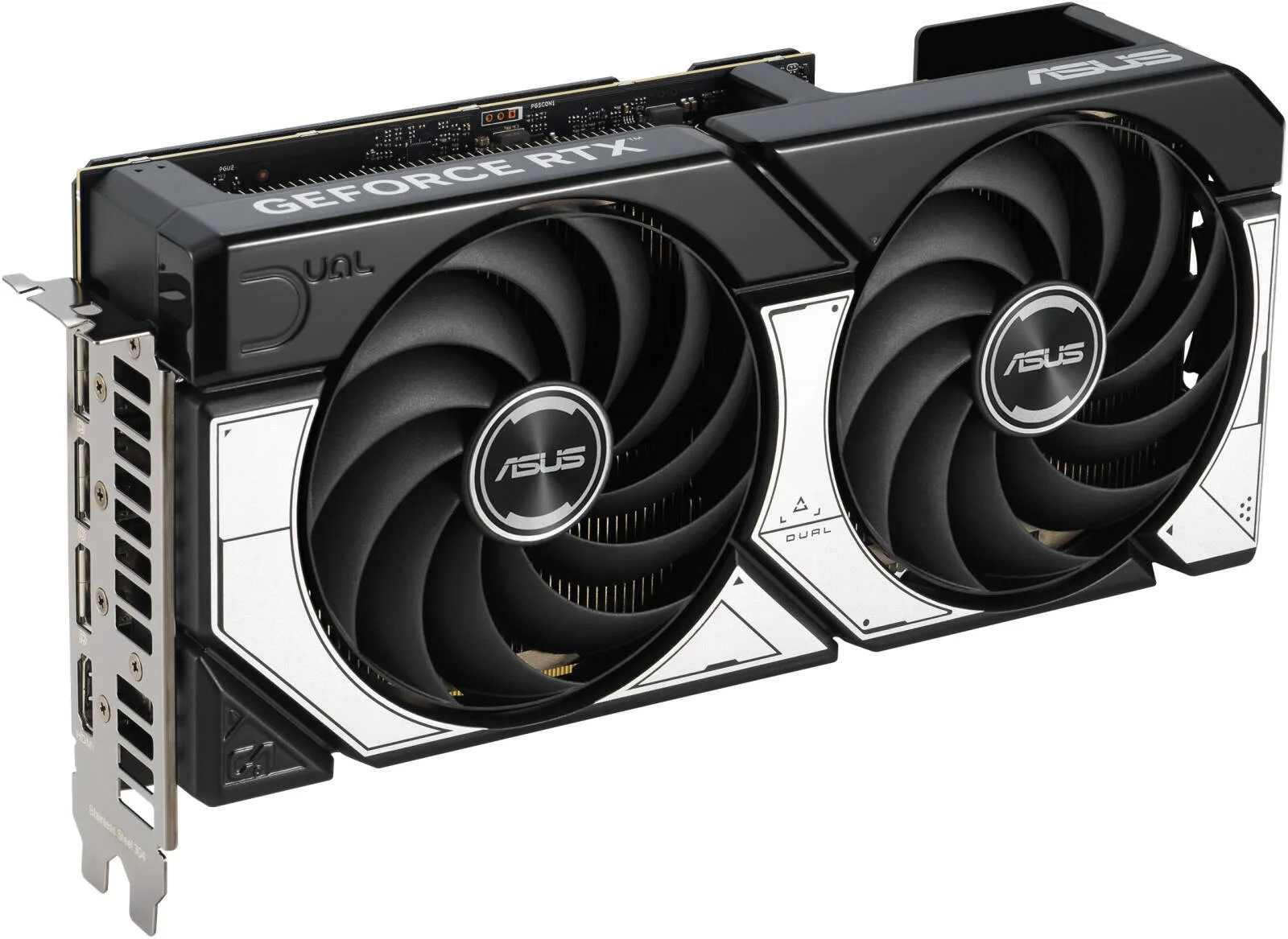

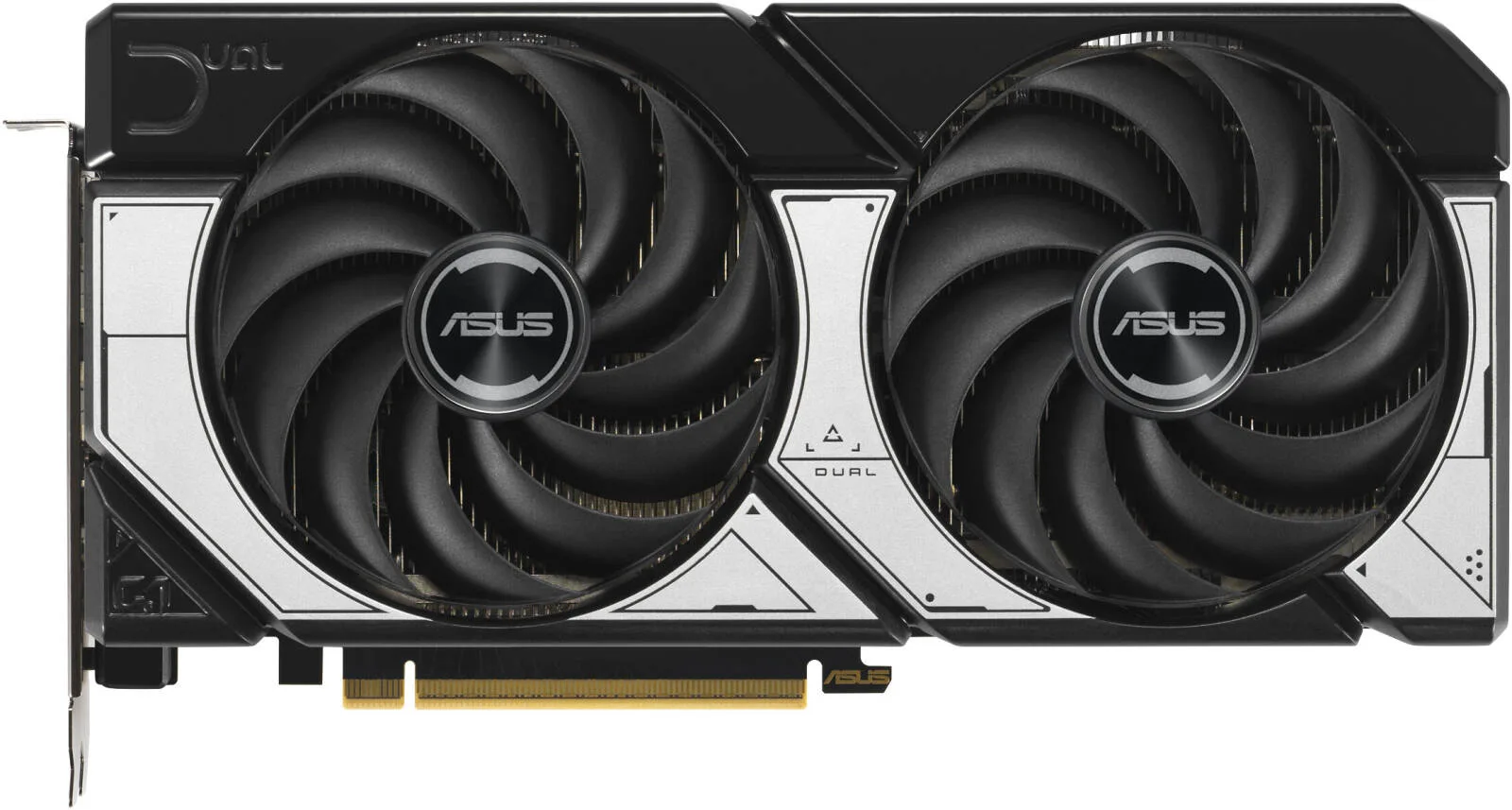

- Compact Dual-Fan Design A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Gpu
- RTX 5070
- Memory size
- 12 GB
- Memory type
- GDDR7
- Memory interface
- 192 Bit
- Chipset manufacturer
- NVIDIA
Details
- Shipping Weight
- 1.45 Kg
- Shipping Dimensions
- 23.50 cm x 41.00 cm x 9.00 cm
- Max Resolution
- 7680 x 4320
- HDMI
- Yes
- DVI
- No
- D-SUB (VGA)
- No
- Display Port
- Yes
- Effective Memory Clock
- 28 Gbps
- Form Factor
- RTX
- Interface
- PCI Express 5.0
- TDP
- 750 W
- Maximum Display Support
- 4
- Cooling
- Dual Fan
- Power Connectors
- 1x 16-Pin
- Graphic Engine
- NVIDIA® GeForce RTX™ 5070
- AI Performance
- 1000 TOPs
- Bus Standard
- PCI Express 5.0
- OpenGL
- 4.6
- Video Memory
- 12 GB GDDR7
- Engine Clock
- OC Mode: 2572 MHzDefault Mode: 2542 MHz (Boost)
- CUDA Cores
- 6144
- Memory Speed
- 28 Gbps
- Display Interfaces
- 1 × HDMI 2.1b3 × DisplayPort 2.1b
- HDCP Support
- 2.3
- Max Display Support
- 4
- NVLink / Crossfire
- No
- Accessories
- Speedsetup Manual; Thank You Card; Adapter Cable (1-to-2)
- Software
- ASUS GPU Tweak III, MuseTree, GeForce Game Ready Driver, Studio Driver (download from support site)
- Dimensions
- 249 × 126 × 50.6 mm
- Recommended PSU
- 750 W
- Slot Size
- 2.53
- SFF Ready
- Compatible
4.37 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Oscar B. Used for: 6–12 months
Pros
Silent at idle, cold under load, and 12GB is enough for 1440p
Cons
Long for a Dual-branded card
Comment
The zero-RPM behaviour is the standout. Below 50C the fans stop completely and the only thing I hear is the CPU cooler. Under load the core settles at 66C with a hotspot about eleven degrees higher. The name suggests a compact card and it is not particularly, at 267mm, so measure before assuming it is the small one!
Henry R. Used for: 1–3 months
Pros
Undervolts brilliantly and runs cold afterwards
Comment
Left at stock it draws around 250W and sits in the high sixties. A 925mV curve holds the same clocks, drops that to about 210W, and takes the core down to 62C with the fans under 1200rpm. The card is then genuinely silent behind a closed panel. Worth the twenty minutes it takes to set up. Ten weeks of that and it has not drifted from the curve once. Four stars because at this price the 12GB feels like the bare minimum rather than generous.
Grace N. Used for: 6–12 months
Comment
Sits in a machine used for 1440p gaming and a fair bit of video work, and it has handled both without any drama. The 12GB is enough for editing 4K timelines with a couple of effects tracks, and encoding is far quicker than the card it replaced thanks to the newer encoder. Thermals are unremarkable in the best sense, mid sixties under a long export with fans I cannot pick out over the case. No coil whine at all. The best part of a year of that and nothing has changed.
Louie E. Used for: 1–3 months
Pros
Quiet and quick
Cons
Longer than expected
Comment
Excellent for 1440p, just check your case depth
Millie H. Used for: 3–6 months
Cons
Persistent black screens under load that no driver version has fixed
Comment
Wanted to like this card and cannot. The fault is a hard black screen with the fans ramping to full, always under sustained load and never at the desktop. It has happened in three different games and once during a video export, so it is not one title misbehaving. I have been through four driver versions including a clean install, moved it to a different PCIe slot, and swapped the PSU cable for a fresh one. Nothing changes it. Temperatures are unremarkable, the core never gets past 70C before it drops out, so it is not thermal. A few months of that now and I am no closer to finding it. Two stars because when it is running it is a good 1440p card, and that is the frustrating part.
Isla M. Used for: 1–3 months
Cons
The 8-pin sits at the very end of the board, which fouls a front radiator
Comment
No complaints about how it performs, it is quick and it is quiet. The connector placement is the only annoyance, right at the far end of the card where the cable then needs another 30mm of clearance and my front radiator wanted the same space.
Arthur L. Used for: Less than a month
Comment
First card I have bought new rather than second hand and the difference in peace of mind is worth something. It went in with one cable, took the driver on the first attempt and has run 1440p at high settings ever since. The only note is that ASUS ship it with a rather conservative fan curve, so it runs a few degrees warmer than it needs to. Easy to change!
