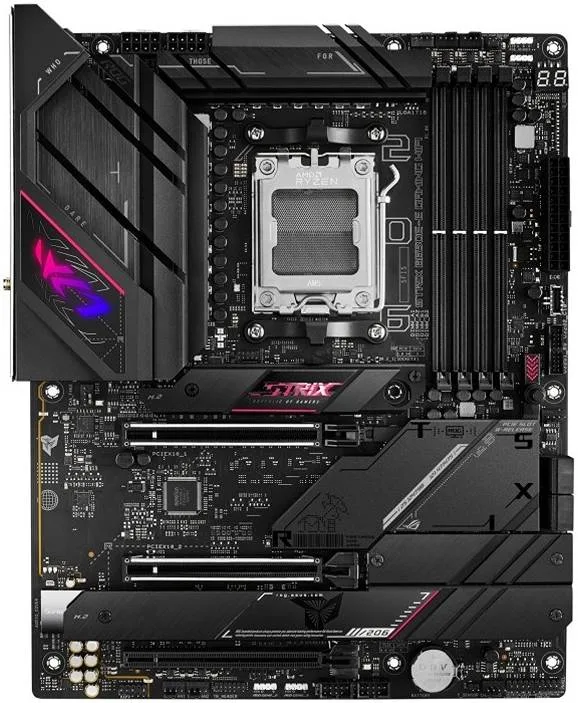

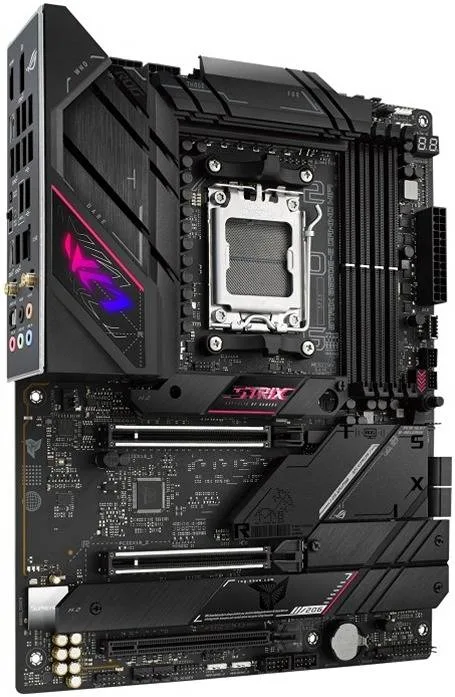

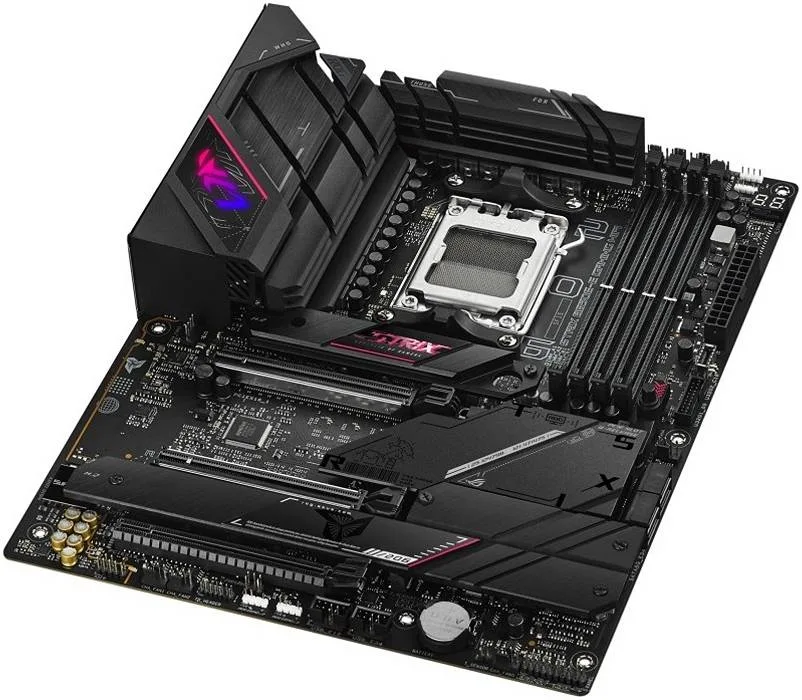

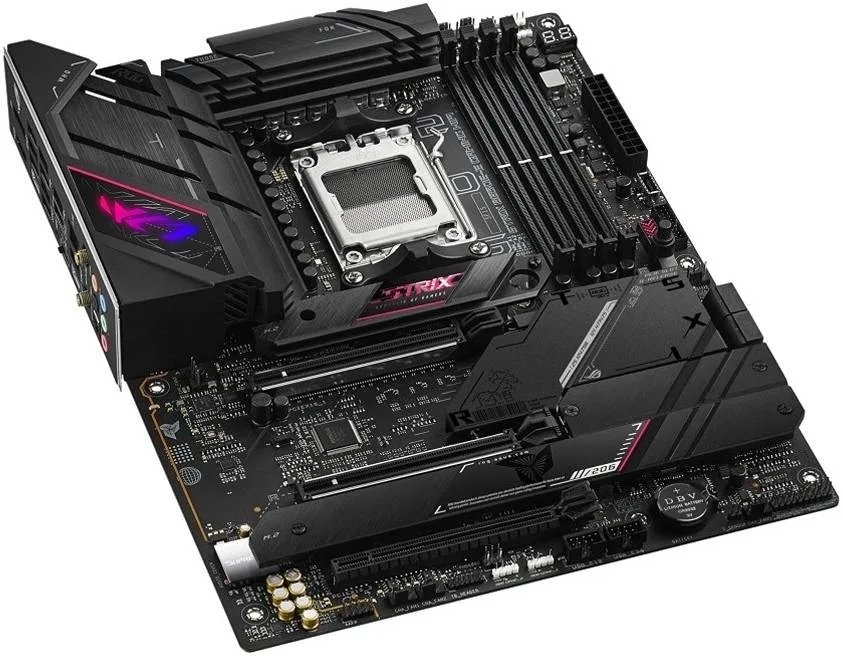

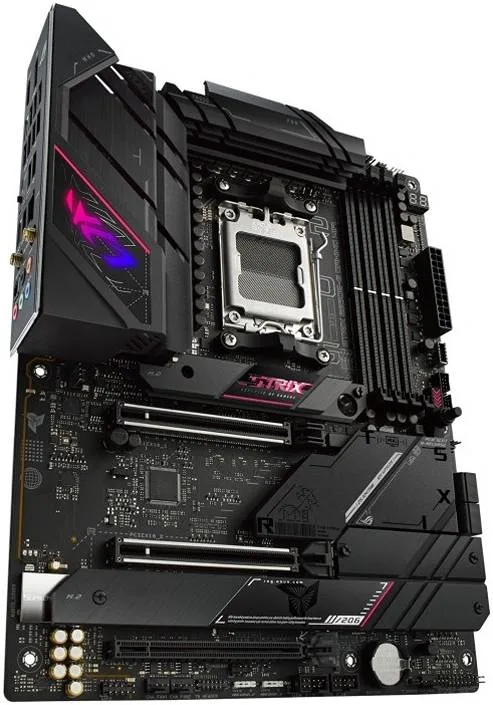

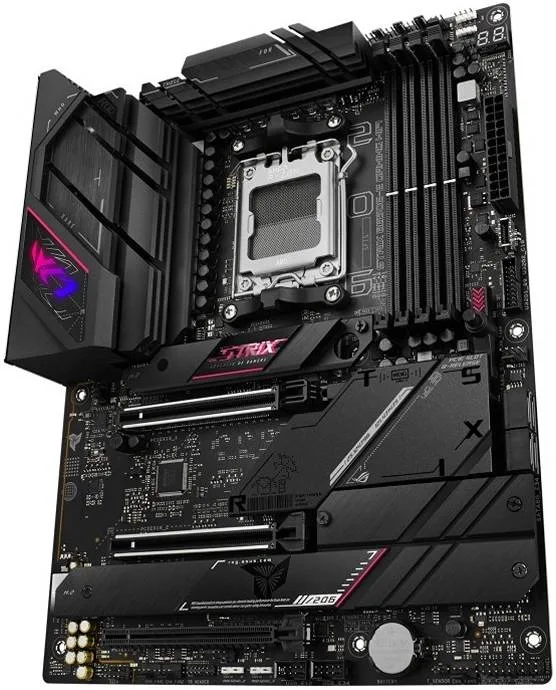

ASUS ROG Strix B650E-E Gaming Wifi ATX DDR5 Motherboard, AMD Socket AM5, B650 Chipset, 2.5Gb Ethernet, Bluetooth, WiFi 6E 6GHz, Max 128GB 4xDIMM Memory, PCIe 5.0x16, 4xM.2 Slot
- ATX Form Factor
- AMD B650 Chipset
- AM5 Socket
- 4 x Dual-Channel DDR5 Slots
- 4 x SATA, 4 x M.2 PCIe
- 2 x PCIe 5.0 x16 | 1 x PCIe 4.0 x16
- USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2x2
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Socket
- AM5
- Chipset
- AMD B650
- Form factor
- ATX
- Memory type
- DDR5
- Memory slots
- 4
Details
- Shipping Weight
- 2.30 Kg
- Shipping Dimensions
- 8.00 cm x 34.50 cm x 27.51 cm
- M.2 Slots
- 4
- Maximum Memory
- 128 GB
- Memory Speed
- 8000
- PCI Express x16
- 4
- CPU Socket
- AM5
- USB
- 1 x USB-C (USB 3.2 Gen 2x2)1 x USB-C (USB 3.1/3.2 Gen 2)6 x USB-A (USB 3.1/3.2 Gen 2)4 x USB-A (USB 2.0)
- Thunderbolt
- None
- Display
- 1 x HDMI1 x DisplayPort
- Audio
- 5 x 1/8" / 3.5 mm1 x S/PDIF
- Ethernet / Controller
- 1 x Intel 2.5Gigabit
- Wi-Fi Antenna
- 2 x Connector
- Buttons
- BIOS Flashback, Clear CMOS
- Memory Support
- DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400 MHz
- Maximum Capacity
- 128 GB
- Channel Architecture
- Dual Channel
- ECC Support
- Non-ECC, ECC Unbuffered
- SATA
- 4 x SATA III
- M.2
- 1 x M Key 2242, 2260, 2280 (PCIe 5.0 x4)2 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)1 x M Key 2242, 2260, 2280, 22110 (PCIe 5.0 x4)
- Optane Memory Support
- No
- RAID Support
- RAID 0, 1, 10 (M.2)
- Expansion Slots
- 2 x PCIe 5.0 x161 x PCIe 4.0 x16 (x4 mode)
- Air Cooling
- 2 x 4-Pin CPU5 x 4-Pin System1 x Thermal Sensor
- Liquid Cooling
- 1 x 4-Pin Pump
- Power Connectors
- 1 x 24-Pin Mainboard2 x 8-Pin ATX
- Security
- Chassis Intrusion
- LED Header
- 4 x RGB
- Diagnostics
- CPU Overclock
- Add-On
- 1 x Thunderbolt Header
- ROM
- 256 MB
- I/O Connection Headers
- AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
- Audio Codec
- SupremeFX ALC4080 (7.1-Channel)
- DAC
- Savitech SV3H712
- Bluetooth
- 5.2
- Wi-Fi
- Wi-Fi 6E (802.11ax) (MU-MIMO)
- OS Compatibility
- Windows 10Windows 11*As of October, 2022: Check with manufacturer for the most up-to-date compatibility
5.01 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Isla C. Used for: More than a year
Pros
Faultless for over a year, and the BIOS flashback button saved the build
Comment
This board has been in daily service for about fifteen months and I have thought about it exactly twice. The first was during the build, when the 7800X3D I bought needed a newer BIOS than the board shipped with. The flashback button meant a USB stick and four minutes sorted it, with no borrowed CPU and no trip to a shop. The second was when I added a third M.2 and discovered the heatsink comes off with a single screw rather than the usual puzzle. Beyond that it has simply run, at 6000 with EXPO, through a summer with no air conditioning and a lot of long gaming sessions. The rear IO has enough USB that I have never reached for a hub, the audio is clean enough that I stopped using a DAC, and the network port has never dropped. For the money at the time it was a very easy recommendation and it still is.
