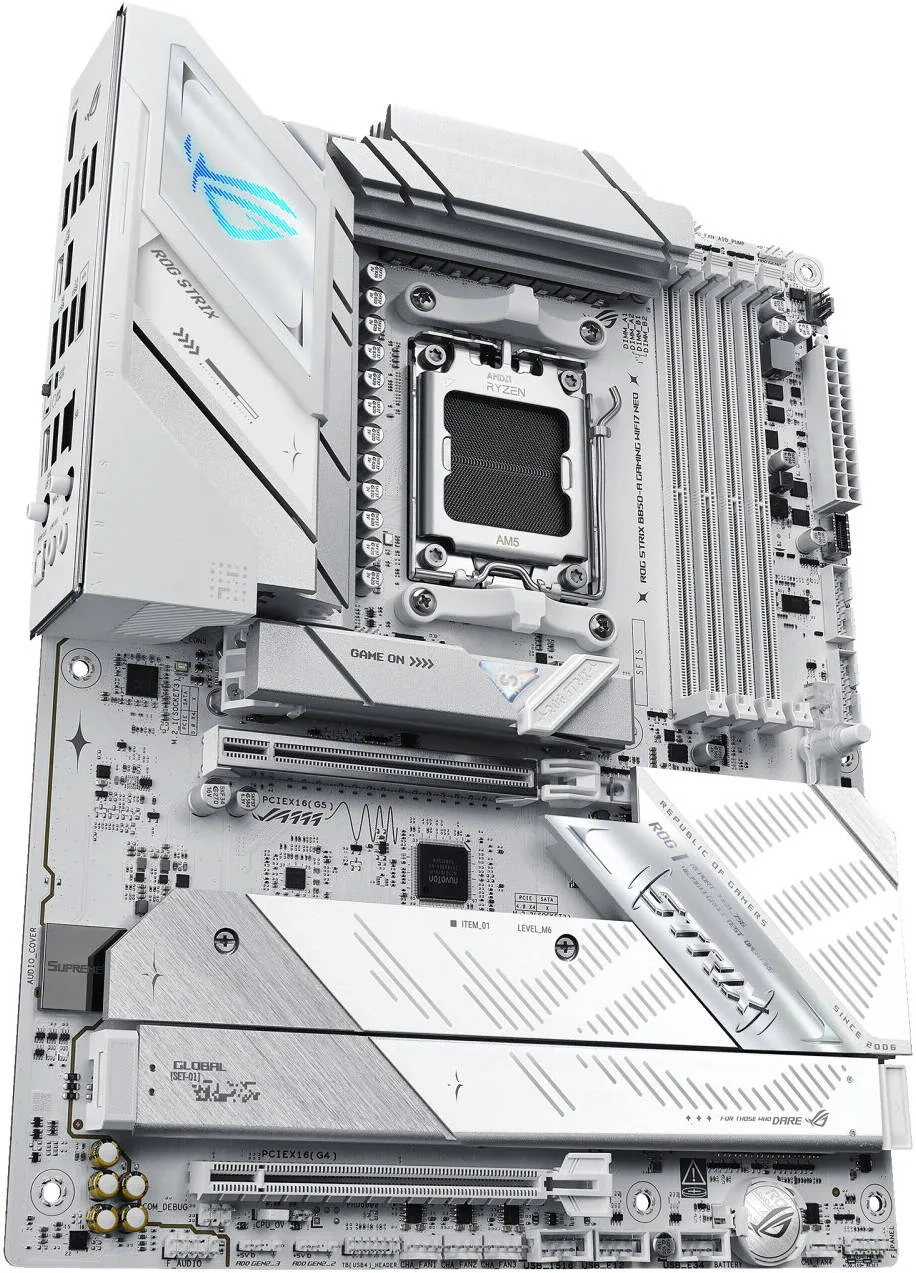

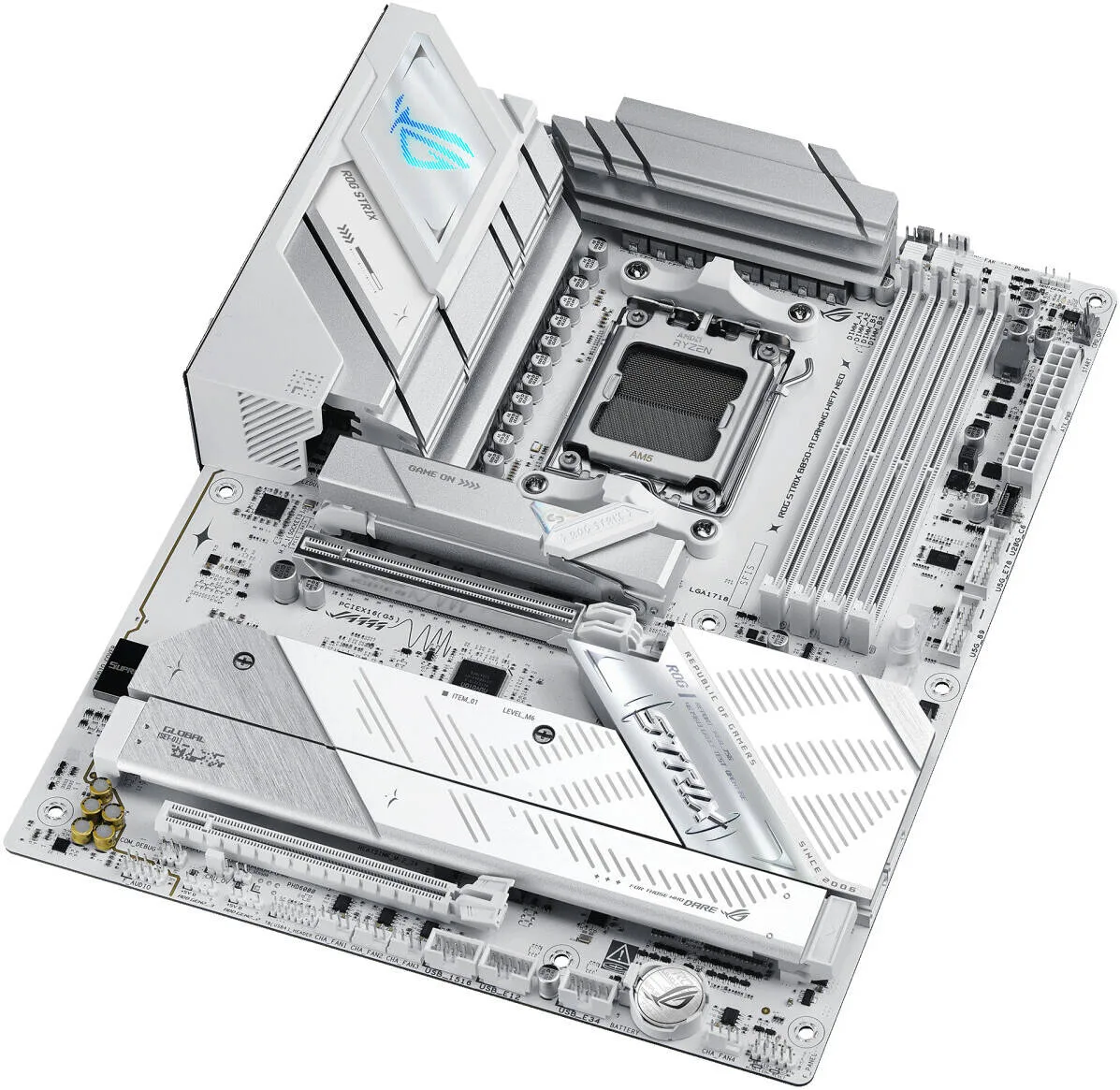

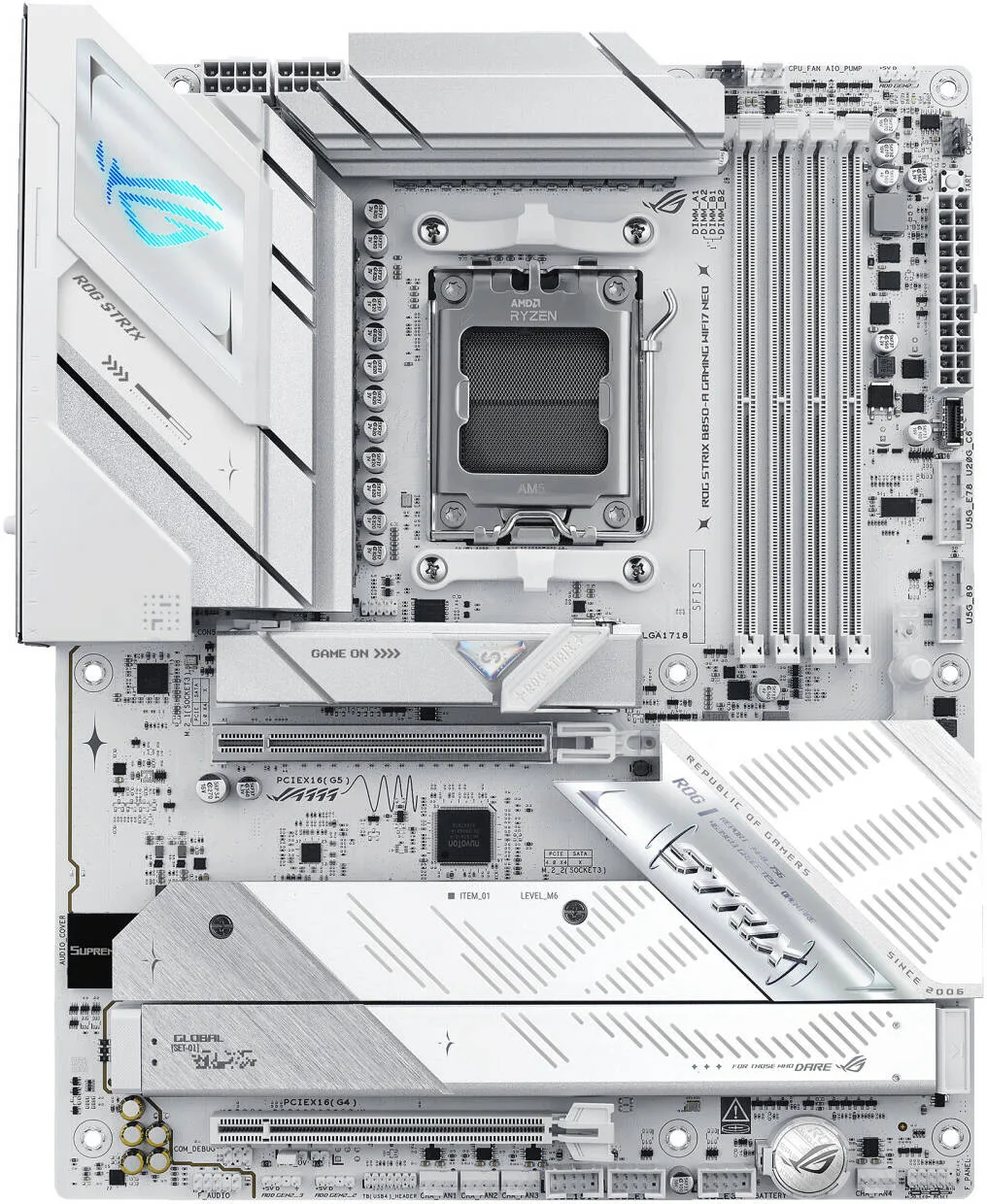

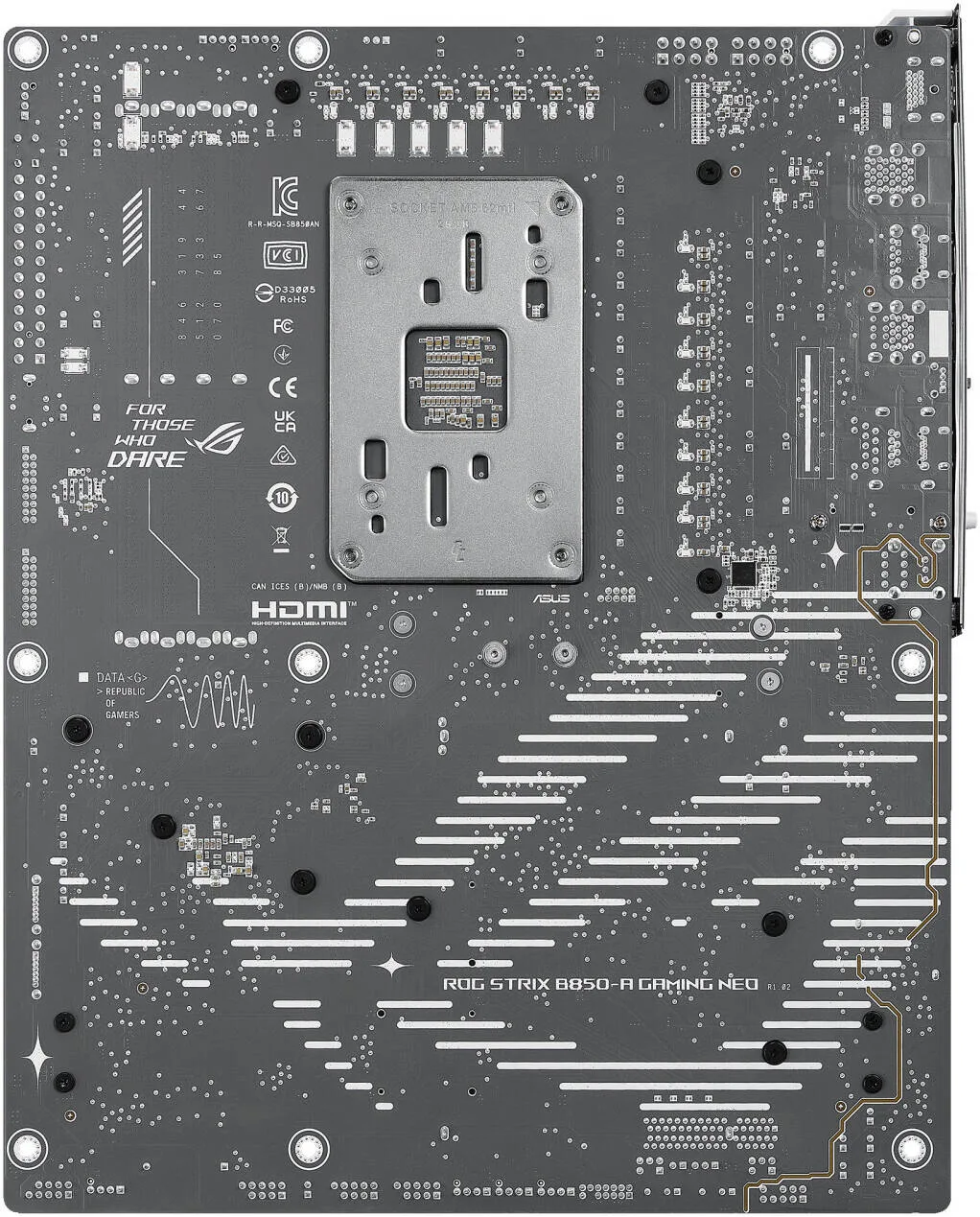

ASUS ROG Strix B850-A Gaming WIFI7 NEO ATX AM5 Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 SafeSlot, 4x M.2 Slots
- AI COOLING II One-click fan tuning
- ROBUST POWER SOLUTION 14 + 2 + 2 power solution rated for up to 80A per stage
- WIFI 7
- GEN 5 SUPPORT One Onboard M.2 Slot
- DDR5 Max. 256GB, AEMP
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Socket
- AM5
- Chipset
- AMD B850
- Form factor
- ATX
- Memory type
- DDR5
- Memory slots
- 4
Details
- Shipping Weight
- 2.25 Kg
- Shipping Dimensions
- 27.50 cm x 36.00 cm x 7.00 cm
- M.2 Slots
- 4
- Maximum Memory
- 256 GB
- PCI Express x16
- 1
- CPU
- AMD Socket AM5 (Ryzen 9000 / 8000 / 7000 Series)
- Memory
- 4× DIMM, up to 256GB DDR5, Dual Channel, EXPO / AEMP
- Memory Speed
- Up to 9000+ MT/s (OC, varies by CPU series)
- Graphics
- 1× HDMI (4K@60Hz, HDMI 2.1)
- Expansion Slots
- 1× PCIe 5.0 x16 (varies mode by CPU), 1× PCIe 4.0 x16 (x4/x2)
- Storage
- 4× M.2 (PCIe 5.0/4.0), 2× SATA 6Gb/s
- RAID
- RAID 0/1/5/10 (RAIDXpert2)
- Ethernet
- 1× Realtek 5Gb LAN (LANGuard)
- Wireless
- Wi-Fi 7 (2x2, 2.4/5/6GHz), Bluetooth 5.4
- Rear USB
- 12 ports (USB-C + USB-A, up to 10Gbps)
- Front USB
- Up to 11 ports (USB-C 20Gbps + headers)
- Audio
- ROG SupremeFX ALC4080, 7.1 Surround, S/PDIF

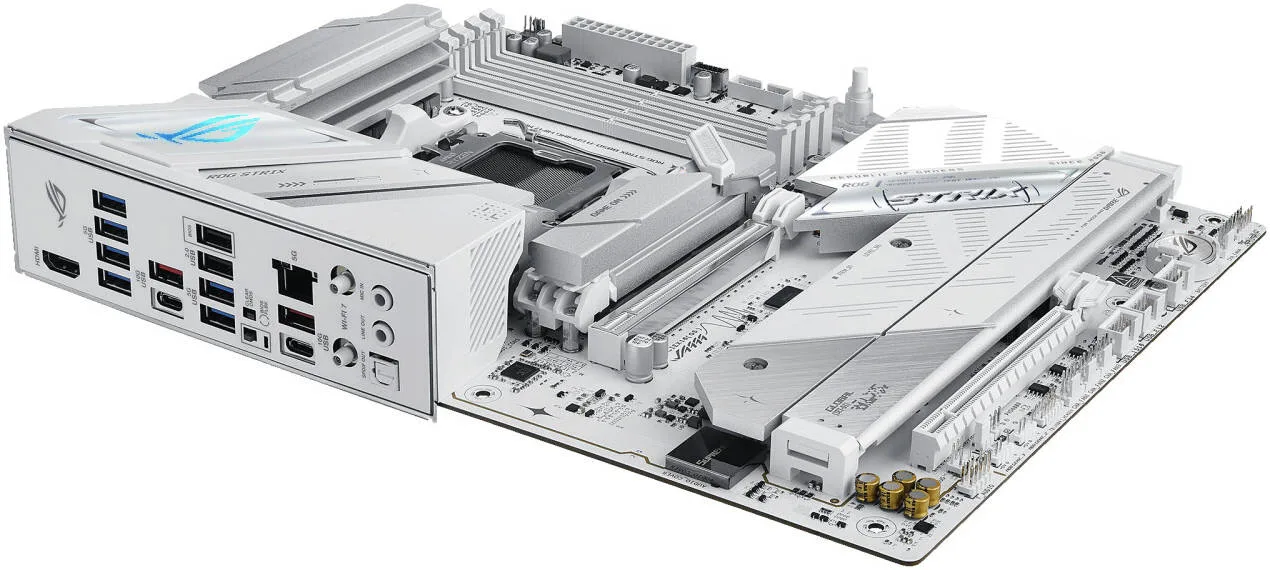

- Back Panel I/O
- HDMI, 12× USB, LAN, Wi-Fi, Audio, S/PDIF, BIOS FlashBack, Clear CMOS
- Internal Connectors
- Fan headers, RGB headers, USB headers, Thunderbolt (USB4), power connectors
- Special Features
- ASUS Q-Design, Thermal Heatsinks, BIOS FlashBack, Aura Sync
- Software
- Armoury Crate, AI tools, Dolby Atmos, AIDA64 (trial), HWiNFO
- BIOS
- 64MB UEFI AMI BIOS
- Manageability
- WOL, PXE

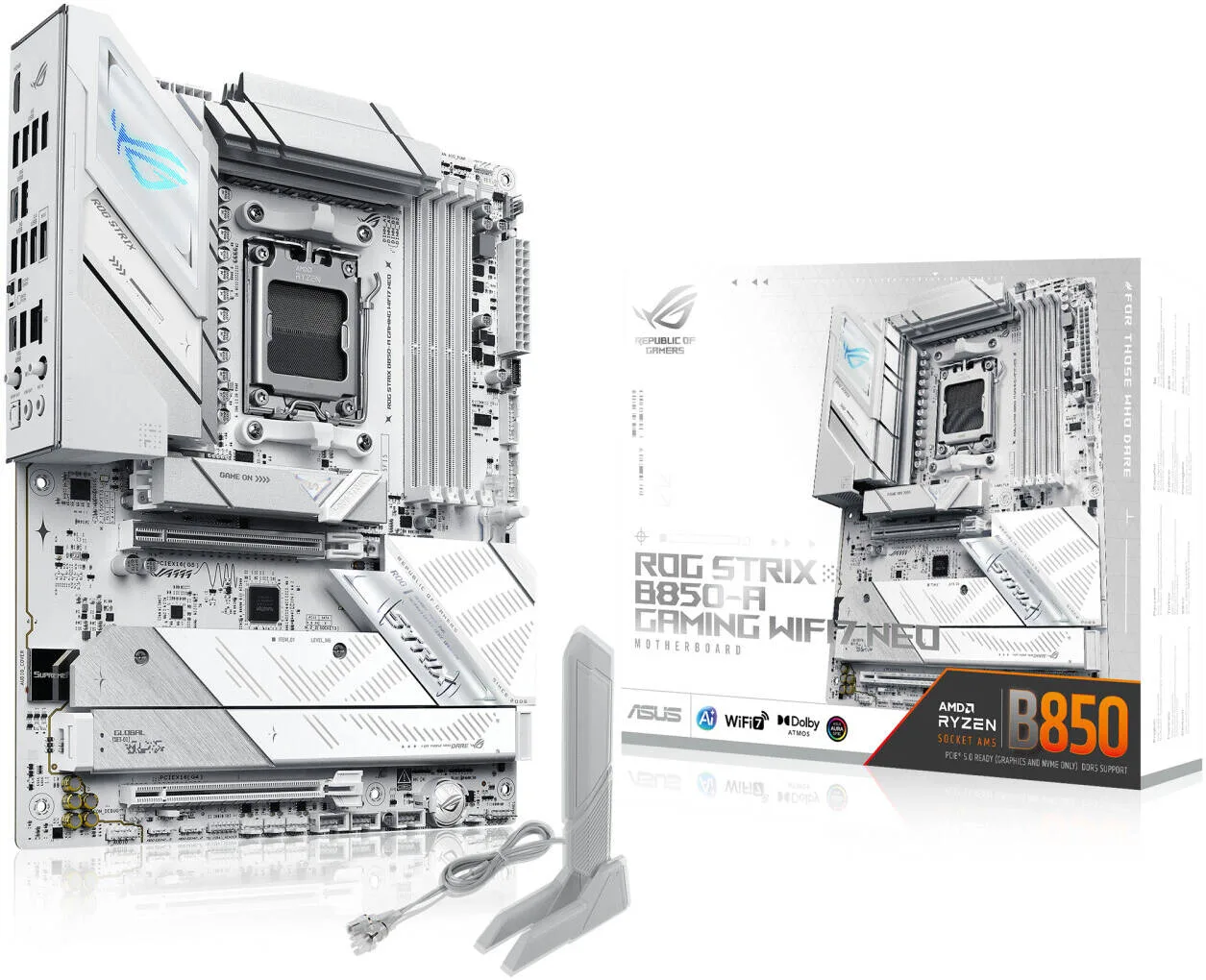

- Accessories
- SATA cables, Wi-Fi antenna, M.2 kits, stickers, keychain
- OS Support
- Windows 11
4.65 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Thomas B. Used for: 6–12 months
Cons
Wi-Fi antenna connector works loose over time
Comment
Board has been solid for eight months but I have had to reseat the aerial twice after the connection went flaky, which is not something I have had to do on any previous build.
Daisy B. Used for: More than a year
Pros
Has run flawlessly for well over a year
Comment
Long term this has been a good buy. No failed posts, no lost settings after a firmware update, and no thermal drama at all with a 9700X under it through two summers.
Oscar N. Used for: More than a year
Comment
Over a year in and still doing everything I ask of it without complaint
Ella C. Used for: 1–3 months
Pros
Fast Wi-Fi, cool VRM, tidy cable placement
Cons
The lighting software is bloated and wants to run at startup
Comment
Two months of daily use and the hardware side is genuinely excellent. What lets it down is the software. To control the board lighting you install a suite that pulls in a service, an updater and a launcher, all of which want to start with Windows, and none of which can be removed individually. I ended up setting a static colour in the BIOS and uninstalling the lot, which works, but I paid for lighting control I now cannot use properly.
Charlie C. Used for: 1–3 months
Pros
WiFi 7 and a clean layout
Comment
Connected to a WiFi 7 router and getting speeds I did not think were possible without running a cable. Layout is tidy and the M.2 covers come off without tools.
