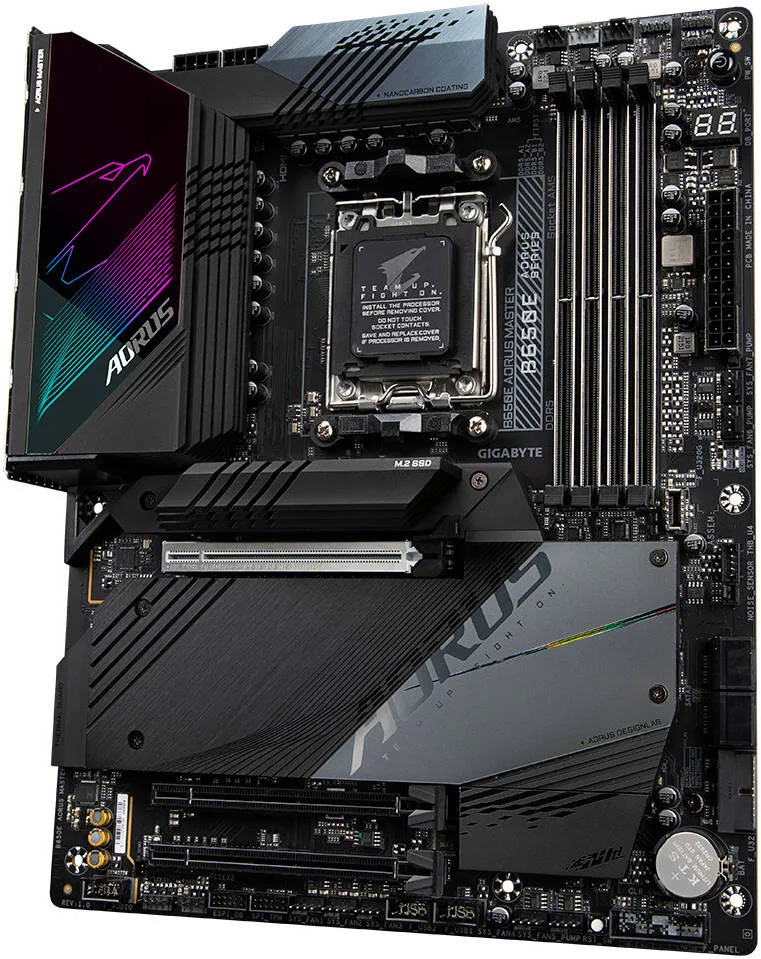

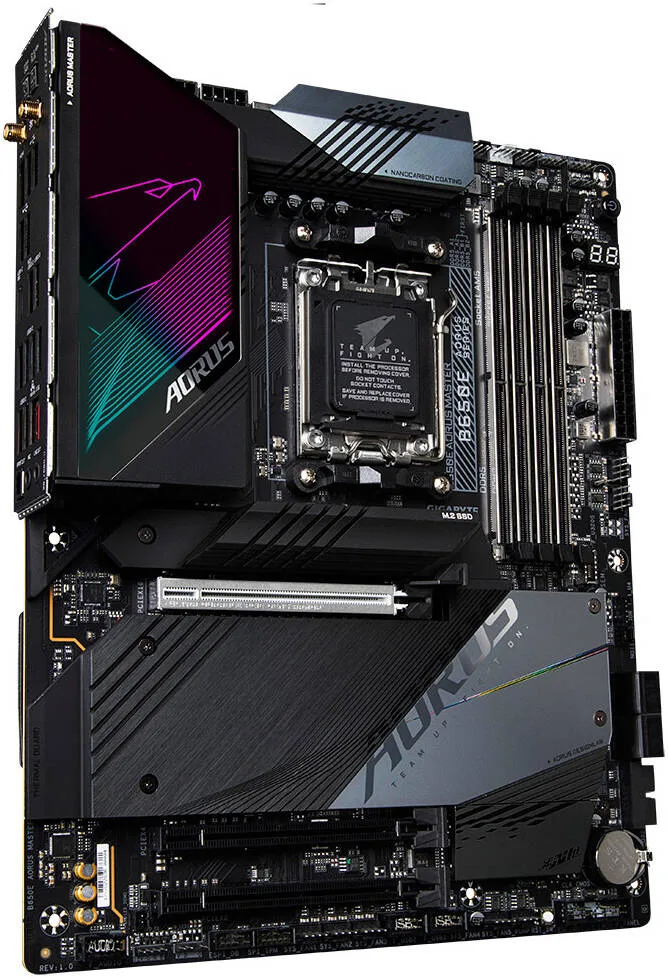

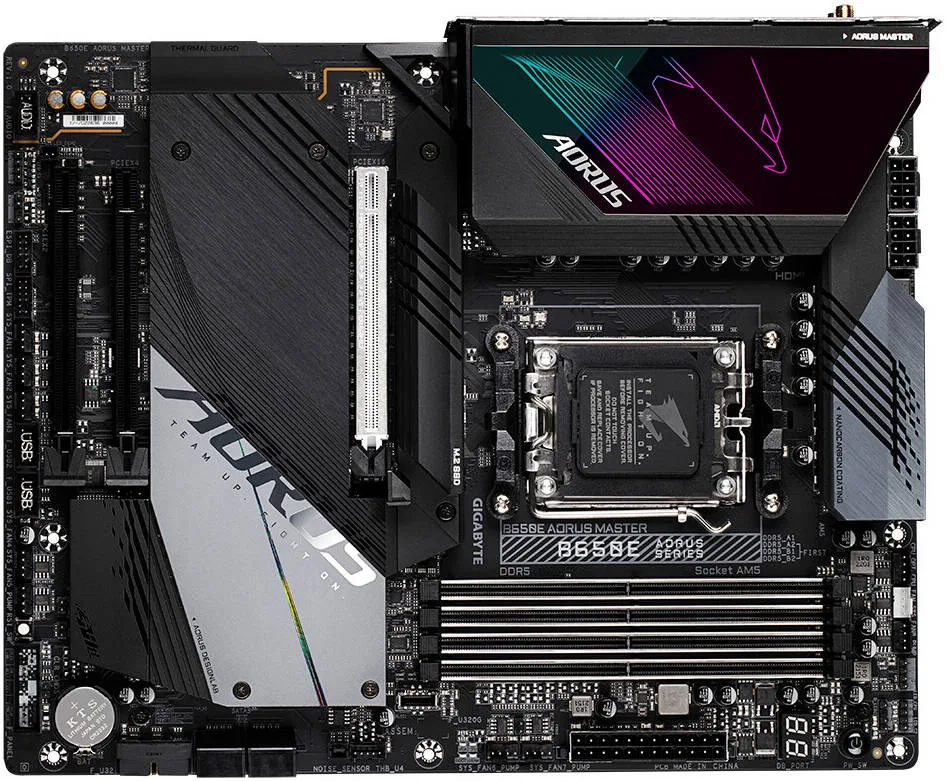

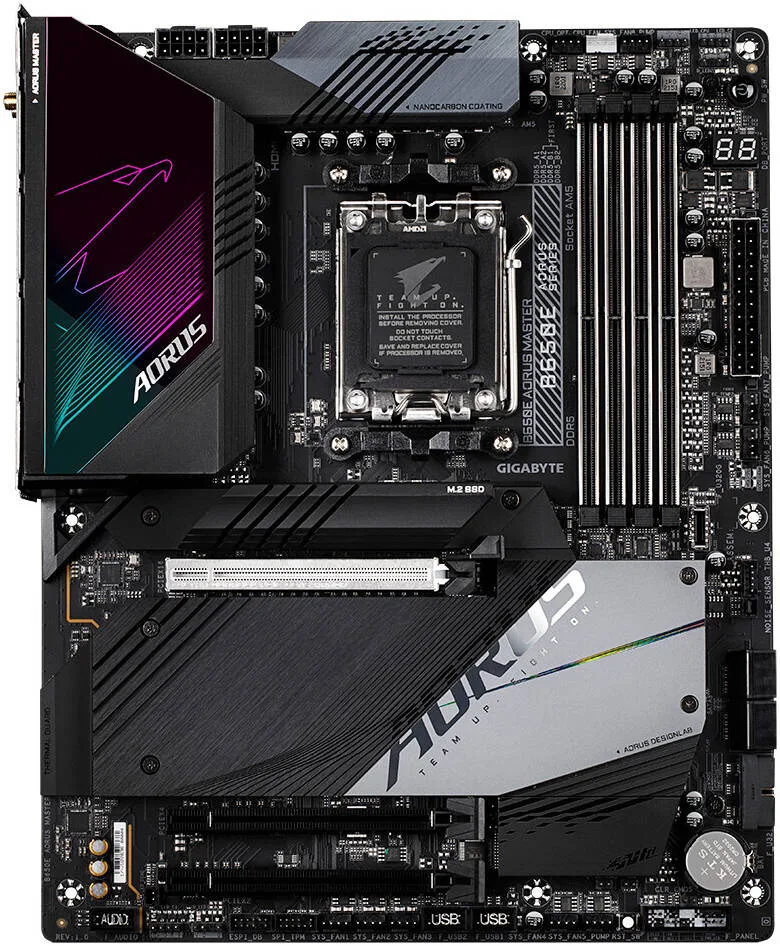

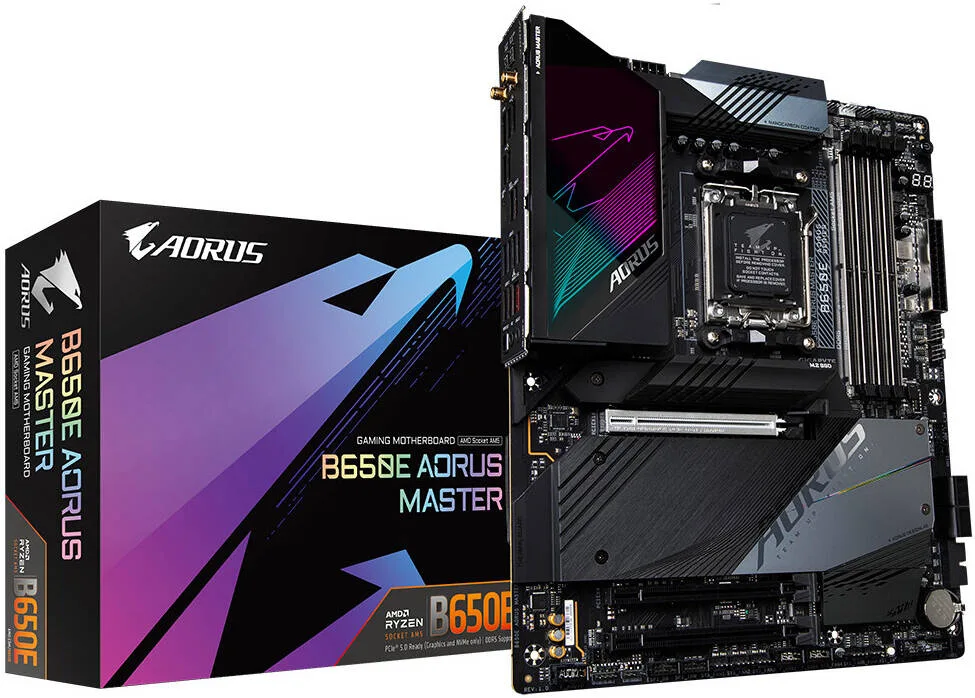

GIGABYTE B650E Aorus Master AM5 ATX Motherboard, AMD B650 Chipset, 4x DDR5 DIMM Slot, 256GB Max Memory, 4x M.2 Slots, 1x PCIe 5.0 x16, Black
- AMD Socket AM5：Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors
- Unparalleled Performance：Twin* 16+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- Next Generation Storage：4*PCIe 5.0 x4 M.2 Connectors
- Mega-Heatpipe & M.2 Thermal Guard III：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
- Fast Networks：Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Socket
- AM5
- Chipset
- AMD B650
- Form factor
- ATX
- Memory type
- DDR5
- Memory slots
- 4
Details
- Shipping Weight
- 2.85 Kg
- Shipping Dimensions
- 29.50 cm x 35.00 cm x 8.01 cm
- M.2 Slots
- 4
- Maximum Memory
- 256 GB
- PCI Express x16
- 1
- CPU
- AMD Socket AM5, support for AMD Ryzen™ 7000 / 8000 / 9000 Series Processors
- Memory
- DDR5 up to 8000(OC), 4 DIMMs, up to 256 GB, dual channel, non-ECC Un-buffered DIMM, supports AMD EXPO™ and XMP memory modules
- Onboard Graphics
- Integrated AMD Radeon™ Graphics, 1 x HDMI 2.1, max resolution 7680x4320@60 Hz, HDR, HDCP 2.3
- Audio
- Realtek® ALC1220-VB CODEC, ESS ES9118 DAC, DTS ® Ultra, supports 2/4/5.1-channel, S/PDIF Out
- LAN
- Intel® 2.5GbE
- Wireless
- AMD Wi-Fi 6E RZ616 (MT7922A22M), Bluetooth 5.2
- Expansion Slots
- 1 x PCIe 5.0 x16 (supports x8 mode when M2B/M2C_CPU connectors are populated), 1 x PCIe 4.0 x4, 1 x PCIe 4.0 x2
- Storage Interface
- 4 x M.2 (PCIe 5.0/4.0 depending on CPU), 4 x SATA 6Gb/s, RAID 0/1/10 for NVMe & SATA
- USB Ports
- 1 x USB-C 3.2 Gen 2, 4 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1
- Internal I/O Connectors
- 24-pin ATX, 2 x 8-pin ATX 12V, 4 x system fan headers, 4 x M.2, 4 x SATA, 1 x USB-C 3.2 Gen 2x2 header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, RGB & LED strip headers, front panel headers

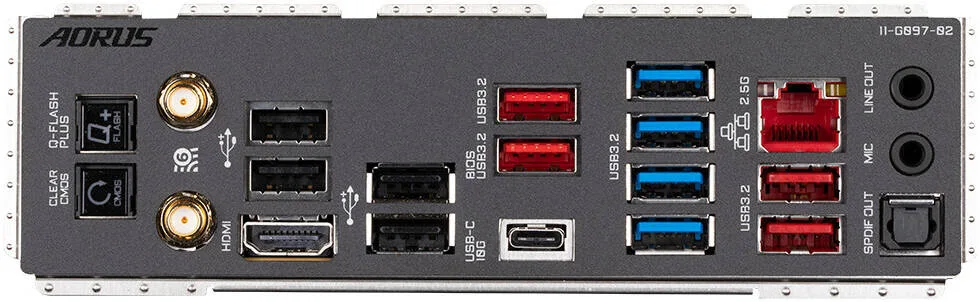

- Back Panel
- 1 x Q-Flash Plus button, 1 x HDMI 2.1, 2 x SMA antenna connectors, 1 x USB-C 3.2 Gen 2, 4 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1, 1 x RJ-45, 1 x optical S/PDIF, 2 x audio jacks
- I/O Controller
- iTE® I/O Controller Chip
- H/W Monitoring
- Voltage, Temperature, Fan speed, Water cooling flow rate detection, Fan fail warning, Fan speed control, Noise detection
- BIOS
- 1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Unique Features
- GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus
- Bundled Software
- Norton® Internet Security (OEM), LAN bandwidth management
- Operating System Support
- Windows 11 64-bit, Windows 10 64-bit
