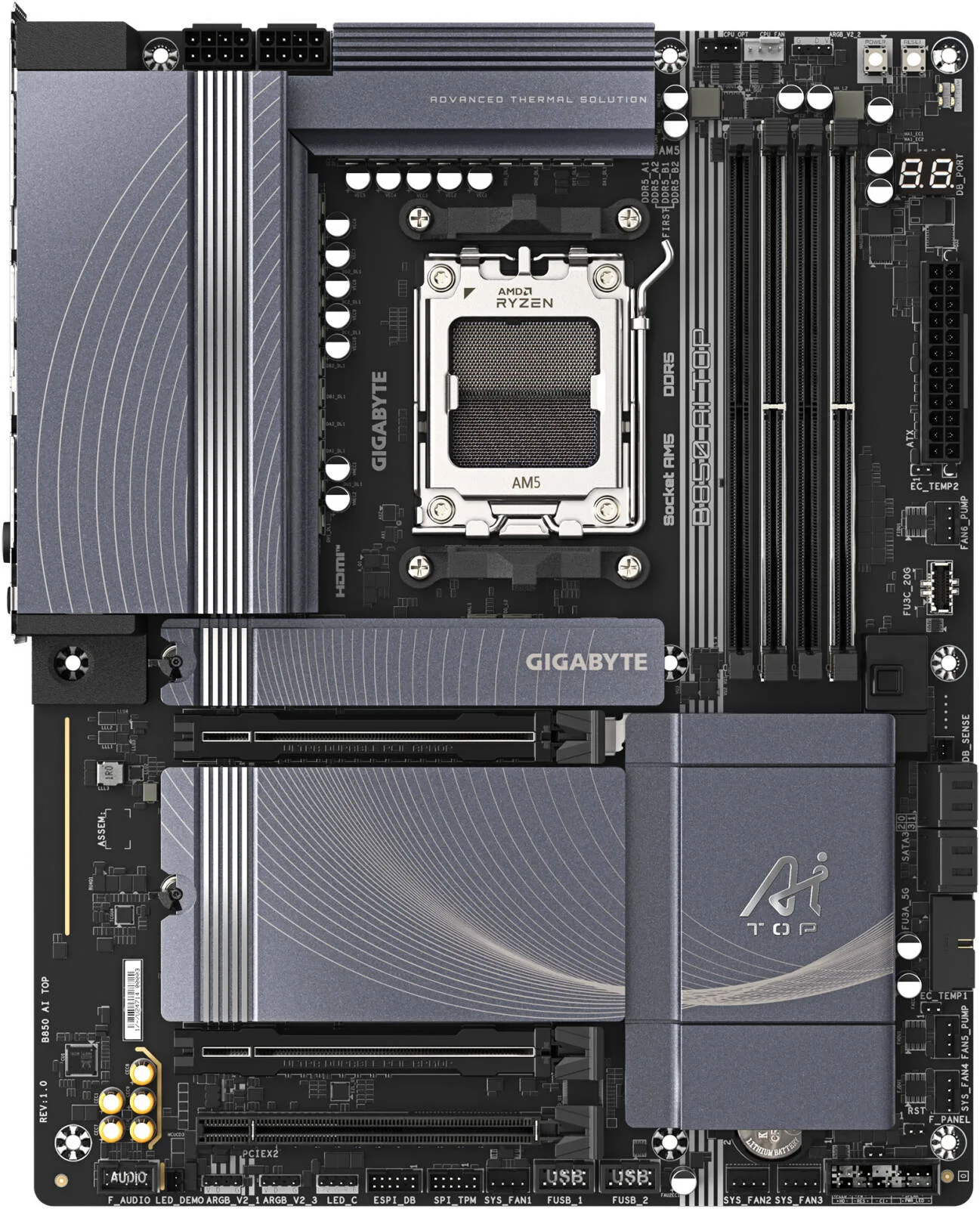

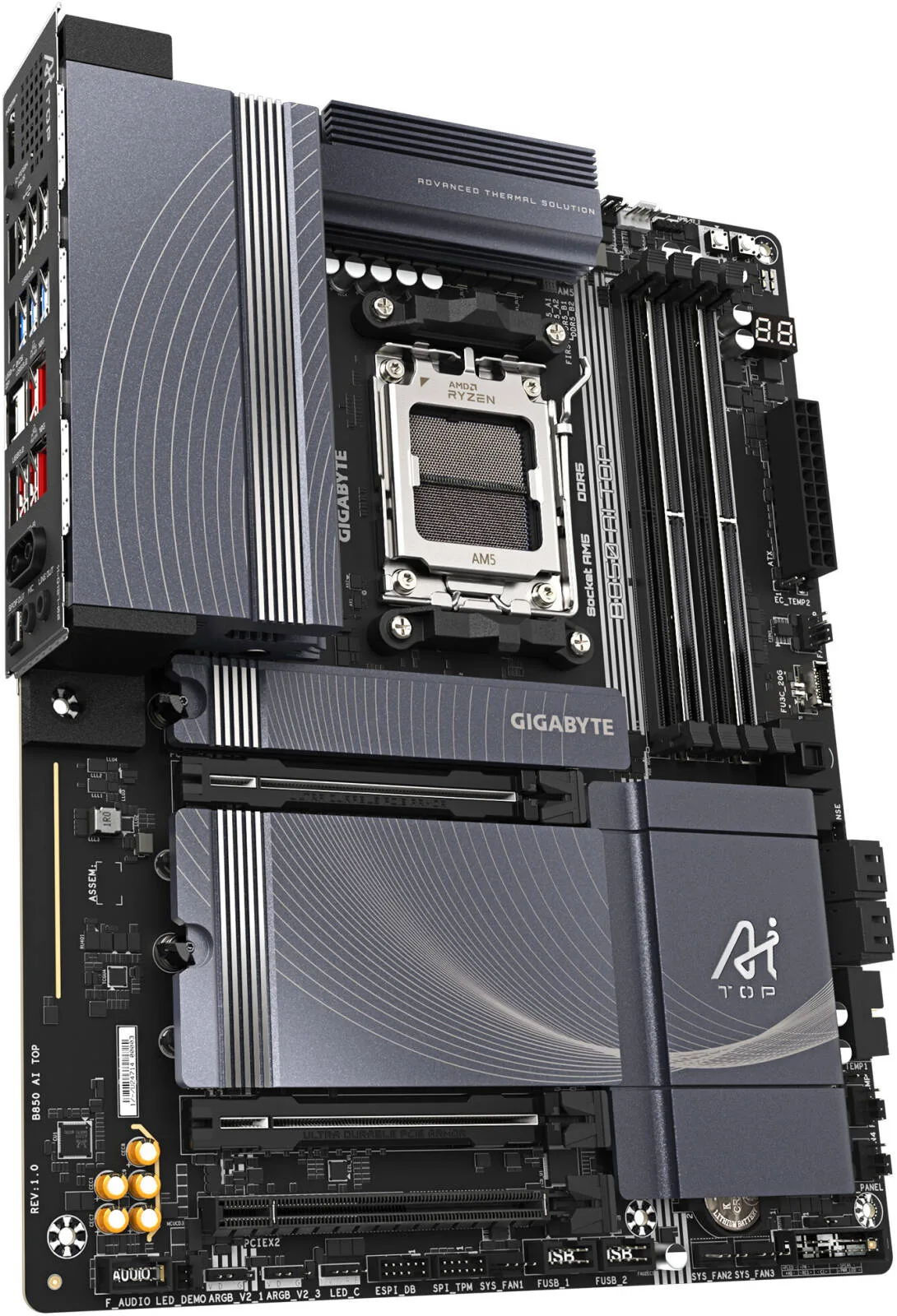

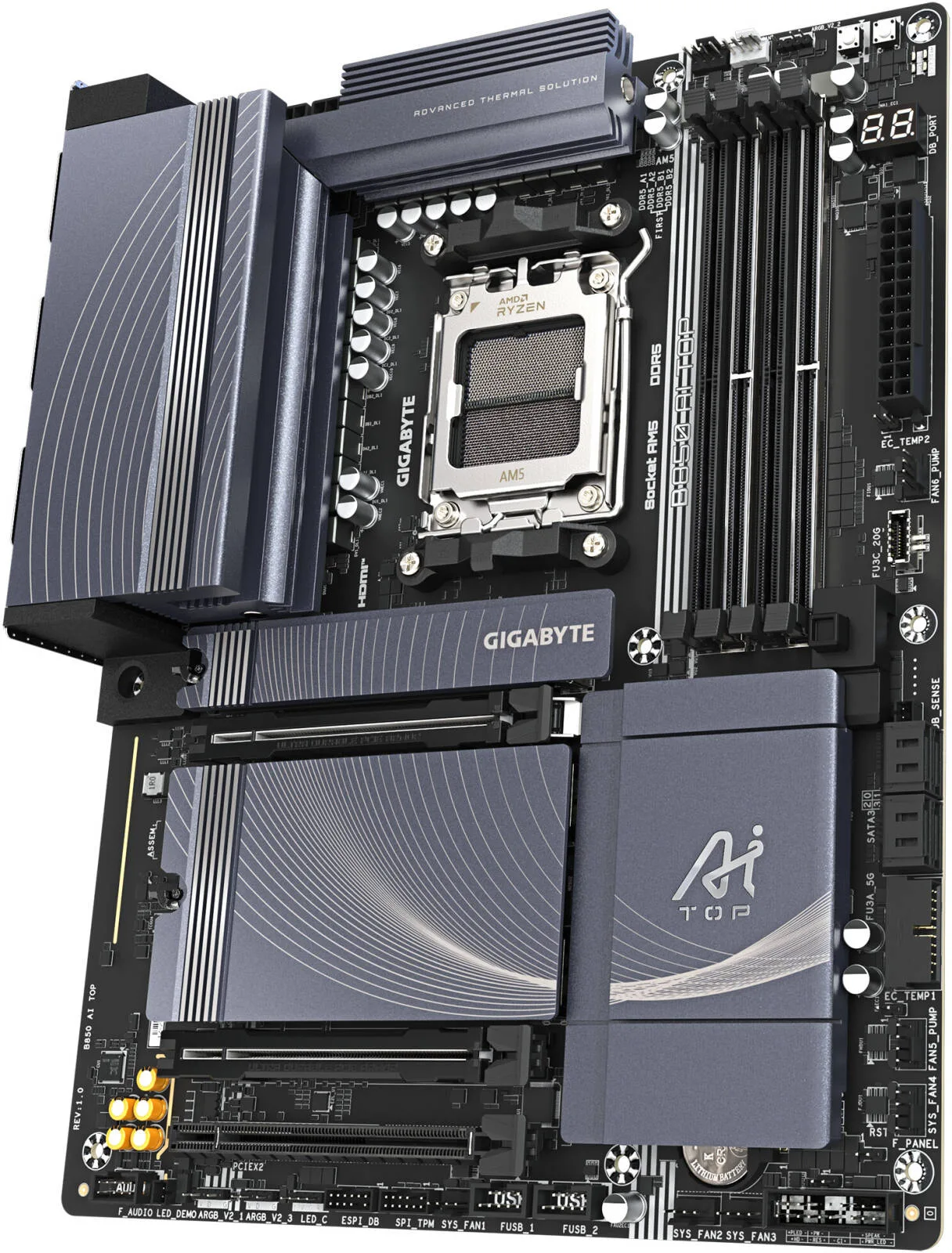

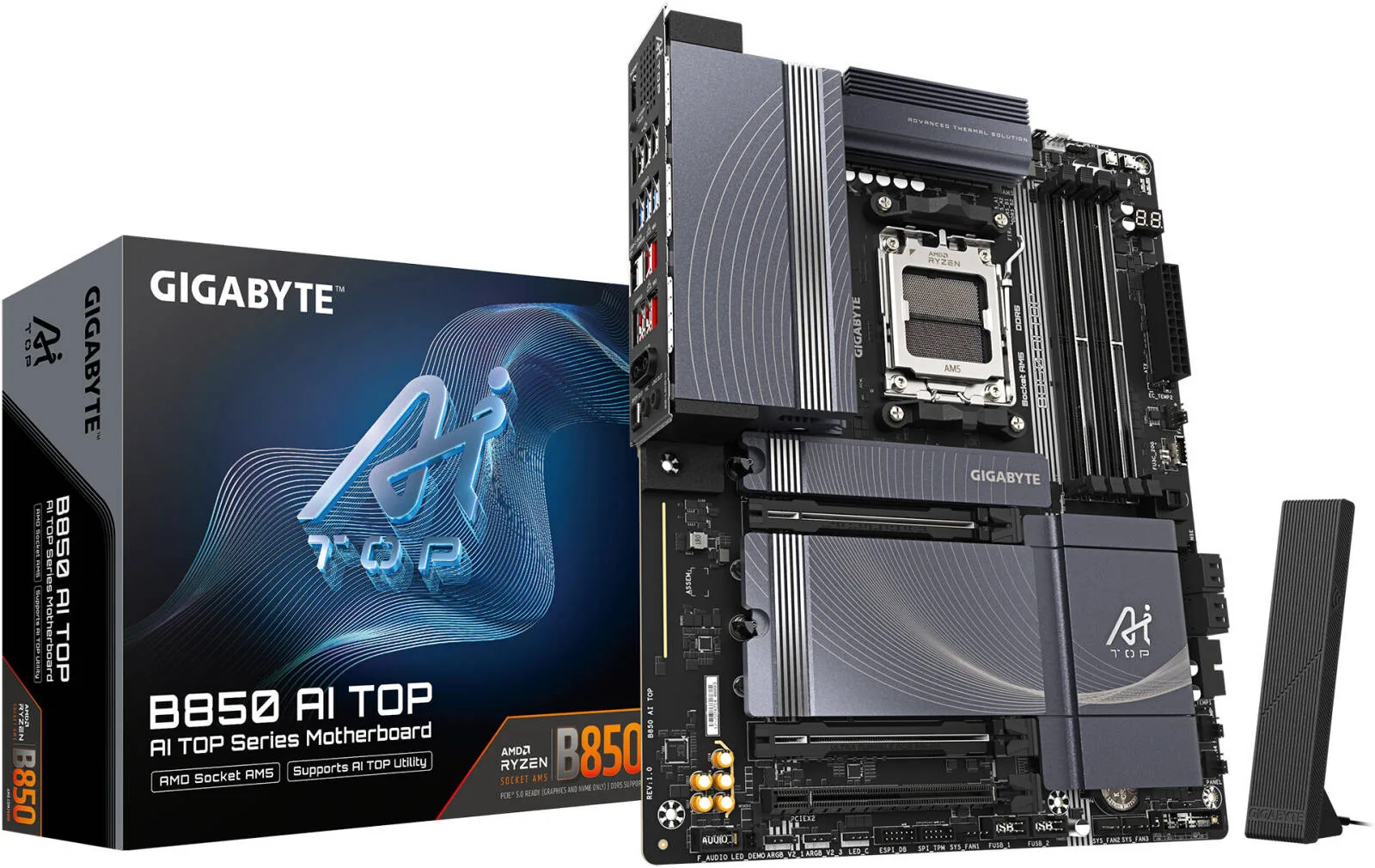

GIGABYTE B850 AI TOP AM5 ATX Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 2x PCIe 5.0 x16, 3x M.2 Slots, WiFi & Bluetooth Connectivity
- Training your own AI on your desk
- DDR5 OC up to 8600MT/s
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Socket
- AM5
- Chipset
- AMD B850
- Form factor
- ATX
- Memory type
- DDR5
- Memory slots
- 4
Details
- Shipping Weight
- 2.70 Kg
- Shipping Dimensions
- 27.00 cm x 34.00 cm x 8.00 cm
- M.2 Slots
- 3
- Maximum Memory
- 256 GB
- PCI Express x16
- 2
- CPU
- AMD Socket AM5, supports Ryzen™ 9000/8000/7000 Series Processors
- Memory
- DDR5 up to 8600(O.C.), 4x DIMM slots, max 256GB, Dual-channel, ECC & non-ECC support, AMD EXPO™ & XMP support
- Onboard Graphics
- Integrated AMD Radeon™ Graphics, 1x USB Type-C® (3840x2160@144Hz), 1x HDMI (4096x2160@60Hz)
- Audio
- Realtek® ALC1220 CODEC, HD Audio, 7.1-channel, S/PDIF Out
- LAN
- 2x Marvell® AQtion AQC113C 10GbE (10G/5G/2.5G/1G/100M)

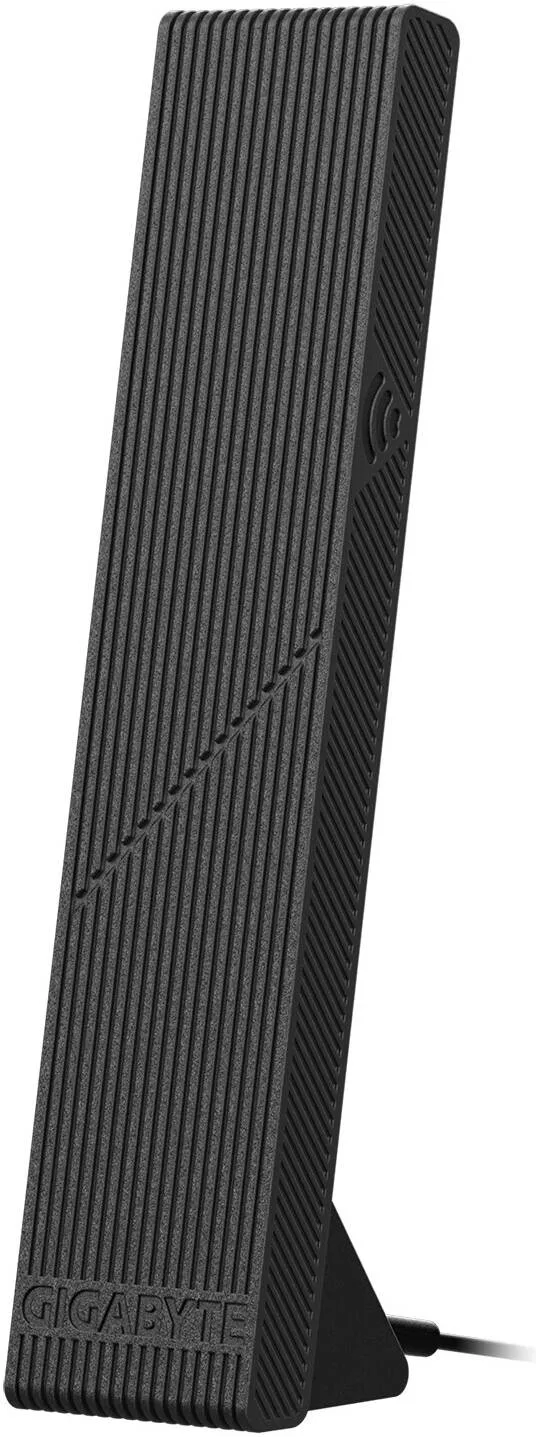

- Wireless
- Realtek® Wi-Fi 7 RTL8922AE, Bluetooth 5.4, 11be 160MHz support (Wi-Fi 7 requires Windows 11 SV3)
- Expansion Slots
- 1x PCIe 5.0 x16 (Ryzen 9000/7000), 1x PCIe 4.0 x8 (Ryzen 8000-Phoenix 1), 1x PCIe 4.0 x4 (Ryzen 8000-Phoenix 2), 1x PCIe 4.0 x2 (Chipset)
- Storage
- 3x M.2 (PCIe 5.0/4.0, CPU), 4x SATA 6Gb/s, RAID 0/1/5/10 support (RAID 5 on Ryzen 9000 only)
- USB Ports
- Rear: 1x USB 3.2 Gen 2 Type-C, 3x USB 3.2 Gen 2 Type-A (red), 4x USB 3.2 Gen 1, 4x USB 2.0 Internal: 1x USB 3.2 Gen 2x2 Type-C, 4x USB 2.0, 2x USB 3.2 Gen 1
- Internal I/O
- 1x 24-pin ATX, 2x 8-pin ATX 12V, 3x M.2, 4x SATA, RGB headers, USB headers, TPM header, Power/Reset buttons

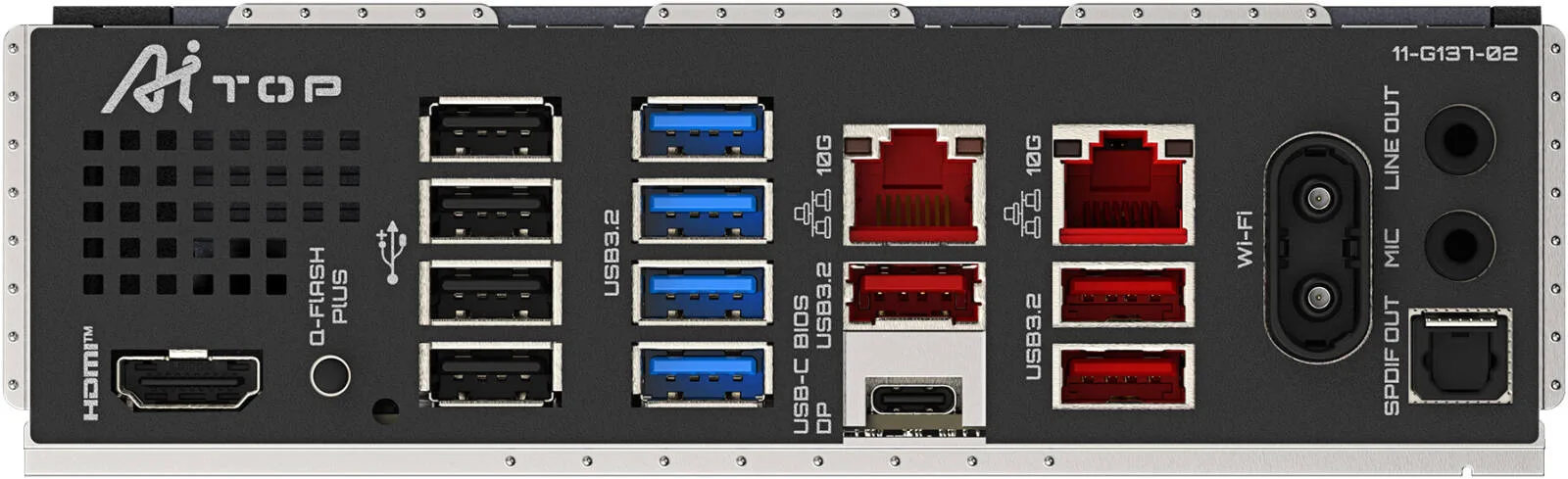

- Back Panel
- 1x Q-Flash Plus button, 1x HDMI, 1x USB Type-C® (DisplayPort), 3x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1, 2x RJ-45, 1x optical S/PDIF, 2x audio jacks
- BIOS
- 256 Mbit flash, AMI UEFI, Q-Flash, Q-Flash Plus, Smart Backup
- OS Support
- Windows 11 64-bit
- I/O Controller
- iTE® I/O Controller Chip
- H/W Monitoring
- Voltage, Temperature, Fan Speed, Water cooling flow, Fan fail warning, Fan speed control
- Noise Detection
- Yes
- Unique Features
- Support for GIGABYTE Control Center (GCC), Q-Flash, Smart Backup
- Bundled Software
- Norton® Internet Security, LAN bandwidth management software
