NZXT H6 RGB+ Compact Dual-Chamber ATX Mid-Tower Airflow Case, Support Up to 360mm Radiator, Steel-Tempered Glass Material, Up to 10 Fans, 8-Pin Connector, Rear-Connecting, White

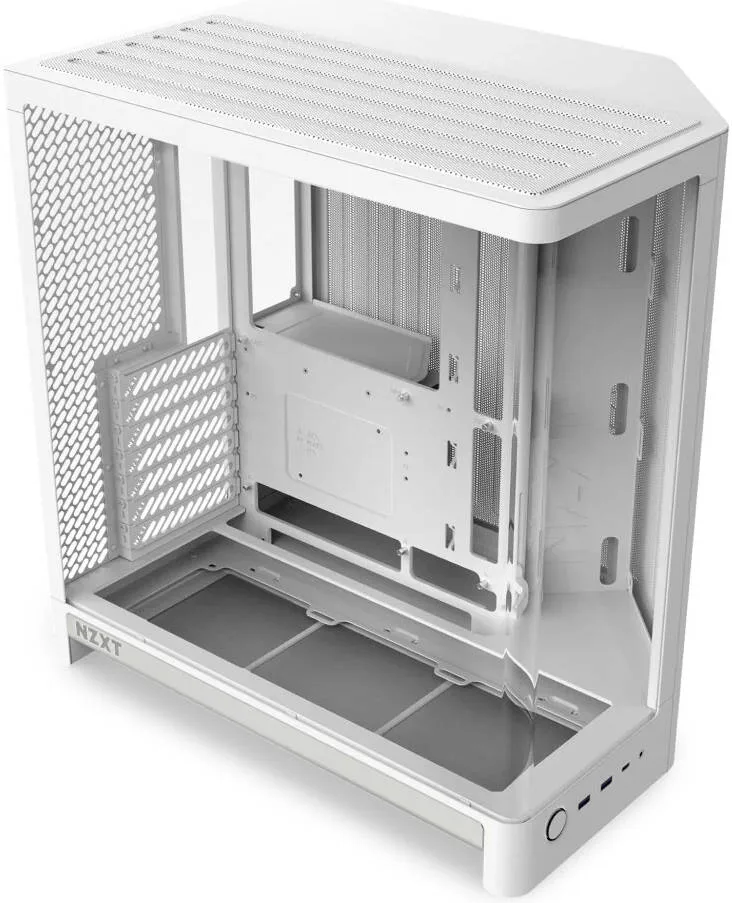

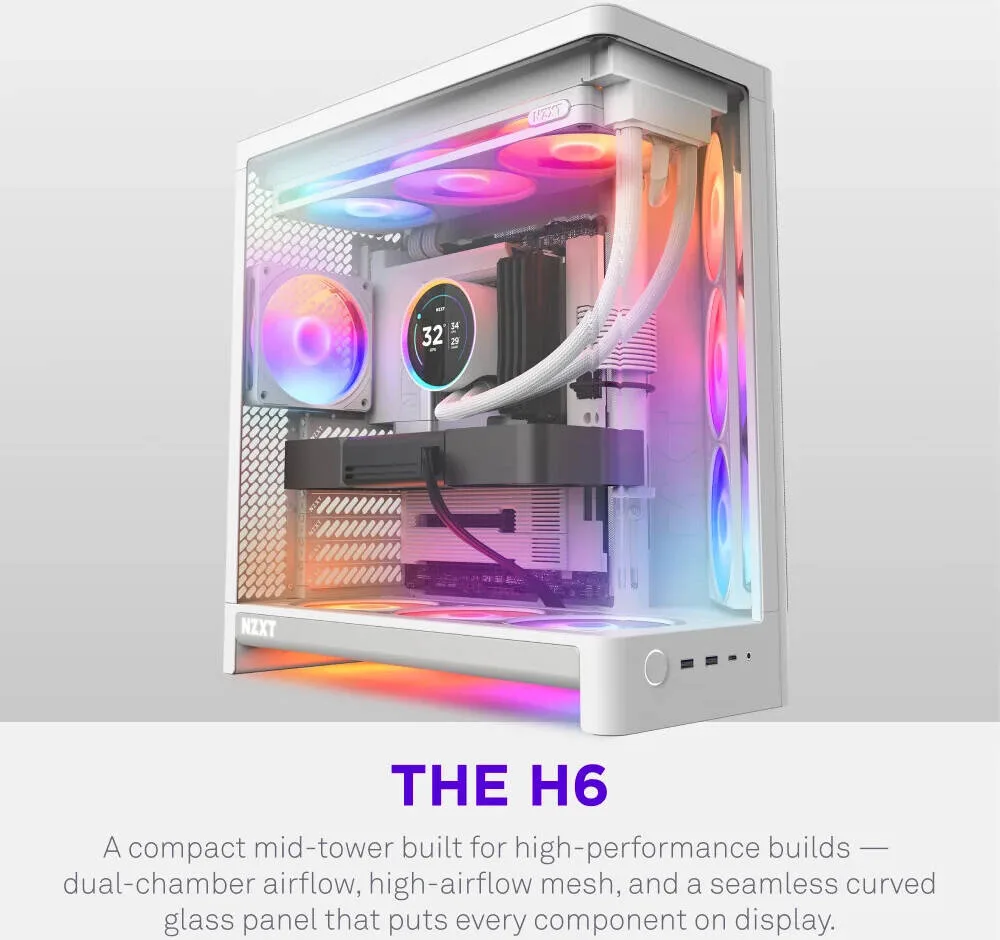

- Compact 55L dual-chamber ATX mid-tower
- One-piece curved tempered glass — tight bend radius, minimal distortion

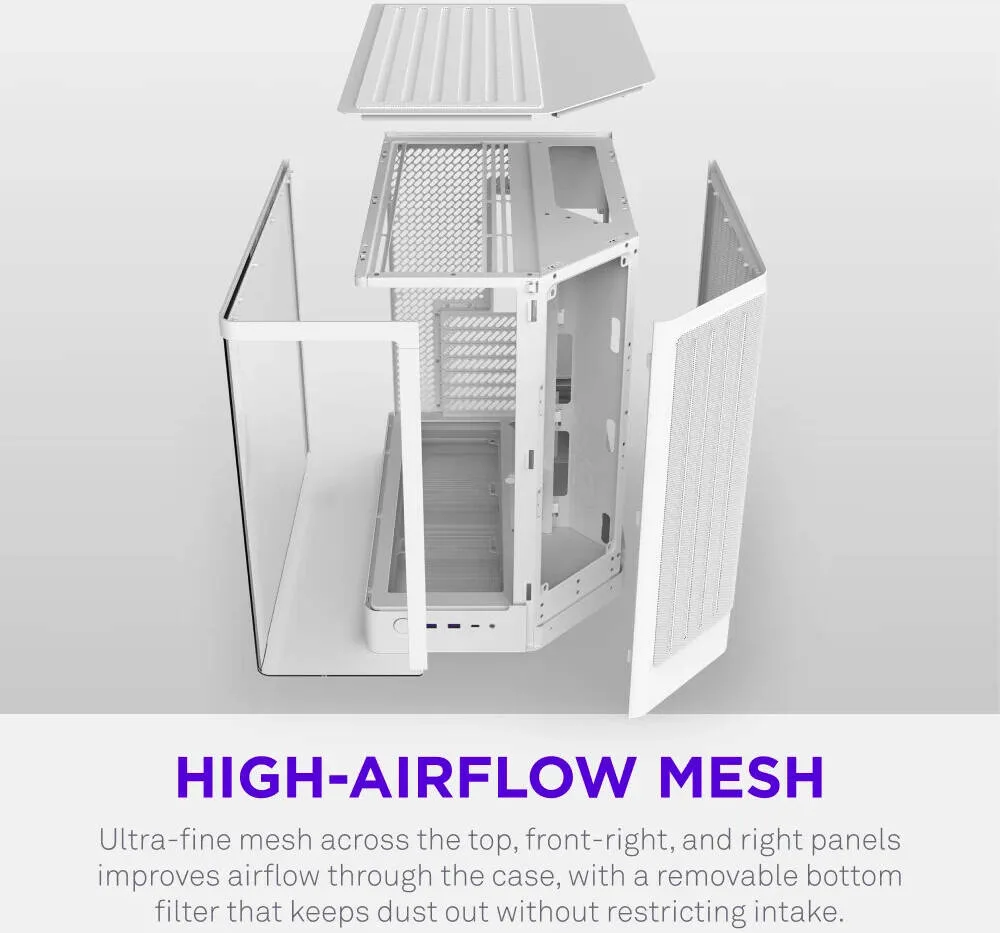

- High-airflow mesh across top, front-right, and right panels

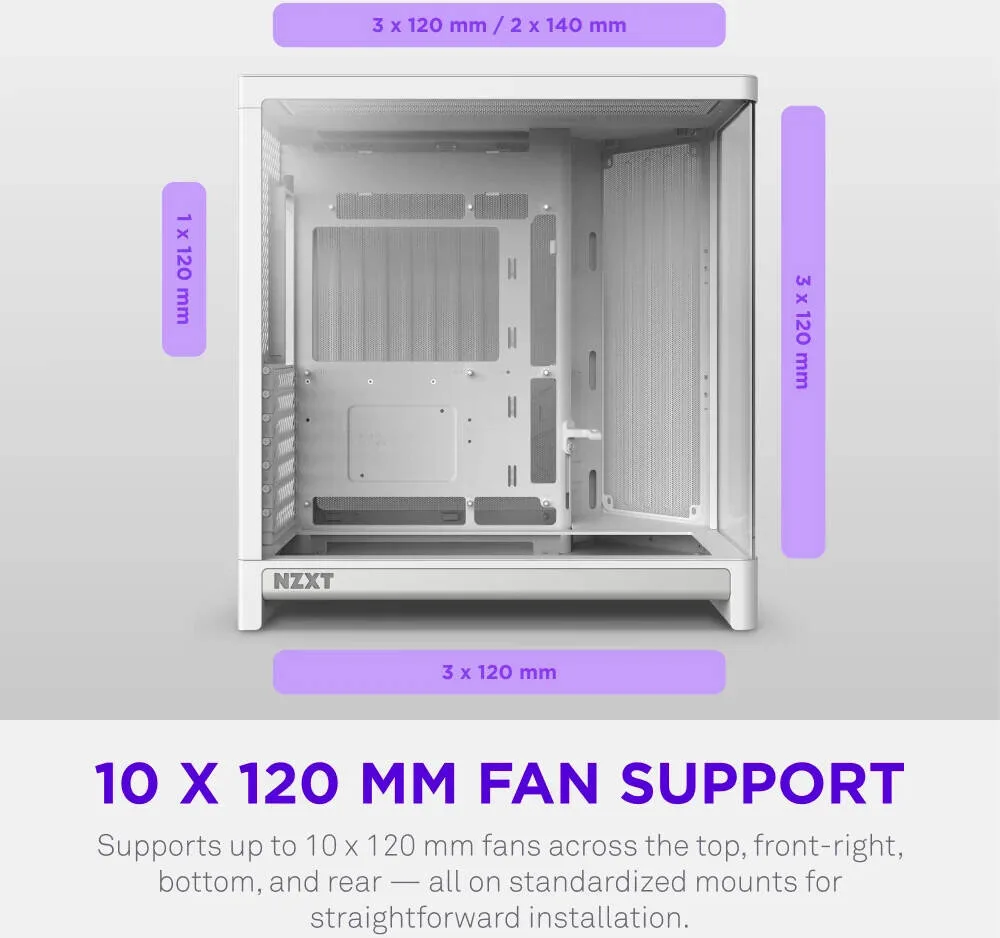

- Support for up to 10 x 120 mm fans

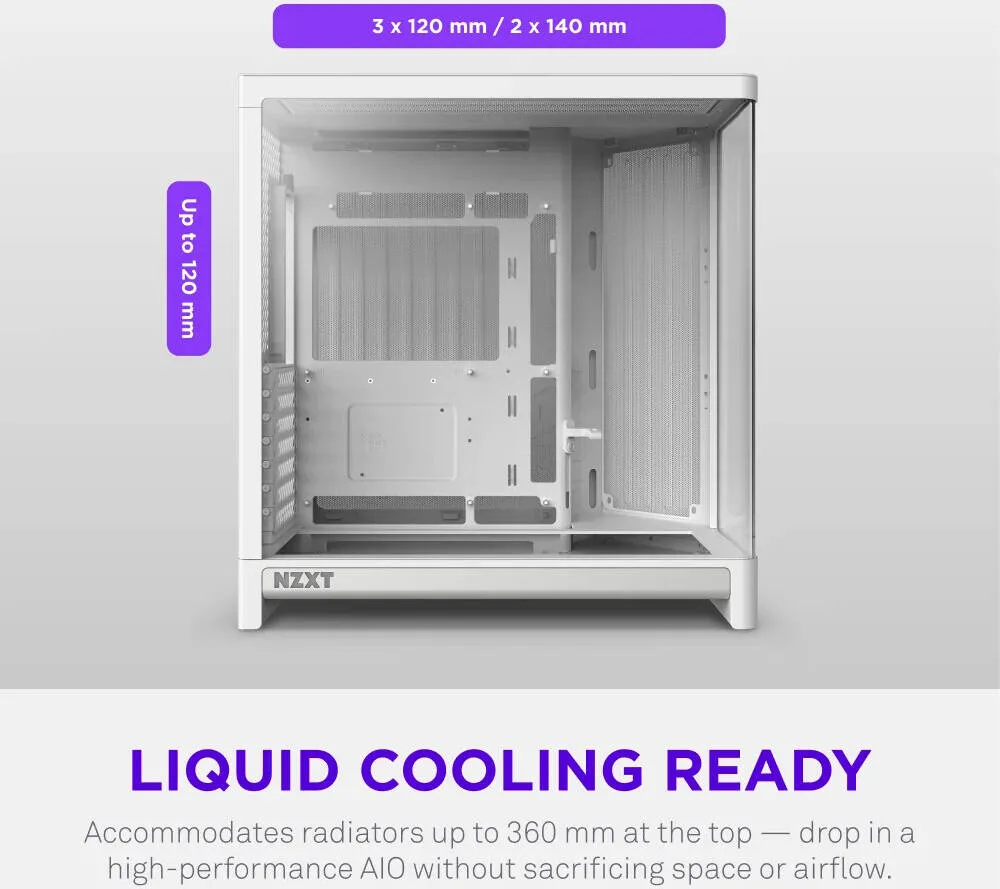

- Radiator support up to 360 mm at the top
- Built-in GPU anti-sag bracket
- Back-connect motherboard compatibility (BTF, Project Zero, Project Stealth)
- Tool-less side panels and smart cable routing

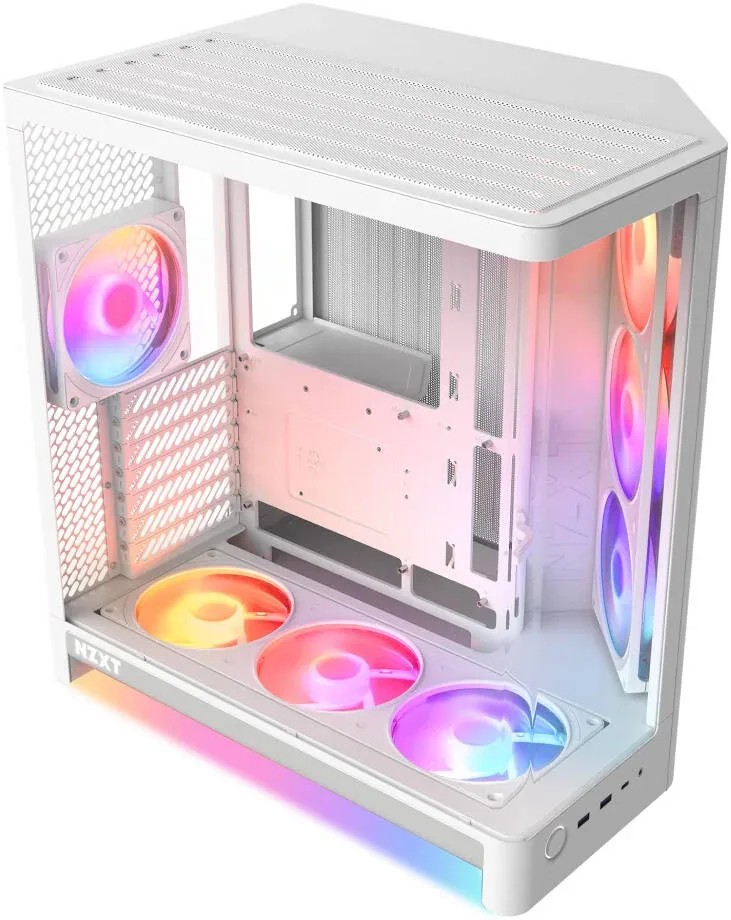

- H6 RGB+ ships with pre-installed RGB fans and Control Hub Lite
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- White
- No of fans
- 10 Fans
- Form factor
- ATX Mid Tower
- Side window
- With Side Window
- Radiator support
- 360 mm
- External 5 25 inch drive bays
- None
Details
- Shipping Weight
- 11.16 Kg
- Shipping Dimensions
- 38.00 cm x 53.00 cm x 52.00 cm
- Enclosure Type
- Dual-chamber ATX Case
- Motherboard Support
- ATX, Micro-ATX, Mini-ITX
- Rear-Connecting Motherboard Support
- Yes (ATX)
- Power Supply Type
- ATX
- Materials
- Steel, Tempered Glass
- Dimensions (H × W × D)
- 448 × 292 × 420 mm (17.6 × 11.5 × 16.5 in)
- Volume
- 55 L
- Weight
- 9.3 kg (20.5 lb)
- CPU Cooler Height
- Up to 165 mm (6.5 in)
- GPU Length
- Up to 390 mm (with 30 mm front-right fan)
- PSU Length
- Up to 200 mm (7.9 in)
- Cable Routing Space
- Up to 90 mm (3.5 in)
- Front-Right Fan Thickness
- Up to 30 mm (without limiting GPU length)
- Top Radiator + Fan Thickness
- Up to 67 mm (2.6 in)
- USB 3.2 Type-A
- 2 Ports
- USB 3.2 Gen 2x2 Type-C
- 1 Port
- Headset Jack
- 1
- Expansion Slots
- 7
- 2.5" Drive Bays
- 2
- 3.5" Drive Bays
- 1
- Front-Right Fans
- 3 × 120 mm
- Top Fans
- 3 × 120 mm
- Bottom Fans
- 3 × 120 mm
- Rear Fan
- 1 × 120 mm
- Top Radiator Support
- Up to 360 mm (Up to 400 mm)
- Rear Radiator Support
- Up to 120 mm
- Fan Models
- F360 RGB Reverse / F120 RGB
- Fan Quantity
- 2 / 1
- Fan Speed
- 2200 ± 220 RPM / 2400 ± 240 RPM
- Airflow
- 62.14 CFM / 70.67 CFM
- Static Pressure
- 2.7 mmH₂O / 3.7 mmH₂O
- Noise Level
- 34.39 dBA / 33.05 dBA
- Fan Connector
- 8-pin (4-pin PWM + NZXT RGB Combo) / 4-pin
- Fan Channels
- 2 × NZXT 8-pin (PWM Only) / 1 × 4-pin PWM (DC + PWM Control)
- RGB Channels
- 2 × NZXT 8-pin / 1 × NZXT RGB
- Maximum LED Support
- Each NZXT 8-pin channel supports up to 96 LEDs; NZXT RGB channel supports up to 40 LEDs and up to 5 NZXT devices
- System Requirements
- USB 2.0 Internal Header / SATA Power
- Fixed Velcro Straps
- Yes
- Included Zip Ties
- Yes
