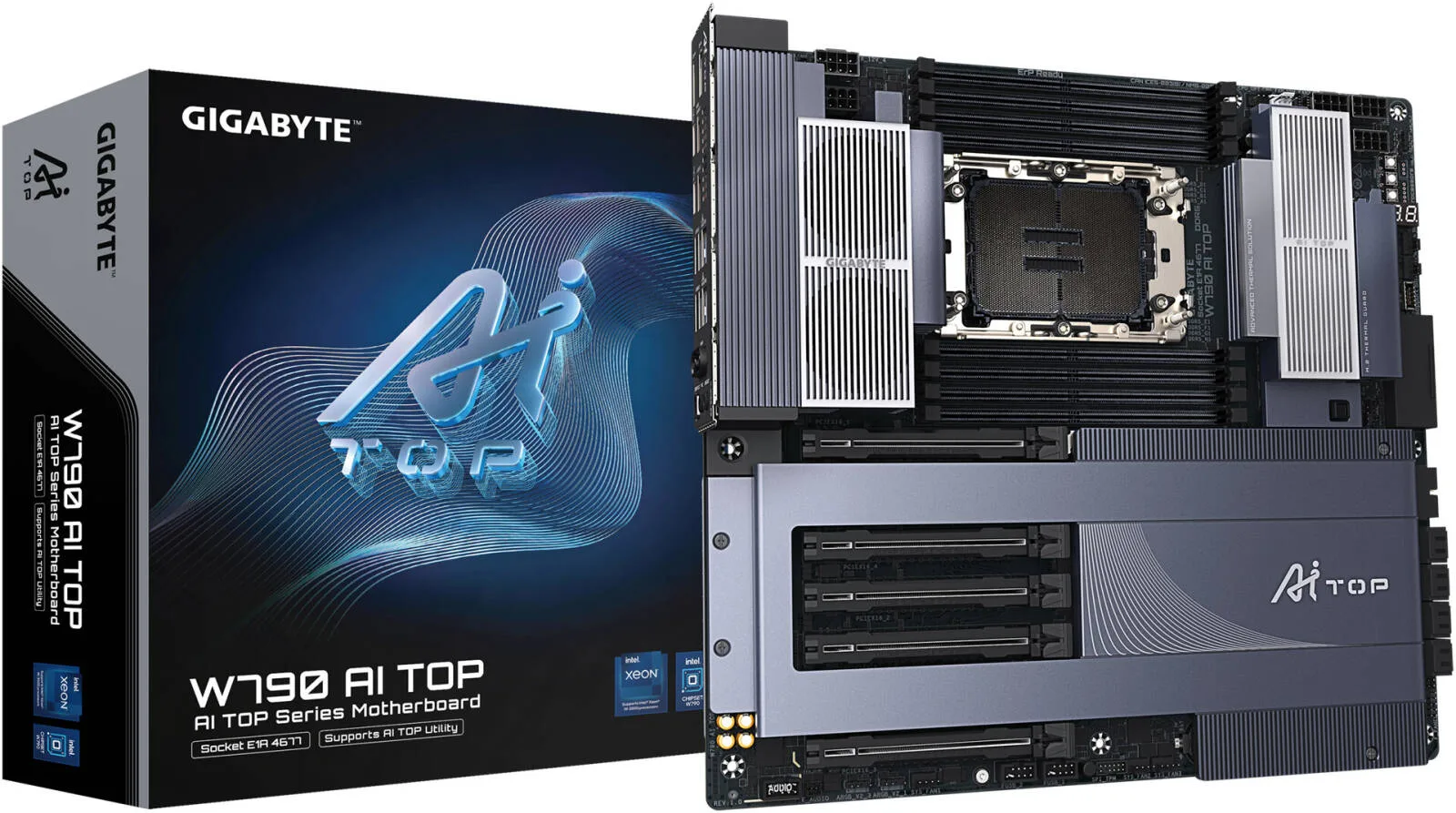

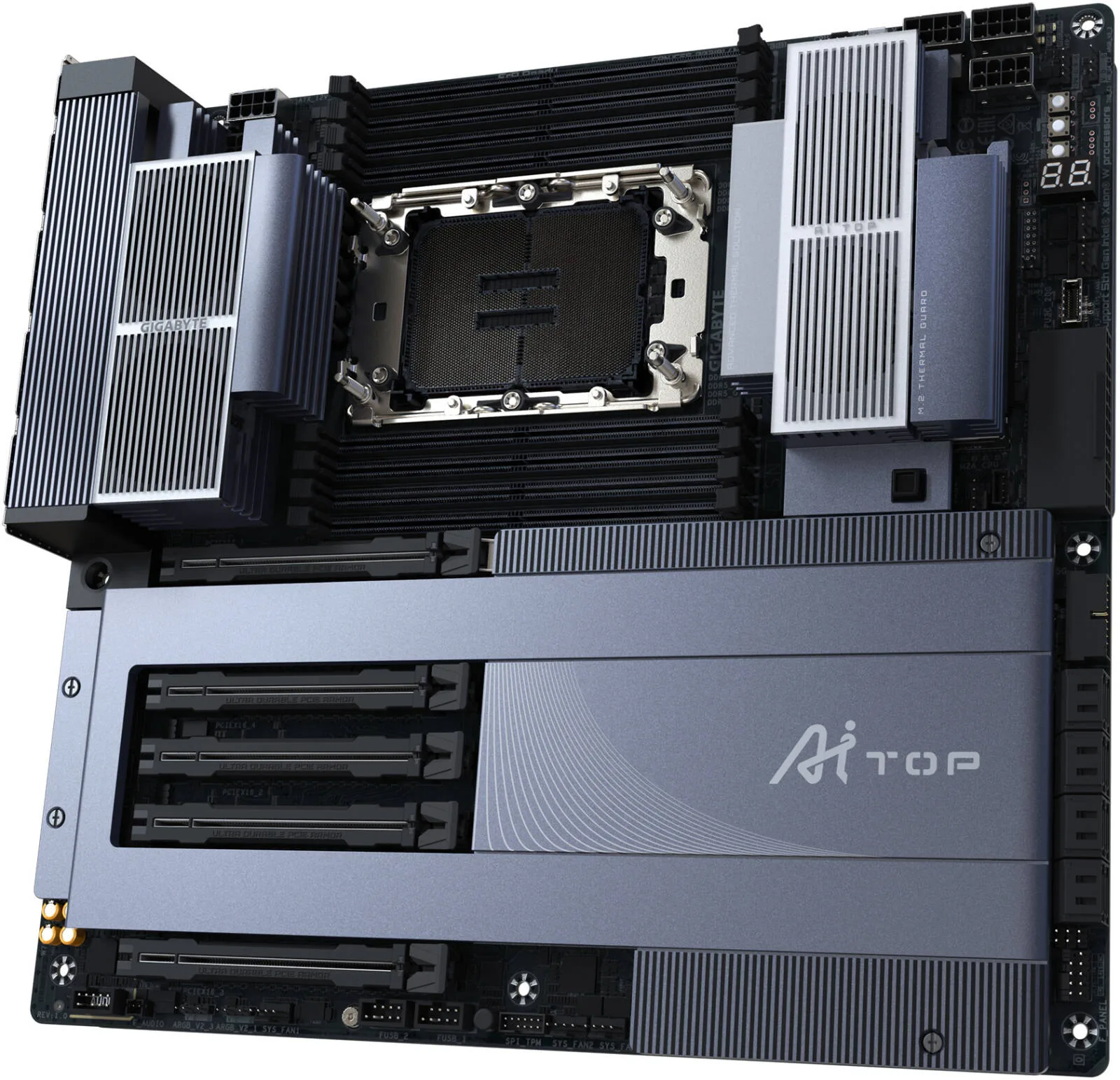

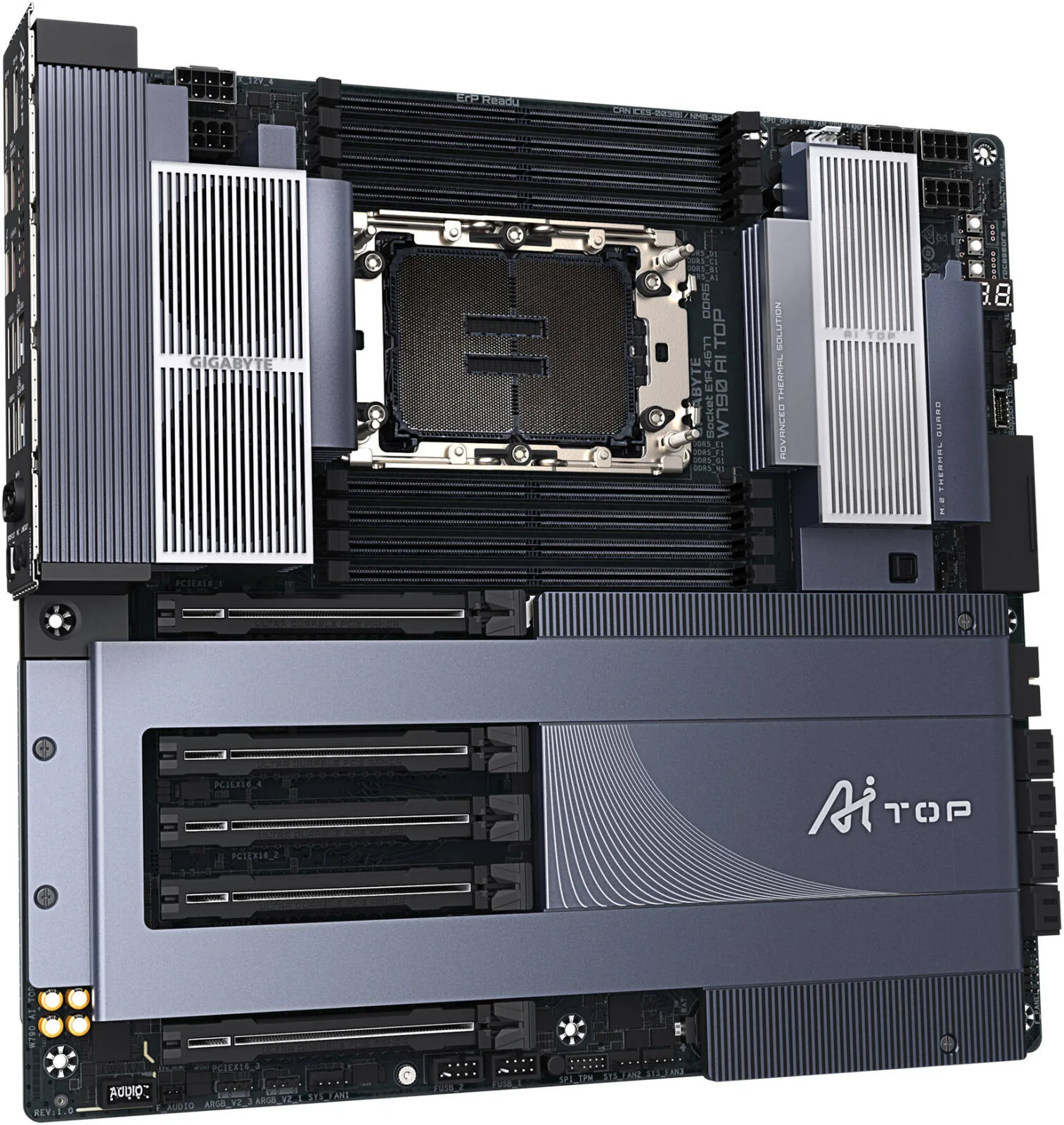

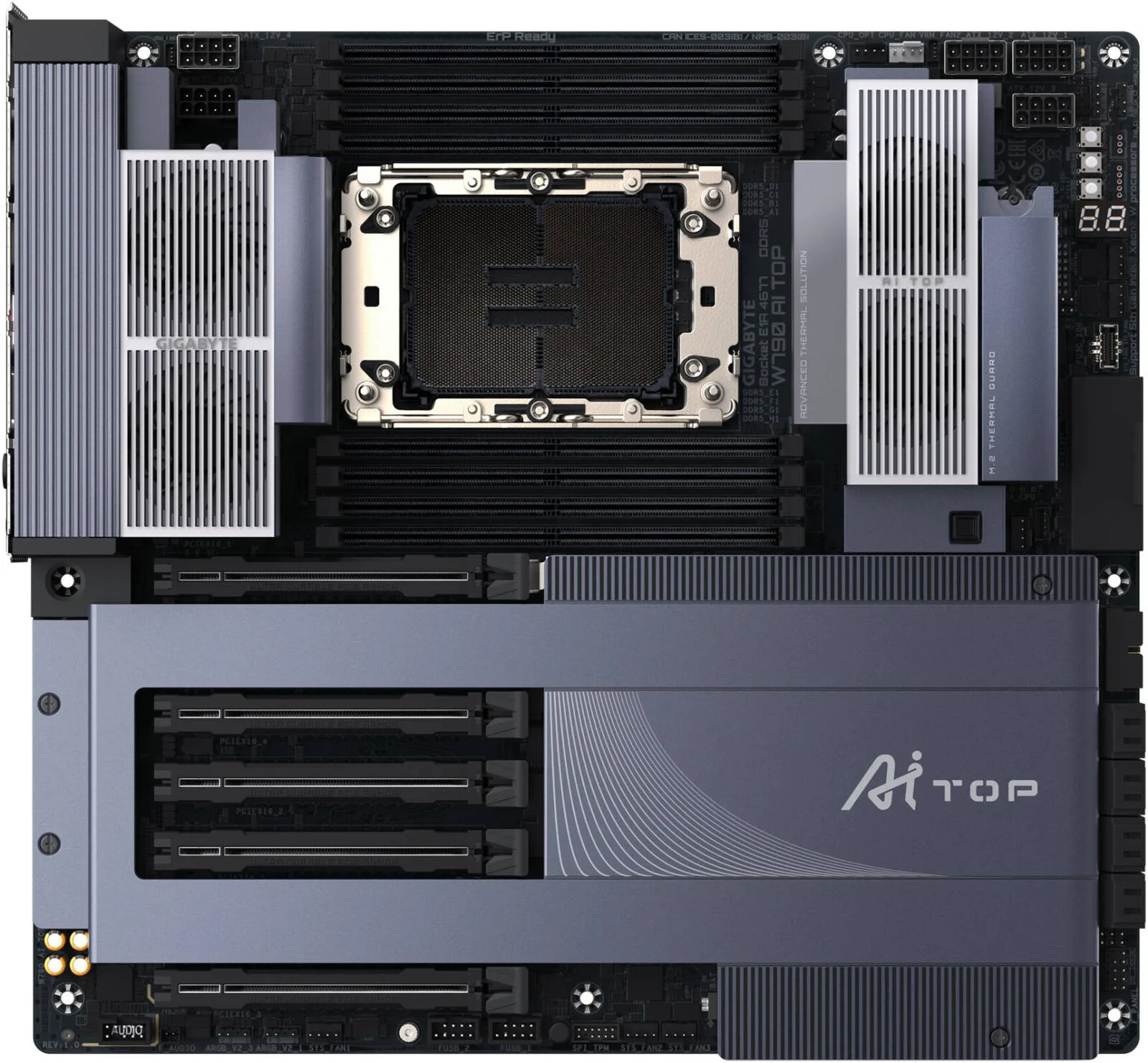

GIGABYTE W790 AI TOP LGA 4677 E-ATX Motherboard, Intel W790 Chipset, 8x DDR5 DIMM Slots, Up to 2TB Max Memory, 5x PCI Express x16 Slots, 6x M.2 Slots, WiFi & Bluetooth Connecitivty
- Support 5th Gen Intel® Xeon® W processors
- Ultimate Scalibility : 5 * PCIe 5.0 x16 slots for Multi-GPU and 6*PCIe 5.0/4.0 M.2 slots
- Next-gen Connectivity : Dual Thunderbolt™ 4 Type-C with DP-Alt
- Blazing Fast Networks : Dual Sever-grade 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna
- 8 Channel DDR5 : 8*SMD ECC R-DIMMs with Maxmium 2TB capacity
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Socket
- LGA 4677
- Chipset
- Intel W790
- Form factor
- E-ATX
- Memory type
- DDR5
- Memory slots
- 8
Details
- Shipping Weight
- 4.85 Kg
- Shipping Dimensions
- 9.50 cm x 39.00 cm x 36.50 cm
- M.2 Slots
- 6
- Maximum Memory
- 2 TB
- PCI Express x16
- 5
- CPU
- LGA4677 socket: Intel® Xeon® W-3500/W-3400/W-2500/W-2400 Series, L3 cache varies
- Memory
- DDR5 up to 5600(O.C.)/4800 MHz, 8x DIMM slots, ECC Registered memory, max 2TB, XMP support
- Audio
- Realtek® Audio CODEC, HD Audio, 7.1-channel, S/PDIF Out
- LAN
- Intel® X710-AT2 10GbE (10/5/2.5/1 Gbps/100 Mbps)
- Wireless
- Intel® Wi-Fi 7 BE200NGW, Bluetooth 5.4
- Expansion Slots
- 5x PCIe 5.0 x16 (x16 mode), PCIEX16_4 & PCIEX16_5 unavailable with W-2500/W-2400 CPUs
- Storage
- 6x M.2 (4x PCIe 5.0, 2x PCIe 4.0), 8x SATA 6Gb/s, RAID 0/1/5/10 support
- USB Ports
- 2x Thunderbolt™ 4 (USB4® Type-C), 1x USB 3.2 Gen 2x2 (Type-C), 2x USB 3.2 Gen 2 (Type-A), 6x USB 3.2 Gen 1, 4x USB 2.0
- Internal I/O
- 4x 8-pin ATX 12V, 6x M.2, 8x SATA, PCIe power, RGB headers, USB headers, TPM header, Q-Flash Plus button

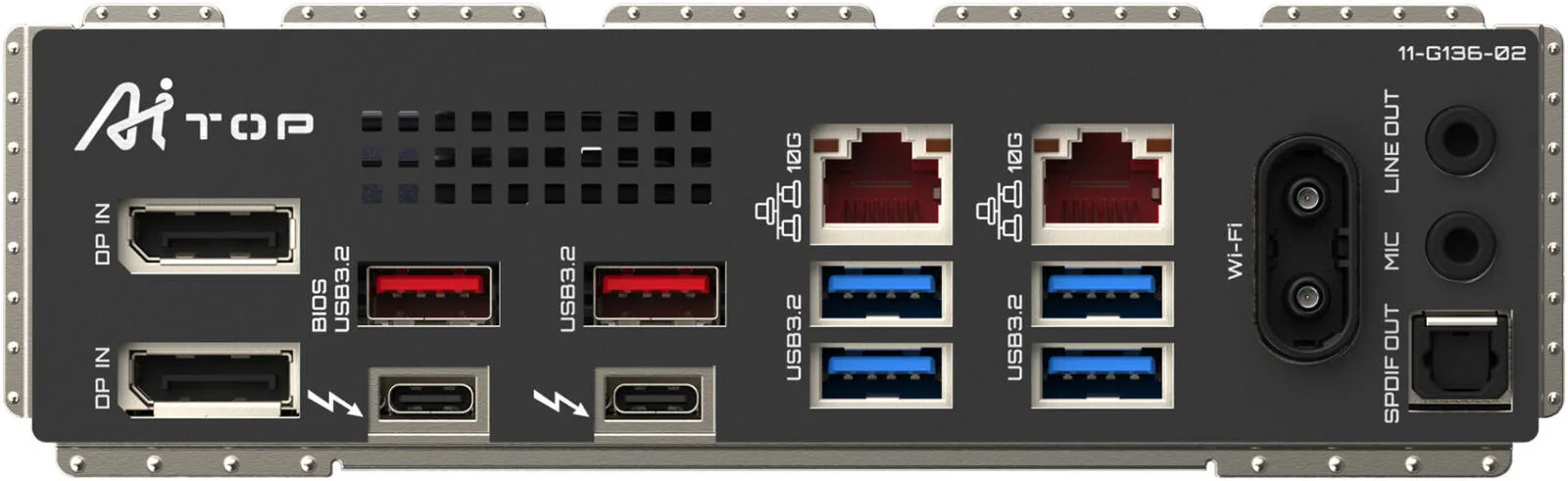

- Back Panel
- 2x DisplayPort In, 2x Thunderbolt™ 4 (USB Type-C), 2x USB 3.2 Gen 2 (Type-A), 4x USB 3.2 Gen 1, 2x LAN, 2x audio jacks, optical S/PDIF Out, 2x antenna connectors
- BIOS
- 512 Mbit flash, AMI UEFI, Q-Flash, Smart Backup
- OS Support
- Windows 11 64-bit
4.89 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Sophie L. Used for: 1–3 months
Pros
Dual 10G ports built into the rear panel
Comment
Two 10G ports as standard, which saved me a card and a slot
Amelia K. Used for: 3–6 months
Pros
Memory training on eight registered sticks was quick and painless
Cons
Debug LEDs are hidden behind the first graphics card
Comment
Coming from a dual socket board this feels like a luxury by comparison. Eight sticks of RDIMM trained on the first boot, no manual timings, no failed posts, and the machine has been up continuously since it was commissioned four months ago apart from one firmware update. One design grumble. The four status LEDs sit right beside the top PCIe slot, so with a full height card fitted you cannot see them at all. On a board that expects four cards, putting the diagnostics where a card will always cover them seems an odd choice.
Jack W. Used for: Less than a month
Comment
Four cards on full x16 lanes and eight DIMMs of ECC, all in a case that fits under a desk. Exactly what I ordered it for.
Florence P. Used for: Less than a month
Comment
Went in without drama. Eight DIMM slots populated with registered memory, both 10G ports live immediately, and the BIOS found the Xeon without needing an update, though I flashed the newest one anyway. Quiet under load too.
Theo B. Used for: 6–12 months
Pros
Rock solid under everything I have thrown at it
Cons
Manual is thin
Comment
Faultless so far, ignore the manual and read the forums
George W. Used for: 6–12 months
Pros
Handles four training cards without any lane trickery
Cons
The AI TOP software is half finished and wants a login
Comment
Bought for local model training and on the hardware side it delivers exactly what was promised. Four cards at full width, 512GB of registered DDR5 across eight channels, and the board has never once dropped a GPU off the bus during a long run. Ten months in and that is still true. The utility software that gives the board its name is another matter. It wants an account, the interface is clumsy, and I ended up using standard tooling instead. The hardware deserves better software, so four stars rather than five.
Ella B. Used for: 3–6 months
Pros
Cooling on the VRM and chipset is proper, not decorative
Comment
Chose this over the ASUS mainly for the cooling arrangement, and that has been the right call. With four cards drawing everything they can, the VRM heatsinks sit in the low fifties and the chipset never goes above sixty, which on a board driving this much silicon is impressive. The heat pipe between the two sections is not just for show. Five months of near constant load and those numbers have not crept up. Where it loses a star is the BIOS, which is clearly a desktop AORUS layout stretched over a workstation platform, and some of the labels do not make sense for the hardware underneath.
Arthur M. Used for: 1–3 months
Pros
Thunderbolt and 10G together mean the rear IO covers everything
Comment
Rear panel has Thunderbolt, two 10G ports and enough USB that the hub went in a drawer. For a workstation board that usually skimps on connectivity it is a refreshing change, and everything worked without hunting for drivers, though the manual is thin on which port is which.
Florence L. Used for: 6–12 months
Pros
Eight memory channels on a board you can actually buy
Cons
Wants serious airflow
Comment
Does everything a workstation board should, no fuss at all!
