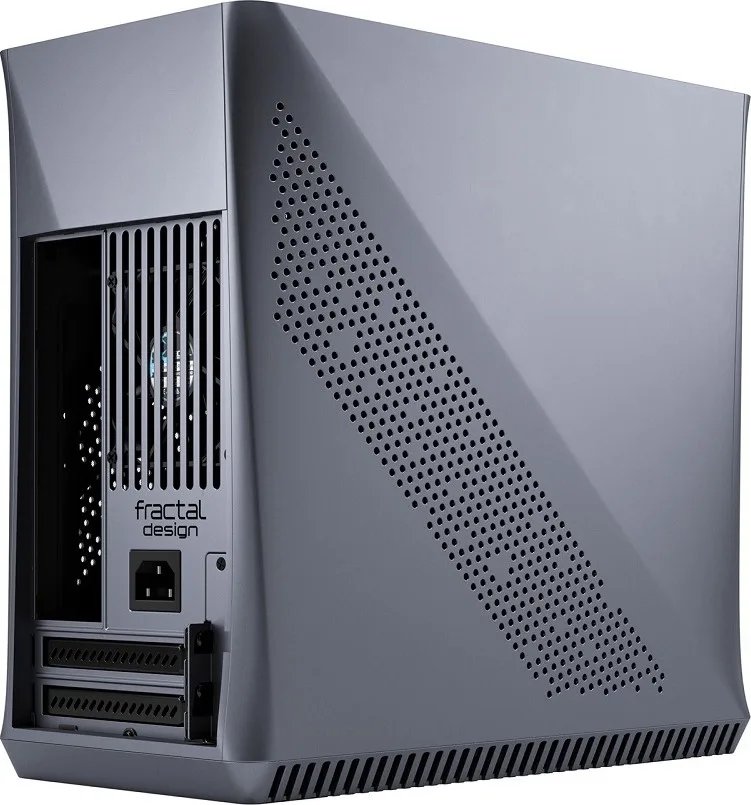

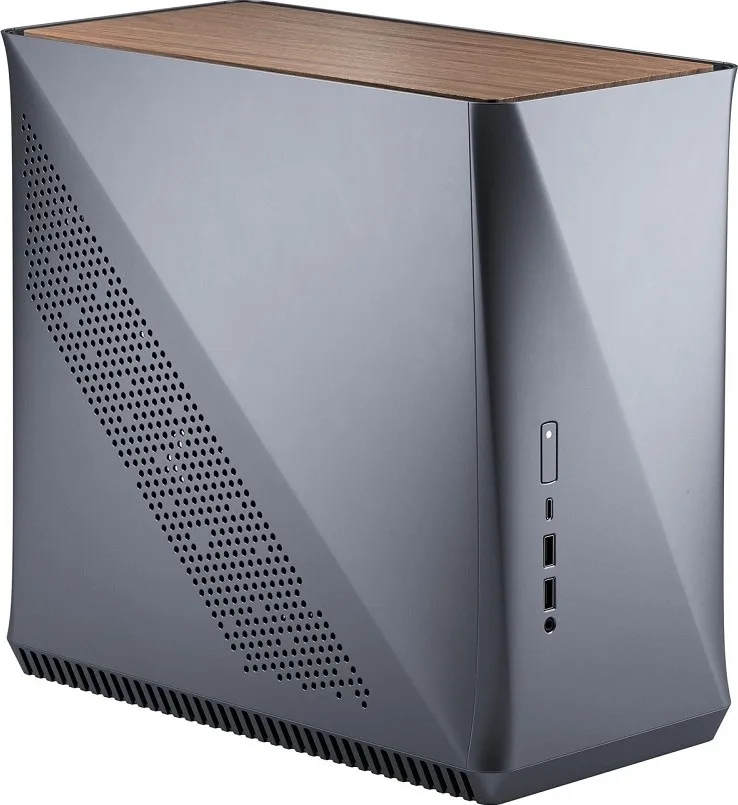

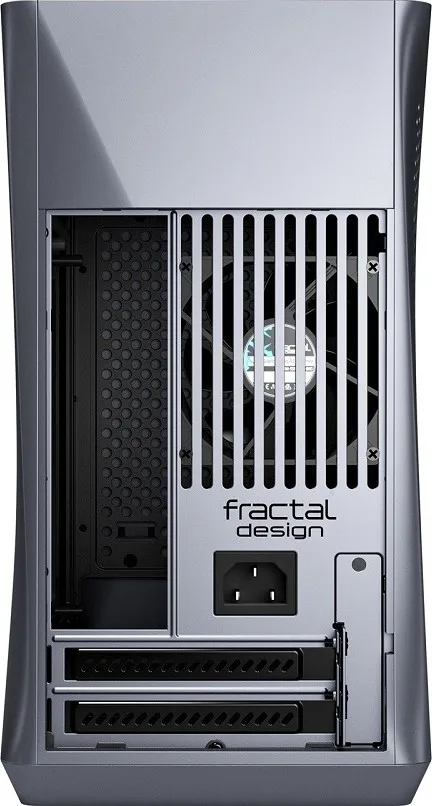

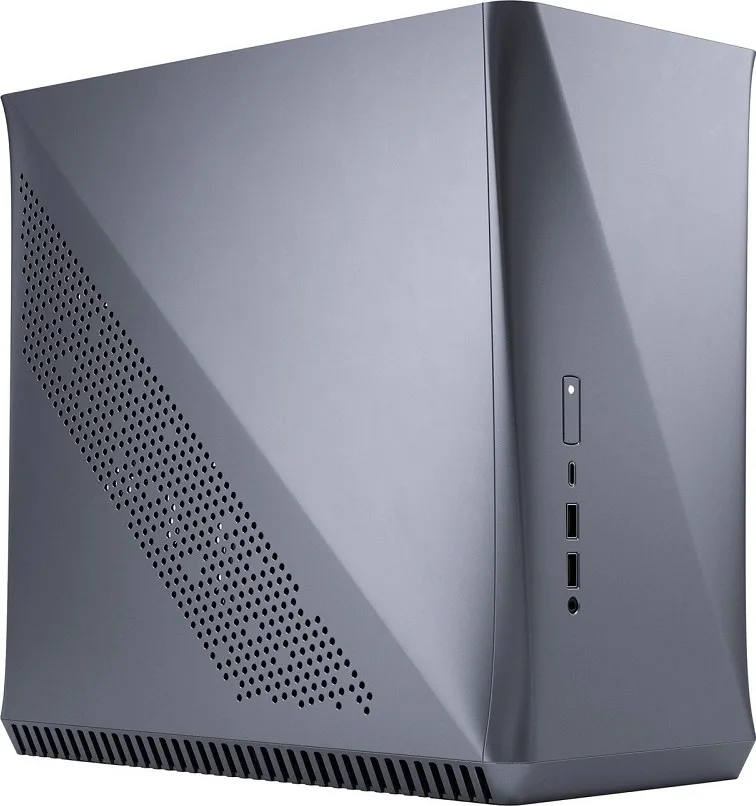

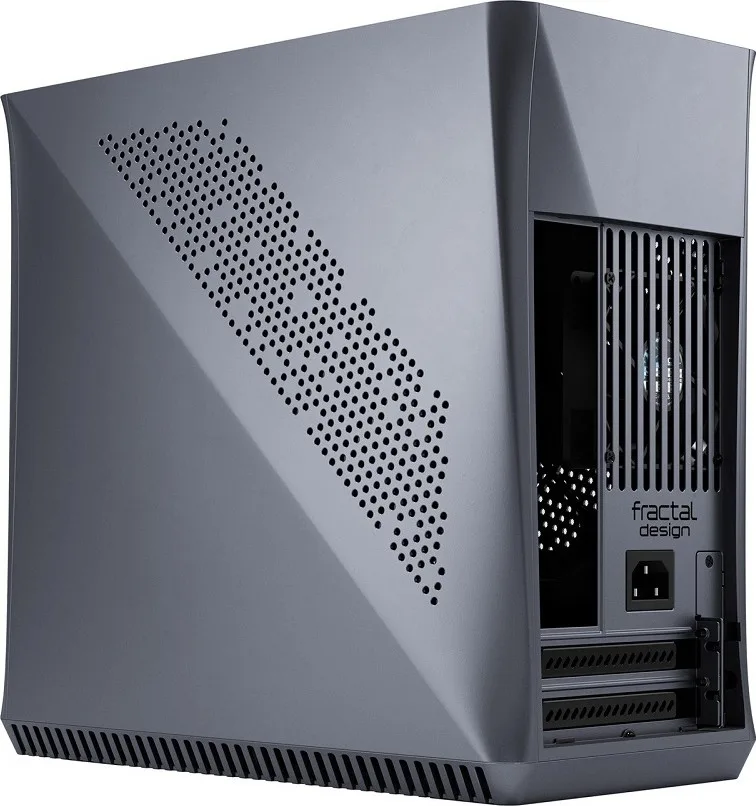

Fractal Design Era Mini-ITX Compact Modular Walnut Top Panel Gaming Case, Small Form Factor, 120mm Cooler Height, SFX, No LED, Anodized Aluminum/Steel, Titanium Gray
- Era ITX
- Era is a unique and elegantly understated feat of both design and technical engineering — a compact chassis free from the excessive restrictions traditionally associated with small form factor systems.
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- Blue
- No of fans
- 0 Fans
- Form factor
- ITX Mid Tower
- Side window
- Without Side Window
- Radiator support
- 120 mm
- External 5 25 inch drive bays
- 1
Details
- Shipping Weight
- 4.90 Kg
- Shipping Dimensions
- 26.00 cm x 40.51 cm x 44.01 cm
- 3.5” Drive Support
- SFX PSU: 2 HDDs or 1 HDD + 2 SSDs; ATX PSU: 1 HDD
- 2.5” Drive Support
- SFX PSU: 4 SSDs or 2 SSDs + 1 HDD; ATX PSU: 2 SSDs
- Expansion Slots
- 2
- Front Ports
- 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 3.5 mm CTIA combined audio/mic
- Total Fan Mounts
- 5
- Top Fan
- 2x 120 mm
- Rear Fan
- 1x 80 mm (1 x SSR3 80 mm included)
- Bottom Fan
- 2x 140 mm (without 2-slot GPU)
- Dust Filters
- Bottom intake, Side intakes, Top exhaust
- Fixed Velcro Straps
- Yes
- Tool-less Push-to-lock
- Both side panels
- Left Side Panel
- Aluminum
- Right Side Panel
- Aluminum
- Motherboard Compatibility
- ITX
- Power Supply Type
- ATX, SFX-L, SFX
- Top Radiator
- 120/240 mm or 2x 120 mm (max 125 mm width, 67 mm thickness w/ fans, dependent on PSU position/type)
- PSU Max Length
- 200 mm
- GPU Max Length
- 295 mm or 210/190 mm (with low-mounted SFX/ATX PSU)
- CPU Cooler Max Height
- 120 mm (70 mm recommended with side-mounted 3.5” HDD)
- Case Dimensions (L x W x H)
- 325 x 166 x 310 mm
- Case Dimensions w/o Feet
- 325 x 166 x 307 mm
- Net Weight
- Carbon/Cobalt/Gold versions – 3.970 kg; Titanium Gray – 4.090 kg; Silver – 4.167 kg
- Package Dimensions (L x W x H)
- 385 x 240 x 420 mm
- Gross Weight
- Carbon/Cobalt/Gold – 4.930 kg; Titanium Gray – 5.050 kg; Silver – 5.127 kg
- Volume
- 16 liters
4.67 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Oliver S. Used for: 1–3 months
Pros
Reads as furniture next to the hi-fi
Cons
You lay the build out twice before it fits
Comment
Bought as a shelf machine for the living room, on the basis that it had to look like it belonged there. It does. The wood top is real veneer with a proper grain, not a print, and next to the amplifier nobody reads it as a PC at all. My partner has stopped complaining about the corner of the room, which is the actual review. Building it is where you earn the look. The modular tray comes out, which helps, but the SFX supply, the riser and the drive cage all want the same air, and I laid the whole thing out on the floor twice before committing. Six weeks of evening use and the CPU holds mid seventies with a shallow fan curve. Worth the faff!
Ava M. Used for: More than a year
Pros
Finish has survived two house moves
Comment
Still the nicest thing I have built into. It went with me to two house moves and the walnut has picked up nothing worse than a faint mark near the power button. Thermals are what they are, mine holds a low power CPU and a small card, and a year and a half on it just works!
Jack C. Used for: 6–12 months
Comment
No side window sounds like a loss until you realise the desk stays uncluttered by RGB. Mine has been running since the spring on a passive-ish curve and the only noise in the room is the fridge.
Leo F. Used for: 1–3 months
Cons
Only one usable front USB port
Comment
Wonderful case let down by one thing: the front panel USB is a single port, which on a machine this tidy feels mean
George H. Used for: 1–3 months
Cons
Drive cage or a long graphics card, not both
Comment
Five stars because I love it, but be warned that the drive cage and a full length card cannot both live in there. Something has to give, and it was my hard drives
Freya K. Used for: Less than a month
Pros
Feels machined rather than moulded
Cons
Needs fans buying separately
Comment
Tiny, solid, and the aluminium panels have a proper weight to them. Best looking thing in the flat and it has only been here a week
Daisy R. Used for: 3–6 months
Pros
Walnut top looks superb on a desk
Cons
No fans included at all
Comment
The walnut top is the reason it sits on the desk rather than under it. Visitors always ask what it is. Cooling needed thought, a single 120 up top and nothing in the box, but four months in my 65W chip idles quietly!
