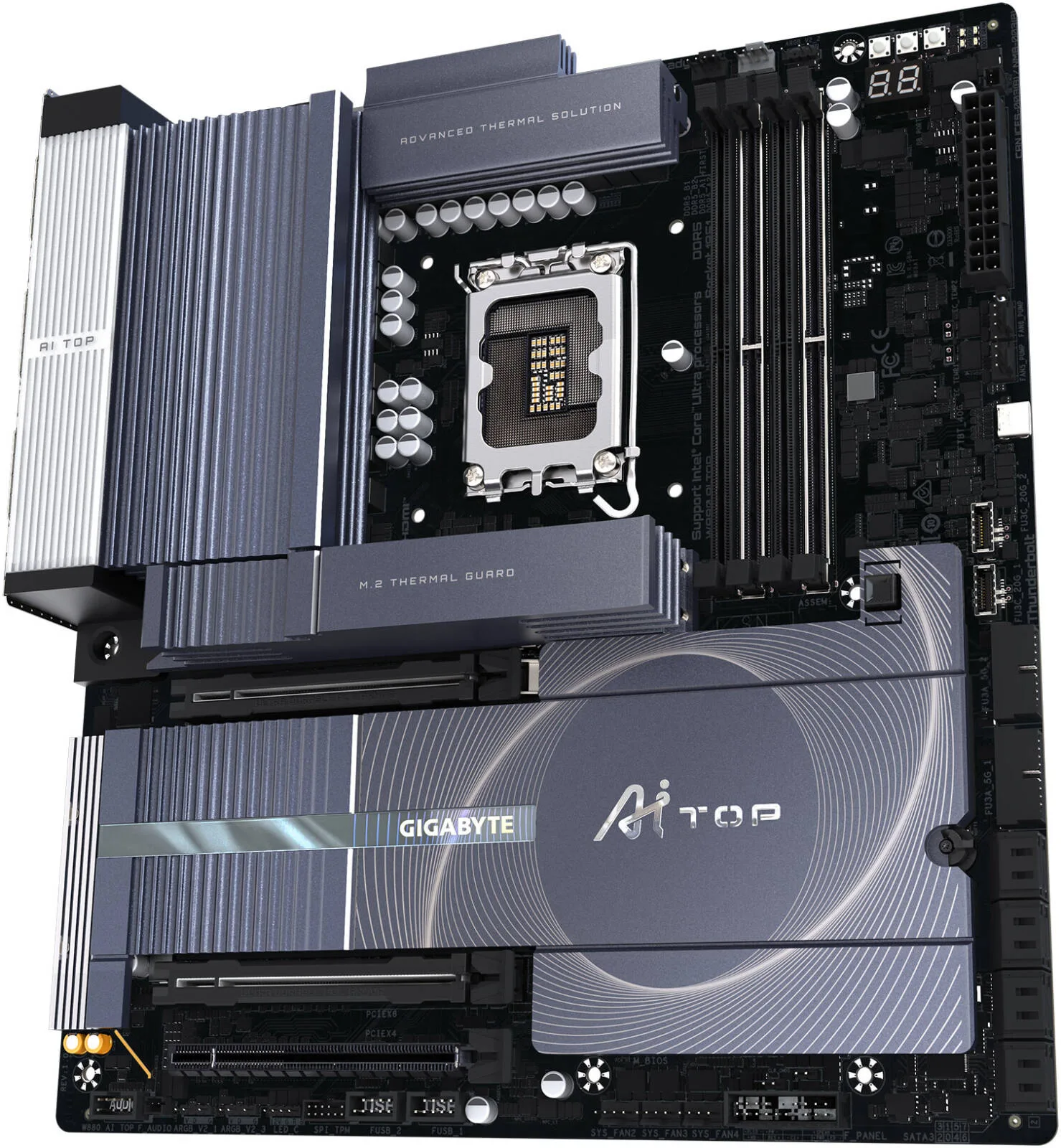

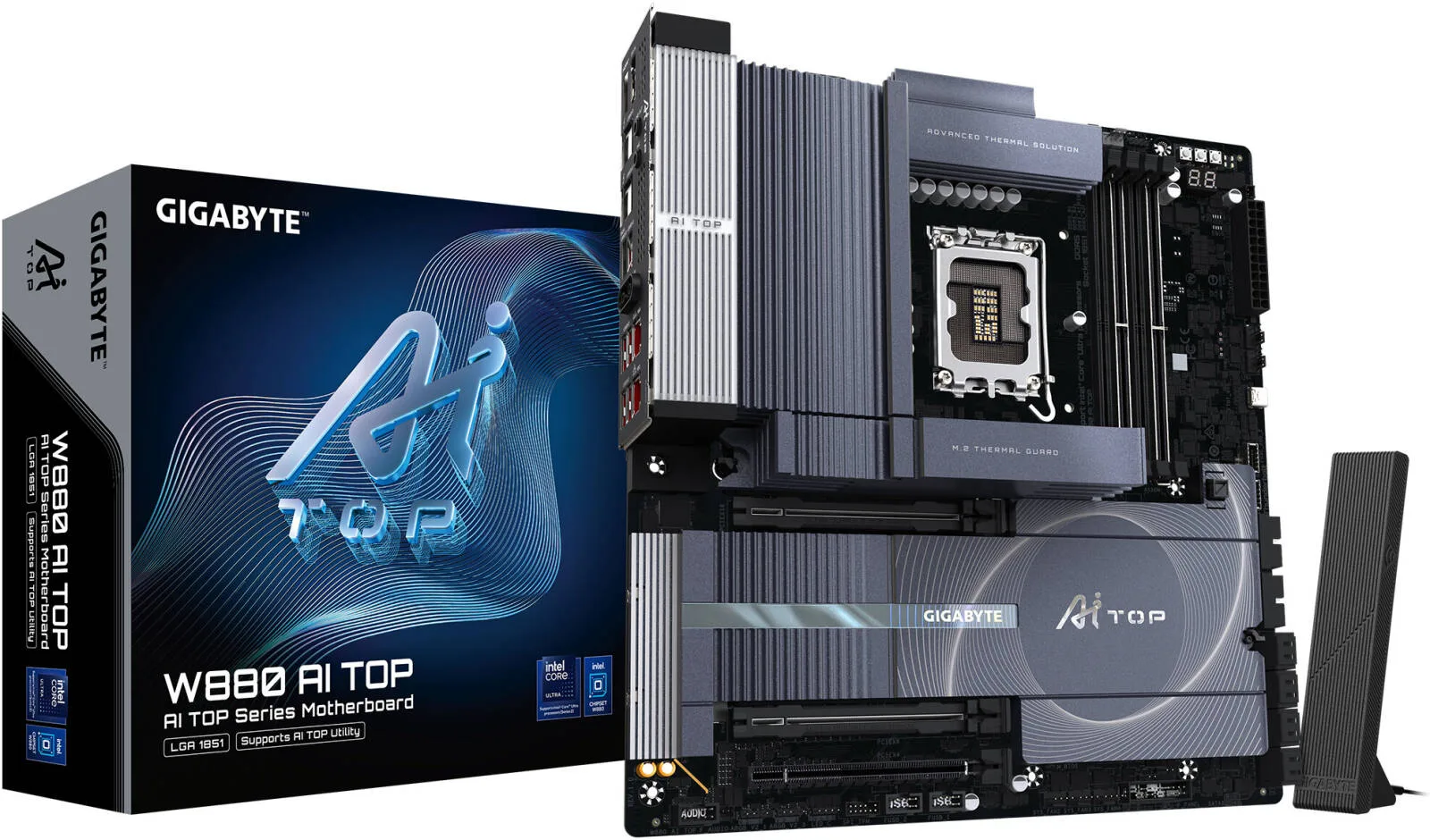

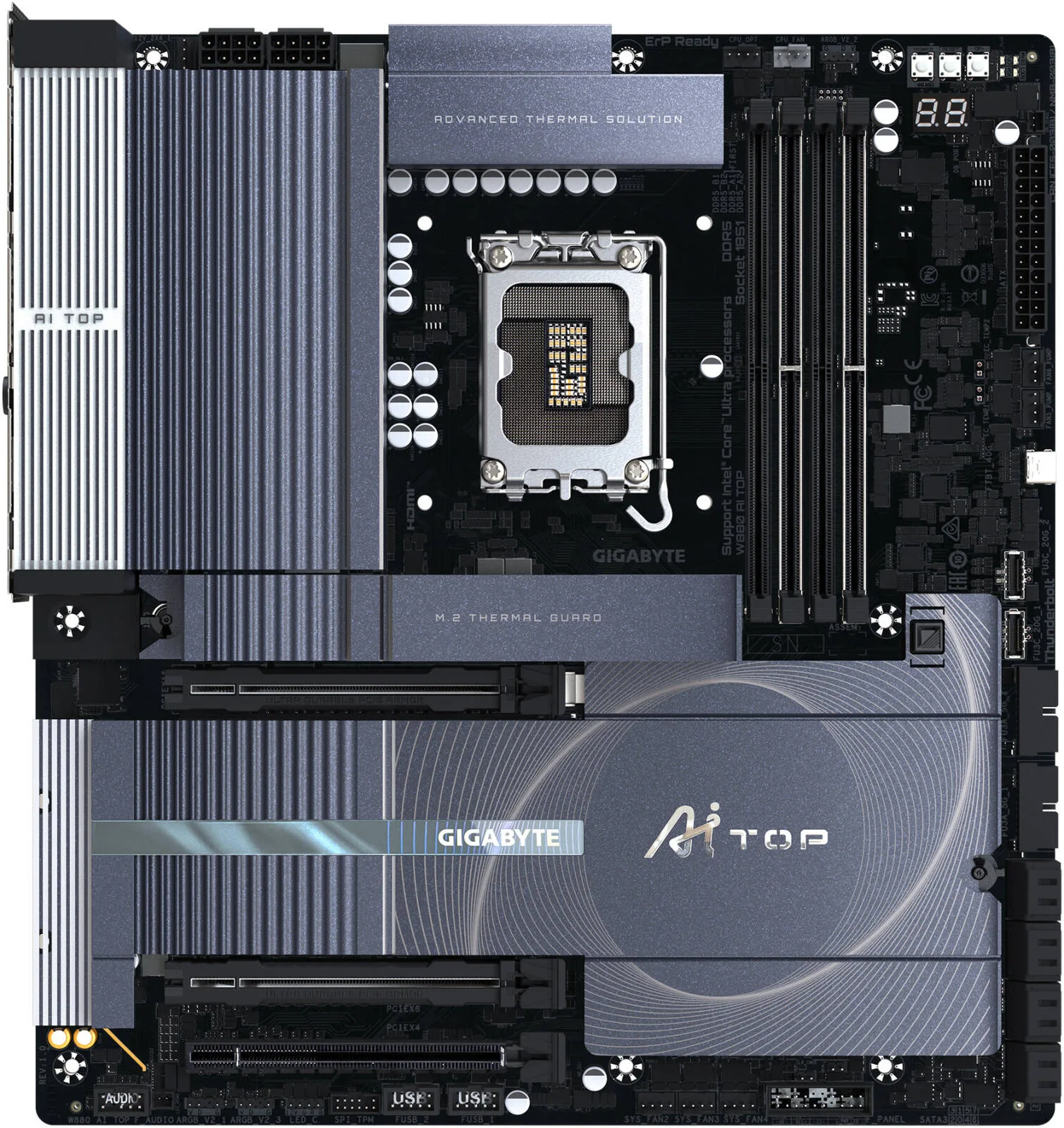

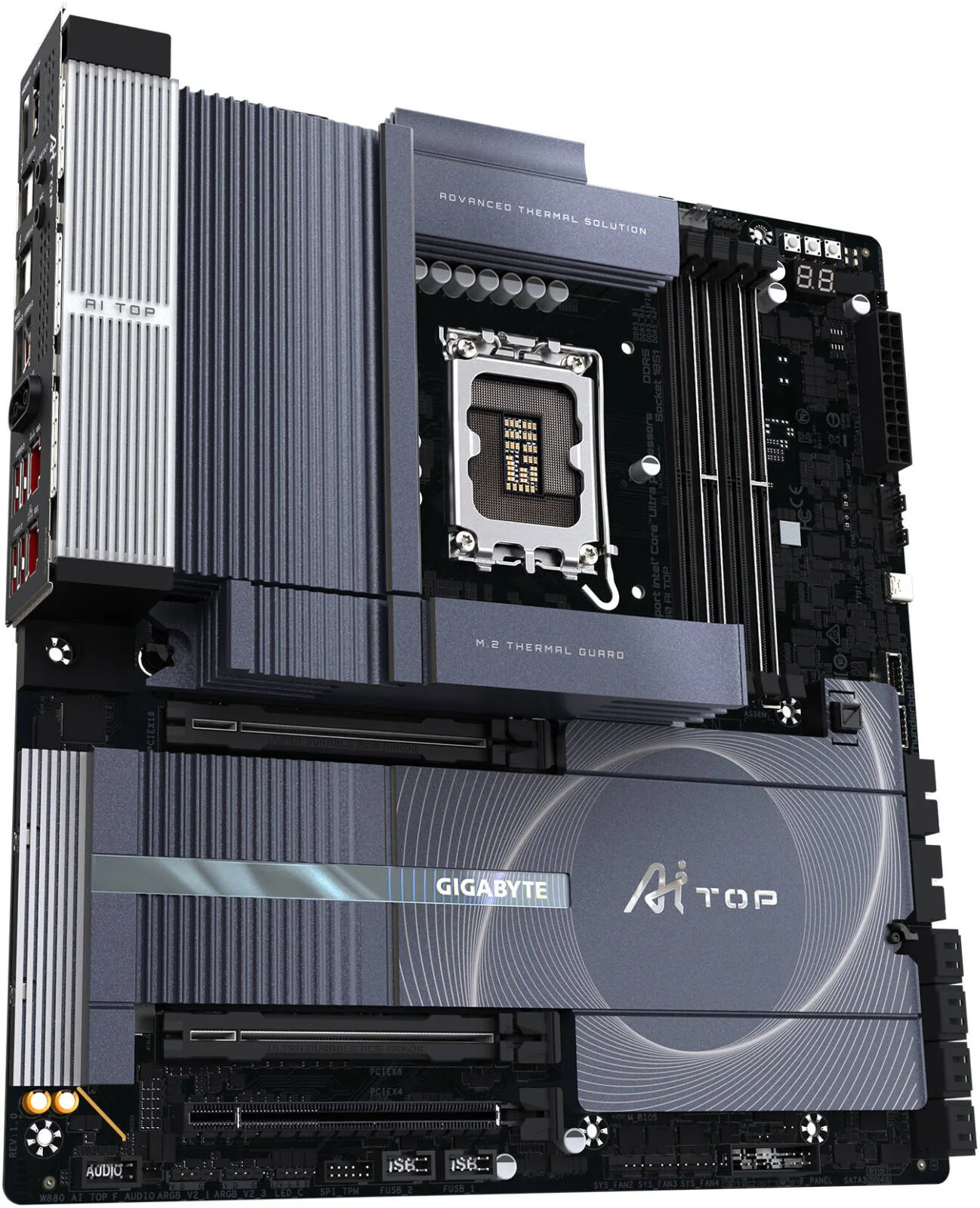

GIGABYTE W880 AI TOP E-ATX LGA 1851 Motherboard, Intel W880 Chipset, 4x DDR5 DIMM Slots, 256GB Max Memory, 2 x PCIe 5.0 x16 (run x8, x16) with PCIe UD Slot X, 4x M.2, WIFI & BT
- Ultimate Scalability : 2*PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0/4.0 x4 M.2 slots
- Next-gen Connectivity : Dual Thunderbolt™ 5 Type-C with DP-Alt, HDMI
- Blazing Fast Networks : Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna
- AORUS AI SNATCH : Auto-Overclocking Software by AI models
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Socket
- LGA 1851
- Chipset
- Intel W880
- Form factor
- E-ATX
- Memory type
- DDR5
- Memory slots
- 4
Details
- Shipping Weight
- 3.60 Kg
- Shipping Dimensions
- 33.00 cm x 38.00 cm x 9.50 cm
- M.2 Slots
- 4
- Maximum Memory
- 256 GB
- PCI Express x16
- 2
- CPU
- LGA1851 socket, supports Intel® Core™ Ultra processors
- L3 Cache
- Varies by CPU
- Memory Support
- DDR5 5600–9466+ (O.C.) MT/s
- Onboard Graphics
- Integrated GPU + Thunderbolt 5 controller
- Audio (Rear)
- ESS ES9260 Codec, HD Audio, 2-channel
- Audio (Front)
- Realtek ALC897
- LAN
- 2× Marvell AQC113C 10GbE
- Wireless
- Intel Wi-Fi 7 BE200, BT 5.4
- Expansion Slots (CPU)
- 1× PCIe 5.0 x16 (PCIEX16)
- Expansion Slots (Chipset)
- 1× PCIe 4.0 x4 (PCIEX4, shared with M2L_SB)
- M.2 (CPU)
- 1× PCIe 5.0 x4/x2 (22110)
- M.2 (Chipset)
- 2× PCIe 4.0 x4/x2 (22110/2280)
- SATA
- 8× SATA 6Gb/s total
- RAID
- RAID 0/1/5/10 for NVMe & SATA
- USB (Rear)
- 2× USB4 Type-C (TB5)
- USB (Internal)
- 1× USB4 (TB4) Type-C
- Internal I/O
- 24-pin ATX, 2× 8-pin CPU power

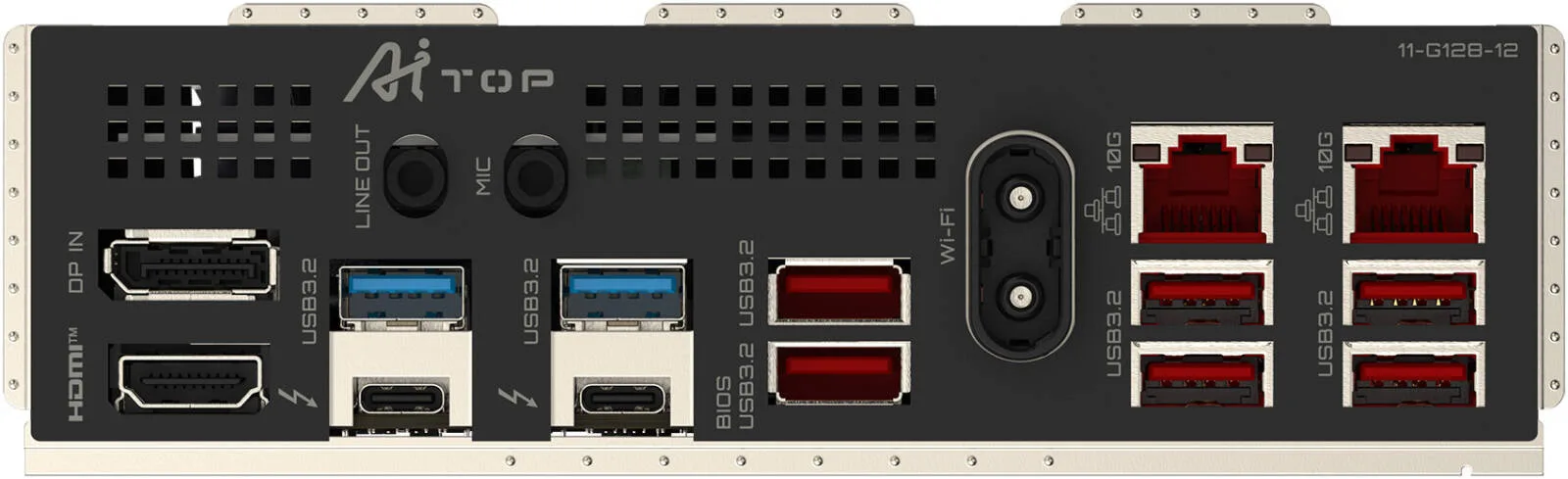

- Back Panel
- 1× DP-In
- I/O Controller
- iTE Controller
- Monitoring
- Voltage, temp, fan, pump, noise detection
- BIOS
- 256 Mbit AMI UEFI BIOS
- Features
- GCC, Q-Flash, Q-Flash Plus, Smart Backup
- Software
- Norton Internet Security, LAN management
- OS Support
- Windows 11 64-bit (24H2+)
5.03 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Millie B. Used for: Less than a month
Cons
Documentation on which memory counts as supported is vague
Comment
Works beautifully once you have the right modules, but working out which ECC kits the board actually supports took longer than the build itself.
Freddie L. Used for: More than a year
Pros
ECC support without paying for a full Xeon platform
Cons
E-ATX and heavy
Comment
Quietly excellent workstation board, never had a correctable error turn into a crash, though I check the log more often than I need to.
Jack W. Used for: 1–3 months
Comment
The reason to buy a W880 board rather than a Z890 is ECC, and this one takes unbuffered ECC modules without any fuss at all. Four sticks recognised, error reporting live in the operating system, which is what I wanted for a machine that runs long jobs unattended. Two 10G ports on top of that, and a VRM that stays in the forties with a 285K flat out. Boring in the best possible way, and two months in I have nothing to add
