GIGABYTE X870E AERO X3D WOOD ATX AM5 Motherboard, AMD X870E Chipset, 4x DDR5 DIMM Slots, 256GB Max Memory, 2x PCIe 5.0 x16, 4x M.2 Slots
- Raw textures reveal timeless elegance
- X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
- DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Socket
- AM5
- Chipset
- AMD X870E
- Form factor
- ATX
- Memory type
- DDR5
- Memory slots
- 4
Details
- Shipping Weight
- 1.50 Kg
- Shipping Dimensions
- 27.00 cm x 27.00 cm x 7.00 cm
- M.2 Slots
- 4
- Maximum Memory
- 256 GB
- PCI Express x16
- 2
- CPU Socket / Support
- AMD AM5; Ryzen™ 9000 / 8000 / 7000 Series
- Memory
- 4× DDR5 DIMM, up to 256 GB, Dual-Channel, non-ECC UDIMM
- Memory Speed
- DDR5 4400–9000 MT/s (OC), 5200/4800 MT/s
- Memory Profiles
- AMD EXPO™, Intel XMP
- Integrated Graphics
- AMD Radeon™ Graphics (CPU dependent)
- Video Outputs
- 2× USB4 Type-C (DP 1.4, up to 3840×2160@240Hz), 1× HDMI 2.1 (4096×2160@60Hz), 1× Front HDMI 1.4
- Audio
- Realtek® ALC1220, 2/4/5.1/7.1-ch, S/PDIF Out
- LAN
- 2× Realtek® 5GbE
- Wireless
- MediaTek Wi-Fi 7 (802.11a/b/g/n/ac/ax/be), Bluetooth 5.4
- PCIe Slots
- 1× PCIe 5.0 x16, 1× PCIe 5.0 x8, 1× PCIe 4.0 x4
- SATA
- 4× SATA 6Gb/s
- RAID
- NVMe: 0/1/5*/10, SATA: 0/1/10 (*RAID 5 Ryzen 9000 only)
- USB (Rear/Internal)
- USB4, USB-C 3.2 Gen2x2, USB-A 3.2 Gen2/Gen1, USB 2.0
- Internal Connectors
- ATX 24-pin, 2× EPS 8-pin, Fan & Pump headers, RGB headers, USB headers

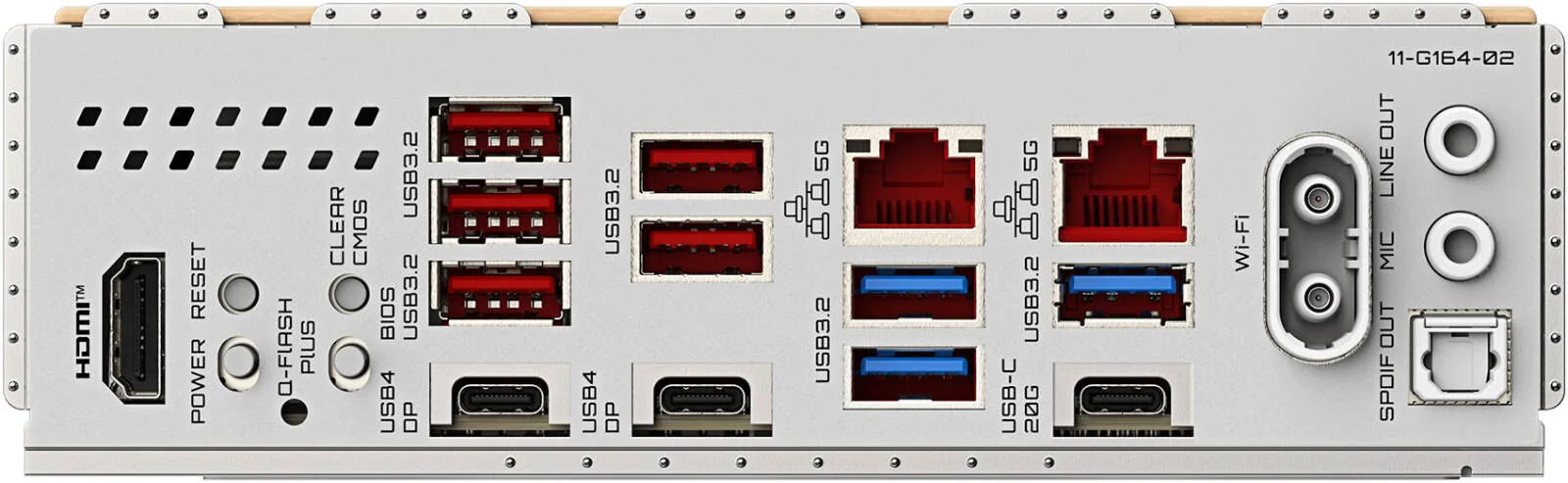

- Back Panel I/O
- USB4, USB-C, USB-A, 2× RJ-45, HDMI, Audio jacks, S/PDIF, Antenna
- BIOS
- 256 Mbit AMI UEFI
- Monitoring
- Voltage, Temp, Fan & Pump, Noise detection
- OS Support
- Windows 11 64-bit
