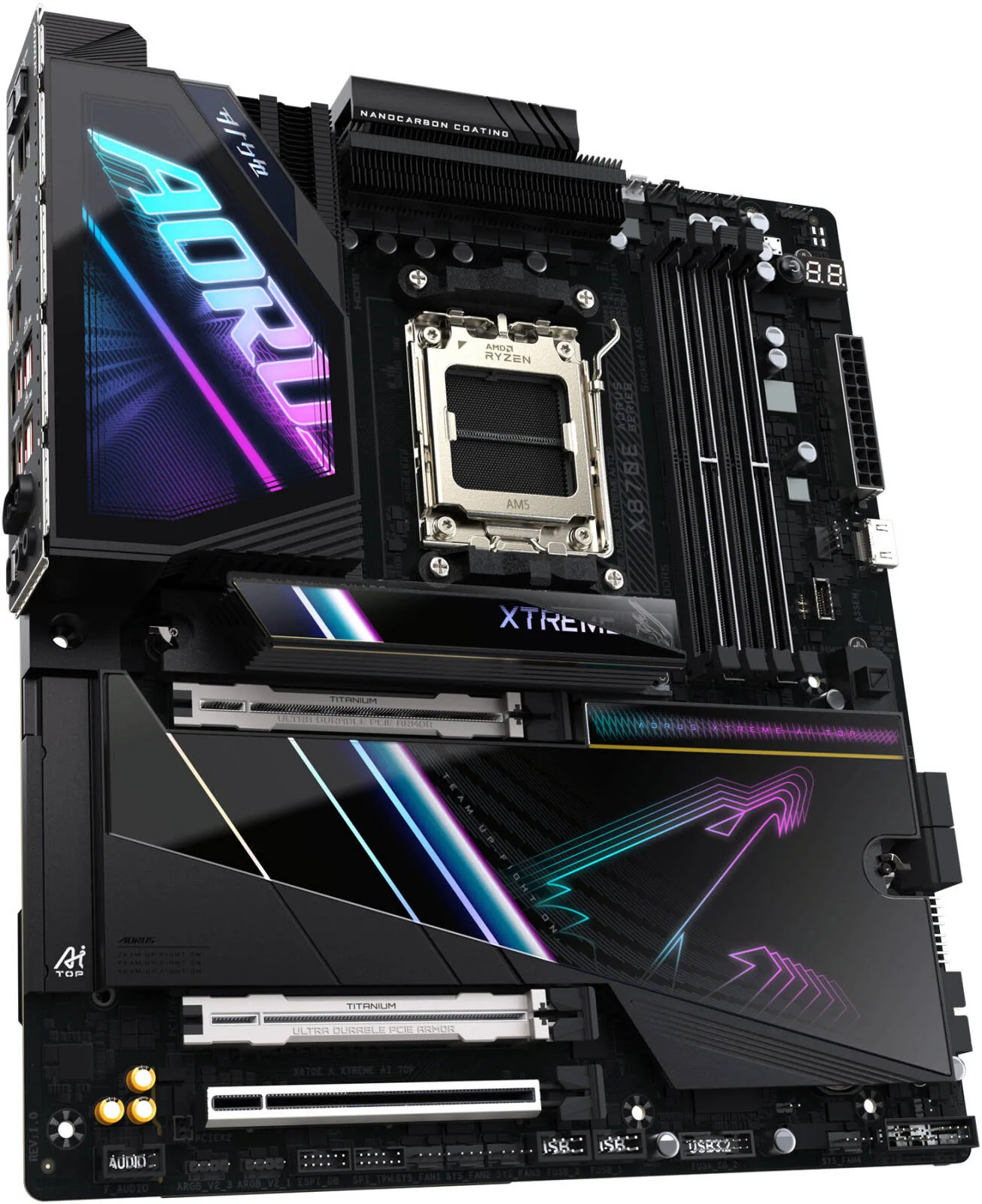

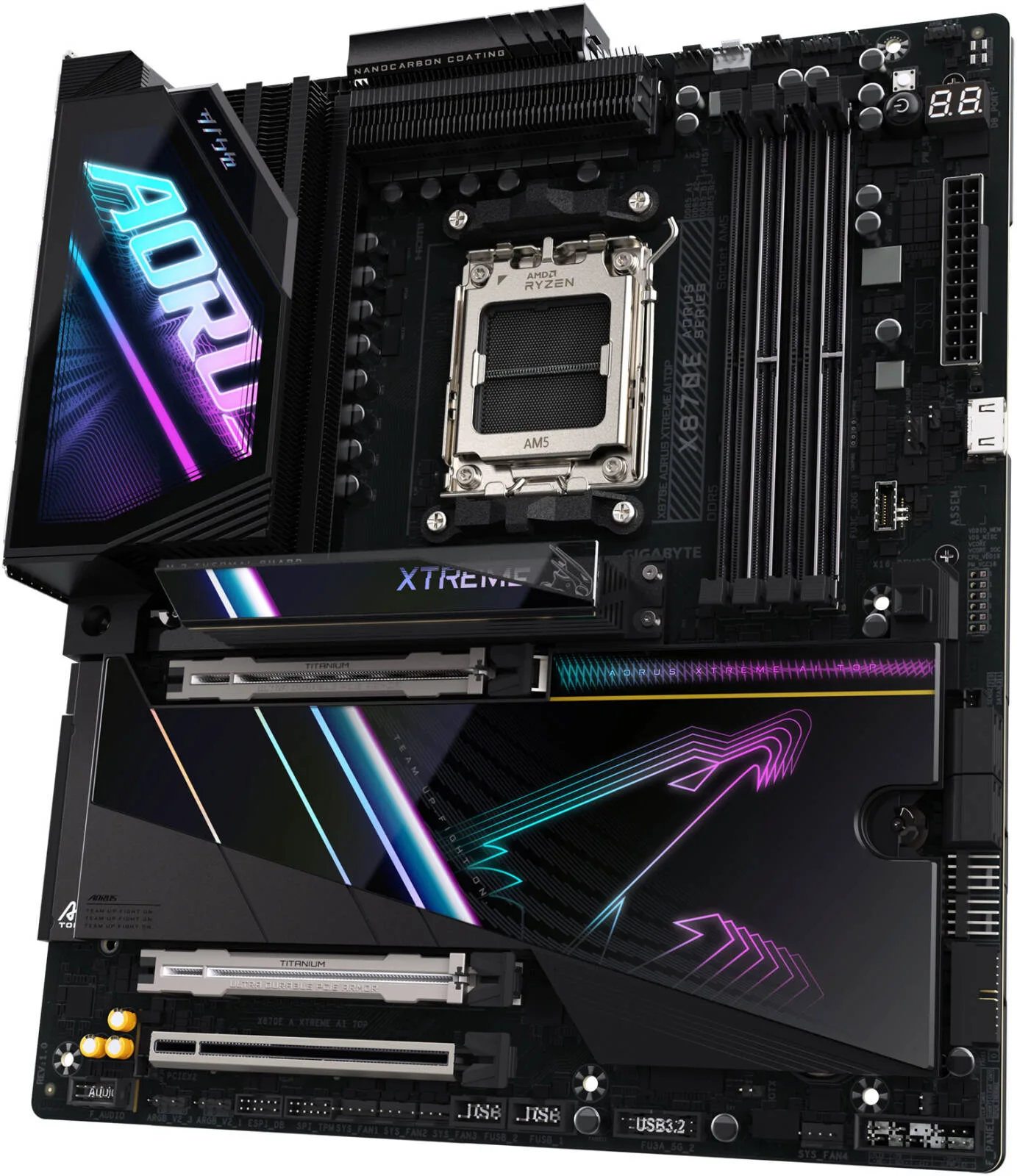

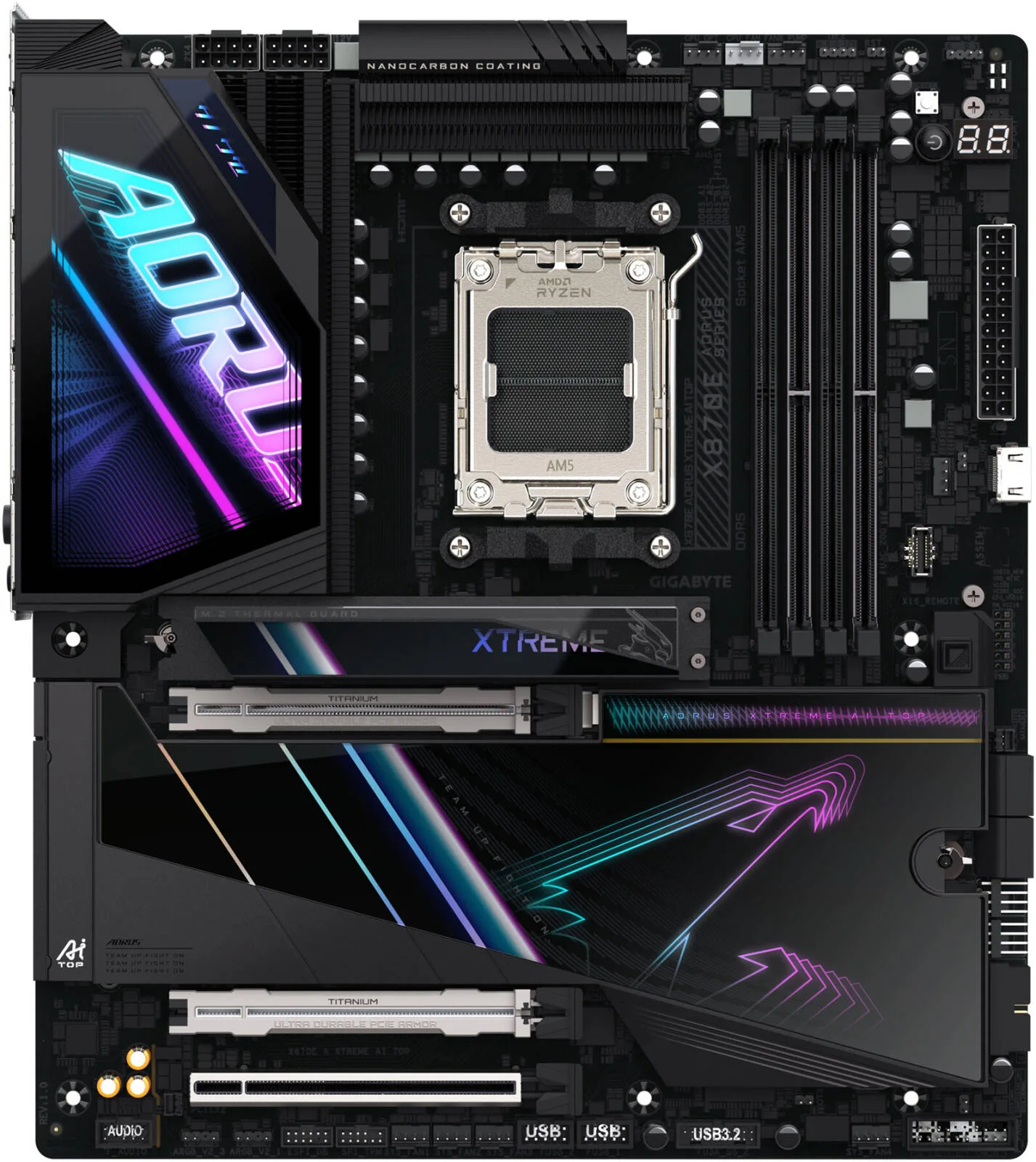

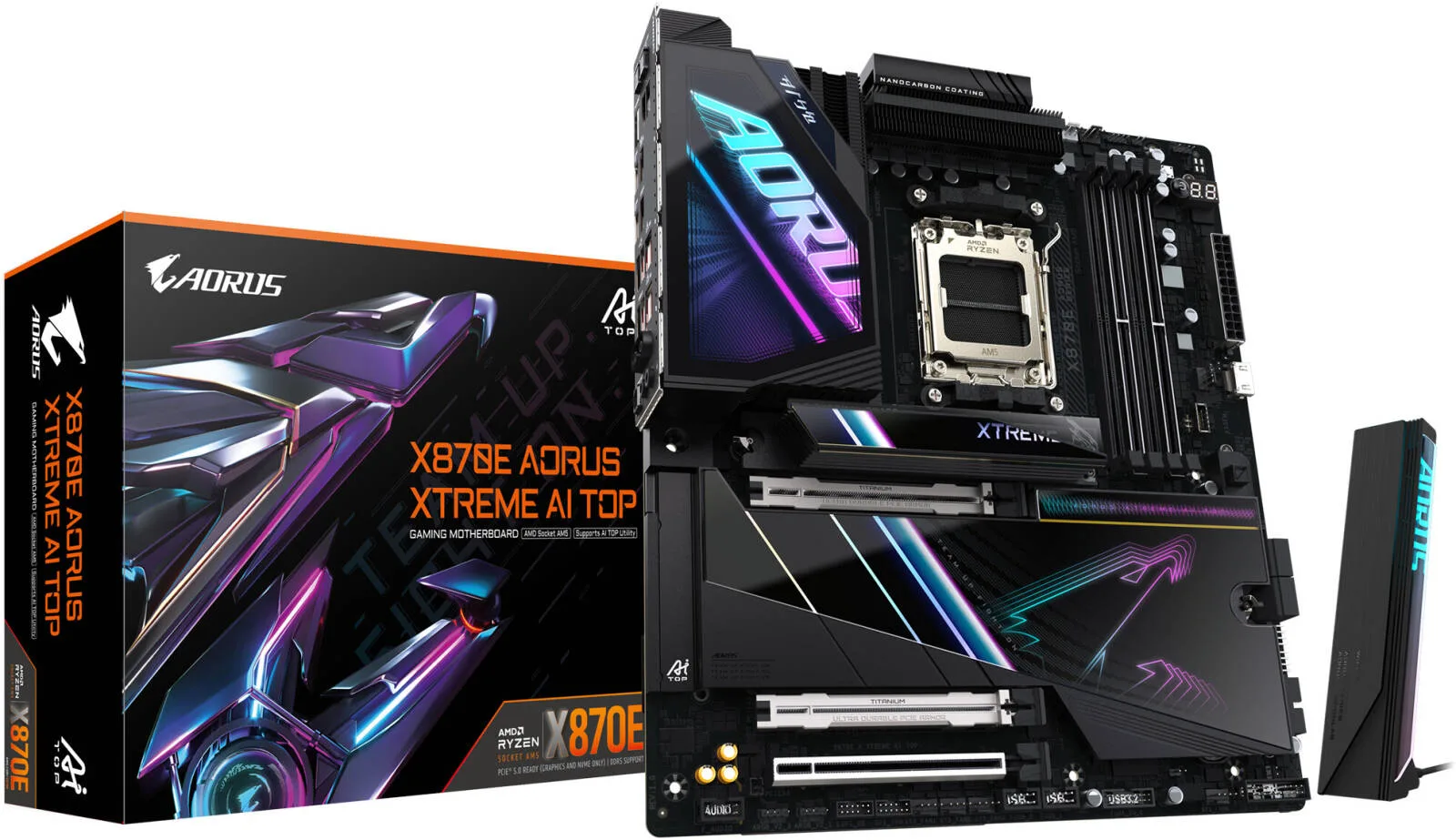

GIGABYTE X870E Aorus XTREME AI TOP E-ATX AM5 Motherboard, AMD X870E Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 2x PCIe 5.0 x16 Slot, 4x M.2 Slots
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 18+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design

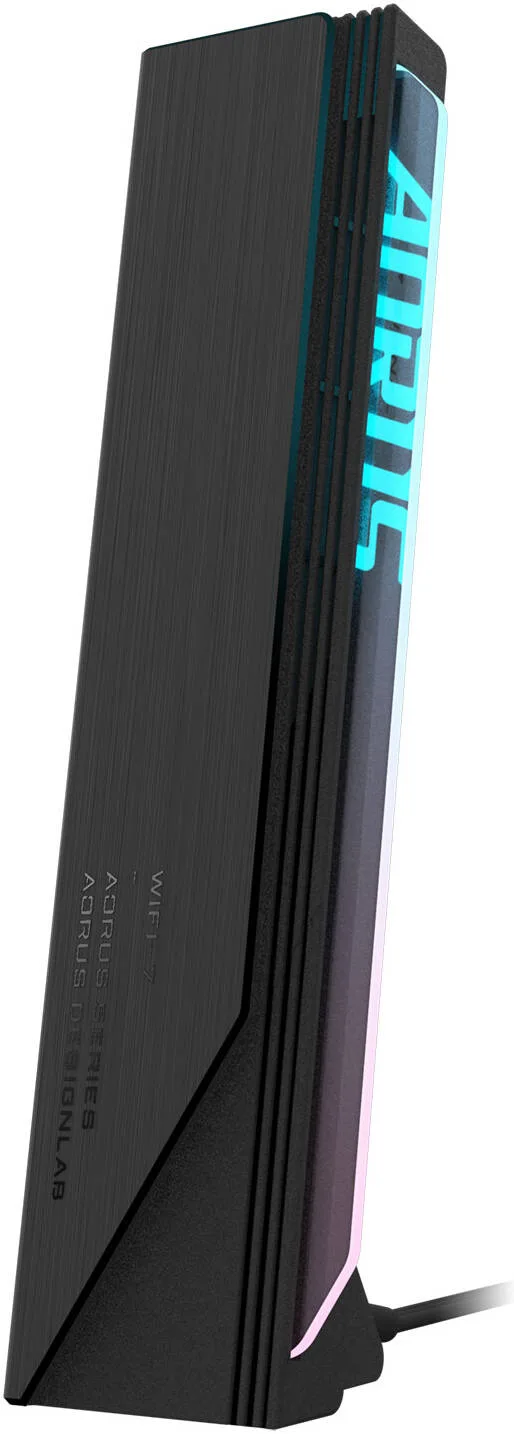

- Blazing Fast Networks : Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna with ARGB
- Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 / 4.0
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Socket
- AM5
- Chipset
- AMD X870
- Form factor
- E-ATX
- Memory type
- DDR5
- Memory slots
- 4
Details
- Shipping Weight
- 3.35 Kg
- Shipping Dimensions
- 32.00 cm x 39.00 cm x 11.01 cm
- M.2 Slots
- 4
- Maximum Memory
- 256 GB
- PCI Express x16
- 2
- CPU
- AMD Socket AM5, supporting AMD Ryzen™ 9000/8000/7000 Series Processors.
- Memory
- DDR5 (up to 256 GB), supporting speeds up to 8800 MT/s (O.C.), dual-channel, ECC/non-ECC DIMMs, AMD EXPO™, XMP support.
- Onboard Graphics
- Integrated AMD Radeon™ Graphics:2x USB4® Type-C® (DP 1.4, 3840x2160@240 Hz)1x HDMI 2.1 (4096x2160@60 Hz)1x Front HDMI 1.4 (1920x1080@30 Hz).
- Audio
- Realtek® ALC1220 CODEC, ESS ES9118 DAC, DTS:X® Ultra, 2/4/5.1-channel, S/PDIF Out.
- LAN
- Dual Marvell® AQtion AQC113C 10GbE LAN.
- Wireless
- Qualcomm® Wi-Fi 7 (802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz), Bluetooth 5.3.
- Expansion Slots
- 1x PCIe 5.0 x16 (shared bandwidth with PCIe x8)1x PCIe 5.0 x81x PCIe 4.0 x2 (shared with M2E_SB).
- Storage Interface
- 1x M.2 PCIe 5.0 (CPU)3x M.2 PCIe 4.0 (Chipset)4x SATA 6Gb/sRAID 0/1/5/10 (NVMe/SATA, depending on CPU).
- USB
- 2x USB4® Type-C®1x USB 3.2 Gen 2 Type-A (red)1x USB 3.2 Gen 2x2 Type-C®5x USB 3.2 Gen 2 Type-A4x USB 3.2 Gen 16x USB 2.0/1.1.
- Internal I/O
- 4x M.2 connectors, 4x SATA 6Gb/s, multiple fan/pump headers, RGB headers, USB headers, temperature sensors, reset/clear CMOS buttons, and others.

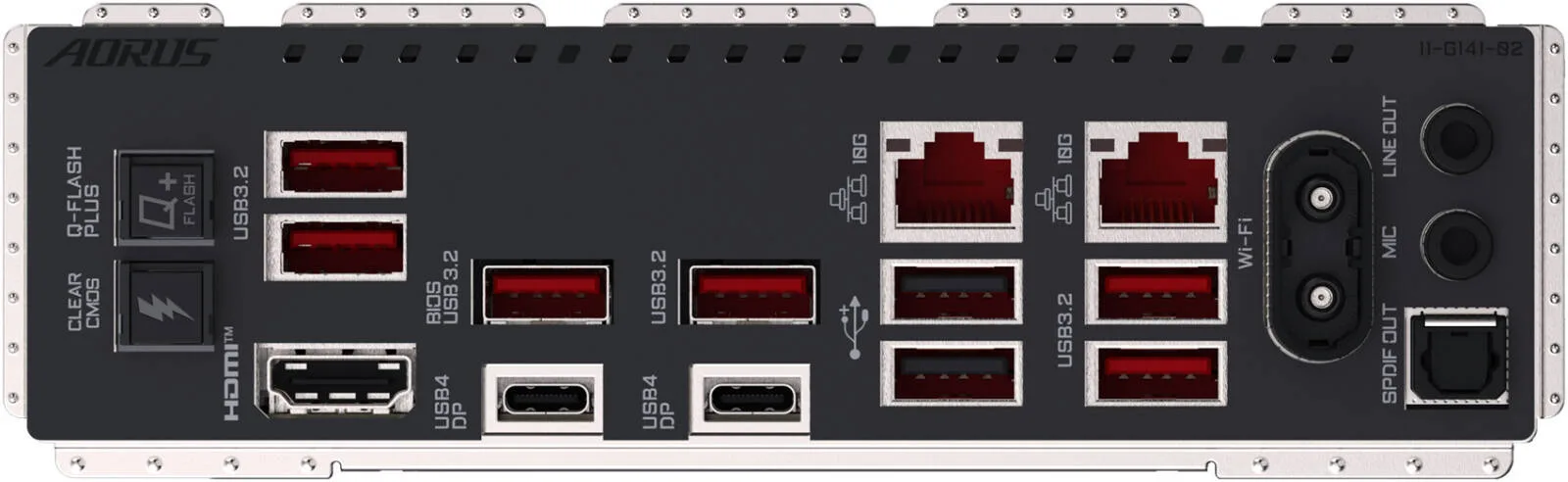

- Back Panel
- 2x USB4® Type-C®, 6x USB 3.2 Gen 2, 2x USB 2.02x RJ-45, 2x audio jacks, 1x optical S/PDIF2x antenna connectors1x HDMI, Q-Flash Plus button, Clear CMOS button.
- I/O Controller
- iTE® I/O Controller Chip.
- H/W Monitoring
- Voltage, temperature, fan speed, water cooling flow rate, and noise detection.
- BIOS
- 256 Mbit flash, AMI UEFI BIOS.
- Unique Features
- GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup.
- Bundled Software
- Norton® Internet Security (OEM), LAN bandwidth management software.
- OS Support
- Windows 11 64-bit.
4.36 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Amelia A. Used for: 6–12 months
Cons
Storage and expansion fight each other once every slot is filled
Comment
Excellent board with one thing that nobody explains properly until you hit it, which is lane sharing. Fill every M.2 slot and the bottom PCIe slot drops to a lower width. Add a card there and one of the drives loses speed instead. This is documented, in a table three quarters of the way through the manual, in a font size that suggests they hoped you would not look. I only noticed because a capture card started dropping frames after I fitted a fourth drive. Once you know, it is easy enough to plan around, and the rest of the board has been faultless for eleven months in a machine that is on all day. Memory at 6000 with EXPO on the first boot, VRM never above the mid forties, network and audio both excellent. Just work out your storage and expansion plan before you build, not after.
Henry H. Used for: 3–6 months
Pros
Best VRM on the platform by a distance
Comment
Nothing to fault, it just gets on with it!
Oscar C. Used for: 6–12 months
Pros
The hardware itself is genuinely excellent
Comment
Three stars is about value rather than function, and I want to be fair to the board because the engineering is not the problem. It does everything well. Memory at 6400 first time, VRM in the low forties under an all core load, Wi-Fi 7 quicker than my broadband, four M.2 slots all at full speed. No crashes, no lost settings, no drama. Nine months of it and nothing to report. The difficulty is that the Master sitting two rungs down does almost all of that for a great deal less. What you actually gain here is the second network port, a slightly better audio codec and the AI branded software I do not use. I bought the flagship expecting a difference I could feel in daily use, and there is not one.
Oliver R. Used for: Less than a month
Pros
Every M.2 and the graphics card fit without a screwdriver
Cons
Only four DIMM slots for a board this size and price
Comment
Assembly was the easiest I have had, everything clips, latches or slides and the only screws in the build were the ones holding the board to the case. My gripe is capacity. On a board this large I expected more than four DIMM slots, and with AM5 preferring two sticks for high speeds you are effectively capped sooner than you would like.
Charlie P. Used for: More than a year
Pros
Runs a 9950X at full tilt without the VRM breaking a sweat
Comment
Power delivery on this thing is comical for an AM5 board, and it means the fans never ramp during a render. Wi-Fi 7 has been solid throughout.
Leo K. Used for: 1–3 months
Pros
Onboard power and reset buttons make bench testing easy
Cons
The shroud above the VRM gets properly warm
Comment
Onboard power and reset buttons meant I could test on the bench before it went in the case. The shroud above the VRM gets properly warm
