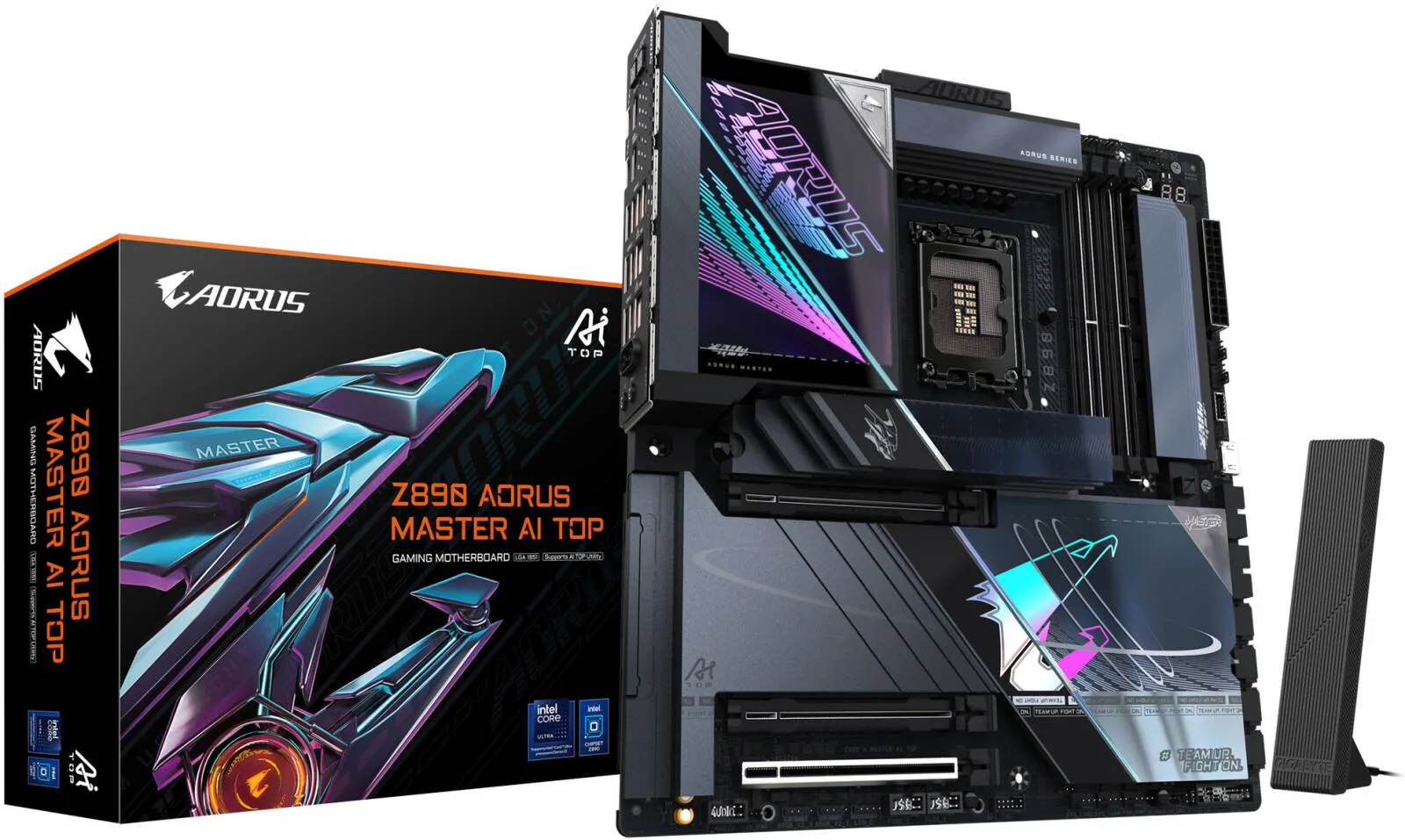

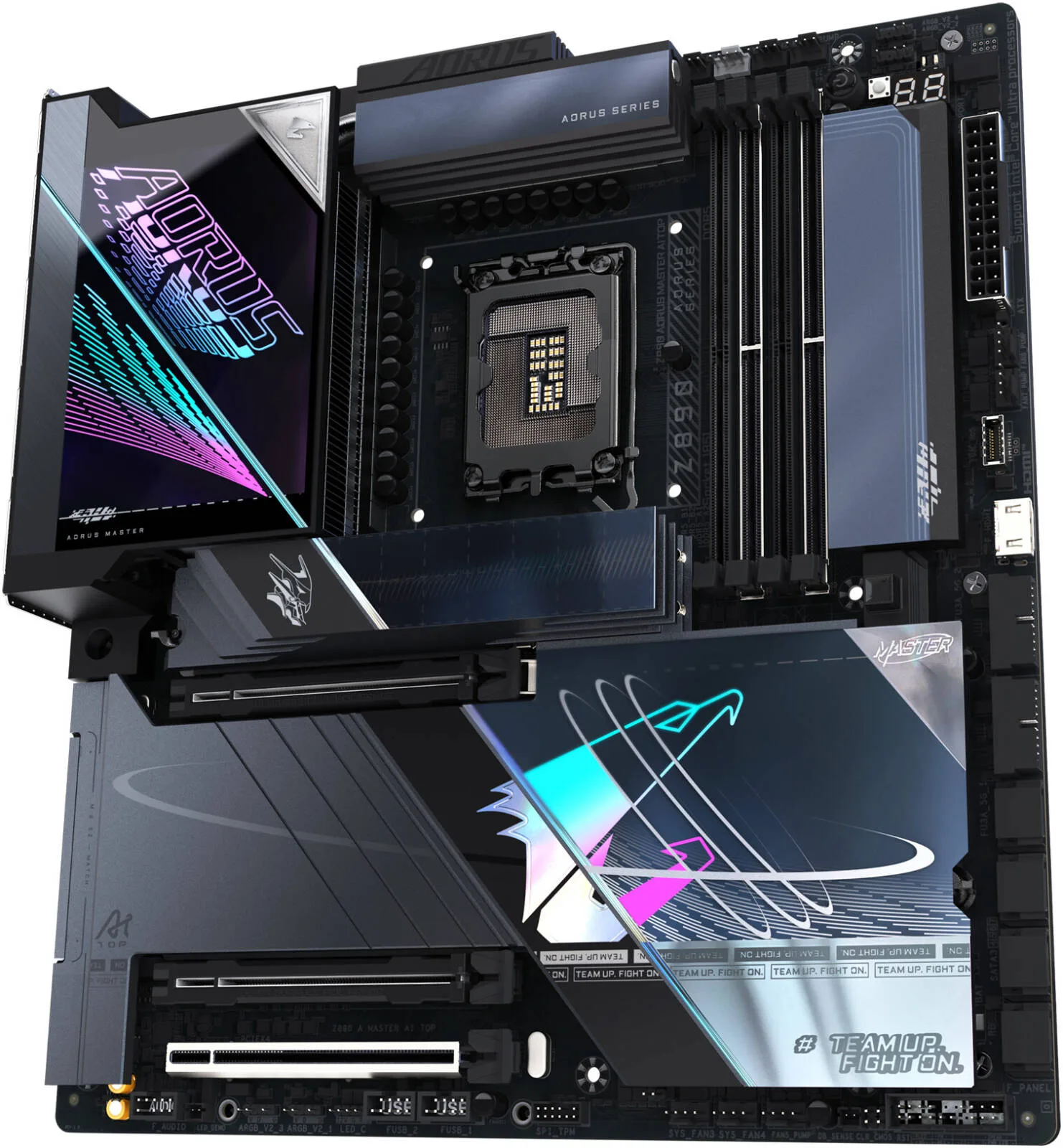

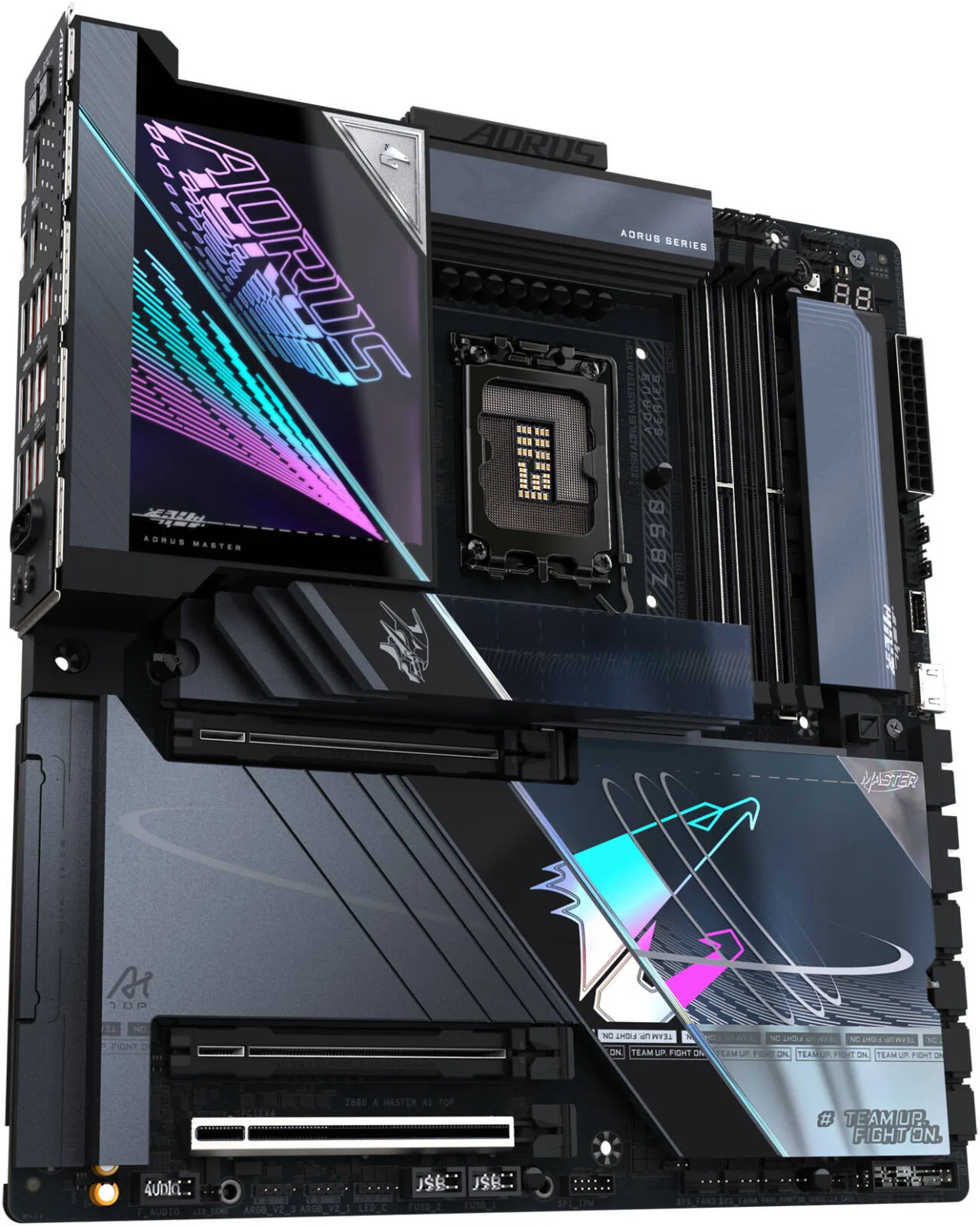

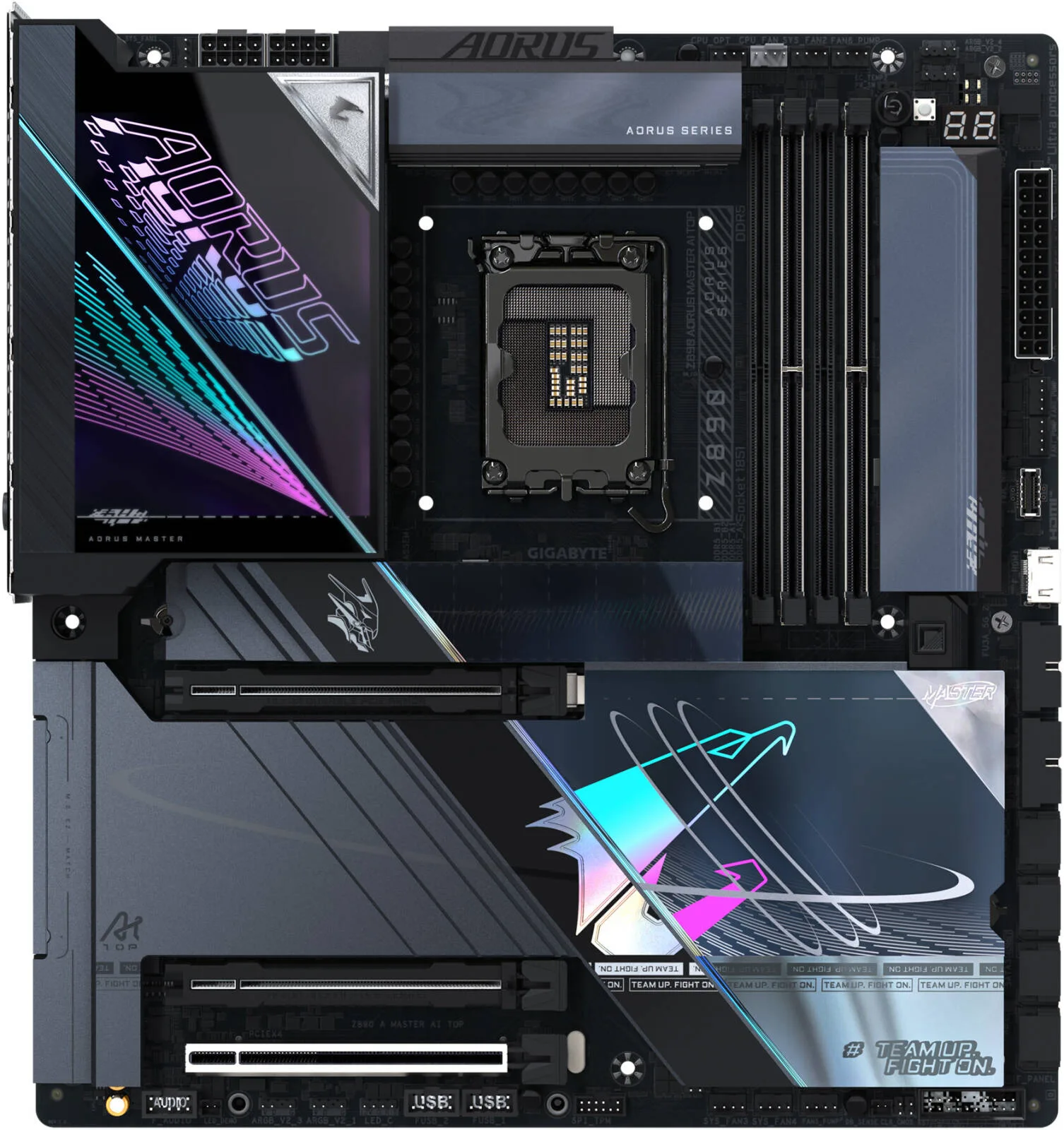

GIGABYTE Z890 Aorus Master AI TOP LGA 1851 E-ATX Motherboard, Intel Z890 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 2x PCIe 5.0 x16 Slot, 4x M.2 Slots
- Ultimate Scalibility : 2*PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0/4.0 x4 M.2 slots

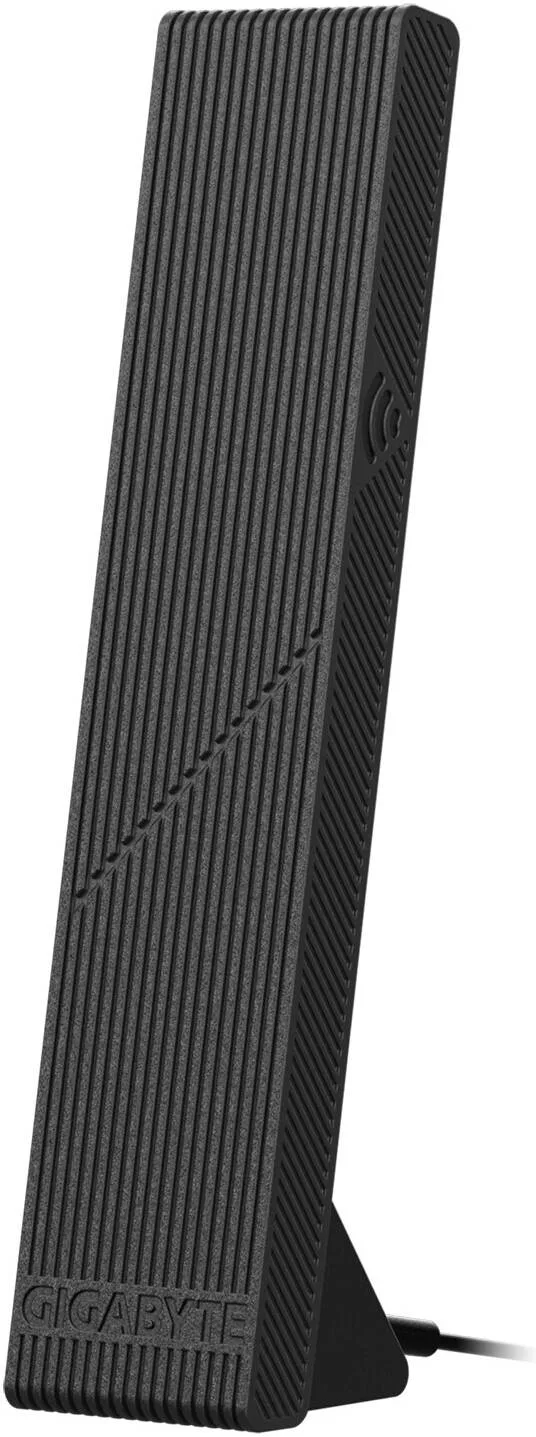

- Blazing Fast Networks : Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna
- Premium Compatibility : 4*DDR5 with XMP Memory Module Support
- DTS:X® Ultra Audio : ESS ES9280 and ESS SABRE Hi-Fi 9118 DAC
- EZ-Latch Click : M.2 heatsinks with screwless design
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Socket
- LGA 1851
- Chipset
- Intel Z890
- Form factor
- E-ATX
- Memory type
- DDR5
- Memory slots
- 4
Details
- Shipping Weight
- 3.40 Kg
- Shipping Dimensions
- 9.50 cm x 37.50 cm x 33.00 cm
- M.2 Slots
- 4
- Maximum Memory
- 256 GB
- PCI Express x16
- 2
- CPU
- LGA1851 socket: Support for Intel® Core™ Ultra ProcessorsL3 cache varies with CPU. Refer to "CPU Support List" for more details.
- Memory
- Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C) / 7400(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400 / 6200 / 6000 / 5800 / 5600 MT/s memory modules.4 x DDR5 DIMM sockets, up to 256 GB (64 GB single DIMM capacity)Supports ECC and non-ECC Un-buffered DIMM, XMP, and CUDIMM memory modules.
- Onboard Graphics
- Integrated Graphics Processor with Intel® Thunderbolt™ 4 support:2 x Thunderbolt™ 4 connectors (USB4® USB Type-C® ports) supporting DisplayPort and Thunderbolt™ video outputs.Maximum resolution: 5120x2880@60Hz (Thunderbolt monitor); 3840x2160@240Hz (USB4 monitor)1 x Front HDMI port (1920x1080@30Hz). Supports HDMI 1.4 version.Triple-display support.DisplayPort 2.1 and HDCP 2.3 support.* Graphics specifications vary by CPU.
- Audio
- ESS ES9280 chip (rear panel audio) with DTS:X® Ultra, 2-channel, and High Definition Audio.ESS ES9118 DAC chip (front panel audio).
- LAN
- 2 x Marvell® AQtion AQC113C 10GbE LAN chips (10Gbps/5Gbps/2.5Gbps/1Gbps/100Mbps).
- Wireless
- Intel® Wi-Fi 7 BE200NGW with 802.11a/b/g/n/ac/ax/be (2.4/5/6 GHz bands) and Bluetooth 5.4.Wi-Fi 7 requires Windows 11 SV3; channels on 6 GHz depend on regional regulations.
- Expansion Slots
- CPU:1 x PCIe x16 slot (PCIe 5.0, x16)1 x PCIe x16 slot (PCIe 5.0, x8; shares bandwidth with PCIe x16 slot).Chipset:1 x PCIe x16 slot (PCIe 4.0, x4).
- Storage
- CPU:1 x M.2 (PCIe 5.0 x4) (M2A_CPU)1 x M.2 (PCIe 4.0 x4) (M2B_CPU).Chipset:1 x M.2 (PCIe 4.0 x4) (M2Q_SB)1 x M.2 (SATA + PCIe 4.0 x4) (M2M_SB)4 x SATA 6Gb/s connectors.RAID 0, 1, 5, and 10 support for NVMe and SATA devices.
- USB
- CPU:2 x Thunderbolt™ 4 (USB Type-C®) ports (40Gbps/20Gbps/10Gbps).Chipset:6 x USB 3.2 Gen 2 Type-A (red)1 x USB Type-C® (USB 3.2 Gen 2x2, internal header)4 x USB 3.2 Gen 1 (internal headers)4 x USB 2.0/1.1 (internal headers).
- Internal I/O
- 1 x 24-pin ATX main power, 2 x 8-pin ATX 12V power connectors, 4 x system fan headers, 4 x M.2 sockets, 4 x SATA connectors, 2 x USB 3.2 Gen 1 headers, 2 x USB 2.0/1.1 headers, RGB and fan extension headers, and more.

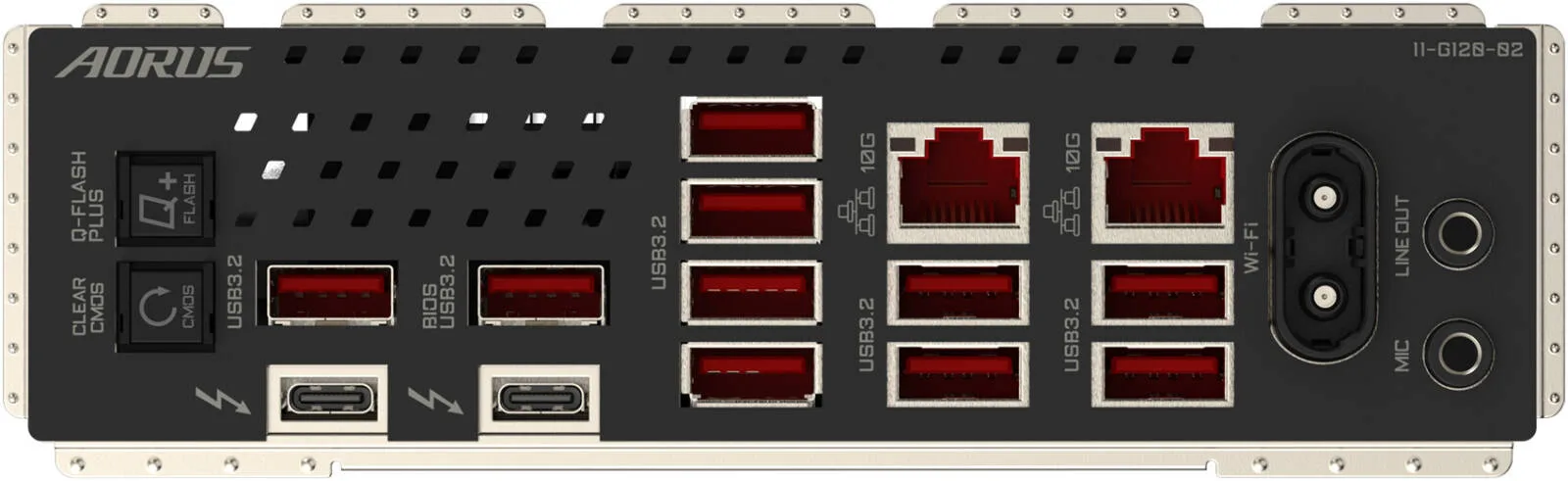

- Back Panel
- 1 x Q-Flash Plus button, 1 x Clear CMOS button, 2 x Thunderbolt™ 4 (USB Type-C®), 10 x USB 3.2 Gen 2 Type-A, 2 x RJ-45, 2 x antenna connectors, 2 x audio jacks.
- BIOS
- 1 x 256 Mbit flash with AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.
- Unique Features
- Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup.
- Bundled Software
- Norton® Internet Security (OEM version), LAN bandwidth management software.
- OS Support
- Windows 11 64-bit
