MSI MPG X870E EDGE TI WIFI AM5 ATX Motherboard, AMD X870E Chipset, 4x DDR5 UDIMM Memory, Up to 256GB Max Memory, 3x PCI-E x16 Slot, 4x M.2 Slots, Wi-Fi & BT Connectivty, White
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Socket
- AM5
- Chipset
- AMD X870
- Form factor
- ATX
- Memory type
- DDR5
- Memory slots
- 4
Details
- Shipping Weight
- 2.45 Kg
- Shipping Dimensions
- 7.00 cm x 34.00 cm x 27.00 cm
- M.2 Slots
- 4
- Maximum Memory
- 256 GB
- PCI Express x16
- 3
- CPU Support
- AMD Ryzen™ 9000/8000/7000 Series Desktop Processors (Socket AM5)
- Memory
- 4x DDR5 UDIMM, Max Capacity 256GB
- Memory Support
- DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
- Memory Features
- Dual-Channel, Non-ECC, Unbuffered, AMD EXPO™, CUDIMM
- Onboard Graphics
- 1x HDMI 2.1 (8K@60Hz), 2x Type-C DisplayPort (4K@60Hz, DP 1.4)
- PCI-E Slots
- 3x PCI-E x16
- Slot Breakdown
- PCI_E1 (Gen 5.0 x16), PCI_E2 (Gen 3.0 x1), PCI_E3 (Gen 4.0 x4)
- Audio
- Realtek® ALC4080, 7.1-Channel, 32-Bit/384 kHz, S/PDIF Output
- Storage
- 4x M.2 (PCIe 5.0/4.0) & 4x SATA 6G
- RAID Support
- RAID 0, 1, 10 for NVMe storage
- USB Ports
- 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 4x USB 5Gbps (Front), 5x USB 10Gbps (Rear), 1x USB 10Gbps Type-C (Rear), 1x USB 20Gbps Type-C (Front), 2x USB 40Gbps Type-C (Rear)
- LAN
- 1x Realtek® 8126 5G LAN
- Wireless
- Wi-Fi 7 (2.4/5/6GHz, 5.8Gbps), Bluetooth 5.4
- Internal I/O
- ATX_PWR, CPU_PWR, PCIe_PWR, CPU Fan, 6x Sys Fan, RGB Headers, TPM 2.0, USB Headers
- LED Features
- 4x EZ Debug LED, 1x EZ Digi-Debug LED

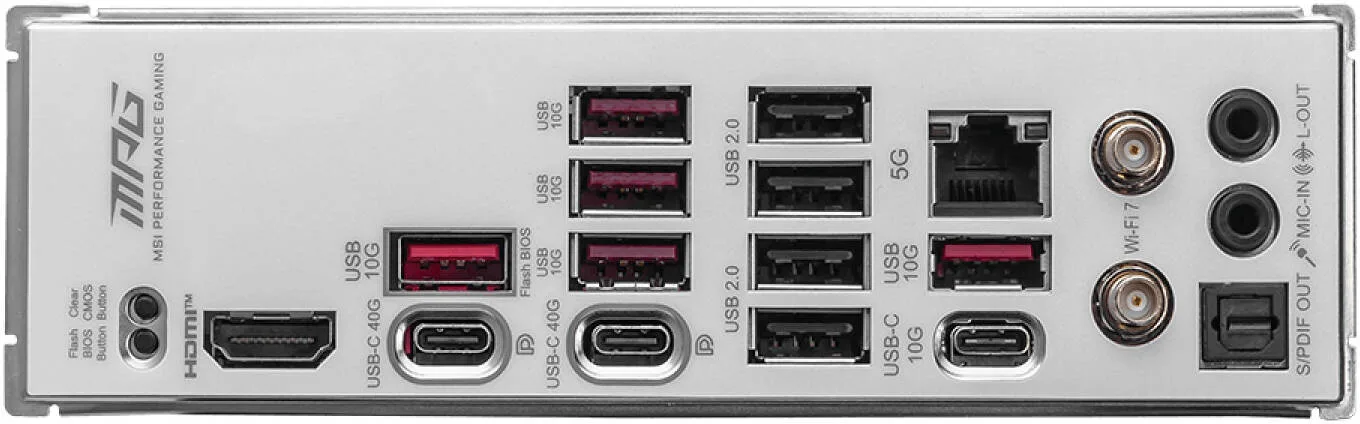

- Back Panel Ports
- Clear CMOS, Flash BIOS, USB (10Gbps/40Gbps), HDMI, LAN, Wi-Fi, Bluetooth, Optical S/PDIF
- OS Support
- Windows 11 64-bit
- PCB Form
- ATX (243.84mm x 304.8mm)
4.65 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Charlie M. Used for: 3–6 months
Pros
The tool free features make it the easiest board I have built into
Cons
White finish shows every speck of dust
Comment
Chose this over the Tomahawk for the extra M.2 slot and the tool free everything, and it was the right call. Drives clip in with no screws, the heatsinks lift off with a latch, the graphics card releases with a button, and the front panel is one block. What used to be the annoying part of a build barely registers now. Running a 9800X3D with 32GB at 6000, EXPO enabled on the first boot and no failed posts in the four months since. VRM sits in the low forties. The white finish does show every speck of dust, which is my only complaint and a trivial one.
Ivy C. Used for: More than a year
Cons
Onboard audio is merely adequate for a board at this price
Comment
Excellent board that has done everything asked of it, with one disappointment. The audio is merely adequate, noticeably noisier through headphones than the ALC4080 boards I have used, and there is a faint hiss at low volume that a cheap external DAC cured entirely. Everything else, memory at 6000 first time, thermals, storage, network, has been exemplary.
Freddie N. Used for: 6–12 months
Pros
Good value for an X870E
Cons
Rear USB count is stingy
Comment
Solid mid range board, though I ran out of rear USB ports quickly
Leo M. Used for: 1–3 months
Comment
Went in without a fight, took the memory profile immediately and has not missed a beat
Henry L. Used for: More than a year
Cons
The bundled heatsink for the top M.2 slot is barely a heatsink
Comment
Good board at a fair price, but the cooling on the top M.2 slot is token at best. A Gen5 drive under sustained writes hit 78 degrees under the supplied plate, which is closer to throttling than I am comfortable with, and swapping in a proper heatsink dropped it into the sixties. Everything else about the board has been dependable.
