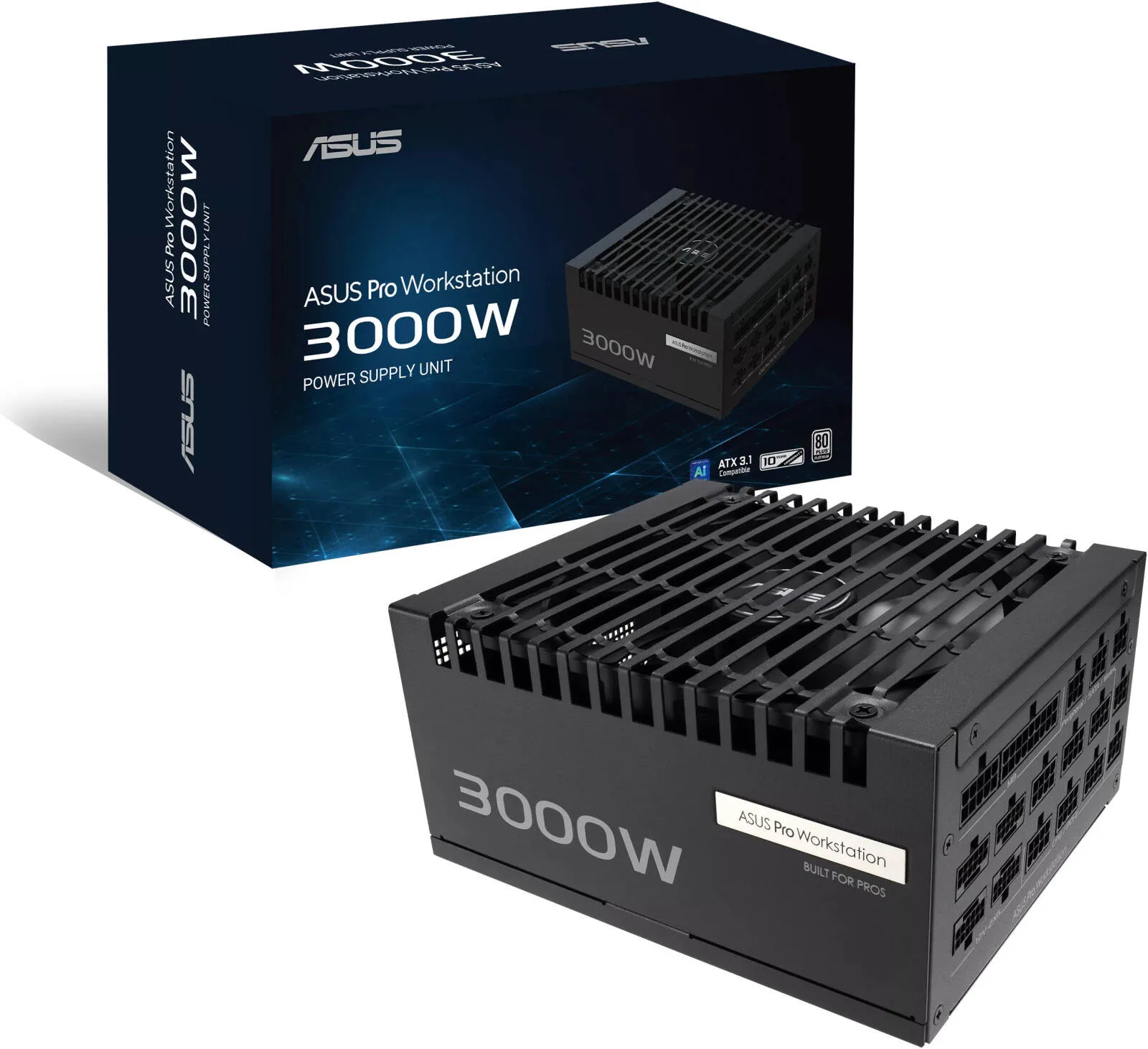

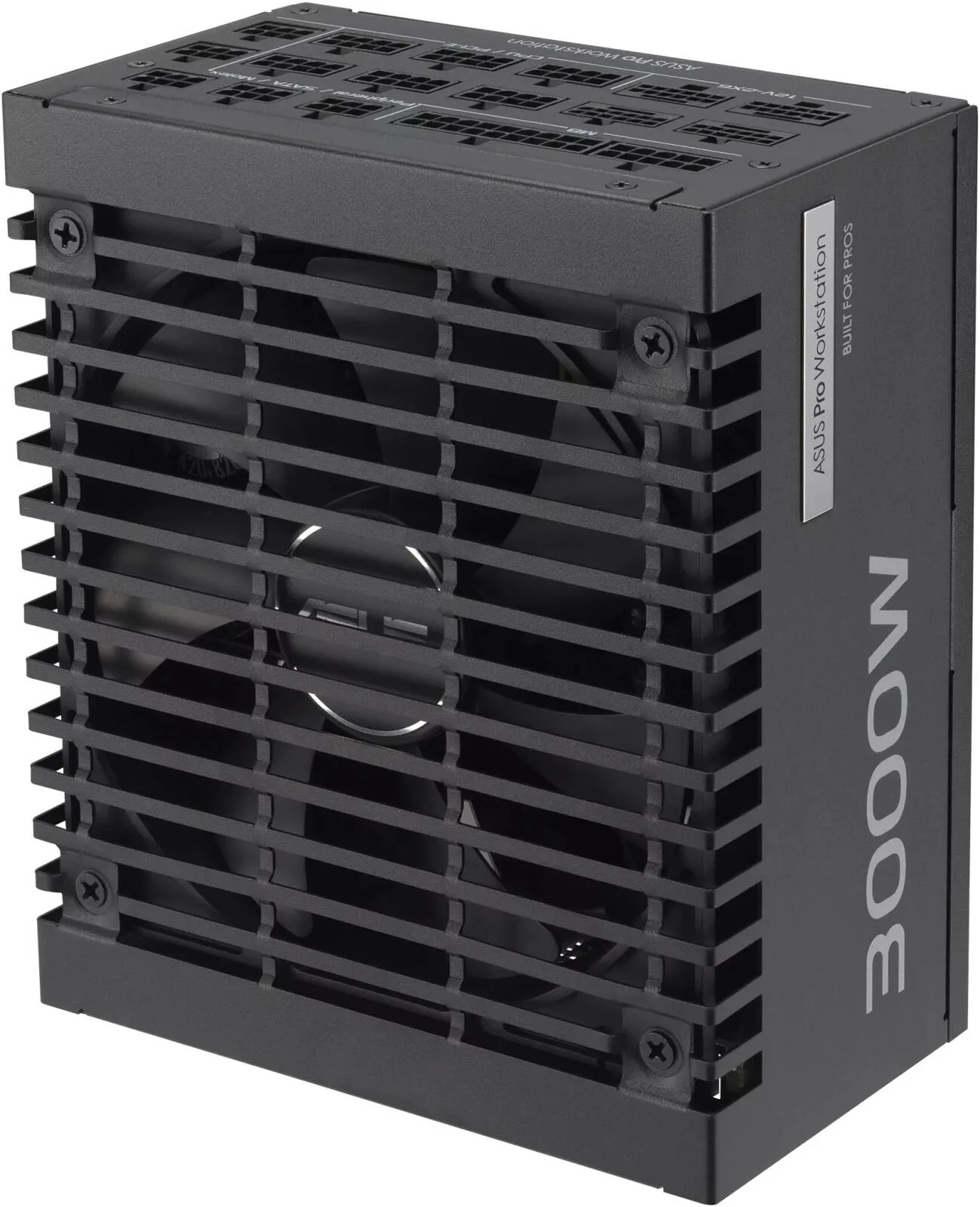

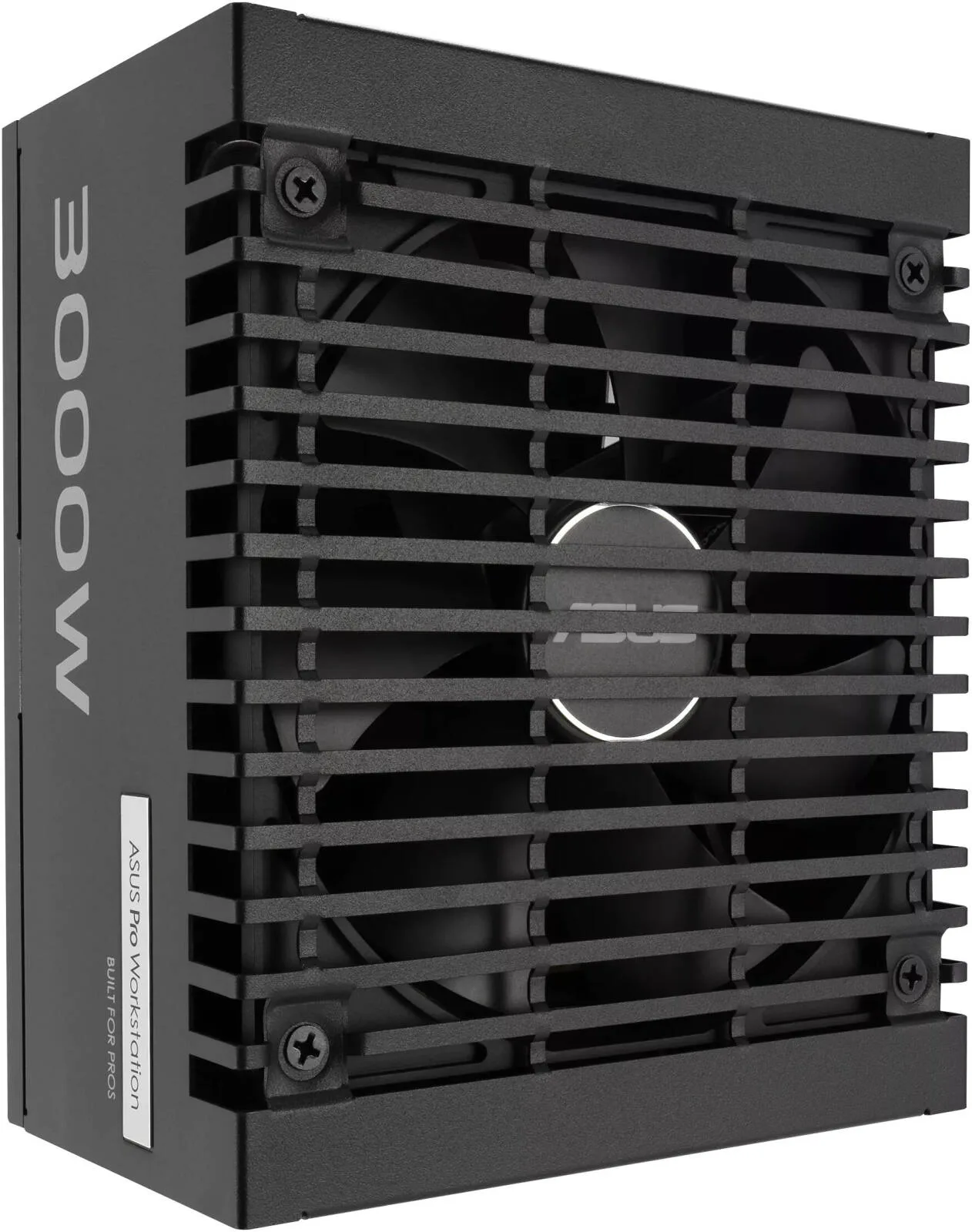

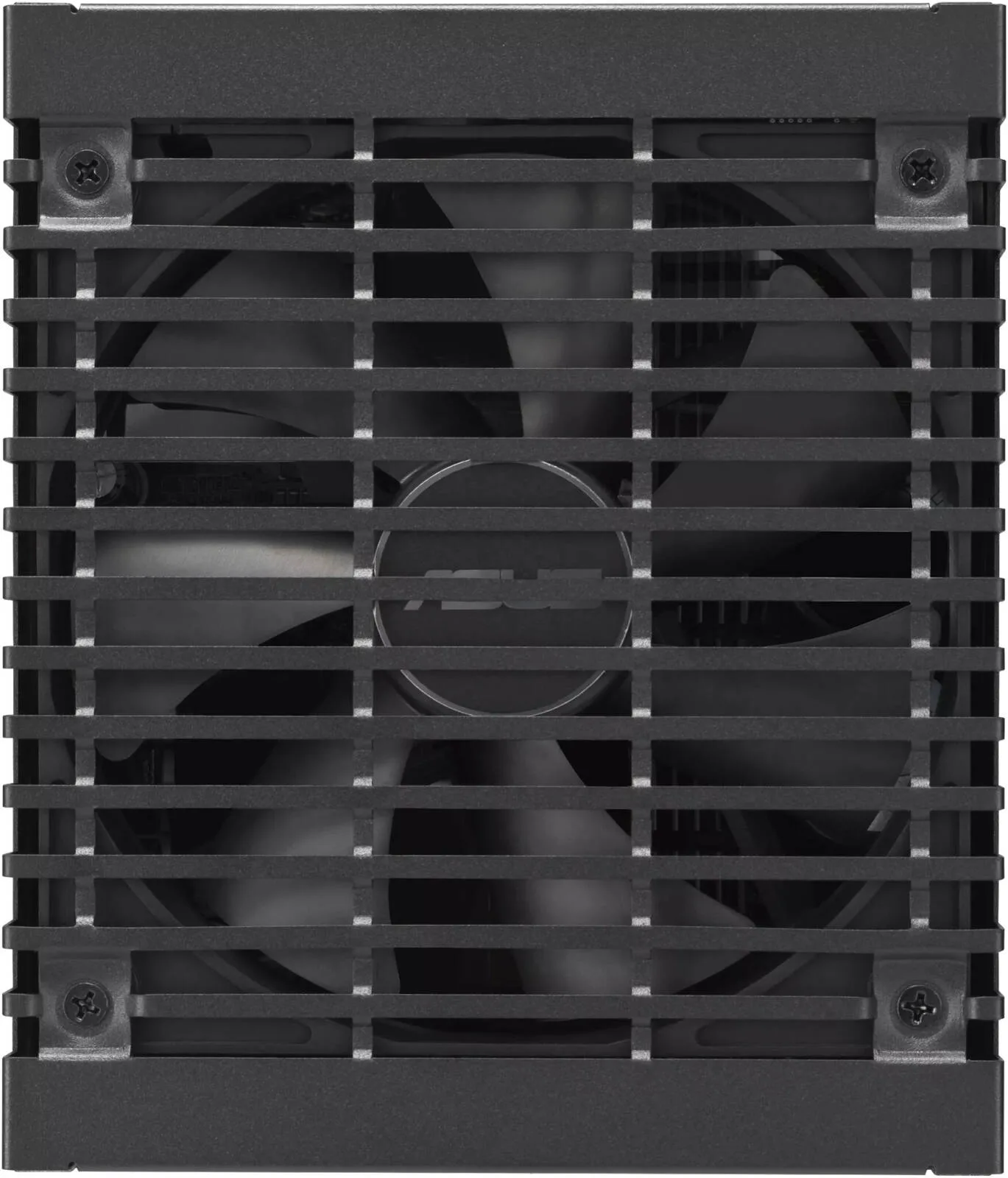

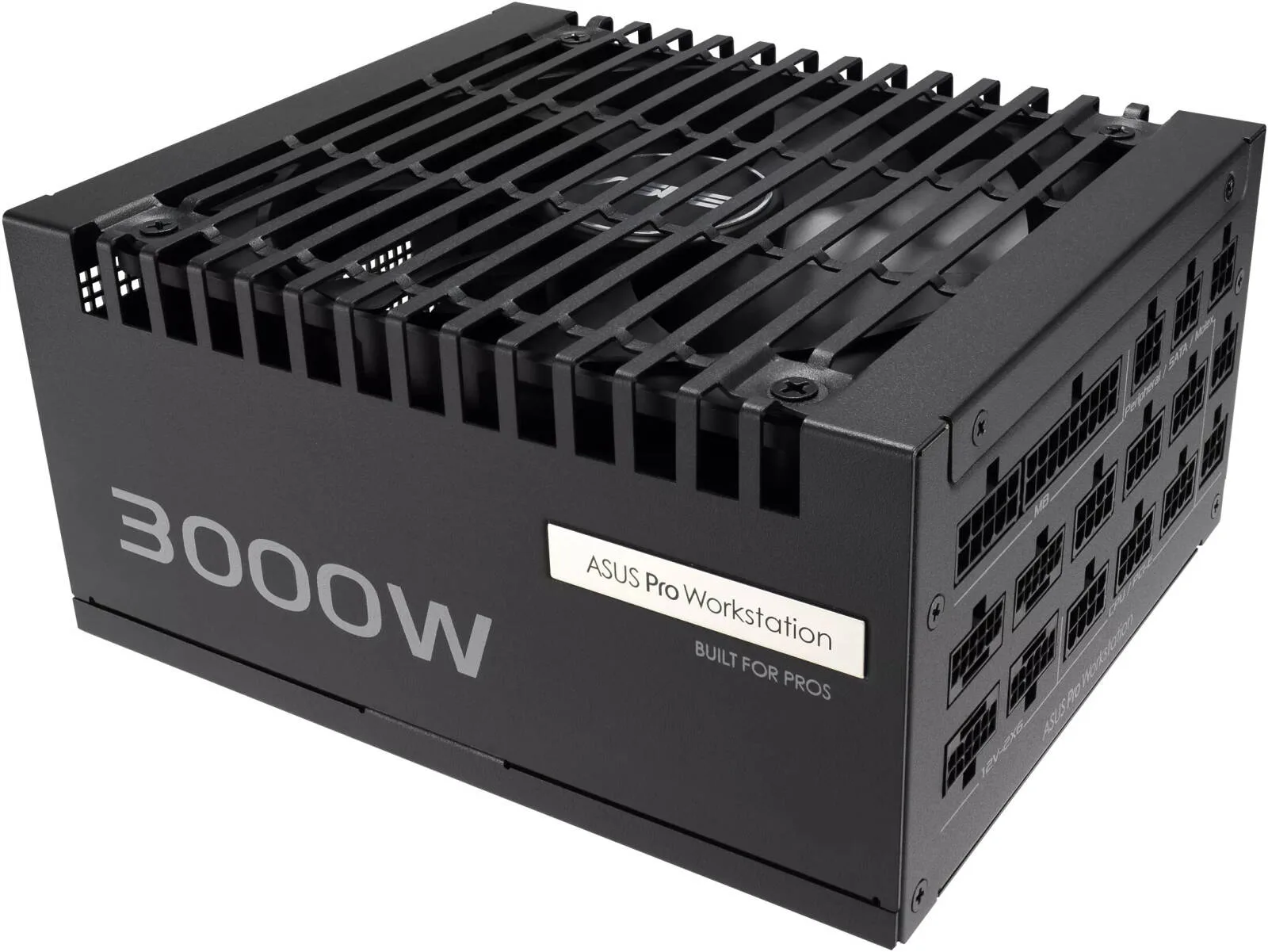

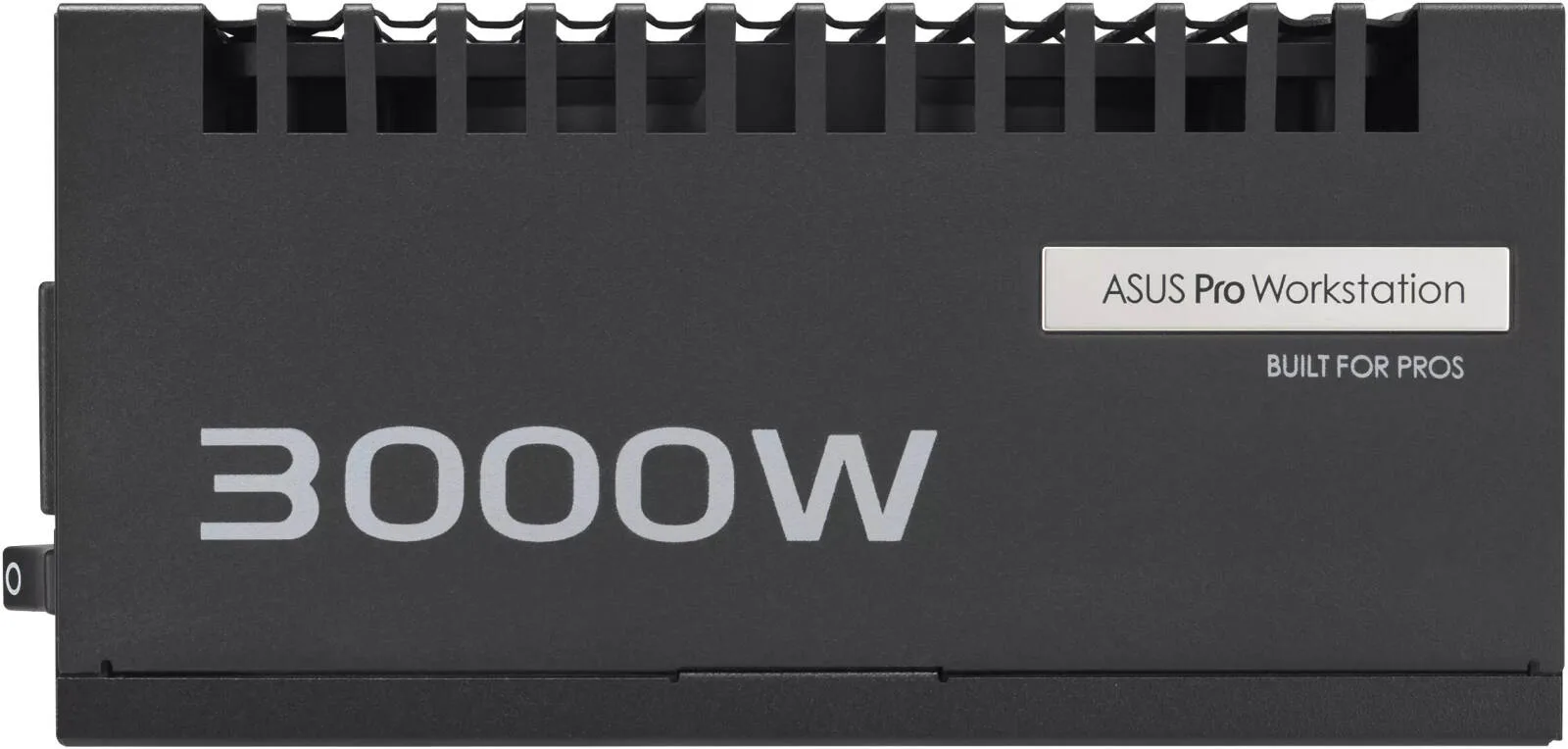

ASUS Pro WS Power Supply, 3000W Power, 80 PLUS Platinum Efficiency, ATX 3.1 Compatible, Dual-Ball Fan Bearings, Gold-Plated High-Performance Copper Pins, Black
- Heavy-duty PSU: Supports up to four GeForce RTX™ 5090 graphics cards via rock-solid voltage stability and advanced power delivery.
- Dual-ball fan bearings: Designed to last up to twice as long as sleeve-bearing designs.
- Extruded aluminum heatsinks: Cover critical components, delivering lower temperatures and noise versus reference designs.
- ATX 3.1 compatible: Compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation.
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- Black
- Power
- 3000 W
- Modular
- Full Modular
- Efficiency
- 80 Plus Platinum
- Form factor
- ATX
Details
- Shipping Weight
- 4.80 Kg
- Shipping Dimensions
- 14.50 cm x 35.00 cm x 22.00 cm
- PFC
- Active
- Fanless
- No
- Length
- 175 mm
- Main Connectors
- 1 x 24 pin (20+4) ATX
- EPS/CPU Connectors
- 2 x 8 pin (4+4) EPS (CPU)
- SATA Power Connectors
- 12
- Molex Connectors
- 3
- PCIe 6-Pin Connectors
- 0
- PCIe 6+2-Pin Connectors
- 4
- PCIe 8-Pin Connectors
- 0
- PCIe 12-Pin Connectors
- 0
- PCIe 12+4-Pin 12VHPWR Connectors
- 4
- Intel Form Factor
- ATX12V
- PFC Type
- Active PFC
- ATX Standard
- ATX 3.1
- Dimensions
- 175 × 150 × 86 mm
- Protection Features
- OPP / OVP / UVP / SCP / OCP / OTP
- Hazardous Materials
- RoHS
- AC Input Range
- 220–240Vac
- DC Output Voltage
- +3.3V, +5V, +12V, -12V, +5Vsb
- Maximum Load
- 25A / 25A / 250A / 0.8A / 3A
- Combined Load
- 130W / 130W / 3000W / 9.6W / 15W
- Total Output
- 3000 W
- MB 24/20-pin
- 1
- CPU 4+4-pin
- 2
- PCIE 5.1 16-pin
- 4
- PCIE 6+2-pin
- 4
- SATA
- 12
- Peripheral
- 3
- Power Cord
- 1
- Motherboard Power Cable
- 1 (610 mm)
- CPU Cable
- 2 (1000 mm)
- PCI-E Gen 5.1 16-pin Cable
- 4 (750 mm)
- PCI-E 1-to-1 Cable
- 4 (750 mm)
- SATA 1-to-3 Cable
- 4 (400 + 120 + 120 mm)
- Peripheral 1-to-3 Cable
- 1 (400 + 150 + 150 mm)
- Chassis Screws Package
- 1
- Cable Ties
- 6
- User Manual
- 1
- Weight
- 2.16 kg (single PSU)
- 0dB Technology
- No
4.73 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Oliver S. Used for: 3–6 months
Pros
Runs four cards off one unit
Cons
Needs a proper socket behind it
Comment
Feeds four cards without a murmur. Absurd, brilliant!
Millie B. Used for: 6–12 months
Comment
Three kilowatts in an ATX shell, and the training box has never tripped a breaker yet!
Sophie F. Used for: 6–12 months
Pros
Six 12V-2x6 leads and enough rail for four cards
Comment
Bought for a four card inference box and it is the only ATX unit I could find that would feed them all from one rail set. Six 12V-2x6 leads in the box, all sleeved, all long enough to reach the top card in a full tower. Two things to know before you buy. It is 200mm long, so measure your basement before ordering, and on a UK 13A socket you are not getting three kilowatts out of it no matter what the label says. My meter has seen 2,400W sustained and the breaker held, but that is the practical ceiling on a domestic ring. Platinum efficiency at that draw keeps the room bearable. Eight months of that and the case is no warmer than it was on day one.
