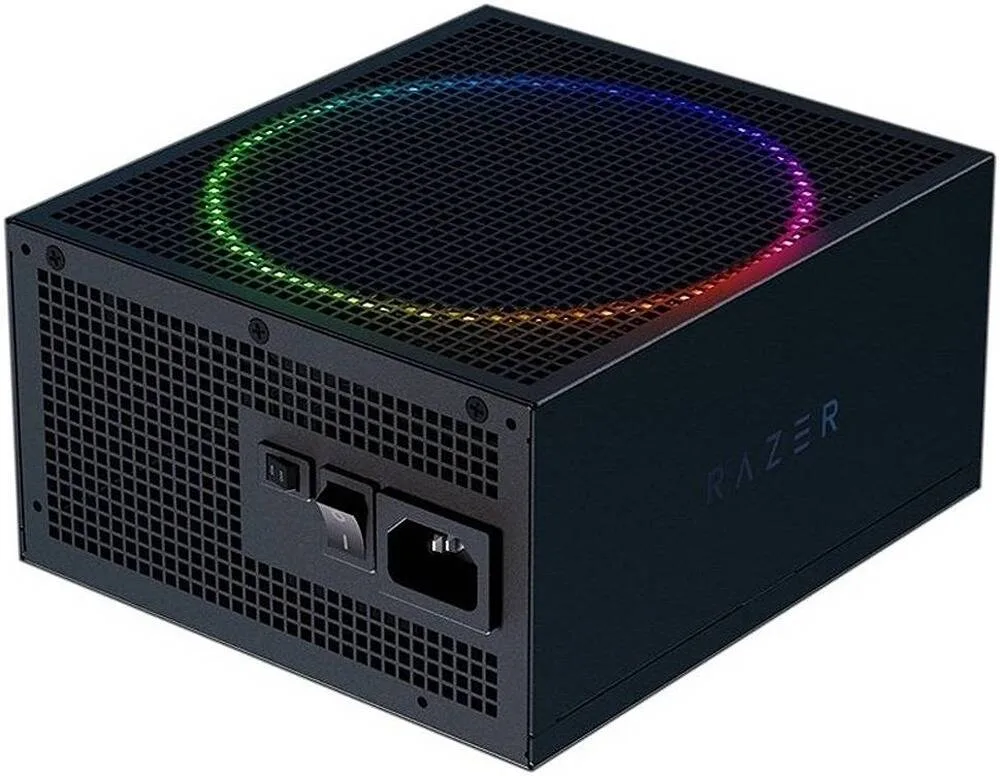

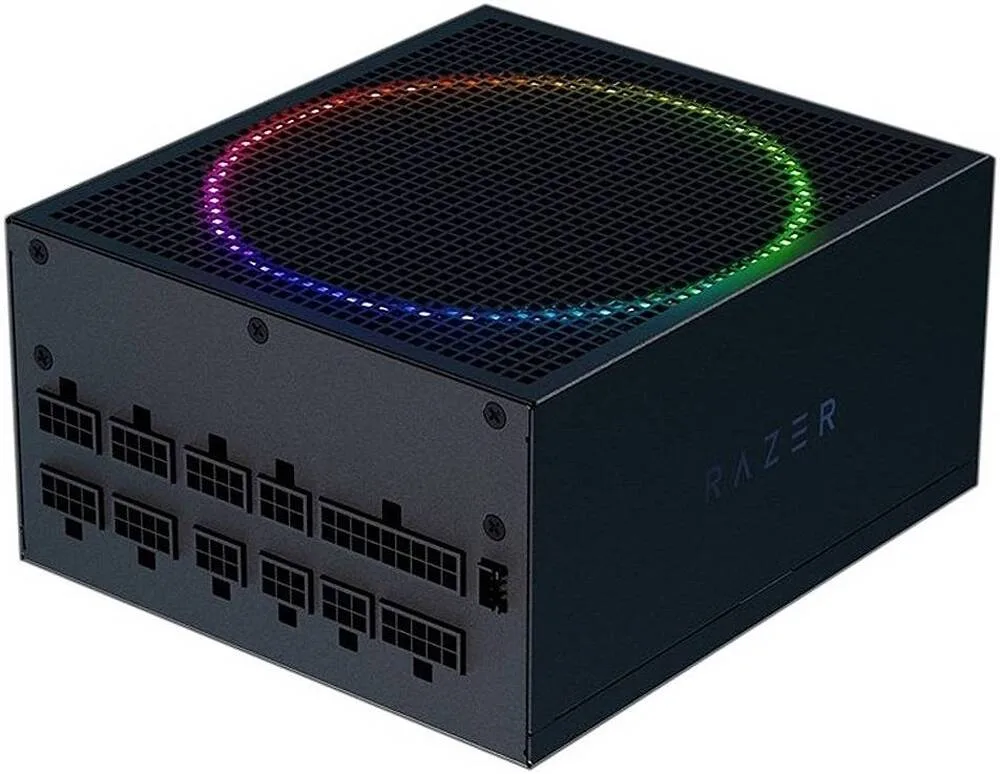

Razer Katana Chroma Full-Modular ATX Power Supply, 1200W Power, 80 Plus Platinum Efficiency, 105C Japanese Capacitors, 140mm PWM Fan, Zero RPM Mode, Black
- Razer Katana Chroma - 1200W
- Platinum Chroma aRGB PSU
- Power your PC with the performance and style it deserves. Meet the Razer Katana, an ultra-efficient Platinum rated (or better) power supply designed to support the ultimate CPUs and GPUs in your PC. Includes addressable RGB (aRGB) with Razer Chroma™ RGB software for true lighting customization.
- Key Features
- Ultra-Efficient Power Delivery
- Platinum Rated
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- Black
- Power
- 1200 W
- Modular
- Full Modular
- Efficiency
- 80 Plus Platinum
- Form factor
- ATX
Details
- Shipping Weight
- 4.00 Kg
- Shipping Dimensions
- 14.00 cm x 35.00 cm x 23.00 cm
- PFC
- Active
- Fanless
- No
- Length
- 160 mm
- Main Connectors
- 1 x 24 pin ATX
- EPS/CPU Connectors
- 2 x 8 pin (4+4) EPS (CPU)
- SATA Power Connectors
- 12
- Molex Connectors
- 4
- PCIe 6-Pin Connectors
- 0
- PCIe 6+2-Pin Connectors
- 6
- PCIe 8-Pin Connectors
- 0
- PCIe 12-Pin Connectors
- 0
- PCIe 12+4-Pin 12VHPWR Connectors
- 0
- Type
- ATX
- 80+ Efficiency
- Platinum - >90% at 115V
- Input voltage
- 100 to 240V
- Output voltage
- +3.3V, +5V, +12V
- Output current single rail
- +3.3V (25 A), +5V (25 A), +12V (70 A), +12V (.8 A), +5VSB (3 A)

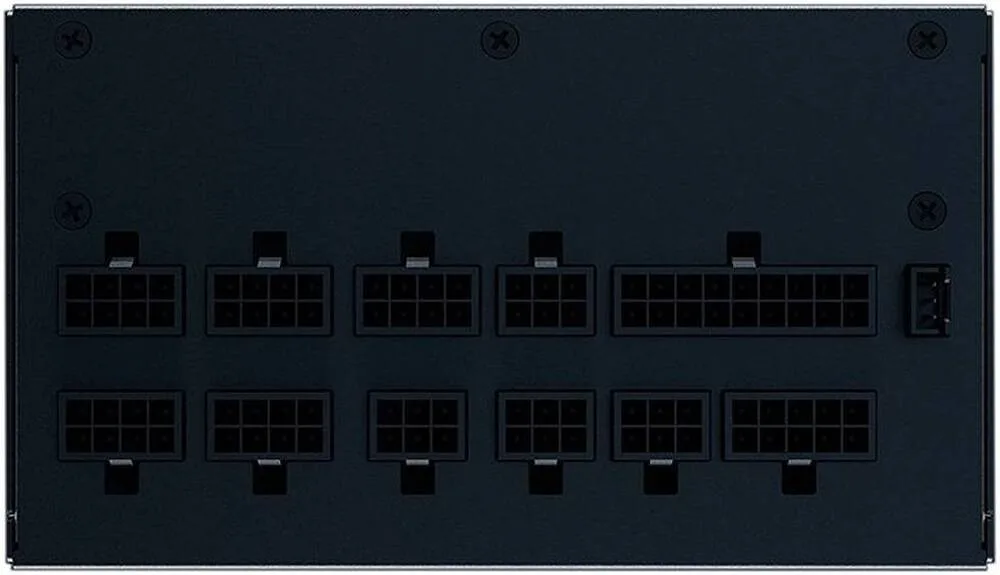

- Connectors
- 1 ATX, 2 EPS, 6 x 6+2 pin PCIe, 12 x SATA, 4 x 4-pin molex peripheral, 1 Floppy
- Capacitors
- 105C Japanese
- Cable management
- Fully modular
- Cable color
- Black
- PSU color
- Black
- Fan size
- 140mm PWM
- Fan lighting
- aRGB LED
- Zero RPM mode
- Yes
- Protections
- Over-voltage, under-voltage, short-circuit, over-power, and over-temp
- Dimensions
- 160 mm (L) x 150 mm (W) x 86 mm (H) / 6.3"x 5.9"x 3.38"
- Weight
- 2.3 Kg / 5.7 lbs
5.01 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Charlie F. Used for: More than a year
Comment
Razer making a power supply sounded like a licensing exercise, and it turns out the internals are a well regarded platform with a Chroma strip bolted on. Runs a 4080 and a 13700K without ever becoming audible, and the lighting syncs with the keyboard and mouse which is the actual point!
