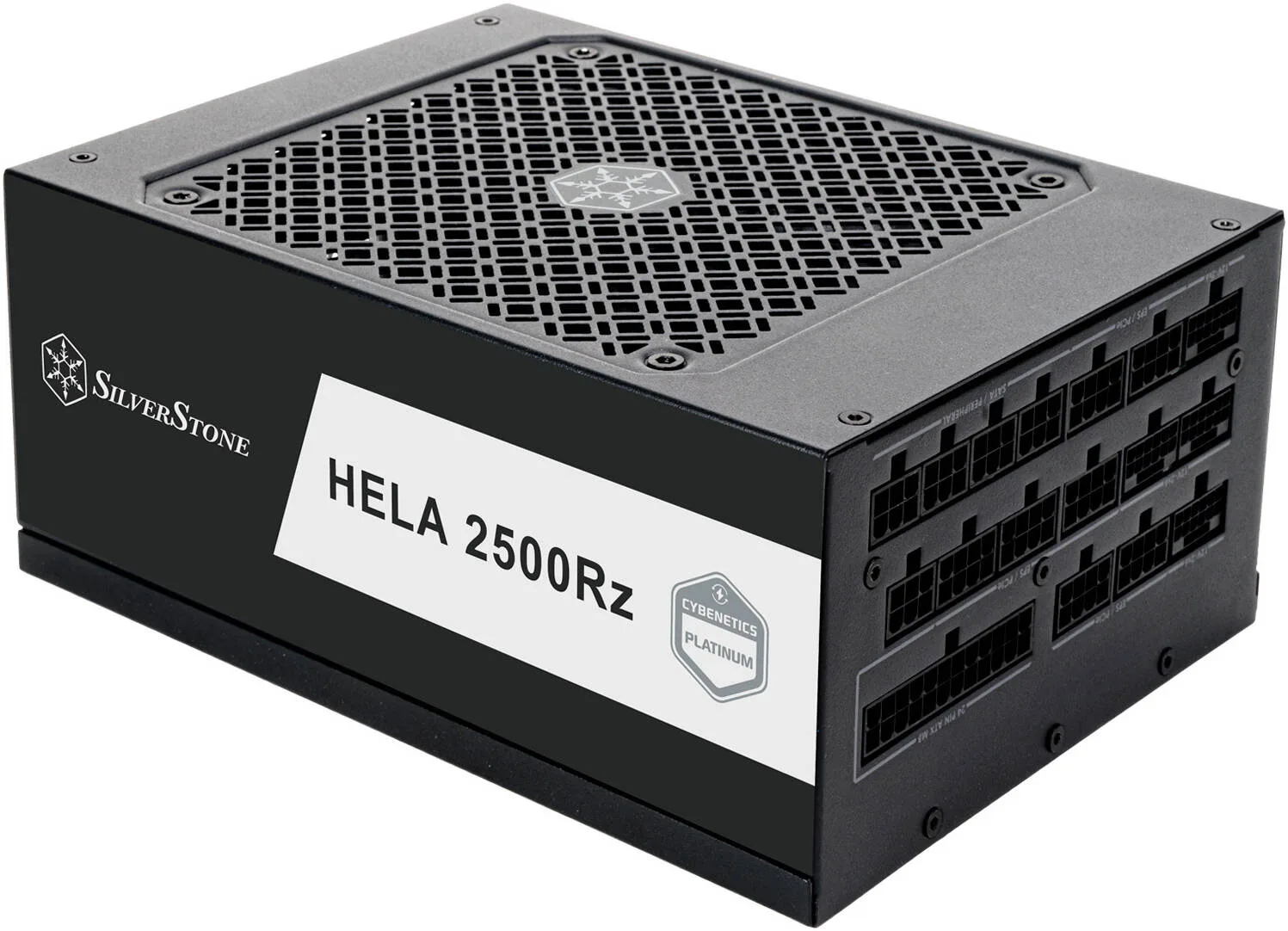

SilverStone HELA 2500Rz Cybenetics Platinum 2500W ATX 3.1 & PCIe 5 Fully Modular ATX Power Supply, 135mm Dual Ball Bearing Fan Cooling System, Active PFC, Black
- Compliant with ATX 3.1 and PCIe Gen 5 standards, supporting 12V-2x6 PCIe connectors
- 4 x native 12V-2x6 connectors with cables included, supporting RTX 40/50 series GPUs.
- High efficiency with Cybenetics Platinum certification
- 24/7 continuous power output with 50℃ operating temperature
- Silent running 135mm dual ball bearing fan with delayed shut-off function
- Compact 200mm depth design allows for easy system integration
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- Black
- Power
- 2050 W
- Modular
- Full Modular
- Efficiency
- 80 Plus Platinum
- Form factor
- ATX
Details
- Shipping Weight
- 4.90 Kg
- Shipping Dimensions
- 11.00 cm x 40.00 cm x 25.00 cm
- PFC
- Active
- Fanless
- No
- Length
- 180 mm
- Main Connectors
- 1 x 24 pin (20+4) ATX
- EPS/CPU Connectors
- 2 x 8 pin (4+4) EPS (CPU)
- SATA Power Connectors
- 12
- Molex Connectors
- 3
- PCIe 6-Pin Connectors
- 0
- PCIe 6+2-Pin Connectors
- 18
- PCIe 8-Pin Connectors
- 0
- PCIe 12-Pin Connectors
- 0
- PCIe 12+4-Pin 12VHPWR Connectors
- 3
- Product No.
- SST-HA2500R-PM
- Model (Safety Certification)
- SST-AX2500MCPT-A
- Max. DC Output
- 2500 W
- Power Density
- 969 W/L
- Load Range
- Output: +3.3V / +5V / +12V / +5VSB / -12V Max (Amps): 22A / 22A / 208.3A / 3.0A / 0.5A Min (Amps): 0A / 0A / 0A / 0A / 0A Range (%): ±3% / ±3% / ±3% / ±3% / ±10% Line Reg. (%): ±1% each Ripple (mVp-p): 30 / 30 / 50 / 30 / 50
- Combined +3.3V & +5V
- 120 W
- Combined +12V
- 2500 W
- Input Voltage
- 2500W: 200–240 Vrms 1650W: 103–264 Vrms 1350W: 90–264 Vrms
- Input Frequency Range
- 47Hz – 63Hz
- MTBF
- 100000 hours
- Operating Temperature
- 0°C – 50°C
- Protection
- Over Current, Over Power, Over Voltage, Under Voltage, Short Circuit, Over Temperature
- Connectors

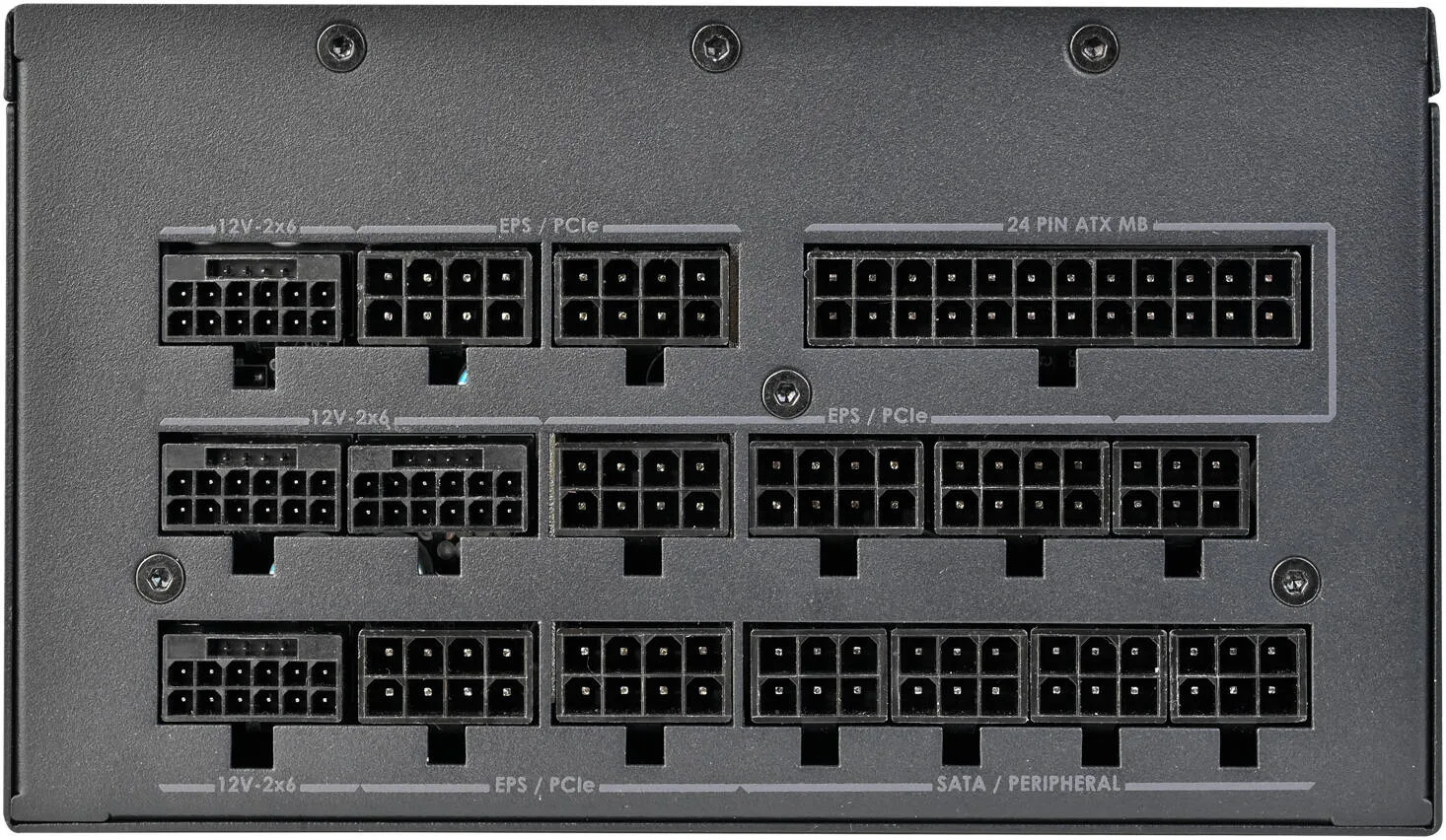

- 1 × 24-Pin motherboard 4 × 8/4-Pin EPS/ATX 12V 7 × 8/6-Pin PCIe 4 × 12+4-Pin 12V-2x6 12 × SATA 4 × 4-Pin Peripheral
- Cooling System
- 135mm dual ball bearing fan
- Noise Level
- 18 dBA minimum
- Certification
- Cybenetics Platinum
- Dimensions
- 150mm (W) × 86mm (H) × 200mm (D) 5.91" (W) × 3.39" (H) × 7.87" (D)
- Weight
- 4.16 kg
4.511 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Maya D. Used for: 3–6 months
Pros
Two native 12V-2x6 leads in the box
Cons
Model number is the peak figure, not the continuous one
Comment
The name says 2500 and the label says 2050, which caused me ten minutes of confusion before I worked out the model number is the peak figure and not the continuous one. Once past that it has been excellent. Two 12V-2x6 leads, both native, and a 4090 plus a 7950X barely gets it warm. Five months in and it has never been more than lukewarm.
Florence H. Used for: 1–3 months
Pros
Sleeved cables, not the flat ribbon sort
Cons
Cable bag is enormous
Comment
Two kilowatts was more than I needed but the price against a 1600W unit was close enough that I took the headroom. A 5090 and a 9800X3D peak at 780W by the socket meter, so the fan simply never comes on. Cables are individually sleeved, which is not a given at this level!
Leo O. Used for: 1–3 months
Pros
Headroom so large the fan is decorative
Cons
Needs a deep case
Comment
Sits under a 5080 and a 285K in a Fractal case, and the wall socket reads 520W with both under load. That leaves roughly a kilowatt and a half spare, which is ridiculous, but it means the fan is a decoration. Only real note is that it needs a deep case.
Poppy B. Used for: 6–12 months
Pros
Voltages have never wavered
Cons
Fan threshold is lower than advertised and there is a relay click on wake
Comment
Works, but it is not the silent unit the marketing suggests. The fan threshold is set low and my machine crosses it during ordinary gaming, at which point there is a constant airflow noise from the bottom of the case that was not there before. There is also a click every time the machine comes out of sleep, which I assume is a relay. Harmless, but you hear it in a quiet room. Voltages have been rock solid throughout.
Millie B. Used for: More than a year
Pros
Efficiency figure holds up on a wall meter
Comment
Been the quiet corner of a very loud machine. Cybenetics PLATINUM and it earns the badge at the socket!
Theo K. Used for: Less than a month
Pros
Transient spikes stopped dimming the lights
Cons
Long unit with thick cables, the side panel fought back
Comment
Replaced a 1000W unit that had started to sag under a new card, and the difference was obvious on the first boot. The old supply used to make the lights dim for a fraction of a second when a game loaded. That is gone entirely. Whatever the transient behaviour of a 5090 is, this unit does not appear to notice it, and I have watched the socket meter jump from 200W to 900W in the space of a second without anything on screen flickering. Noise is the other headline. The fan is off below about 40% load, which on a 2050W unit means off basically always, and when it did spin up during a burn in test it was a low rush rather than a whine. No coil noise at any frame rate I have tried. Only gripe is physical. It is a long unit and the sleeved cables are thick, so the back of my case took some persuading to close. Three weeks of use so far and nothing has changed for the worse.
Freddie O. Used for: 1–3 months
Comment
Fine unit, but the fan is busier than I expected
Amelia K. Used for: Less than a month
Comment
Build is finished and the supply gave me no trouble at all. Fully modular means only six leads went into the case, and the sockets are keyed so you cannot put a SATA lead where a PCIe one belongs. Marked down a star only because the supplied 12V-2x6 cable is barely long enough to reach a card in a full tower, and the spare is the same length
Ella B. Used for: More than a year
Comment
This has powered three different graphics cards without me thinking about it once, which is the highest praise a power supply can get. It went in with a 3080, took a 4090 without a murmur, and now runs a 5090 off a single native 12V-2x6 lead rather than the adapter I had been using. Each swap was a five minute job because the unit is fully modular and the sockets are labelled in words rather than symbols. The electrical behaviour is the part worth paying for. Nothing on the 12V rail moves under load, the machine has never blue screened from a spike, and the fan has only made itself known twice, both times during a summer heatwave with the room over 30 degrees. If I had to fault it, the unit is deep and the 24 pin lead is stiff. Neither has cost me anything.
Millie P. Used for: 3–6 months
Comment
Two thousand watts of nothing happening. Exactly the correct amount of drama
Freya H. Used for: 6–12 months
Pros
Measured efficiency matches the Cybenetics report
Comment
Bought on the strength of the Cybenetics report rather than the 80 Plus sticker, and the numbers held up. My plug meter reads about 6% above what the software claims the machine is drawing, right where a PLATINUM unit should sit at half load. Eight months on, the same reading. It also has more PCIe leads than I will ever use. Six, plus two 12V-2x6!
