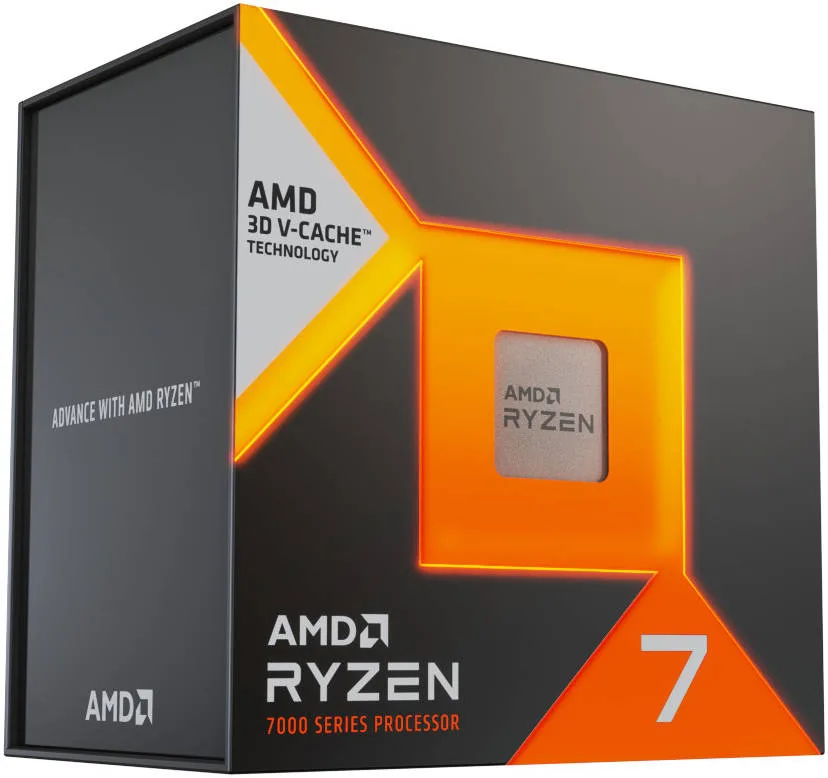

AMD Ryzen 7 7800X3D AM5 Desktop Processor with AMD Radeon Graphics, 8 Cores & 16 Threads, 5 GHz Max Boost Clock, 8MB L2 & 96MB L3 Cache, DDR5 Memory & 128GB Max Capacity
- Whatever the setting, whatever the resolution, lead your team to victory with this incredible gaming processor. Plus, enjoy the benefits of next-gen AMD 3D V-Cache™ technology for low latency and even more game performance.
- 8 Cores & 16 Threads
- 4.2 GHz Base Clock
- 5 GHz Max Boost Clock
- Socket AM5
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Cpu socket type
- AM5
- Integrated graphics
- Yes
Details
- Shipping Weight
- 0.35 Kg
- Shipping Dimensions
- 13.00 cm x 13.00 cm x 9.50 cm
- Platform
- Desktop
- Market Segment
- Enthusiast Desktop
- Product Family
- AMD Ryzen™ Processors
- Product Line
- AMD Ryzen™ 7 Processors
- AMD PRO Technologies
- No
- Consumer Use
- Yes
- Regional Availability
- Global
- Former Codename
- "Raphael AM5"
- Architecture
- "Zen 4"
- # of CPU Cores
- 8
- Multithreading (SMT)
- Yes
- # of Threads
- 16
- Max. Boost Clock
- Up to 5.0GHz
- Base Clock
- 4.2 GHz
- L1 Cache
- 512 KB
- L2 Cache
- 8 MB
- L3 Cache
- 96 MB
- Default TDP
- 120 W
- Processor Technology for CPU Cores
- TSMC 5nm FinFET
- Processor Technology for I/O Die
- TSMC 6nm FinFET
- CPU Compute Die (CCD) Size
- 71mm²
- I/O Die (IOD) Size
- 122mm²
- Package Die Count
- 2
- AMD EXPO™ Memory Overclocking Technology
- Yes
- Precision Boost Overdrive
- Yes
- Curve Optimizer Voltage Offsets
- Yes
- AMD Ryzen™ Master Support
- Yes
- Supporting Chipsets
- X670E, X670, B650E, B650
- CPU Boost Technology
- Precision Boost 2
- Instruction Set
- x86-64
- Supported Extensions
- AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
- Thermal Solution (PIB)
- Not included
- Max. Operating Temperature (Tjmax)
- 89°C
- Launch Date
- 4/6/2023
- OS Support
- Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit (OS support will vary by manufacturer)
- USB Type-C® Support
- Yes
- Native USB 3.2 Gen 2 (10Gbps) Ports
- 4
- Native USB 3.2 Gen 1 (5Gbps) Ports
- 0
- Native USB 2.0 (480Mbps) Ports
- 1
- Native SATA Ports
- 0
- PCI Express® Version
- PCIe® 5.0
- Native PCIe® Lanes (Total/Usable)
- 28/24
- Additional Usable PCIe Lanes from Motherboard
- AMD X670E: 12x Gen4, AMD X670: 12x Gen4, AMD B650E: 8x Gen4, AMD B650: 8x Gen4
- NVMe Support
- Boot, RAID0, RAID1, RAID10
- System Memory Type
- DDR5
- Memory Channels
- 2
- Max. Memory
- 128 GB
- System Memory Subtype
- UDIMM
- Max Memory Speed
- 2x1R: DDR5-5200, 2x2R: DDR5-5200, 4x1R: DDR5-3600, 4x2R: DDR5-3600
- ECC Support
- Yes (Requires mobo support)
- Graphics Core Count
- 2
- Graphics Frequency
- 2200 MHz
- USB Type-C® DisplayPort™ Alternate Mode
- Yes
- Key Features
- Supported Technologies: AMD EXPO™ Technology, AMD Ryzen™ Technologies
