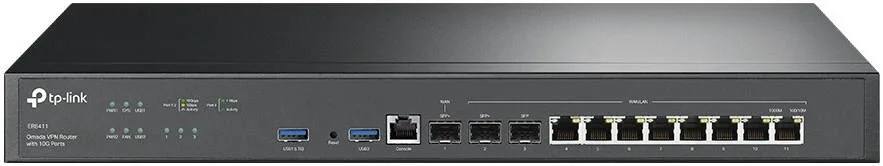

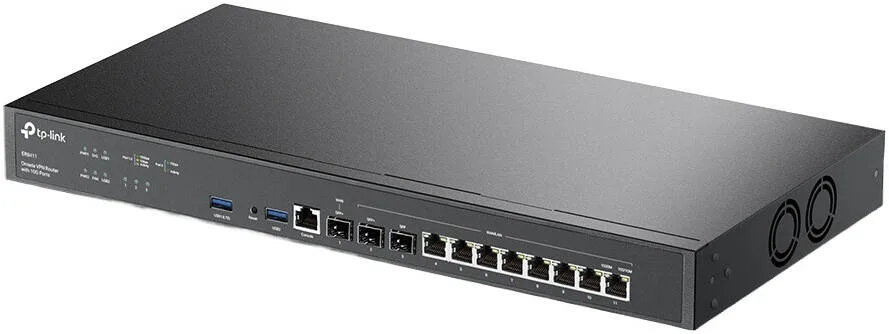

TP-Link Omada VPN Rack Mountable Router with 10G Ports, 2x 10GE SFP+, 8x 1GE RJ45 WAN/LAN, 2x USB Ports, , 1411 Mbps WireGuard VPN, 4 kV Surge Protection, Black
TP-LINK
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Two 10GE SFP+ Ports: 1× WAN and 1× WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity
- Up to 10 WAN Ports: Fiber and RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- Black
Details
- Shipping Weight
- 3.90 Kg
- Shipping Dimensions
- 10.00 cm x 53.00 cm x 34.00 cm
- Access Control
- Source/Destination IP Based Access Control
- Filtering
- WEB Group Filtering
- ARP Inspection
- Sending GARP Packets
- Attack Defense
- TCP/UDP/ICMP Flood Defense
- Standards and Protocols
- IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
- Interface
- 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN)
- Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
- Fan Quantity
- 2
- Button
- Reset Button
- Power Supply

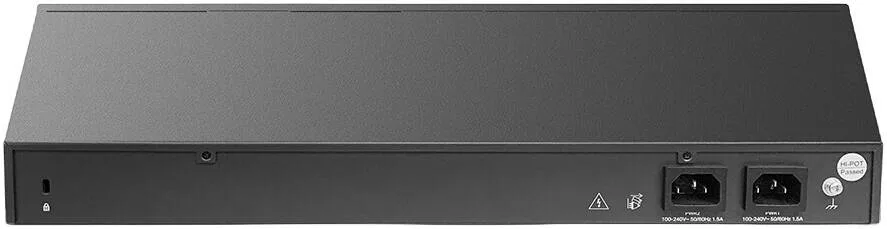

- Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz)
- Flash
- 4MB SPI NOR + 256 MB NAND
- DRAM
- 4 GB DDR4
- LED
- PWR, SYS, WAN, LAN, USB, FAN
- Dimensions (W x D x H)
- 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
- Protection
- 4 kV surge protection
- Enclosure
- Steel
- Mounting
- Rack Mountable
- Max Power Consumption
- 26.36 W (with USB 3.0 connected)
- WireGuard VPN
- 1411 Mbps
- Concurrent Session
- 2300,000
- New Sessions /Second
- 20000
- NAT (Static IP)
- Upload: 9445.82 Mbps
- NAT (DHCP)
- Upload: 9426.83 Mbps
- NAT (PPPoE)
- Upload: 9413.96 Mbps
- NAT (L2TP)
- Upload: 4230.62 Mbps
- NAT (PPTP)
- Upload: 3933.86 Mbps
- 64 Byte Packet Forwarding Rate
- Upload: 1080 Mbps
- IPsec VPN Throughput
- SHA1-AES256: 2140.45 Mbps
- OpenVPN
- 1665.64 Mbps
- L2TP VPN Throughput
- Unencrypted: 5013.50 Mbps
- PPTP VPN Throughput
- Unencrypted: 10143 Mbps
- SSL VPN Throughput
- 1511.10 Mbps
- 1,518 Byte Packet forwarding rate
- Upload: 9970 Mbps
- WAN Connection Type
- Static/Dynamic IP
- MAC Clone
- Modify WAN/LAN MAC Address*4
- DHCP
- DHCP Server/Client
- IPv6
- WAN Connection
- VLAN
- 802.1Q VLAN
- IPTV
- IGMP v2/v3 Proxy
- ACL
- IP/Port/Protocol/Domain Name Filtering
- Advanced Routing
- Static Routing
- Bandwidth Control
- IP/Port-based Bandwidth Control
- Load Balance
- Intelligent Load Balance
- NAT
- One-to-One NAT
- Security
- SPI Firewall
- Session Limit
- IP-based Session Limit
- SSL VPN
- SSL VPN Server
- IPsec VPN
- 300 IPSec VPN Tunnels
- PPTP VPN
- PPTP VPN Server
- L2TP VPN
- L2TP VPN Server
- Web Authentication
- No Authentication
- Omada App
- Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
- Centralized Management
- Omada Hardware Controller (OC300)
- Cloud Access
- Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
- Service
- Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
- Maintenance
- Web Management Interface
- Zero-Touch Provisioning
- Yes. Requiring the use of Omada Cloud-Based Controller.
- Management Features
- Automatic Device Discovery
- Certification
- CE, FCC, RoHS
- Package Contents
- Omada 10G Multi-WAN Security Gateway ER8411
- System Requirements
- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
- Environment
- Operating Temperature: 0–40 ℃ (32–104 ℉)
