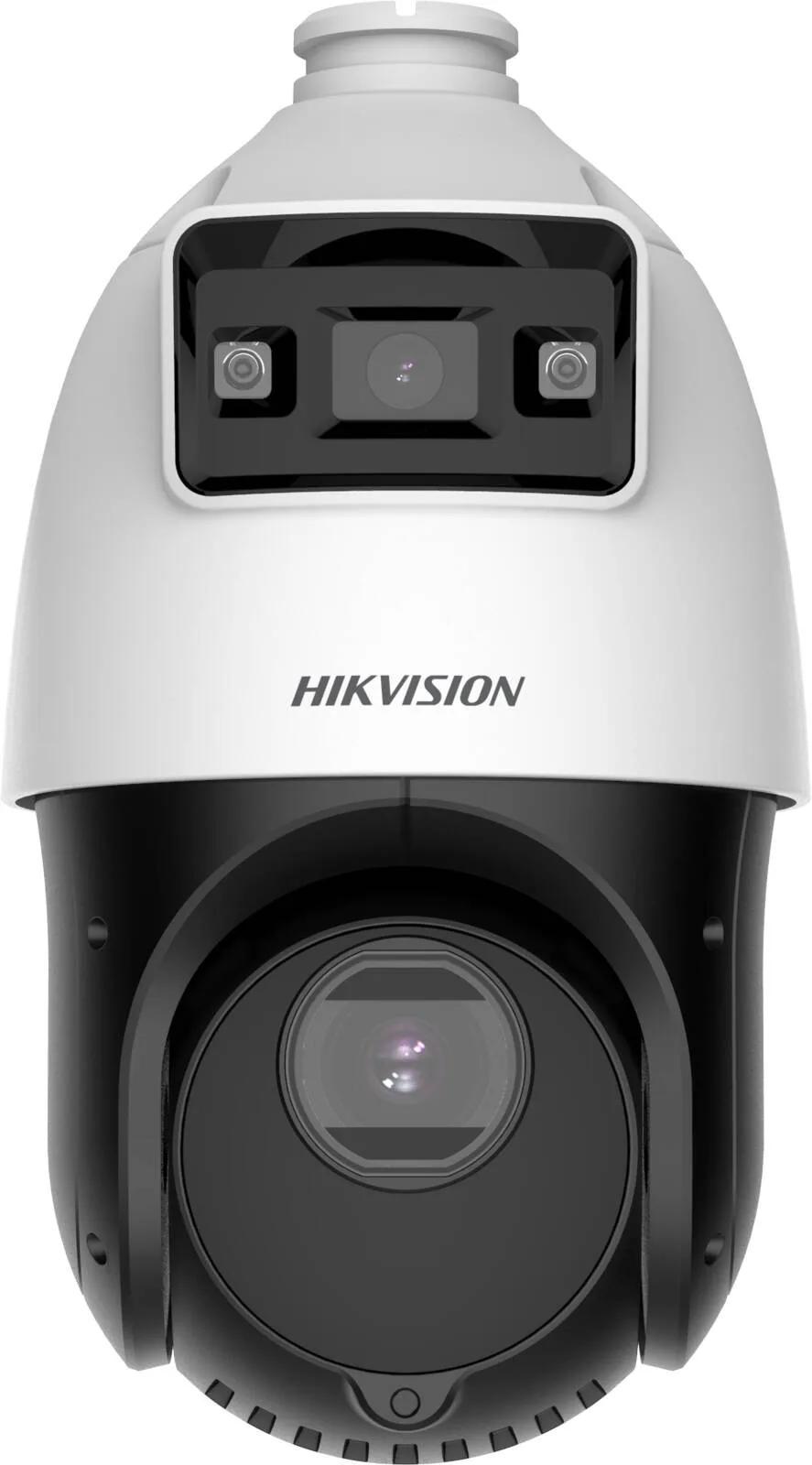

HikVision TandemVu 4+4MP 25X ColorVu & IR Acusense Network Speed Dome, Supports 12V DC & PoE+, 16 Digital Zoom, 25 Optical Zoom 100m Light Range, White
- Captures a large area and great details at the same time
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
- Supports 12V DC & PoE+
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- White
- Power link
- PoE
- Resolution
- 2K / 4-5 MP
- Form factor
- PTZ
Details
- Shipping Weight
- 2.40 Kg
- Shipping Dimensions
- 16.60 cm x 16.60 cm x 37.50 cm
- Camera – Image Sensor
- Bullet: 1/3" Progressive Scan CMOS; PTZ: 1/2.8" Progressive Scan CMOS
- Camera – Max. Resolution
- Bullet: 2560 × 1440; PTZ: 2560 × 1440
- Camera – Minimum Illumination
- Bullet: 0.0005 Lux @ F1.0, AGC ON; 0 Lux with light. PTZ: Color 0.005 Lux @ F1.6, AGC ON; B/W 0.001 Lux @ F1.6, AGC ON; 0 Lux with IR
- Camera – Shutter Speed
- 1 s to 1/30000 s
- Camera – Day & Night
- ICR
- Camera – Zoom
- PTZ: 25× optical, 16× digital
- Camera – Slow Shutter
- Yes
- Lens – Focal Length
- Bullet: 2.8 mm; PTZ: 4.8–120 mm, 25× optical
- Lens – Field of View
- Bullet: Horizontal 96.1°, Vertical 52.1°, Diagonal 113.3°. PTZ: Horizontal 55°–2.4°, Vertical 33°–1.4°, Diagonal 61.5°–2.8°
- Lens – Focus
- Semi-auto / Manual / Auto
- Lens – Aperture
- Bullet: F1.0; PTZ: F1.6
- Lens – Zoom Speed
- PTZ: Approx. 3.6 s
- Illuminator – Supplement Light Type
- PTZ: IR; Bullet: White Light
- Illuminator – Supplement Light Range
- PTZ: Up to 100 m; Bullet: Up to 30 m
- Illuminator – Smart Supplement Light
- Yes
- PTZ – Pan Range
- 360°
- PTZ – Tilt Range
- -15° to 90° with auto flip
- PTZ – Pan Speed
- Configurable 0.1°–80°/s; preset speed 80°/s
- PTZ – Tilt Speed
- Configurable 0.1°–80°/s; preset speed 80°/s
- PTZ – Proportional Pan
- Yes
- PTZ – Presets
- 300
- PTZ – Preset Freezing
- Yes
- PTZ – Patrol Scan
- 8 patrols, up to 32 presets per patrol
- PTZ – Pattern Scan
- 4 pattern scans
- PTZ – Park Action
- Preset / Pattern Scan / Patrol Scan / Auto Scan / Tilt Scan / Random Scan / Frame Scan / Panorama Scan
- PTZ – 3D Positioning
- Yes
- PTZ – Status Display
- Yes
- PTZ – Scheduled Task
- Preset / Pattern Scan / Patrol Scan / Auto Scan / Tilt Scan / Random Scan / Frame Scan / Panorama Scan / Dome Reboot / Dome Adjust / Aux Output
- PTZ – Power-Off Memory
- Yes
- Video – Main Stream
- Bullet & PTZ: 50 Hz up to 25 fps; 60 Hz up to 30 fps at 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720
- Video – Sub-Stream
- Bullet & PTZ: 50 Hz up to 25 fps; 60 Hz up to 30 fps at supported resolutions
- Video – Third Stream
- Bullet & PTZ: 50 Hz up to 25 fps; 60 Hz up to 30 fps at resolutions up to 1920 × 1080
- Video – Compression
- H.265 / H.264 / MJPEG
- Video – Bit Rate
- 32 kbps to 16384 kbps
- Video – H.264 Type
- Baseline Profile / Main Profile / High Profile
- Video – H.265 Type
- Main Profile
- Video – SVC
- Yes
- Video – ROI
- 8 fixed regions for each stream
- Audio – Compression
- G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
- Audio – Bit Rate
- 32–192 Kbps (MP2L2); 16–64 Kbps (AAC-LC)
- Audio – Sampling Rate
- 8 / 16 / 32 / 48 kHz
- Audio – Environment Noise Filtering
- Yes
- Network – Protocols
- IPv4/IPv6 / HTTP / HTTPS / 802.1x / QoS / FTP / SMTP / UPnP / SNMP / DNS / DDNS / NTP / RTSP / RTCP / RTP / TCP/IP / UDP / IGMP / ICMP / DHCP / PPPoE / Bonjour / WebSocket / WebSockets
- Network – Simultaneous Live View
- 20
- Network – API
- Open Network Video Interface (Profile S, Profile G, Profile T) / ISAPI / SDK / ISUP
- Network – User/Host
- 32
- Network – Security
- Authenticated username and password / MAC address binding / HTTPS encryption / 802.1X authenticated access / IP address filter
- Network – Storage
- NAS (NFS, SMB/CIFS) / ANR
- Network – Client
- iVMS-4200 / Hik-Connect
- Network – Web Browser
- IE 10+, Chrome 57+, Firefox 52+, Safari 12+
- Image – Parameter Switch
- Yes
- Image – Settings
- Sharpness / Saturation / Brightness / Contrast
- Image – Day/Night Switch
- Day / Night / Auto / Scheduled Switch
- Image – WDR
- 120 dB
- Image – SNR
- ≥52 dB
- Image – Defog
- Digital Defog
- Image – Stabilization
- EIS
- Image – Enhancement
- BLC / HLC / 3D DNR
- Image – Privacy Mask
- Bullet: 8 programmable polygon masks; PTZ: 24 programmable polygon masks; color or mosaic configurable
- Image – Regional Focus
- Yes
- Image – Regional Exposure
- Yes
- Interface – Ethernet
- RJ45, self-adaptive 10M/100M Ethernet port
- Interface – On-Board Storage
- Micro SD / Micro SDHC / Micro SDXC, up to 256 GB
- Interface – Audio
- 1 audio input, 2.0–2.4 Vp-p, 1 kΩ ±10%; 1 audio output, line level, 600 Ω
- Interface – Alarm
- 1 alarm input, 1 alarm output
- Interface – Reset
- Yes
- Event – Basic Event
- PTZ: Motion detection, video tampering alarm; Bullet & PTZ: alarm input/output and exception detection
- Event – Smart Event
- Audio exception detection; line crossing, intrusion, region entrance and region exiting detection
- Event – Linkage
- Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output and recording; PTZ also supports preset, patrol scan and pattern scan actions
- Deep Learning – Face Capture
- Bullet: No; PTZ: Yes
- General – Power
- 12V DC / PoE+
- General – Dimensions
- Ø166 × 375 mm (Ø6.5 × 14.7 in)
- General – Weight
- Approx. 2.4 kg
- General – Material
- ADC12
- General – Operating Condition
- -30°C to 65°C (-22°F to 149°F); humidity below 90% RH
- General – Functions
- Mirror / Password Protection / Watermark / IP Address Filter
- General – Demist
- Demist by heating the glass
- General – Power Consumption
- Max. 24 W, including max. 2.6 W heater and max. 11 W supplement light
- Protection
- IP66
- Lightning Protection
- 6000 V
- Surge Protection
- Yes
- Voltage Transient Protection
- Yes
5.02 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Noah H. Used for: Less than a month
Pros
Copes with headlights without blowing out the picture
Cons
The mounting bracket is sold separately
Comment
Fitted this above a loading bay where the old camera was blinded by headlights every evening. The colour sensor holds detail against a van's lights instead of blowing the whole frame white, and the second channel keeps the wide view while the first is zoomed on the door!
Maya F. Used for: 6–12 months
Pros
One cable, and it has never needed a reboot
Comment
Runs off a single network cable and has sat on the same switch port since spring without a reboot. Alignment has not drifted through two gales
