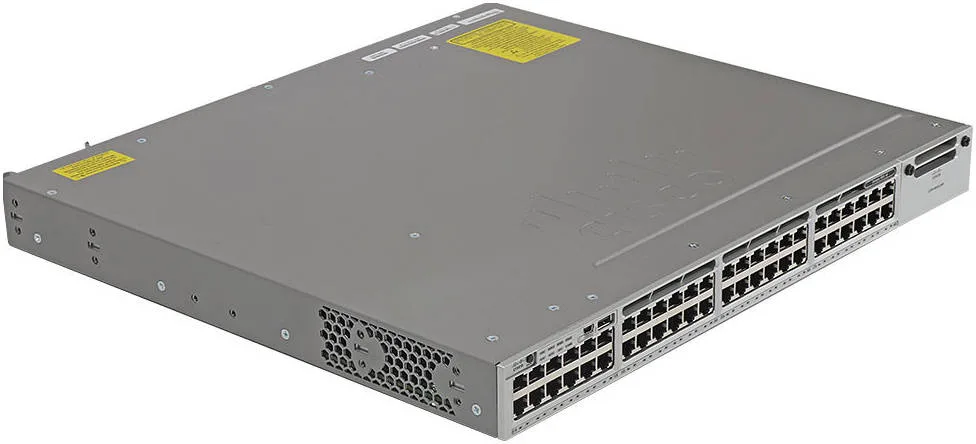

Cisco Catalyst 3850-48P-L 48-Port PoE LAN Switch, 48 *10/100/1000 Ethernet POE+ Ports, LAN Base, 435W PoE Budget, 2- Access Layer, 176Gbps Switching Capacity
- Catalyst 3850 48 Port PoE
- The Cisco Catalyst 3850 series is an enterprise-class stackable access-layer switch that provides full convergence between wired and wireless on a single platform. Cisco's Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility, and application optimization. The Cisco Catalyst 3850 series switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), modular and field-replaceable network modules, redundant fans, and power supplies.
- Features
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Port speed
- Fast Ethernet
Details
- Shipping Weight
- 7.90 Kg
- Shipping Dimensions
- 44.50 cm x 44.50 cm x 4.50 cm
- model info
- WS-C3850-48P-L
- enclosure type
- Rack-mountable - 1U
- Ports
- 48 x 10/100/1000 (POE+)
- Network management Interface
- ● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling● Management console port: RJ-45-to-DB9 cable for PC connections
- Available PoE Power
- 435 W
- Switching Capacity
- 176 Gbps
- Maximum stacking number
- up to 9 switches with same IOS feature set in same series
- Stack Bandwidth
- 480 Gbps
- Forwarding Performance
- 130.95 Mpps
- FNF (Flexible NetFlow) entries
- Disabled (IP base license required)
- Maximum VLANs IDs
- 255
- MAC Address Table Size
- 32 K
- CPU
- Multicore CPU
- RAM
- 4 G
- Flash Memory
- 2 G
- Number of AP per switch/stack
- 100
- Number of wireless clients per switch/stack
- 2000
- Total number of WLANs per switch
- 64
- Wireless bandwidth per switch
- up to 40Gbps
- Supported Aironet AP series
- 3600, 3500, 2600, 1600, 1260, 1140, 1040
- Console ports
- USB (Type-B), Ethernet (RJ-45)
- Expansion Slot(s)
- 1 network module slot and 1 power redundant slot
- Network Modules Selection
- ● C3850-NM-4-1G: 4 x 1G uplinks network module● C3850-NM-4-10G: 4 x 10G uplinks network module●C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module
- Stacking cable
- ●STACK-T1-50CM StackWise stacking cable with a 0.5 m length●STACK-T1-1M StackWise stacking cable with a 1.0 m length●STACK-T1-3M StackWise stacking cable with a 3.0 m length
- Stack Power Cable (recommended)
- ●CAB-SPWR-30CM stack power cable with a 30CM length●CAB-SPWR-150CM stack power cable with a 150CM length
- Power supply
- PWR-C1-715WAC
- Power Device
- Power supply - redundant - plug-in module
- Power Redundancy
- optional
- Voltage range (Auto)
- 100V-240V
- Power Consumption of standalone(in Watts)
- 135.96 (Max)
- Width
- 17.5 Inches (44.5 cm)
- Depth
- 17.7 Inches (44.5 Cm)
- Height
- 1.75 Inches (4.45 cm)
- Weight
- 17.4 Pounds (7.9Kg)
- Rack Mounting Kit
- optional
- MTBF in hours
- 241050
- Compliant Standards
- ● IEEE 802.1D Spanning Tree Protoco● IEEE 802.1p CoS Prioritization● IEEE 802.1Q VLAN● IEEE 802.1s● IEEE 802.1w● IEEE 802.1X● IEEE 802.1X-Rev●IEEE 802.11● IEEE 802.1ab (LLDP)● IEEE 802.3ad● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports ● IEEE 802.3 10BASE-T● IEEE 802.3u 100BASE-TX● IEEE 802.3ab 1000BASE-T● IEEE 802.3z 1000BASE-X● RMON I and II standards● SNMP v1, v2c, and v3●IEEE 802.3af and IEEE 802.3at
- System software
- IOS LAN Base (Upgradable)
- EnergyWise license
- ENERGY-MGMT, ENERGY-MGT-100-K9
- Software license
- ●C3850-48-L-S : LAN Base to IP Base RTU paper license●C3850-48-L-E: LAN Base to IP Services RTU paper license●L-C3850-48-L-S: LAN Base to IP Base RTU electronic license●L-C3850-48-L-E: LAN Base to IP Services RTU electronic license
- Access Point Licenses
- ●L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery)●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)●LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license)●LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)
- Features
- ●EEM ● RPS Support ● IP service-level agreements (SLAs) ● Advanced IP unicast routing protocols ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP ● PVST/PVST+ ● 802.1W/802.1S ●Port Fast/Uplink Fast ●Dynamic Trunking Protocol (DTP) ● port CoS Trust and Override ● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies ● 802.1p queues ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority Queues ● Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps ● Modify CoS and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server ● DSCP transparency ● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM OSPF, OSPFv3,EIGRPv6, BGPv4, IS-ISv4 ● VRF-lite ● PIM-SM/DM, PIM sparse-dense mode, SSM ● Flexible Netflow
- Advanced Network security
- ● Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF) ● Bidirectional data support on a SPAN ● User authentication● Private VLAN ●Router and VLAN ACLs ● complete identity and security● Multidomain authentication ● MAC address notification ● IGMP filtering ● Cisco security VLAN ACL ● Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) ● Port-based ACLs ● TrustSec SXP ● IEEE 802.1ae● TACACS+ and RADIUS authentication ● Cisco standard and extended IP security router ACLs● Bridge protocol data unit (BPDU) Guard ● Spanning Tree Root Guard (STRG) ● Wireless end-to-end security
- Management
- ●BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB●CISCO-BGP4-MIB, BGP4-MIB ●CISCO-BRIDGE-EXT-MIB●CISCO-BULK-FILE-MIB ●CISCO-CABLE-DIAG-MIB●CISCO-CALLHOME-MIB ●CISCO-CEF-MIB●CISCO-CIRCUIT-INTERFACE-MIB ●CISCO-ENTITY-VENDORTYPE-OID-MIB ●CISCO-CONTEXT-MAPPING-MIB●CISCO-DEVICE-LOCATION-MIB ●CISCO-DHCP-SNOOPING-MIB ●CISCO-EIGRP-MIB●CISCO-EMBEDDED-EVENT-MGR-MIB ●CISCO-ENTITY-FRU-CONTROL-MIB ●CISCO-ENTITY-SENSOR-MIB●ENTITY-MIB ●CISCO-ERR-DISABLE-MIB●CISCO-CONFIG-COPY-MIB ●CISCO-FLOW-MONITOR-MIB●CISCO-FTP-CLIENT-MIB ●CISCO-HSRP-EXT-MIB●CISCO-HSRP-MIB ●CISCO-IETF-ISIS-MIB●CISCO-IF-EXTENSION-MIB ●CISCO-IGMP-FILTER-MIB●CISCO-CONFIG-MAN-MIB ●CISCO-IP-CBR-METRICS-MIB●CISCO-IPMROUTE-MIB ●CISCO-IP-STAT-MIB●CISCO-IP-URPF-MIB ●CISCO-L2L3-INTERFACE-CONFIG-MIB ●CISCO-LAG-MIB ●CISCO-LICENSE-MGMT-MIB ●CISCO-MAC-AUTH-BYPASS-MIB ●CISCO-MAC-NOTIFICATION-MIB ●CISCO-MDI-METRICS-MIB ●CISCO-FLASH-MIB ●CISCO-OSPF-MIB ●CISCO-OSPF-TRAP-MIB ●CISCO-PAE-MIB ●CISCO-PAGP-MIB●CISCO-PIM-MIB ●CISCO-PING-MIB ●CISCO-PORT-QOS-MIB ●CISCO-PORT-SECURITY-MIB●CISCO-PORT-STORM-CONTROL-MIB ●CISCO-POWER-ETHERNET-EXT-MIB ●CISCO-PRIVATE-VLAN-MIB●CISCO-PROCESS-MIB ●CISCO-PRODUCTS-MIB●CISCO-RF-MIB ●CISCO-RTP-METRICS-MIB ●CISCO-RTTMON-MIB ●CISCO-SMART-INSTALL-MIB ●CISCO-SNMP-TARGET-EXT-MIB ●CISCO-STACKMAKER-MIB●CISCO-MEMORY-POOL-MIB ●CISCO-STP-EXTENSIONS-MIB●CISCO-SYSLOG-MIB ●CISCO-TCP-MIB ●CISCO-UDLDP-MIB●CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB ●CISCO-VLAN-MEMBERSHIP-MIB ●CISCO-VTP-MIB ●EtherLike-MIB●HC-RMON-MIB ●IEEE8021-PAE-MIB ●IEEE8023-LAG-MIB●IF-MIB ●IGMP-MIB ●IGMP-STD-MIB ●IP-FORWARD-MIB●IP-MIB ●IPMROUTE-STD-MIB ●LLDP-EXT-MED-MIB●LLDP-MIB ●NOTIFICATION-LOG-MIB●OLD-CISCO-MEMORY-MIB ●CISCO-CDP-MIB●POWER-ETHERNET-MIB ●RMON2-MIB●RMON-MIB ●SNMP-COMMUNITY-MIB ●SNMP-FRAMEWORK-MIB●SNMP-MPD-MIB ●SNMP-NOTIFICATION-MIB ●SNMP-PROXY-MIB●SNMP-TARGET-MIB ●SNMP-USM-MIB ●SNMPv2-MIB●SNMP-VIEW-BASED-ACM-MIB ●TCP-MIB ●UDP-MIB●CISCO-IMAGE-MIB ●CISCO-STACKWISE-MIB●AIRESPMACE-WIRELESS-MIB ●CISCO-LWAPP-IDS-MIB●CISCO-LWAPP-AP-MIB ●CISCO-LWAPP-CCX-RM-MIB●CISCO-LWAPP-CLIENT-ROAMING-MIB●CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB●CISCO-LWAPP-DOT11-CCX-CLIENT-MIB●CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB●CISCO-LWAPP-DOT11-CLIENT-MIB ●CISCO-LWAPP-DOT11-MIB●CISCO-LWAPP-DOWNLOAD-MIB ●CISCO-LWAPP-LINKTEST-MIB●CISCO-LWAPP-MFP-MIB ●CISCO-LWAPP-MOBILITY-EXT-MIB●CISCO-LWAPP-QOS-MIB ●CISCO-LWAPP-REAP-MIB●CISCO-LWAPP-ROGUE-MIB ●CISCO-LWAPP-RRM-MIB●CISCO-LWAPP-SI-MIB ●CISCO-LWAPP-TSM-MIB●CISCO-LWAPP-WLAN-MIB ●CISCO-LWAPP-WLAN-SECURITY-MIB
- Technical Support and Services
- ● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services
- Operating temperature up to 5000 ft (1500 m)
- 23ºF to 113ºF (-5ºC to +45ºC)
- Operating temperature up to 10,000 ft (3000 m)
- 23ºF to 104ºF (-5ºC to +40ºC)
- Short-term exception at sealevel with single fan failure
- 23ºF to 113ºF (-5ºC to +45ºC)
- Short-term exception up to 5000 feet (1500 m)
- 23ºF to 122ºF (-5ºC to 50ºC)
- Short-term exception up to 10,000 feet (3000 m)
- 23ºF to 113ºF (-5ºC to 45ºC)
- Operating temperature up to 6000 ft (1800 m)
- 23ºF to 113ºF (-5ºC to +45ºC)
- Operating temperature up to 13,000 ft (4000m)
- 23ºF to 95ºF (-5ºC to 35ºC)
- Short-term exception up to 6,000 feet (1800 m)
- 23ºF to 131ºF (-5ºC to +55ºC)
- Short-term exception up to 13,000 feet (4000 m)
- 23ºF to 113ºF (-5ºC to +45ºC)
- Storage environment
- -40ºF to 160ºF (-40ºC to 70ºC)
- Operating altitude
- Up to 13000 Feet (Up to 4000 Meters)
- Storage altitude
- Up to 15000 Feet (Up to 4573 Meters)
- Operating relative humidity
- 10% to 95% noncondensing
- Storage relative humidity
- 10% to 95% noncondensing
4.33 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Amelia K. Used for: 1–3 months
Cons
Fans belong to another era entirely
Comment
Bought secondhand-grade kit new for a lab and it does exactly what a Catalyst does: boots slowly, takes a config, and then runs forever. The command line is the reason to have one, because everything you read about networking assumes this syntax. The fans, though, are from another era entirely.
Louie R. Used for: 1–3 months
Pros
Built like a safe and takes every phone and camera
Cons
No wizard, no app, everything happens at a prompt
Comment
Forty-eight PoE ports and a stack port, in a chassis built like a safe. We use it as the access layer in a building with a lot of phones and cameras and it has taken every one of them without a murmur. Two things worth knowing. The first is the noise, which is considerable and constant, so this belongs in a comms room and nowhere else. The second is that it wants a proper commissioning: there is no wizard, no app, and the useful configuration all happens at a prompt.
Florence C. Used for: 3–6 months
Pros
The prompts students will actually meet at work
Cons
Boots slowly and drinks power
Comment
It went into a training rack where the whole point is that students see the same prompts they will meet at work, and for that it is ideal. Boot time is comical by modern standards, well over a minute before a single port comes up, and it draws power like a small heater. Five months in it has never dropped a link or needed attention, which is what you buy the badge for.
