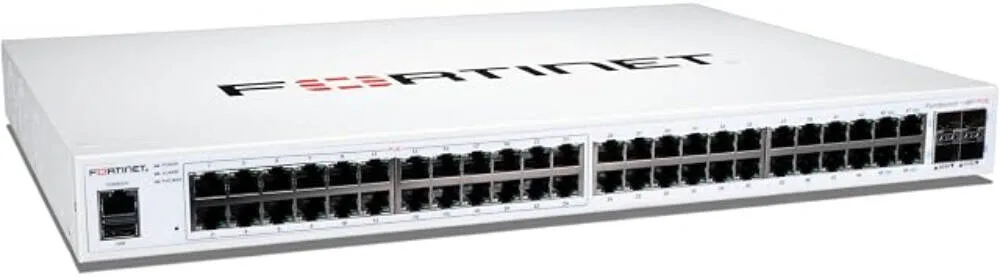

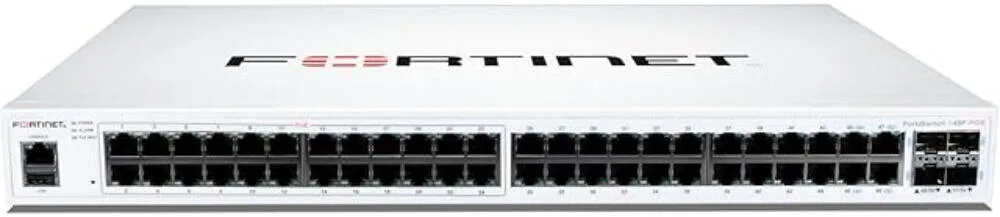

Fortinet FortiSwitch 148F POE 48-Port Managed Switch, 24-Port PoE+, 48x Gigabit RJ45 + 4x 10G SFP+, 370W PoE Budget, Layer 2 Managed, FortiLink, Rack Mount, Enterprise Network Switch
Fortinet
- 48 Gigabit RJ45 Ports With 24 PoE+ Ports And A 370W Power Budget Deliver High-Speed Connectivity While Powering IP Cameras, Wireless Access Points, VoIP Phones, And Other PoE Devices Through A Single Ethernet Cable
- Four 10GbE SFP+ Uplink Ports Provide High-Bandwidth Backbone Connectivity, Reducing Network Bottlenecks And Supporting Fast Data Transfers Across Enterprise Networks
- Layer 2 Managed Switching With FortiLink Integration Enables Centralized Configuration, Monitoring, And Security Policy Management Directly From Compatible FortiGate Firewalls
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Port speed
- Gigabit
Details
- Shipping Weight
- 5 Kg
- Shipping Dimensions
- 35.00 cm x 49.00 cm x 10.14 cm
- Total Network Interfaces
- 48 × GE RJ45, 4 × 10GE SFP+
- Dedicated Management Port
- None
- Console Port
- 1 × RJ-45 Serial Console
- Form Factor
- 1U Rack Mount
- PoE Ports
- 24 × IEEE 802.3af/at
- PoE Power Budget
- 370 W
- Switching Capacity
- 176 Gbps
- Packet Forwarding Rate
- 260 Mpps
- MAC Address Table
- 32 K
- VLAN Support
- 4K VLANs
- Link Aggregation Group Size
- 8
- Total Link Aggregation Groups
- 16
- Packet Buffer
- 2 MB
- Memory
- 512 MB DDR3
- Flash Memory
- 64 MB
- ACL Entries
- 640
- Spanning Tree Instances
- 32
- MTBF
- >10 Years
- Dimensions (H × D × W)
- 44 × 310 × 440 mm
- Weight
- 4.68 kg
- Power Input
- 100–240V AC, 50/60 Hz
- Power Supply
- Built-in AC
- Redundant Power
- No
- Power Consumption (Avg./Max.)
- 474.8 W / 476.3 W
- Heat Dissipation
- 195.73 BTU/h
- Operating Temperature
- 0°C to 45°C
- Storage Temperature
- -20°C to 70°C
- Operating Humidity
- 10%–90% (Non-condensing)
- Airflow Direction
- Side-to-side
5.02 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Noah H. Used for: 3–6 months
Pros
Swallowed every camera on the site
Comment
Forty-eight PoE ports in one rack unit and it has swallowed every camera on the site without a grumble
Ella B. Used for: 3–6 months
Cons
One fan speed, permanently on
Comment
This went in as the access layer under an existing firewall and adopting it took minutes rather than an afternoon. Four months in it has carried thirty-odd cameras and a dozen access points with the power budget still showing headroom. The only thing I would change is the fan behaviour, which has one setting and uses it constantly, so the cupboard door now stays shut and the office is none the wiser!
