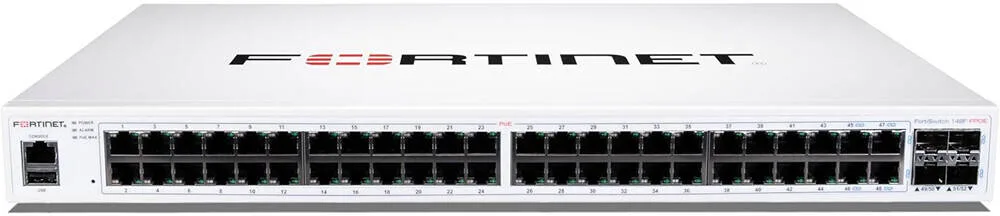

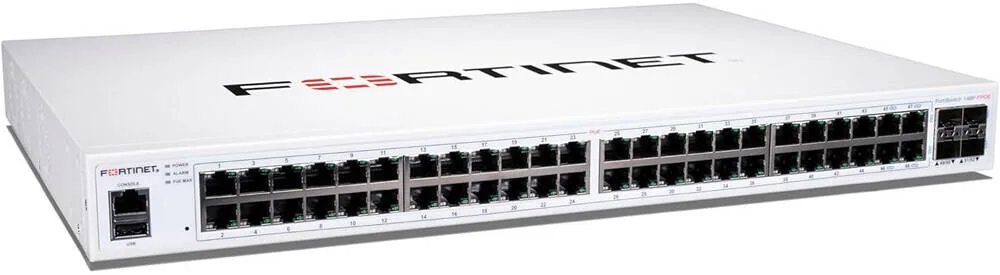

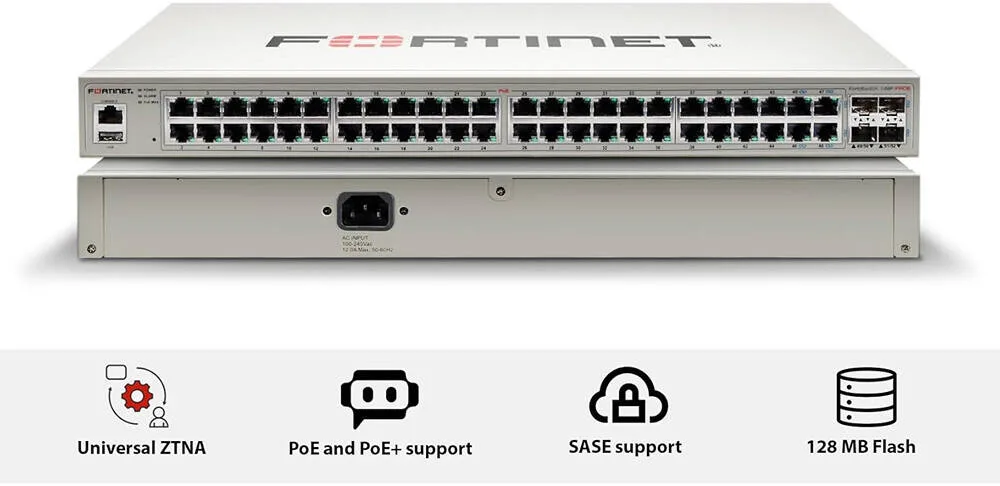

Fortinet FortiSwitch 48-Port Gigabit PoE+ Managed Switch with 4 10G SFP+ Uplinks, 740W PoE Budget & FortiGate Integration, White
Fortinet
- 48-Port Gigabit PoE+ Managed Switch with 48 × GE RJ45 ports and 4 × 10GE SFP+ uplink ports
- FortiGate Switch Controller Compatible for centralized network management and security integration
- 740W PoE Power Budget supporting up to 48 × 802.3af/at PoE+ powered devices
- High-Speed Switching Performance with 176 Gbps switching capacity and 260 Mpps forwarding rate
- Ultra-Low Network Latency of less than 1 µs for fast data transmission
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Port speed
- Gigabit
Details
- Shipping Weight
- 5 Kg
- Shipping Dimensions
- 35.00 cm x 49.00 cm x 10.14 cm
- Total Network Interfaces
- 48 × GE RJ45, 4 × 10GE SFP+
- Dedicated Management Port
- 0
- RJ-45 Serial Console Port
- 1
- Form Factor
- 1U Rack Mount
- PoE Ports
- 48 × 802.3af/at
- PoE Power Budget
- 740 W
- Mean Time Between Failures (MTBF)
- >10 Years
- Switching Capacity (Duplex)
- 176 Gbps
- Packet Forwarding Rate
- 260 Mpps
- MAC Address Table
- 32 K
- Supported VLANs
- 4 K
- Link Aggregation Group Size
- 8
- Total Link Aggregation Groups
- 16
- Packet Buffer
- 2 MB
- Memory
- 512 MB DDR3
- Flash Memory
- 64 MB
- ACL Entries
- 640
- Spanning Tree Instances
- 32
- Dimensions (H × D × W)
- 4.4 × 31 × 44 cm
- Weight
- 4.68 kg
- Power Input
- 100–240V AC, 50–60 Hz
- Power Supply
- Built-in AC
- Redundant Power
- No
- Average / Maximum Power Consumption
- 893.5 W / 895.7 W
- Heat Dissipation
- 198.46 BTU/h
- Operating Temperature
- 0°C to 45°C
- Storage Temperature
- -20°C to 70°C
- Operating Humidity
- 10–90% (Non-condensing)
- Airflow Direction
- Side-to-Side
- Noise Level
- 46.5 dBA
4.77 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Amelia W. Used for: 3–6 months
Comment
Forty-eight ports, one rack unit, and nothing has needed a thought since!
George N. Used for: 3–6 months
Pros
Rock solid once it is out of earshot
Comment
Four months in and the only mark against it is the noise, which in a small office is genuinely intrusive. Ours has been moved into a cupboard and everyone is happier for it.
Noah D. Used for: 1–3 months
Comment
Solid metal, front-facing ports, and it has not put a foot wrong yet
Harry P. Used for: 6–12 months
Pros
One unit did away with a whole second rack
Cons
Loud enough that it wants a room of its own
Comment
Forty-eight ports of PoE in one unit meant the second rack could go entirely, and the ports are all on the front where you can reach them. Nine months in, no failures, no dropped links, and the power budget has taken every access point and camera we own without complaint.
George F. Used for: Less than a month
Pros
Fits a half-height cabinet with the ears aligned
Cons
Fan noise is not remotely subtle
Comment
Went into a half-height cabinet with about two centimetres to spare and the ears line up properly, which is not always the case at this size. Configuration was done from the firewall in minutes and every access point powered up first time!
Freddie M. Used for: 3–6 months
Pros
Managed from the same place as the firewall
Cons
Much less useful if you do not run their firewall
Comment
Adopting it into the firewall took one click and every port then appeared in the same place as everything else. That alone saved an afternoon
Freddie D. Used for: Less than a month
Pros
Switching has been flawless from the first hour
Cons
The standalone web interface is very thin
Comment
No complaints about the switching, which has been flawless from the first hour. My reservation is that a great deal of what you are paying for only makes sense inside their ecosystem, and if you were hoping to run this as a standalone managed switch the web interface on the box itself is much thinner than you would expect.
