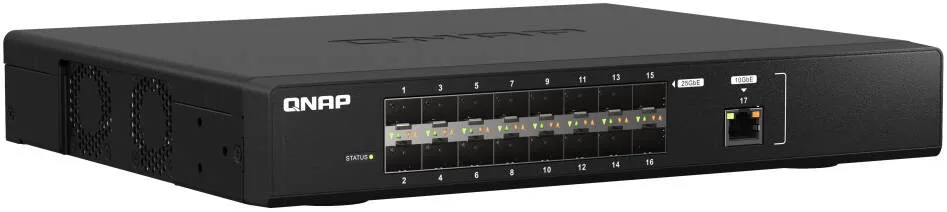

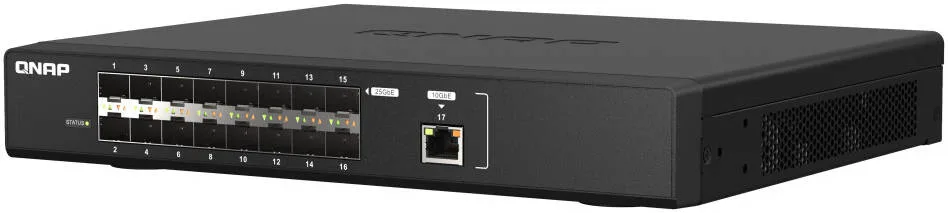

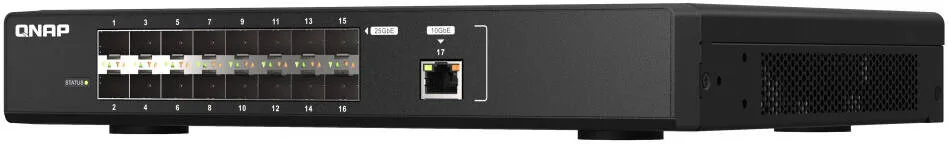

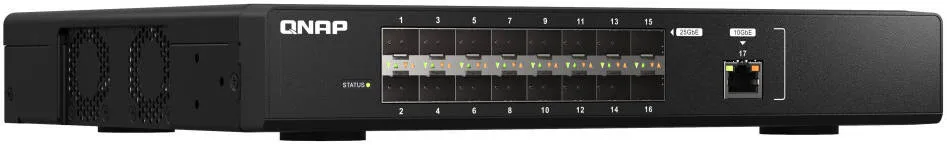

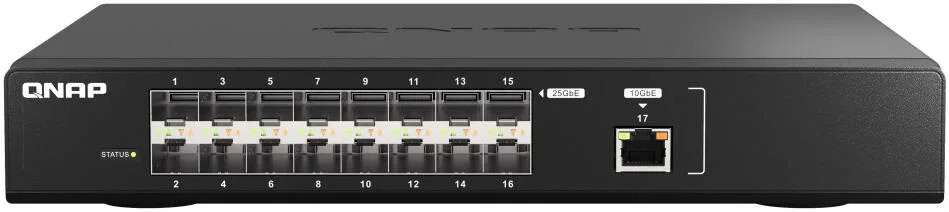

Qnap QSW-M5216-1T 16-Port 25GbE/10GbE Layer 2 Web Managed Switch, RSTP protocol , Layer 2 Network
- 25GbE Fiber The QSW-M5216-1T has sixteen 25GbE SFP28 fiber ports and a backbone switching capacity of 820Gbps for uplinking server rooms.
- 10GbE connectivity The QSW-M5216-1T is equipped with one 10GbE NBASE-T port for hybrid high-speed network deployment.
- User-friendly management interface Featuring a user-friendly web UI, the QNAP Switch System (QSS) provides an overview dashboard, port management and setting guide, making central network management intuitive and easy.
- Layer 2 network The QSW-M5216-1T provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for efficiently controlling network bandwidth and enhance security.
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Port speed
- 10 G
Details
- Shipping Weight
- 10 Kg
- Shipping Dimensions
- 12.00 cm x 43.00 cm x 18.00 cm
- Management Type
- Web Managed
- Number of Ports
- 17
- Port Configuration
- - 16x 25GbE SFP28 ports
- Power Supply
- Internal PSU
- Power Consumption
- Max 32.602 W
- Input Voltage
- 100-240 VAC, 50/60 Hz
- MAC Address Table
- 32 K
- Total Non-Blocking Throughput
- 410 Gbps
- Switching Capacity
- 820 Gbps
- Management Interface
- Web
- Console
- RS232
- Fan
- Fanless
- Supported Standards
- - IEEE 802.3 Ethernet
- Form Factor
- Rackmount
- LED Indicators
- - Per Port: Speed/Link/Activity
- Buttons
- Reset button
- Dimensions (HxWxD)
- 43.5 x 285 x 237.7 mm
- Weight (Net/Gross)
- 2.15 kg / 2.85 kg
- Operating Conditions
- 0˚C to 40˚C (32˚F to 104˚F)
- Relative Humidity
- 5% to 95% (Non-condensing)
- Certifications
- CE, FCC, VCCI, BSMI
- Electromagnetic Compliance
- Class A
- Jumbo Frames
- 9 K
