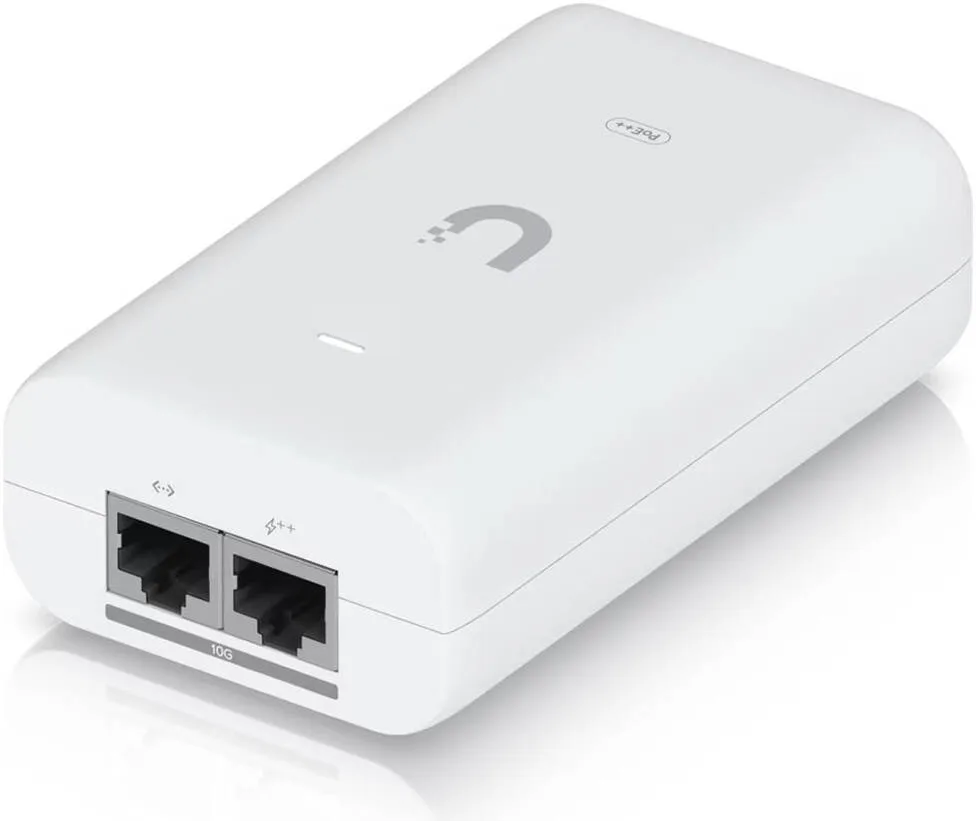

Ubiquiti 10G PoE++ Adapter 60W 802.3bt 54V DC Multi-Gigabit RJ45 Injector Surge ESD Overcurrent Protection 100-240V AC
UBIQUITI
- Delivers up to 60W of PoE++
- Surge, peak pulse, and overcurrent protection
- Contains RJ45 data input, AC cable with earth ground, and PoE++ output
- LED indicator for status monitoring
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Details
- Shipping Weight
- 0.30 Kg
- Shipping Dimensions
- 18.00 cm x 11.00 cm x 5.00 cm
- Dimensions
- 106 × 63 × 34 mm (4.2 × 2.5 × 1.3 in)
- Weight
- 210 g (7.4 oz)
- Output Voltage
- 54V DC at 1.12A
- Rated Voltage
- 100–240V AC, 50/60 Hz
- Gigabit LAN Port
- Yes
- 4-pair Powering
- Pins 1,2,4,5 (+) and 3,6,7,8 (-)
- Clamping Protection
- 11V Data, 60V Power
- Data In / PoE
- RJ45 Shielded Socket
- Input Current
- 1.5A Max
- Efficiency
- >88%
- Switching Frequency
- 65 kHz
- Output Ripple
- 1% Max
- Line Regulation
- ≤2%
- Load Regulation
- ≤5%
- Max PoE+ Wattage per Port (PSE)
- 60 W
- Max Surge Discharge
- 1500A (8/20 μs) Power
- Peak Pulse Current
- 36A (10/1000 μs) Data
- Surge Protection
- Differential & Common Mode
- Ambient Storage Temperature
- -30 to 70°C (-22 to 158°F)
- Ambient Operating Temperature
- 0 to 40°C (32 to 104°F)
- Ambient Operating Humidity
- 10–95% Non-condensing
- NDAA Compliant
- Yes
- Certifications
- CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
