Arturia AudioFuse X8 OUT ADAT to Analog Output Expander - 8 High-Quality DC-Coupled TRS Line Outputs, 24-bit/96kHz, Word Clock Sync & Half-Rack Design for Studio Expansion
Arturia
- Dedicated 8-Channel Analog Output Expander: The AudioFuse X8 OUT is specifically designed to add 8 premium, line-level analog outputs to any ADAT-compatible audio interface, significantly expanding your studio's monitoring, routing, and summing capabilities.
- High-Fidelity D/A Conversion: Equipped with latest-generation 24-bit/96kHz DA converters, ensuring pristine audio quality with an impressive 120.5 dB dynamic range and ultra-low THD+N (-106dB typical) for faithful reproduction of your mixes.
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Details
- Shipping Weight
- 1.98 Kg
- Shipping Dimensions
- 24.10 cm x 31.80 cm x 6.90 cm
- Specification
- Details
- Form Factor
- Desktop (Rack-Mountable with Included Hardware)
- Converter Type
- D/A Converter
- Number of Channels
- 8x D/A (at 96 kHz)
- Maximum Sampling Rate
- 96 kHz / 24-Bit
- Number of Microphone Inputs
- No Mic Inputs
- Analog Audio I/O

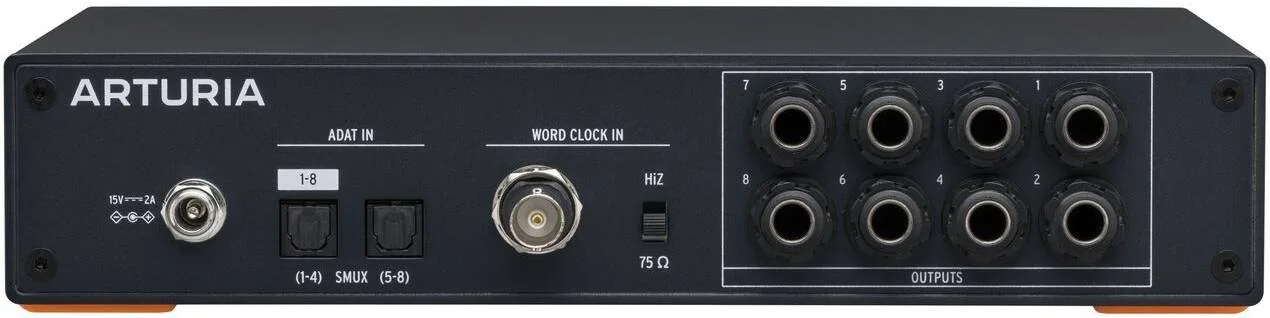

- 8x 1/4" TRS Balanced Line Output (DC-Coupled)
- Digital Audio I/O
- 2x Mini-TOSLINK / 3.5 mm Optical ADAT Input (S/MUX Support)
- Conversion Formats
- ADAT
- Display
- No
- Connectivity
- 8x 1/4" TRS Balanced Line Output (DC-Coupled)
- Phantom Power
- No
- Sync I/O
- 1x BNC Clock Input
- Network I/O
- No
- MIDI I/O
- No
- Expansion Slots
- No
- Wireless
- No
- - Frequency Response
- 20 Hz to 20 kHz ±0.04 dB (Minimum Gain)
- - Maximum Output Level
- +24 dBu
- - Impedance
- 240 Ohms (Balanced), 120 Ohms (Unbalanced)
- - Dynamic Range
- 120.5 dBA
- - THD+N
- -106 dB
- - Sample Rates
- 44.1 / 48 / 88.2 / 96 kHz
- - Sample Rate Conversion
- No
- - Bit Depths
- 24-Bit
- - Sync Sources
- ADAT, Word Clock
- - OS Compatibility
- No
- - Mobile App Compatible
- No
- - Mobile Device Compatibility
- No
- - Power Requirements
- AC/DC Power Adapter (Included)
- - Rackmount Size
- 1 RU (1/2-Rack)
- - Dimensions
- 22.1 x 21.6 x 4.8 cm (8.7 x 8.5 x 1.9 inches)
- - Weight
- 1.4 kg (3.1 lb)
- - Package Weight
- 1.98 kg (4.365 lb)
- - Box Dimensions (LxWxH)
- 31.8 x 24.1 x 6.9 cm (12.5 x 9.5 x 2.7 inches)
