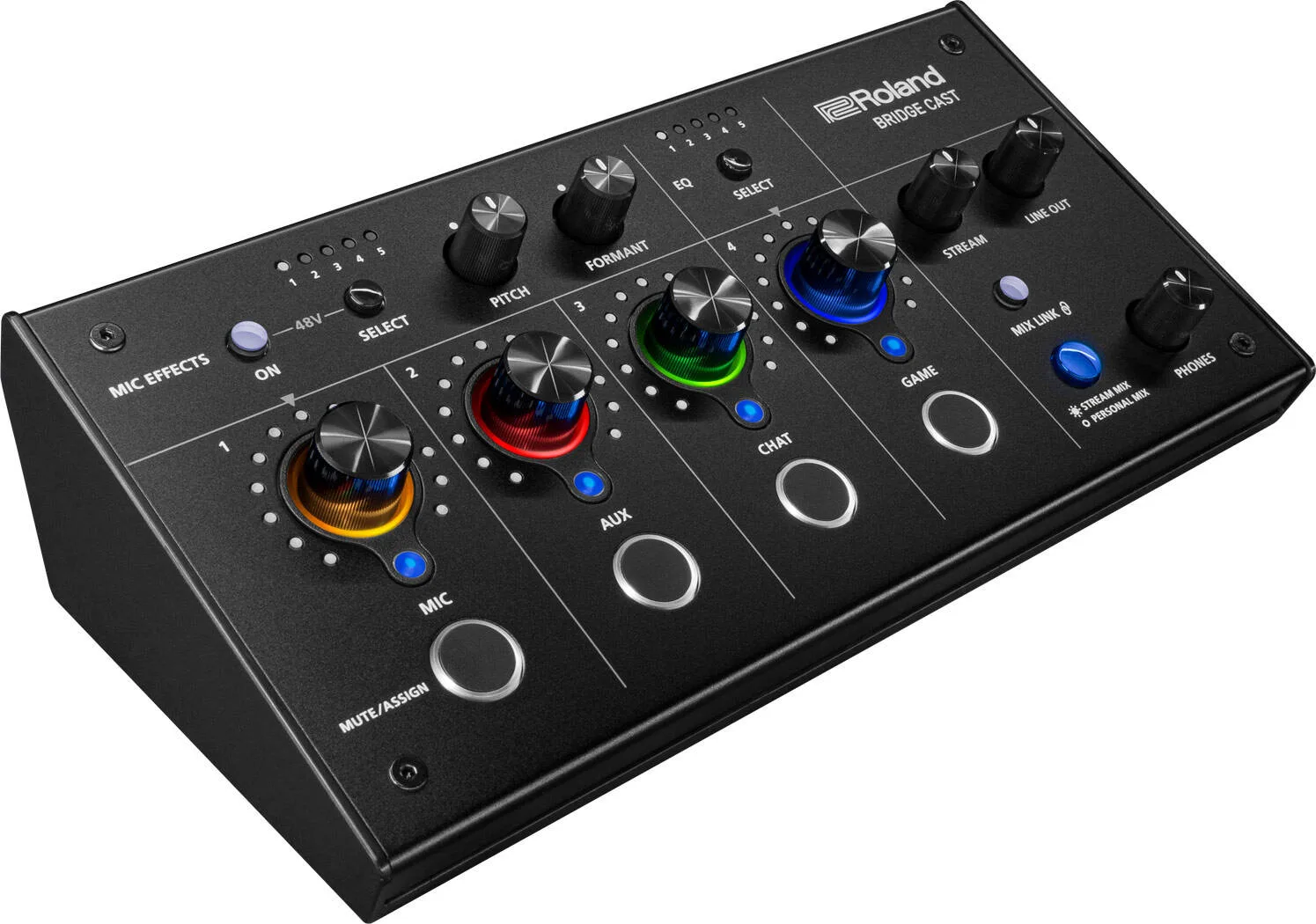

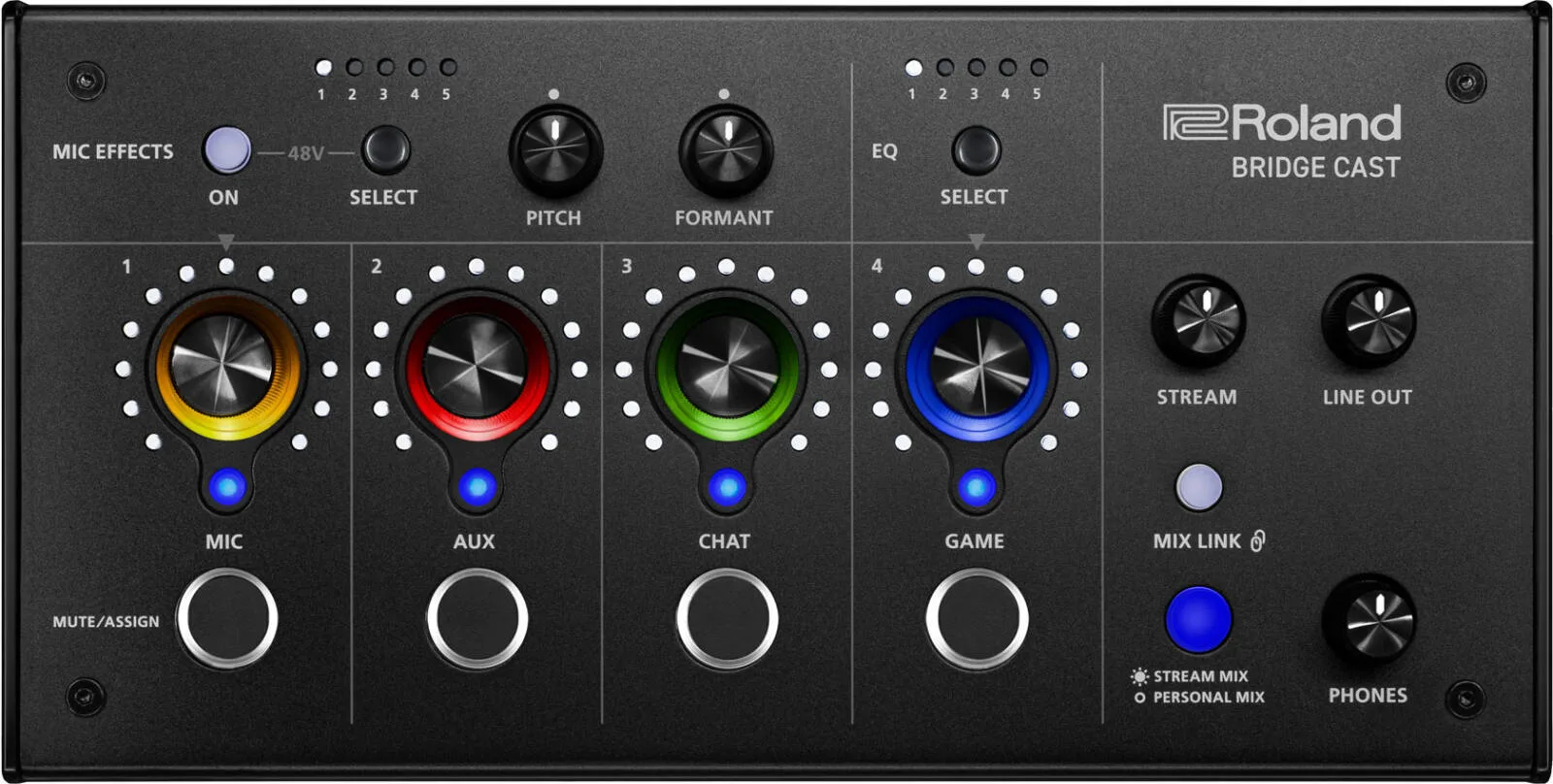

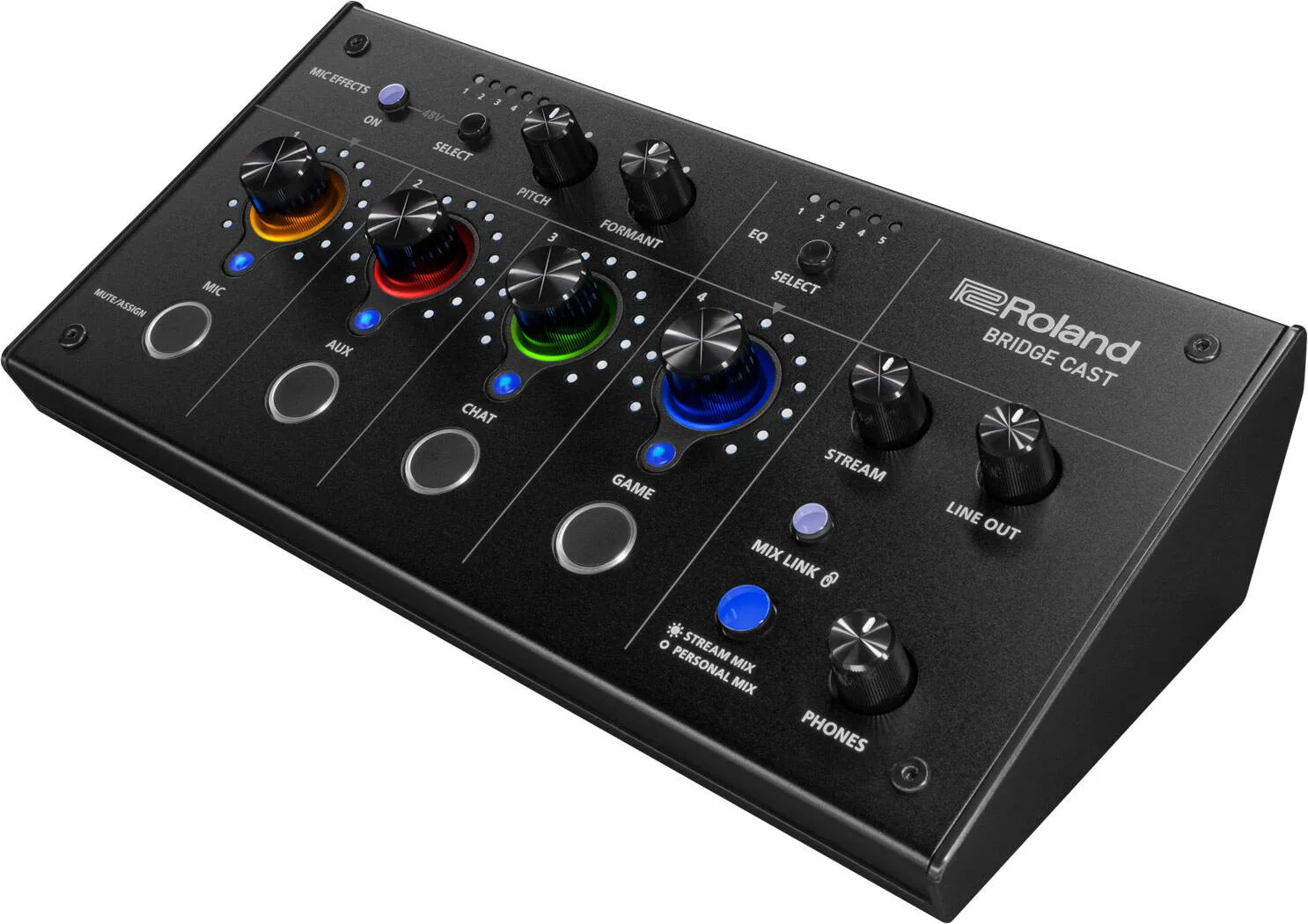

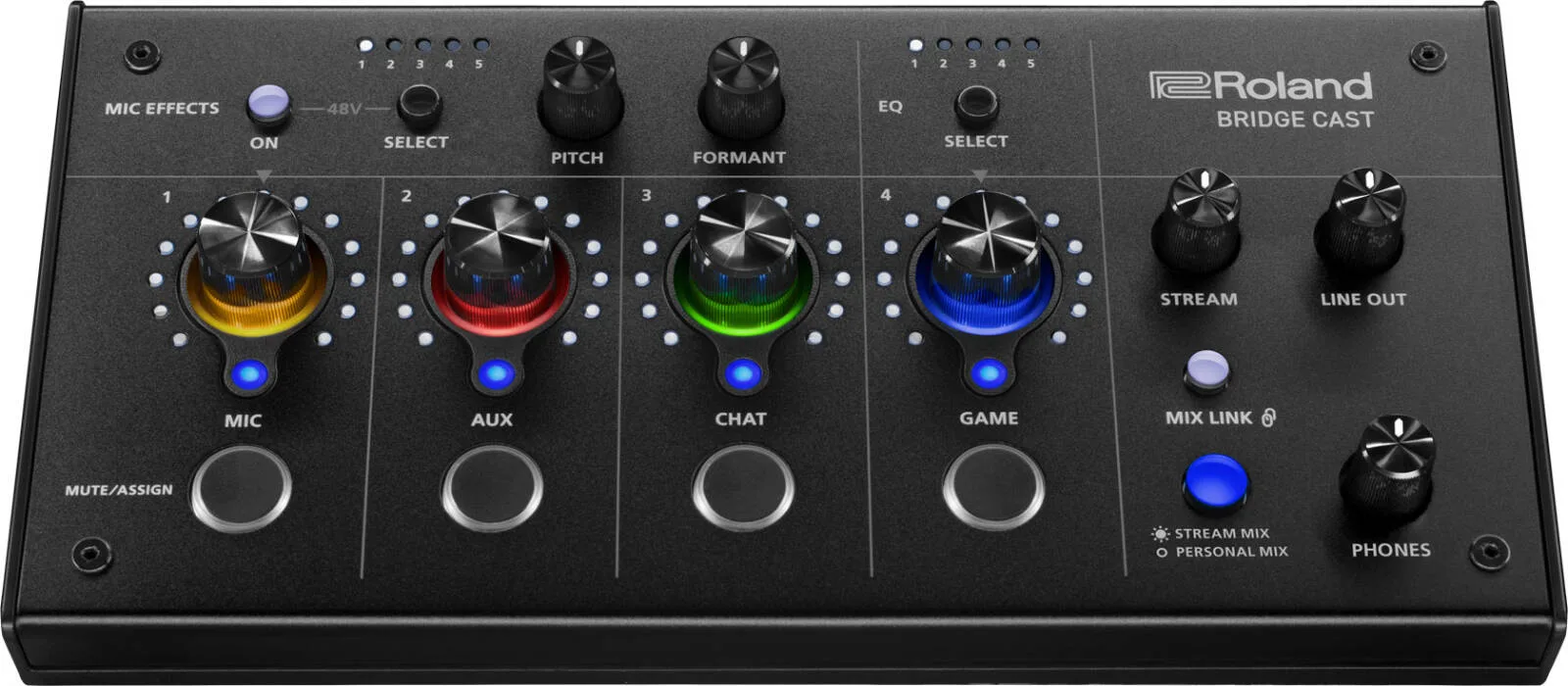

Roland BRIDGE CAST Dual Bus Gaming Mixer, Pro Audio Interface with XLR Mic Preamp, Virtual Surround, Voice Effects, Dual Mixes, & Customizable Controls for Streamers, Black
Roland
- Professional audio streaming interface and mixer designed for online gamers
- Powerful 32-bit hardware DSP allows you to dedicate all your computer resources to gaming and streaming
- Create independent mixes for you and the online audience with dual audio busses
- USB-C connectivity with Windows and Mac computers and mobile devices
- 5.1 or 7.1 USB virtual surround sound audio and 10-band EQ**
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- Black
Details
- Shipping Weight
- 0.45 Kg
- Shipping Dimensions
- 22.20 cm x 11.00 cm x 7.00 cm
- Input Channels
- MIC, AUX, CHAT (*1), GAME (*1), MUSIC (*1), SYSTEM (*1), USB (*2)
- Output Channels
- LINE OUT, PHONES, MIC (*3), STREAM (*3), PERSONAL (*3), USB (*4)
- Notes
- (*1) When USB port connection is set to "PC" (*2) When USB port connection is set to "CONSOLE/MOBILE" (*3) When USB port connection is set to "PC" (*4) When USB port connection is set to "CONSOLE/MOBILE"

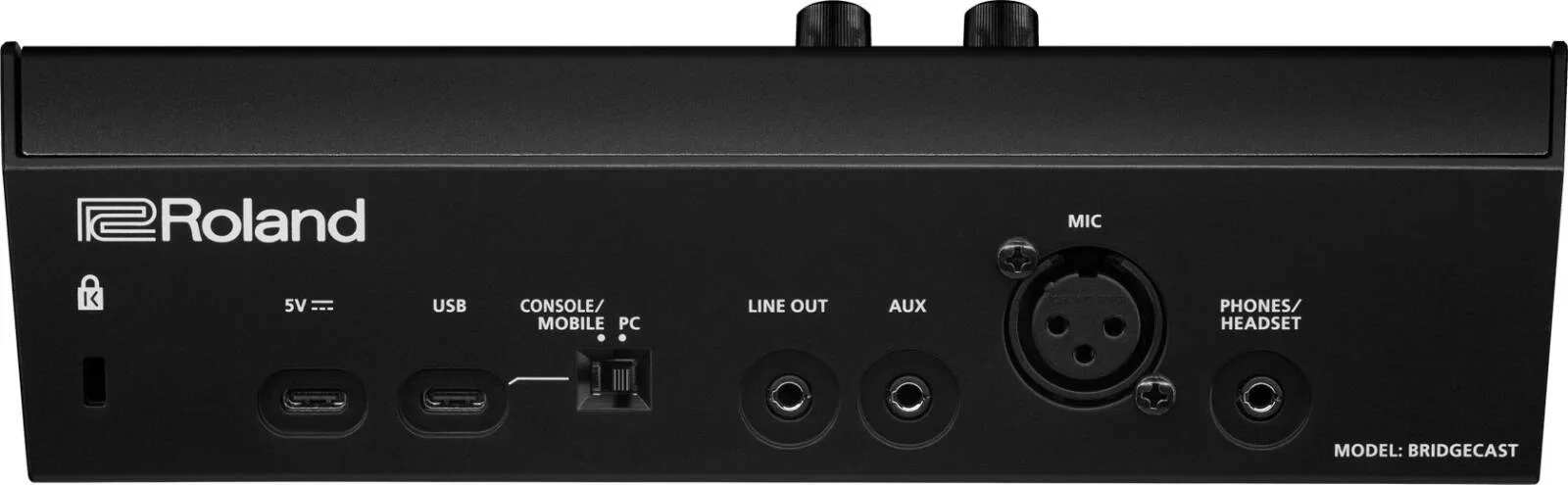

- Connectors
- MIC jack: XLR (Phantom Power DC 48V, 6mA Max) PHONES/HEADSET: Stereo Mini (CTIA, PLUG-IN power) AUX: Stereo Mini (TRRS) LINE OUT: Stereo Mini (TRS) USB Port: USB Type-C (R) USB DC 5V Port: USB Type-C
- Audio Mixing Bus
- 2 (STREAM MIX, PERSONAL MIX)
- Sampling Frequency
- Windows: 44.1 / 48 / 96 kHz macOS/iOS/Other: 48 kHz
- Signal Processing
- AD/DA: 24-bit Internal: 32-bit Floating Point
- Effects
- MIC: Voice Changer, Noise Suppressor, Compressor, EQ, De-esser, Reverb, Low Cut CHAT: De-esser, Compressor GAME: EQ STREAM: Delay
- Audio File Player
- 2 tracks Format: WAV (48kHz, 16-bit, stereo/mono) Max Time: 5 sec/track
- Input Level
- MIC: -85.5 – -10.5 dBu (Max +1.5 dBu) HEADSET MIC: -58.5 – -20.5 dBu (Max -8.5 dBu) AUX: -10 dBu (Max +2 dBu)
- Input Impedance
- MIC: 3.4 kΩ HEADSET MIC: 1.3 kΩ AUX: 10 kΩ
- Output Level
- LINE OUT: -4 dBu (Max +8 dBu) PHONES/HEADSET: -1 dBu (Max +11 dBu)
- Headphone Output Power
- 78 mW + 78 mW (32Ω) 35 mW + 35 mW (250Ω)
- Output Impedance
- LINE OUT: 1 kΩ PHONES/HEADSET: 10 Ω
- Power Supply
- USB Bus Power / USB AC Adapter (5V, ≥1.0A)
- Current Draw
- 5V DC, 900 mA
- Supported OS
- Windows 10/11, macOS 11+, iOS 15+
- Accessories
- Leaflet “Read Me First” USB Type-C to Type-C Cable (2m) USB Type-C to Type-A Cable (2m)
- Dimensions (W x D x H)
- 222 × 110 × 70 mm (8.7 × 4.3 × 2.8 in)
- Weight
- 450 g (1 lb)
