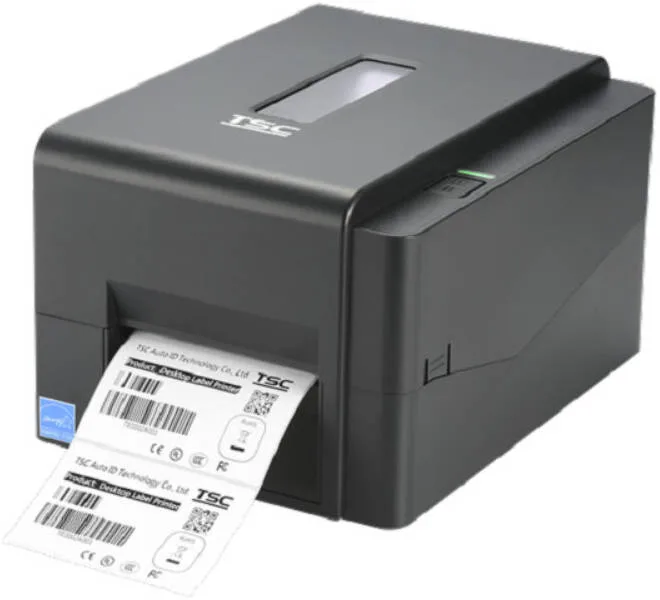

TSC TE210 Desktop Thermal Transfer Bar Code Printer, 8 dots/mm 203 DPI, 152.4 mm 6" /second Printing Speed, Ethernet, RS-232, USB Host, Internal Ethernet, 10/100 Mbps
TSC
- 152.4 mm (6”) per second print speed
- 300 meter (984’) ribbon supply on a 25.4 mm (1”) core (coated outside)
- 72 to 110 meter (361’) ribbon supply on a 12.7 mm (0.5”) core (coated outside)
- 127 mm (5”) OD internal media supply, optional external media holder supports 214 mm (8.4”) OD label rolls on 76.2 mm (3”) core
- Internally scalable true type fonts
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Print resolution
- 203 dpi
Details
- Shipping Weight
- 3.90 Kg
- Shipping Dimensions
- 27.50 cm x 40.50 cm x 23.50 cm
- Resolution
- 8 dots/mm (203 DPI)
- Printing Method
- Thermal Transfer & Direct Thermal
- Max. Print Speed
- 152.4 mm (6”)/second
- Max. Print Width
- 108 mm (4.25”)
- Max. Print Length
- 25400 mm (1000”)
- Enclosure
- ABS plastic
- Physical Dimensions
- 204 mm (W) x 164 mm (H) x 280 mm (D) / 8.03“ (W) x 6.46“ (H) x 11.02“ (D)
- Weight
- 2.4 kg (5.29 lbs)
- Label Roll Capacity
- 127 mm (5“) OD
- Ribbon
- 300 m long, max. OD 67 mm, 1” core (ink coated outside)
- Ribbon Width
- 40 mm ~ 110 mm (1.6” ~ 4.3”)
- Processor
- 32-bit RISC CPU
- Memory
- 128 MB Flash memory, 64 MB SDRAM
- Interface
- USB 2.0, Internal Ethernet 10/100 Mbps, RS232, USB host, Internal Bluetooth 4.0 (factory option)
- Power
- External universal switching power supply, DC 24V, 2.5A, 60W
- Operation Switch/Button/LED
- 1 power switch, 1 feed and pause button, 1 LED (green, amber, red)
- Sensors
- Transmissive gap sensor, Black mark reflective sensor, Ribbon end sensor, Head open sensor
- Real Time Clock
- Standard
- Buzzer
- Standard
- Internal Fonts
- 8 alpha-numeric bitmap fonts, Monotype Image® true type font engine
- Bar Code
- 1D: Code 128, Code 39, EAN13, UPC-A, Codabar, MSI, etc. 2D: GS1 DataMatrix, QR Code, PDF417, etc.
- Font and Barcode Rotation
- 0, 90, 180, 270 degrees
- Printer Language
- TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)
- Media Type
- Continuous, die-cut, black mark, fan-fold, notched (outside wound)
- Media Width
- 20 ~ 112 mm (0.8“ ~ 4.4“)
- Media Thickness
- 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
- Media Core Diameter
- 25.4 ~ 38 mm (1” ~ 1.5”)
- Label Length
- 5 ~ 25400 mm (0.2“ ~ 1000“)
- Environment Condition
- Operation: 5 ~ 40°C, 25 ~ 85% non-condensing, Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
- Safety Regulation
- FCC Class A, CE Class A, UL, TÜV/safety, Energy Star®, etc.
- Environmental Concern
- Comply with RoHS, REACH, WEEE
- Accessories
- Windows labeling software CD, Quick start guide, USB cable, Power cord, etc.
- Factory Options
- Internal Bluetooth 4.0
- Dealer Options
- Peel-off module, Guillotine cutter (full cut and partial cut)
- User Options
- External roll mount, External Bluetooth module, KP-200 Plus keyboard display unit
