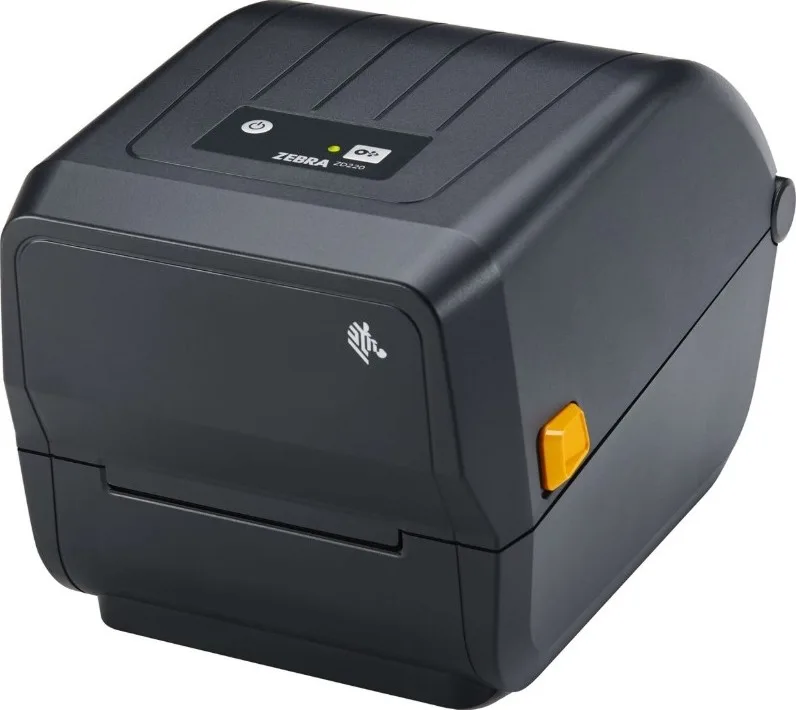

Zebra ZD220 TT Label Printer, 203 dpi/8 Dots Per mm Resolution, 4 in./102 mm Per Second Print Speed, Peeler, EPLII, ZPLII, USB
- Get Printing Quickly
- The ZD220 is simple to install and begin printing – right out of the box. USB connectivity allows for universal interoperability. Easily replace legacy printers using ZPL, EPL or non-Zebra command languages. And, media changes are expedited with Zebra’s OpenACCESS™ clamshell design. It is ideal for use in transportation and logistics, light manufacturing, retail and healthcare applications to print a variety of tickets, tags, passes, labels and receipts.
- Basic Features for Simple Operation
- Backed by Zebra’s Worldwide Service and Support
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Print resolution
- 203 dpi
Details
- Shipping Weight
- 3.40 Kg
- Shipping Dimensions
- 23.50 cm x 33.50 cm x 28.00 cm
- Thermal Transfer or Direct Thermal print method
- ZPL and EPL programming languages
- Single LED status indicator
- Single button for feed/pause
- USB connectivity

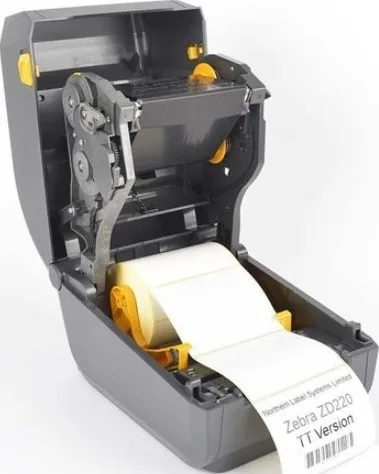

- OpenACCESS™ for easy media loading
- Dual-wall frame construction
- ENERGY STAR qualified
- Dimensions
- Thermal Transfer: 10.5 in. L x 7.75 in. W x 7.5 in. H (267 mm L x 197 mm W x 191 mm H) Direct Thermal: 8.6 in. L x 6.9 in. W x 5.9 in. H (220 mm L x 176 mm W x 151 mm H)
- Weight
- 2.5 lbs./1.1 kg
- Resolution
- 203 dpi/8 dots per mm
- Memory
- 256 MB Flash; 128 MB SDRAM
- Maximum Print Width
- 4.09 in./104 mm
- Maximum Print Speed
- 4 in./102 mm per second
- Media Sensors
- Movable black mark sensor, limited range from center to left side Fixed off-center gap sensor
- Firmware
- ZPL II; EPL 2; XML
- Maximum Label Length
- 39.0 in./991 mm
- Media Width
- 1.00 in./25.4 mm to 4.4 in./112 mm
- Media Roll Size
- 5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1), 2.0 in. (50.8 mm) and 3.0 in. (76.2 mm) using optional adapters
- Thickness
- 0.003 in. (0.08 mm) min.; 0.0075 in. (0.1905 mm) max. (tear-off mode only)
- Media Types
- Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
- Ribbon Outside Diameter
- 1.34 in./34 mm (74 m)
- Maximum Ribbon Length
- 244 ft. (74 m)
- Ribbon Ratio
- 1:1 media to ribbon (74 m)
- Ribbon Width
- 1.33 in./33.8 mm ~ 4.3 in./109.2 mm
- Ribbon Core I.D.
- 74 Meter ribbon 0.5 in./12.7 mm
- Operating Temp.
- 40° to 105° F/4.4° to 41° C
- Storage Temp.
- -40° to 140° F/-40° to 60° C
- Operating Humidity
- 10% to 90% non-condensing
- Storage Humidity
- 5% to 95% non-condensing
- Electrical
- Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified
- Media Handling
- Factory installed peeler
- Real Time Clock
- None
- Bar Code Ratios
- 2:1 and 3:1
- 1D Bar Codes
- Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
- 2D Bar Codes
- Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
- Fonts and Graphics
- 16 resident expandable ZPL II bitmap fontsTwo resident scalable ZPL fontsFive resident expandable EPL2 fontsNative open-type font supportUnicode compliant for multi-language, on demand thermal printing50 MB user available non-volatile memory, 8 MB user available SDRAM
4.77 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Louie D. Used for: 6–12 months
Pros
Ribbon print that does not fade
Cons
No display, just a light and a button
Comment
The cheapest way into a proper thermal transfer printer, and it has done everything a small stockroom asks. The ribbon means labels that do not fade, which was the whole reason for choosing it over the direct thermal version!
Oscar N. Used for: 6–12 months
Pros
Takes shop dust in its stride
Cons
Ribbons need buying in the right width
Comment
In a hardware shop it does the shelf-edge labels, and in nine months the only attention it has wanted is a new ribbon and the occasional blast of the air line to shift the dust. It lives under the counter and prints when the till tells it to.
George F. Used for: More than a year
Pros
Dark labels, and it takes third-party ribbons
Cons
Calibration has become a fight in the second year
Comment
Three stars after fourteen months, and it is the honest rating. When it works it is very good. Dark, square labels, no fading, and it has taken third-party ribbons quite happily. The trouble is that it has become fussy about calibration. Every roll change now needs the button-hold routine two or three times before it finds the gap, and about once a fortnight it decides mid-run that a label is not where it thought and feeds four blanks through. It may be dust, it may be a tiring sensor. For the money it has printed far more than it owes us and I would probably buy another. But it is no longer the machine that can be left with anybody.
Sophie H. Used for: 3–6 months
Pros
Printed part numbers scan, handwritten ones do not
Cons
USB only unless you buy the network version
Comment
Ordered to replace a handheld label gun in a small parts store, and the difference is not speed so much as legibility. Printed part numbers scan; handwritten ones get retyped by somebody. Setup was a USB lead and a driver, and the label software we already had recognised it straight away
Harry M. Used for: 3–6 months
Pros
Four hundred labels in an hour on a Friday night
Cons
The bundled software is best left in the box
Comment
We run a market stall selling spices and every jar needs a label with a name, a weight and a barcode on it. This prints them onto a roll of blanks fast enough that I can do a whole Saturday's stock on the Friday night: about four hundred labels in the hour, where it used to be an entire evening with a sheet of stickers and a printer that jammed. It is basic. There is no screen, calibration is a button held down while it feeds a few labels through, and the software in the box is best ignored in favour of something free. None of that has stopped it earning its keep twice over.
Leo M. Used for: Less than a month
Pros
Loaded and printing without reading the manual
Comment
Unboxed on a Saturday and printing barcodes for our stock take by the afternoon. The ribbon and roll go in obviously enough that I never opened the manual, and the first label came out square and dark. Very pleased so far!
Isla W. Used for: 3–6 months
Pros
Square labels every time
Cons
The lid feels light in the hand
Comment
Small, cheap, and the labels come out square and dark every single time
