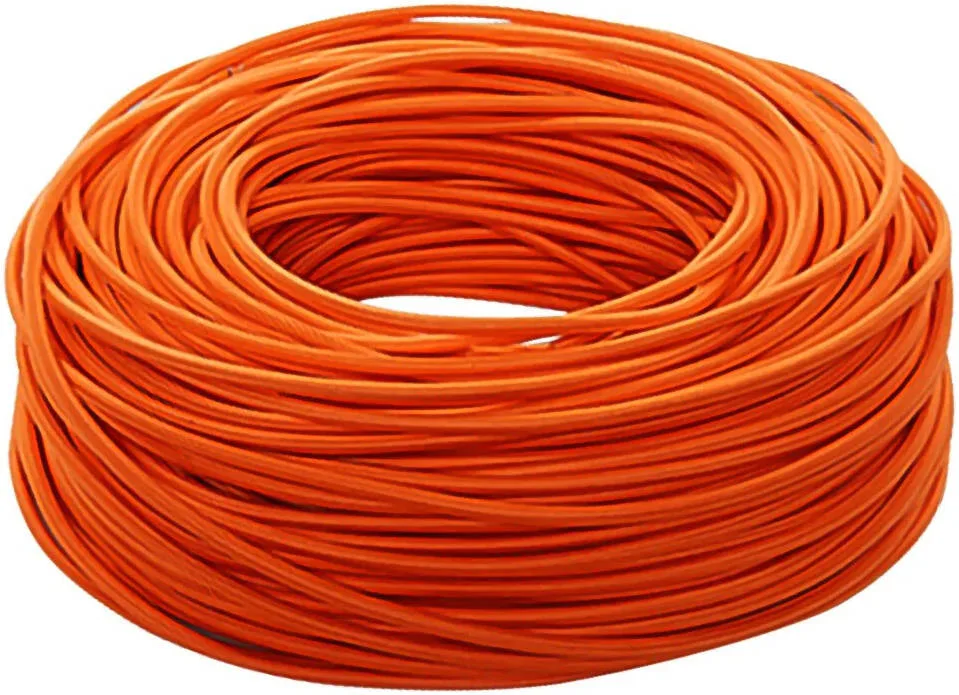

Dahua 305M UTP CAT6 Cable, PVC Outer Sheath, CCA Conductor, HDPE Insulation Material, PE Separator Material, 23AWG Wire Gauge, Polyester Rip Cord, Oange
Dahua
- UTP CAT6 Cable
- 305.0 m (1000 ft)/carton UTP CAT6, power over Ethernet, compatible with one cable
- Manufacturing excellence
- Customized PVC outer sheath; meet CE CPR Eca flame retardant class certified
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Length
- 305 m
- Cable type
- Ethernet Cables
Details
- Shipping Weight
- 10.40 Kg
- Shipping Dimensions
- 24.50 cm x 39.00 cm x 39.00 cm
- Material
- CCA(Copper content 22%–31%)
- Diameter
- 0.57 mm ± 0.01 mm
- American Wire Gauge
- 23 AWG
- Min. Average Thickness
- 0.21 mm
- Color (4 Pairs)
- Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown
- Specification
- Translucent 4.5 × 0.4 mm
- Color
- Orange
- Max. DC Resistance of a Single Conductor
- 11.5Ω/100 m
- Min. Insulation Resistance
- 5000MΩ·km
- Max. DC Resistance Unbalance
- 2% (pair intra), 4% (pairs inter)
- Dielectric Strength
- No breakdown with 1KV DC for 1 min
- Characteristic Impedance
- 100 ± 15Ω
- Near End Cross Talk
- ≥39.30 dB/100 m@250 MHz
- Max. Attenuation
- 34.8 dB/100 m@250 MHz
- Return Loss
- ≥17.3 dB/100 m@250 MHz
- Tensile Strength
- Sheath≥13.5 MPa, insulation≥16 MPa
- Elongation at Break
- Sheath≥150%, insulation≥300%
- Installation Bending Radius
- >8 times of outer cable diameter
- Conductor Elongation at Break
- ≥10%
- Shrinkage of Insulation
- ≤5%
- Color Migration Resistance of Insulation
- No migration
- Sheath Tensile Strength and Elongation at Break after Aging
- ≥12.5 MPa, ≥100%
- Low Temperature Bending Test
- No cracking after the test
- Heat Shock Test
- No cracking after the test
- Operation Temperature
- –20°C to +60°C (–4°F to 140°F)
- Installation Temperature
- 0°C to +50°C (32°F to 122°F)
- Storage Temperature and Humidity
- –10°C to +40°C (14°F to 104°F), <60% (RH)
- Vertical Fire Propagation Test
- Comply with IEC 60332-1-2
- Packaging Dimensions
- 390.0 mm x 390.0 mm x 247.0 mm (15.37"x15.37"x9.73") (L × W × H)
- Packaging Method

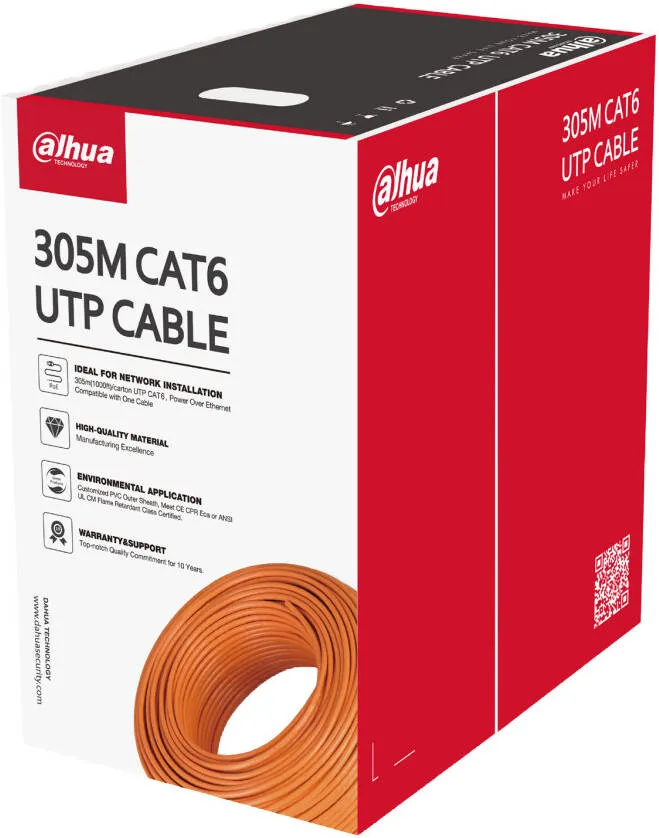

- 305.0 m (1000.66 ft) a carton, one protection carton with 2 cartons inside
- Net Weight
- ≥9.2 kg (20.28 lb)
- Gross Weight
- ≥10.2 kg(22.49 lb)
- Executive Standard
- Q/DXJ 067-2019
- Certification
- CPR Eca
