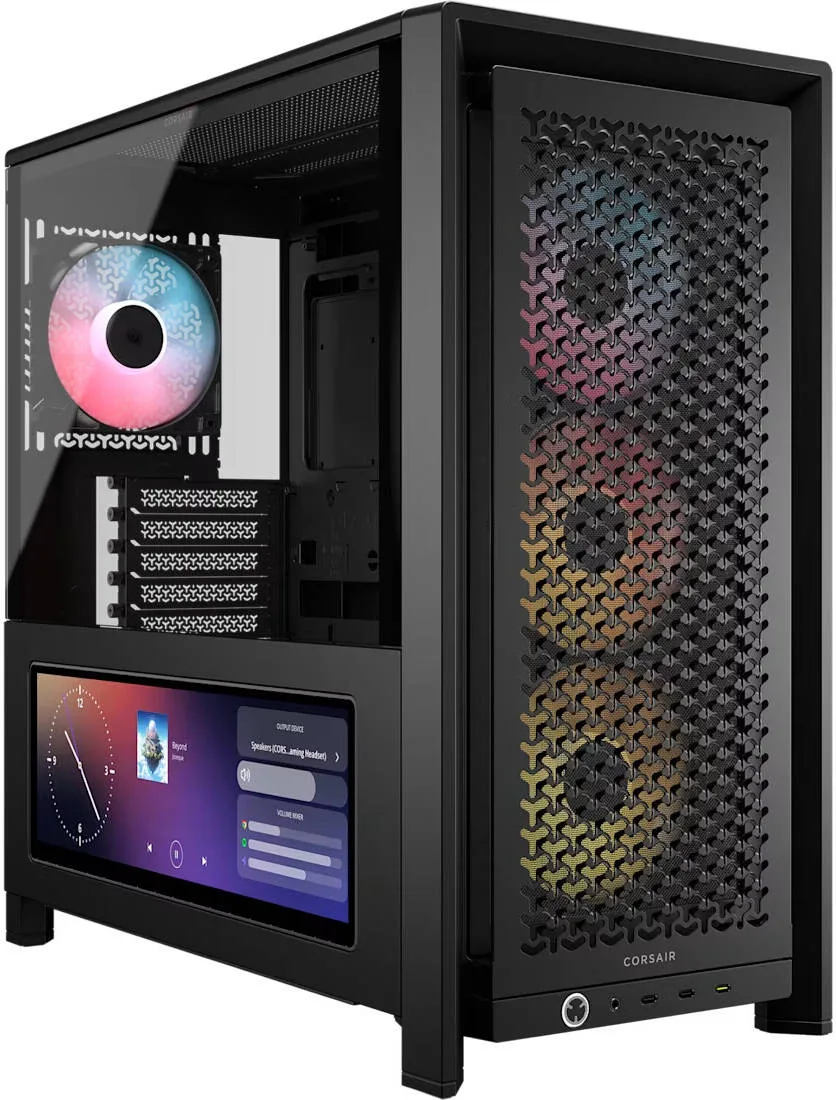

Corsair FRAME 4000D LCD RS ARGB Premium Mid-Tower PC Case, 4x RS120 aRGB Pre-Installed Fans, XENEON EDGE 14.5" LCD Touchscreen, 360mm Radiator & 13x 120mm Fan Support, Black

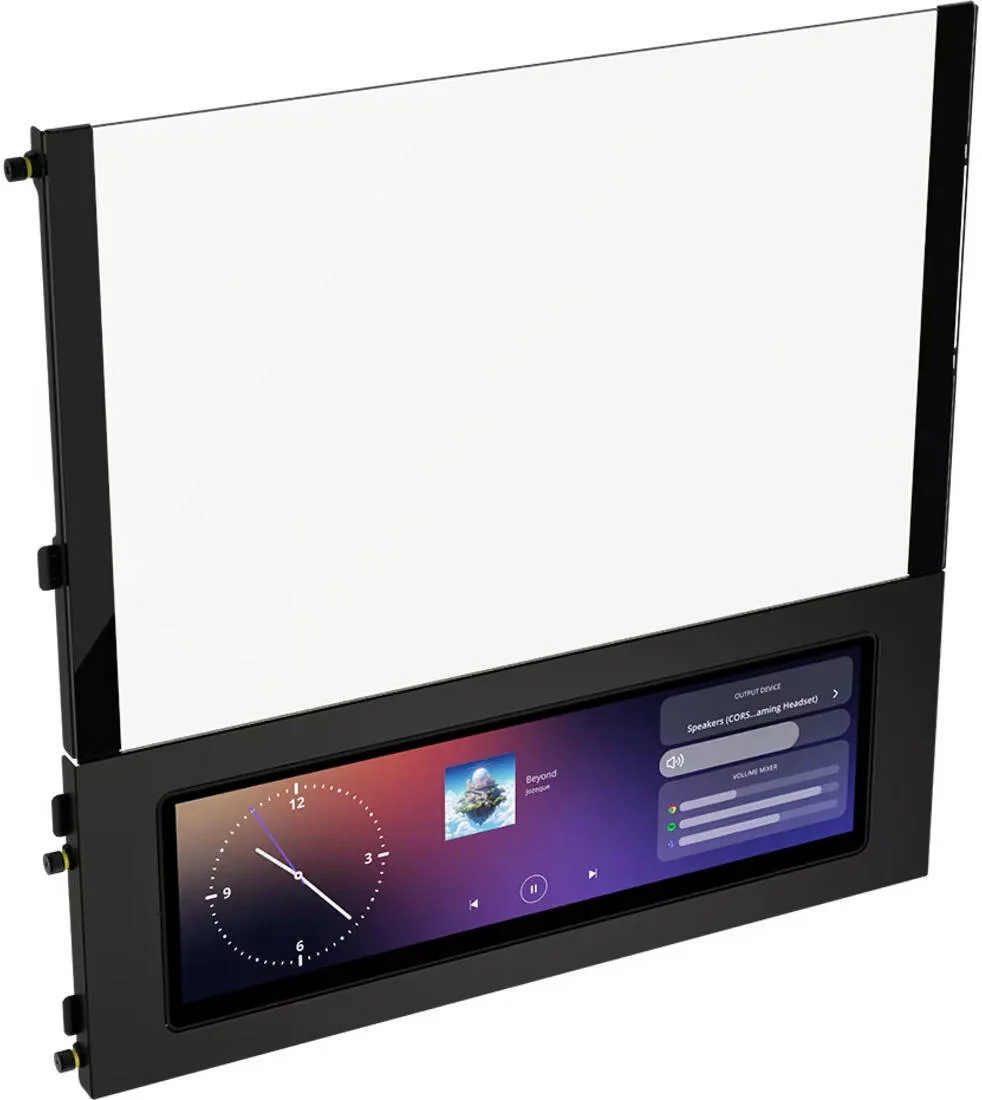

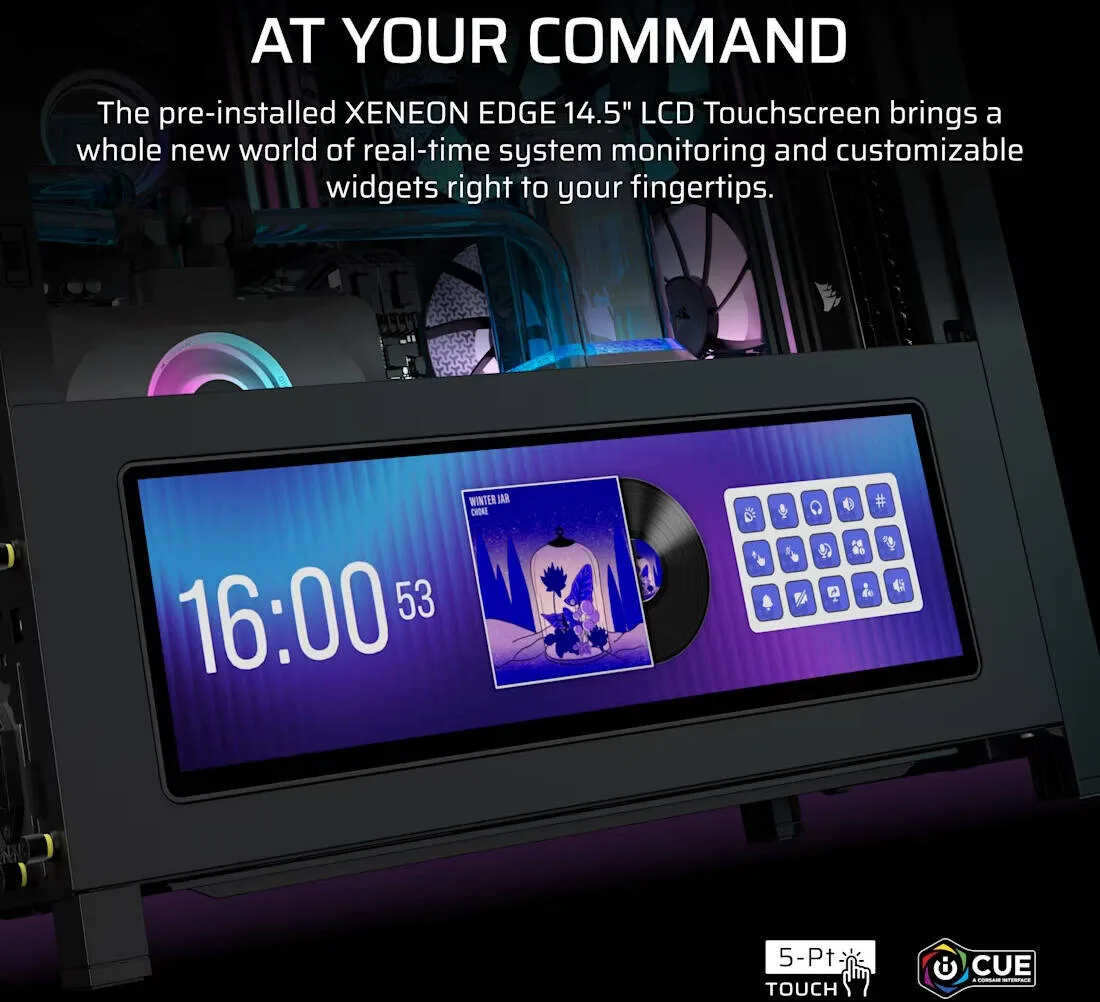

- XENEON EDGE 14.5" LCD Touchscreen pre-installed
- 4x RS120 PWM ARGB Fans for powerful cooling
- Modern Front I/O panel with 3x USB Type-C ports

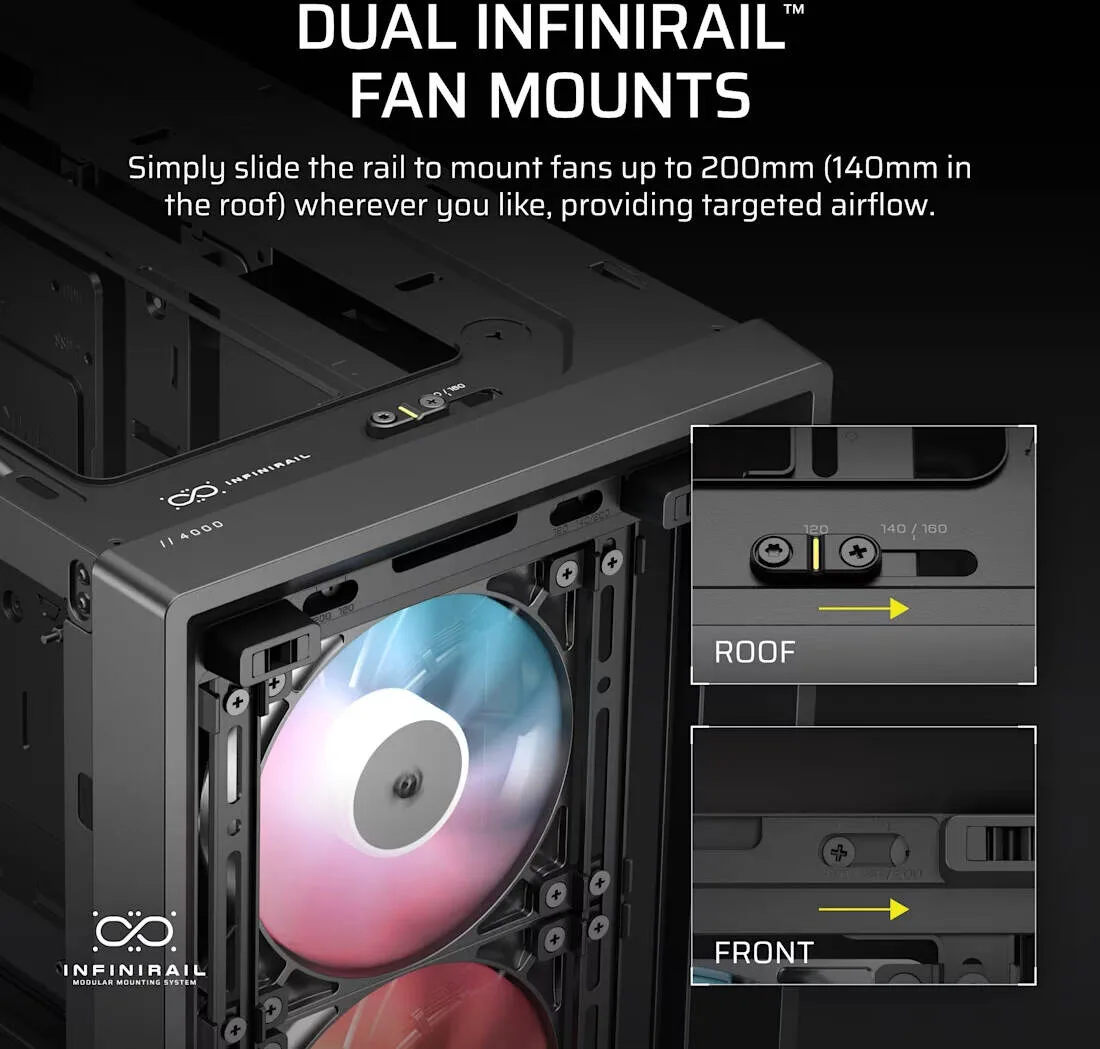

- InfiniRail™ Fan Mounting System for superior cooling
- Compatibility with reverse connector motherboards
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- Black
- No of fans
- 4 Fans
- Form factor
- ATX Mid Tower
- Side window
- With Side Window
- Radiator support
- 360 mm
- External 5 25 inch drive bays
- None
Details
- Shipping Weight
- 12.36 Kg
- Shipping Dimensions
- 23.90 cm x 49.00 cm x 48.60 cm
- Case Size
- Mid-Tower
- Motherboard Support
- Mini-ITX, Micro-ATX, ATX, E-ATX (305 × 277 mm)

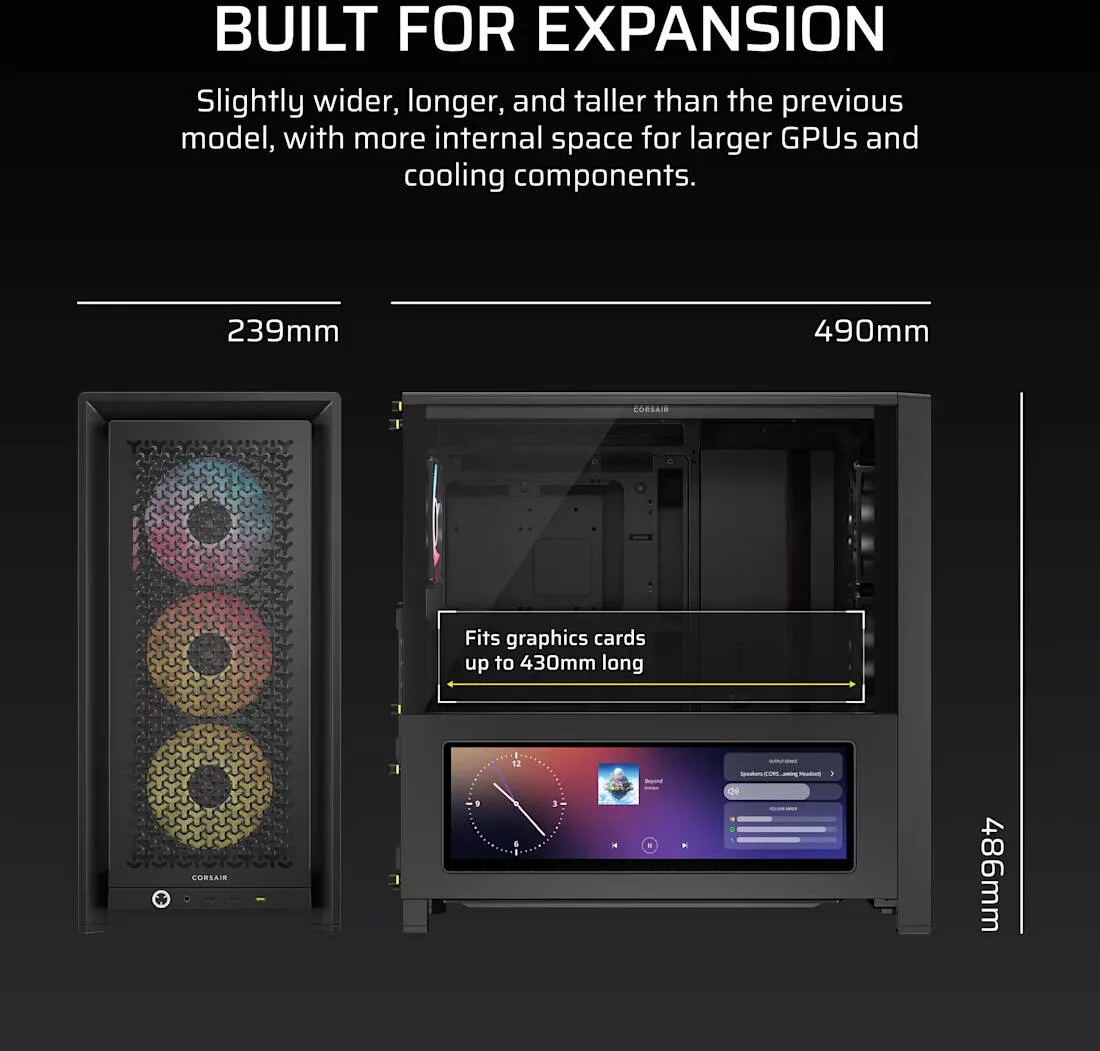

- Dimensions (H × L × W)
- 486 × 490 × 239 mm
- Weight
- 12.36 kg
- Material
- Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic
- Case Window
- Tempered Glass
- Left Side Panel
- Tempered Glass
- Right Side Panel
- Steel
- Power Supply Support
- ATX
- Maximum PSU Length
- 220 mm
- Maximum GPU Length
- 430 mm
- Maximum CPU Cooler Height
- 170 mm
- Expansion Slots
- 7 Horizontal or 3 Vertical
- Internal 3.5" Bays
- 2
- Internal 2.5" Bays
- 4

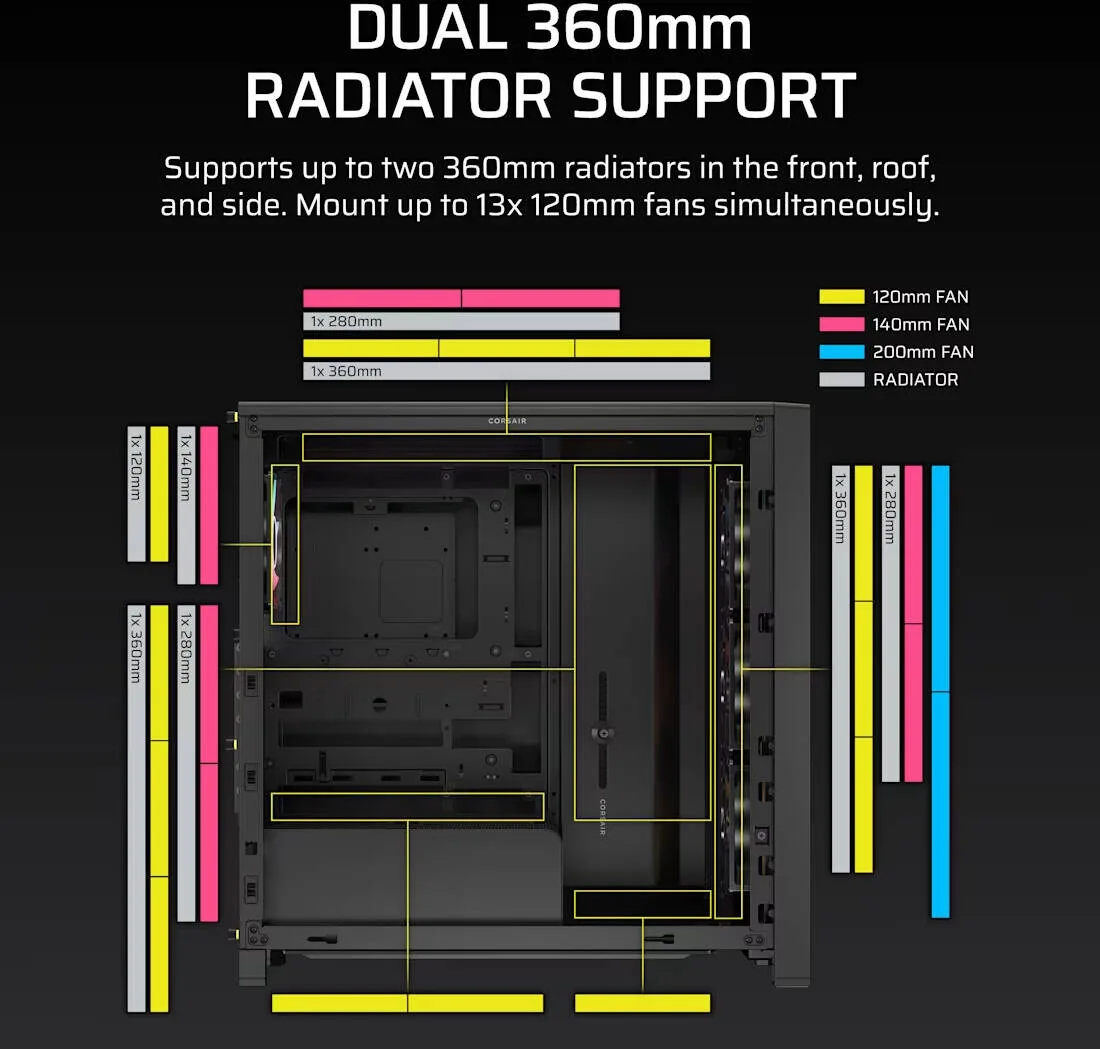

- Radiator Compatibility (General)
- 120mm, 140mm, 240mm, 280mm, 360mm
- Radiator Support – Top
- 360mm, 280mm, 240mm
- Radiator Support – Front
- 360mm, 280mm, 240mm
- Radiator Support – Side
- 360mm, 280mm, 240mm
- Radiator Support – Rear
- 140mm, 120mm
- Radiator Support – Bottom
- None
- Fan Support – Top
- 3 × 120mm, 2 × 140mm
- Fan Support – Front
- 3 × 120mm, 2 × 140mm, 2 × 200mm
- Fan Support – Bottom
- 2 × 120mm
- Fan Support – Side
- 3 × 120mm, 2 × 140mm
- Fan Support – Rear
- 1 × 120mm, 1 × 140mm
- Compatible Liquid Coolers
- H60, H100, H115, H150, NAUTILUS, TITAN
- Included Fans
- RS Series
- Dust Filtration
- Yes
- Cable Routing Space
- 37 mm
- RapidRoute Included
- No
- Front I/O Ports
- 1 × USB 3.2 Gen 2 Type-C2 × USB 3.2 Gen 1 Type-A1 × Audio In/Out
- Front I/O Motherboard Connections
- 1 × HD Audio1 × USB 3.2 Gen11 × USB 3.2 Gen2 Type-E1 × F_PANEL
- Reverse Connector Motherboard Support
- Yes
4.611 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Charlie L. Used for: More than a year
Pros
Front panels swap in minutes
Cons
Spare panels are an extra purchase
Comment
Swapped the mesh front for the solid one after a year and it took about two minutes, no tools, no dismantling. That is what modular should mean. The LCD is still showing coolant temperature and has not once needed the software reinstalling!
George W. Used for: 1–3 months
Cons
Half the modularity is sold separately
Comment
Two things stop this being a five. The first is that the modular parts are sold separately, so the case you configure in your head costs meaningfully more than the one in the box. The second is the top bracket: with a 360 fitted at the roof, the front USB cable has to route across the board because there is no other path left for it.
Jack N. Used for: 6–12 months
Pros
Three filters, all easy to reach
Cons
Paint marks around the front IO
Comment
Dust filters on the front, the roof and the floor, and all three come out without moving the case. That alone puts it ahead of most. The paint around the front IO marks more easily than I expected, though a damp cloth sorts it!
Sophie G. Used for: Less than a month
Comment
The InfiniRail mounting is the cleverest thing in this case. You slide the fans along the rail until they sit where you want them, tighten two screws, and there are no fixed hole positions to work around. Fitted a 360 offset from the board with no brackets!
Rosie G. Used for: 3–6 months
Pros
Quiet at the speeds it actually needs
Cons
LCD cable is barely long enough
Comment
The thing I keep coming back to is how little noise it makes for the air it shifts. The stock fans stay quiet at the speeds the case actually needs, because the mesh is open rather than decorative. Four months in and the only complaint is the LCD module, which eats a USB header and comes with a cable barely long enough to reach it.
Florence L. Used for: 3–6 months
Pros
Mesh front moves plenty of air
Cons
LCD is a novelty
Comment
Airflow is excellent with the mesh front on. The LCD is a toy but a nice one!
Willow L. Used for: 1–3 months
Pros
Room to work around the board
Comment
Went from a cramped micro tower to this and the difference in reach around the board is enormous. Fitted the AIO without taking the motherboard out, which was a first
Isla M. Used for: 3–6 months
Pros
Genuinely reconfigurable
Cons
The LCD costs a fan position and stutters
Comment
An honest four rather than a grudging one, because most of what this case promises it delivers. The modular idea is real. Front panel, top bracket, drive rail and fan rails all come off with a screwdriver and go back in different positions. I have already reconfigured it once when I changed from an air cooler to a 360, and the whole job took an evening rather than a rebuild. What holds it back is the LCD version specifically. The screen is lovely and the software is not, and mounting it costs you the top front fan position. Five months on I have the screen showing a static image because the animated ones stutter whenever the machine is busy.
Ella C. Used for: Less than a month
Pros
Screwed together, not riveted
Comment
First build for my son and this was the one I chose because everything is screwed rather than riveted, so if he wants to change something later he can. Four ARGB fans already wired to a hub meant no lighting cables across the board, which for a first attempt matters!
Amelia W. Used for: 6–12 months
Pros
Rear panel closes without a fight
Comment
Best cable management I have had in a case at this level. The channel is wide, the straps are pre-fitted, and the rear panel closes without leaning on it. Even the fan hub has a home behind the tray rather than dangling.
Oliver S. Used for: Less than a month
Pros
Storage or radiator, your choice
Cons
Fan hub has no spare ports
Comment
Came over from a Fractal North because I wanted mesh without the wood, and the FRAME does the same job with more room inside. The drive trays sit behind the shroud on a rail you can slide, so you choose between more storage or more radiator rather than having it chosen for you. Cable bar clips on with no screws. Only niggle so far is that the ARGB hub has four ports and four fans, so no spares.
