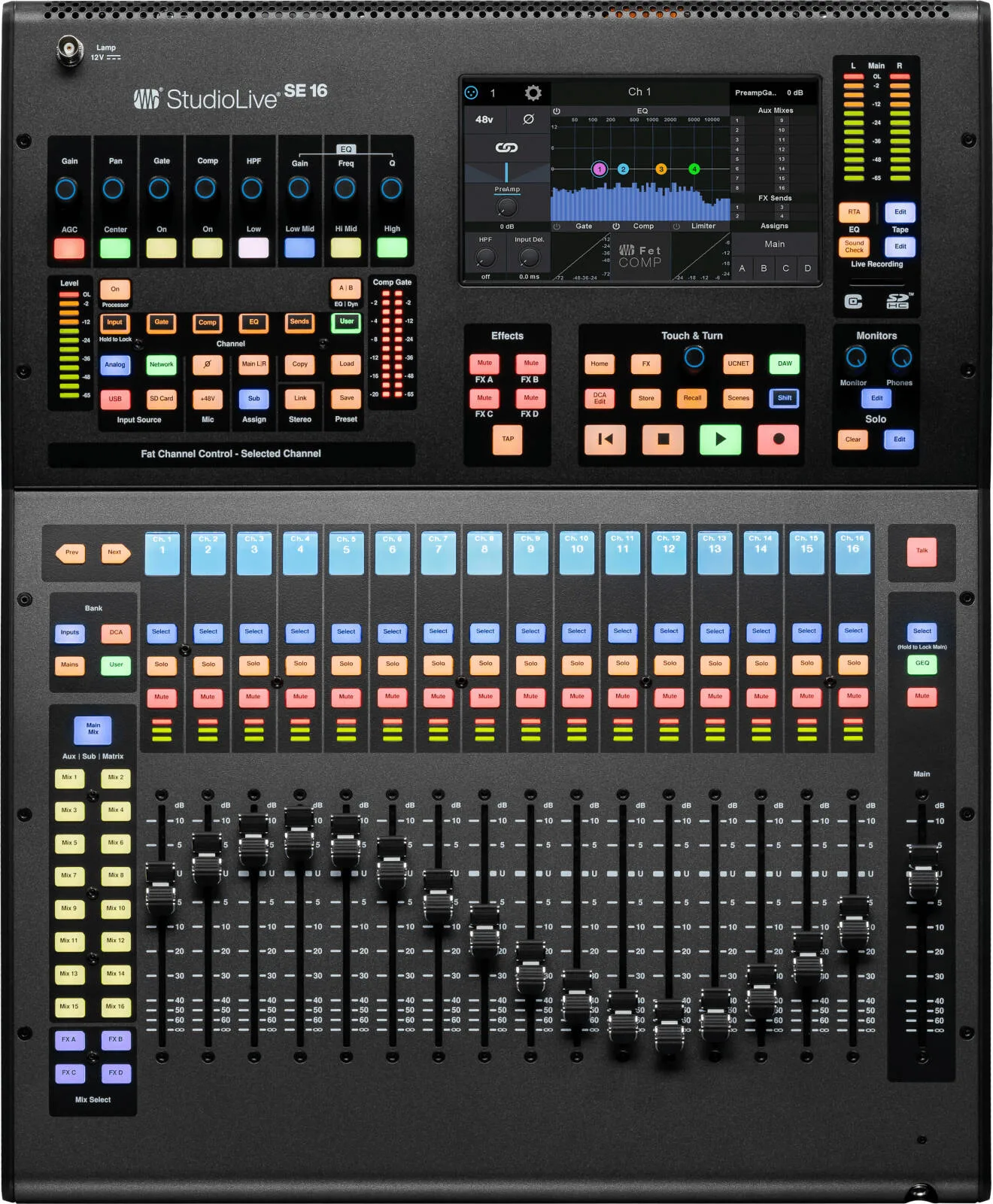

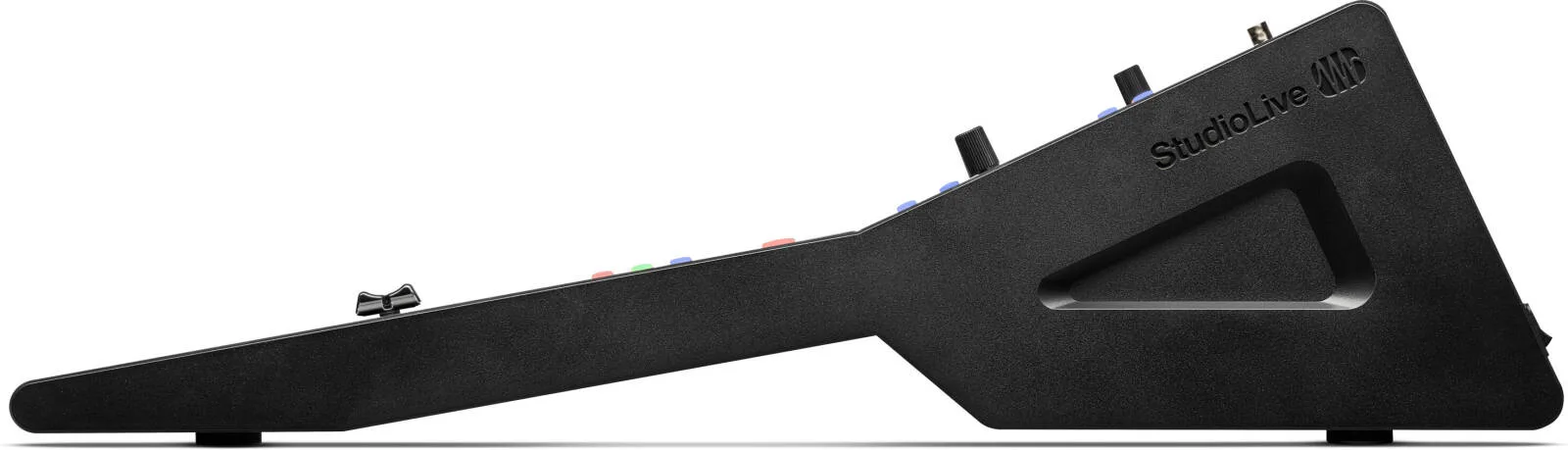

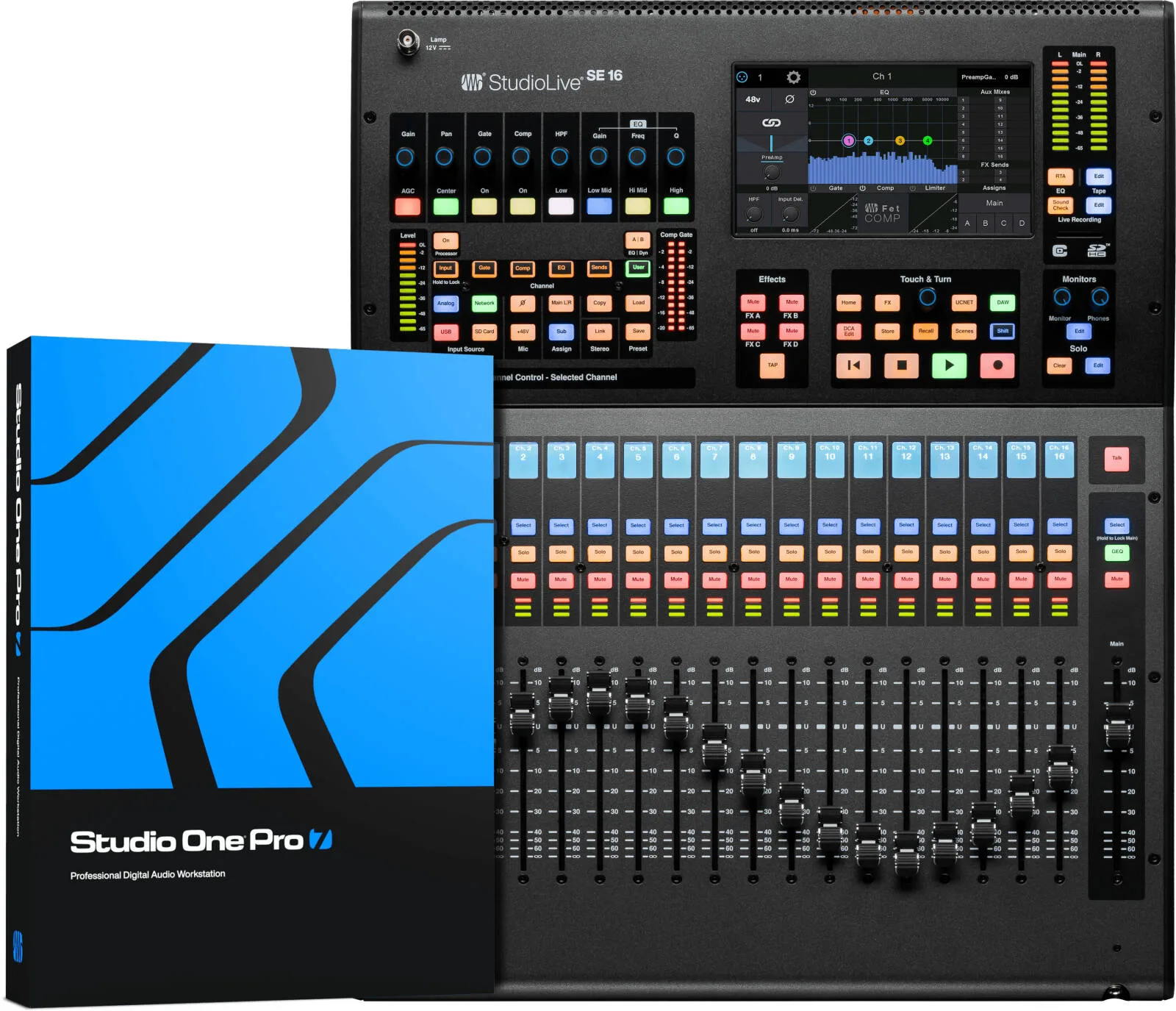

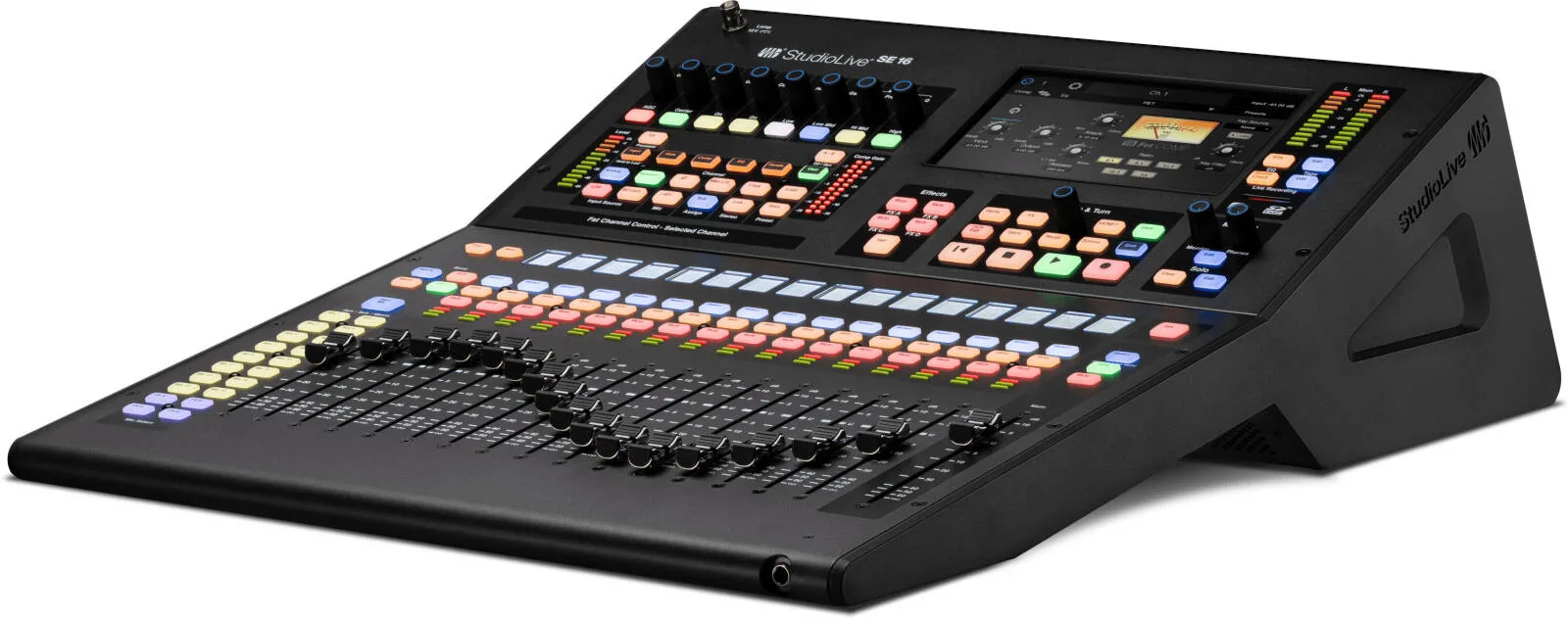

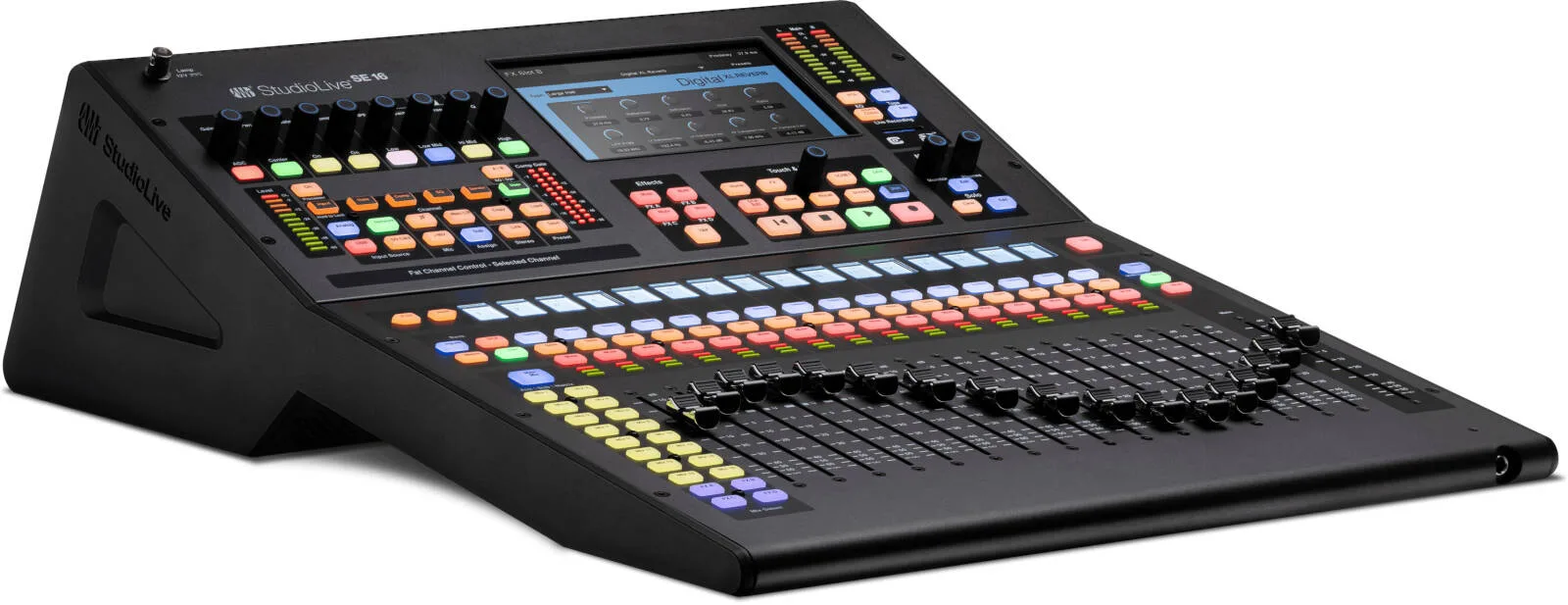

PreSonus StudioLive Series III SE 16 Digital Mixer with 40 Channel, 26 Bus Design, 17 Motorized Faders, 64x64 USB Audio Interface, Milan AVB Networking & Studio One Integration, Black
- Metro: Live Remote Mixing Over Internet
- 17 Touch-Sensitive Motorized Faders
- 16 XMAX Preamps: 8 Mic and 8 Mic/Line
- 10 Analog FlexMix Outs: 6 XLR and 4 TRS
- Onboard 34-Track SD Recorder
- Integrated 64x64 USB Audio Interface
- Built-In AVB Networking
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Details
- Shipping Weight
- 14.89 Kg
- Shipping Dimensions
- 59.06 cm x 80.26 cm x 31.75 cm
- Product Name
- StudioLive® Series III SE 16 Digital Console Mixer
- Series
- StudioLive®
- Color
- Black
- Headphone Jack
- 1/4" TRS Active Stereo
- Phantom Power
- +48 VDC (±2 VDC)
- Power Consumption
- 85W (Continuous)
- Voltage Requirements
- 100–230 VAC, 50–60 Hz

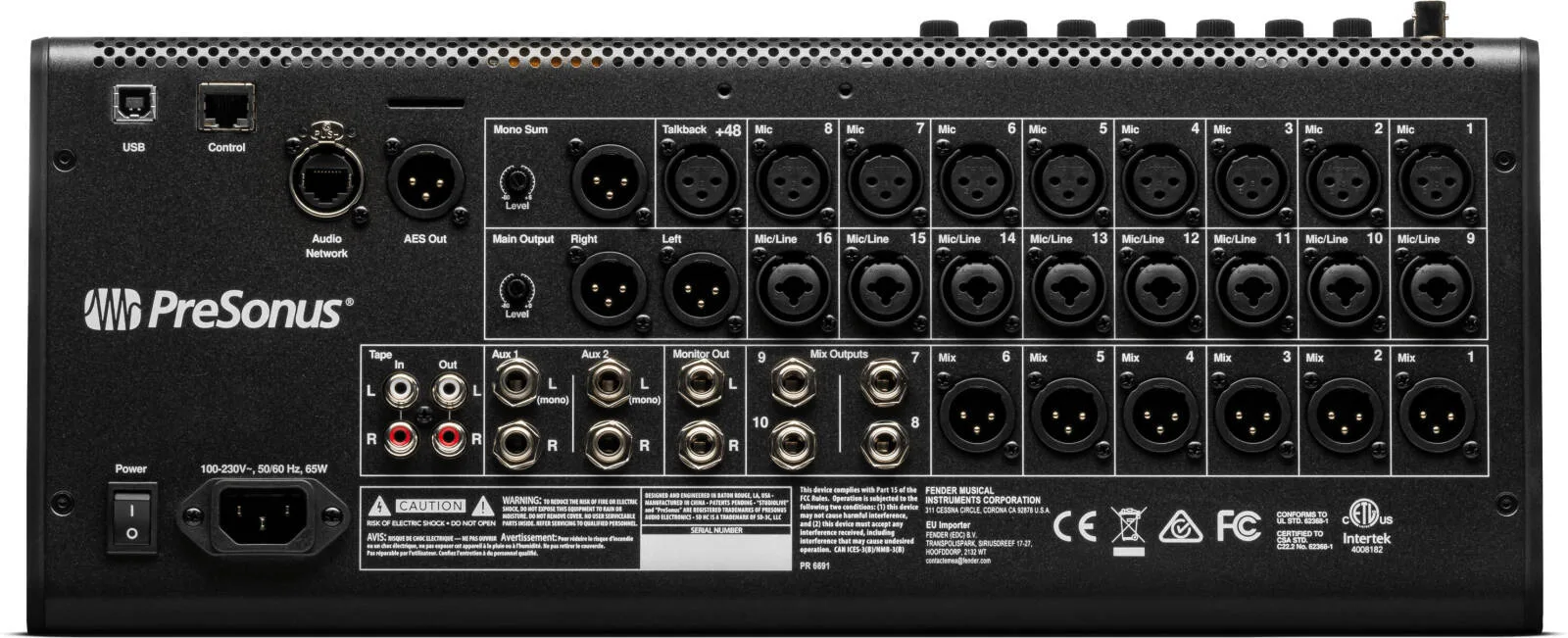

- Digital Audio AES/EBU Output
- XLR Male
- Digital Audio AVB Network Ports
- Neutrik® etherCONN®
- Digital Audio Network Control Port
- RJ-45
- Digital Audio USB Recording Port
- USB 2.0, Type-B
- Tape Connection Type
- RCA Female, Unbalanced (Stereo Pair)
- Line Input Connection Type
- 1/4" TRS Female, Balanced
- Line Inputs Frequency Response
- 20–20 kHz (±0.5 dBu at Unity Gain)
- Line Inputs Impedance
- 10 kΩ
- Line Inputs Maximum Level
- +18 dBu
- Line Inputs S/N Ratio
- 94 dB (Ref = +4 dBu, 20 kHz BW, Unity Gain, A-Weighted)
- Microphone Input Type
- XLR Female, Balanced
- Mic Preamp CMRR
- 65 dB (1 kHz, Unity Gain)
- Mic Preamp Frequency Response
- 20–20 kHz (±0.5 dBu at Unity Gain)
- Mic Preamp Gain Range
- 0–60 dB (±1 dB)
- Mic Preamp Input Impedance
- 1 kΩ
- Mic Preamp Max Input Level
- +12 dBu (Unity Gain)
- Mic Preamp S/N Ratio
- 94 dB (Ref = +4 dBu, 20 kHz BW, A-Weighted)
- Tape Maximum Input Level
- +12 dBu (±0.5 dBu)
- Media Storage Capacity
- SD Card: 2 GB; SDHC Card: 32 GB
- Product Width
- 17.59” (446.66 mm)
- Product Depth
- 22.97” (583.84 mm)
- Product Height
- 6.51” (165.36 mm)
- Product Weight
- 23.15 lbs (10.5 kg)
- Refinement Weight
- 25-under
- Digital Audio Internal Processing
- 32-bit Floating Point
- Power Cable
- IEC
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Recording File Format
- WAV
- Supported Media Format
- FAT16 (SD), FAT32 (SDHC)
- Supported Sample Rates
- 44.1 kHz, 48 kHz
- Headphone Outputs Frequency Response
- 20 Hz–20 kHz (±0.5 dB)
- Headphone Outputs Max Output
- 100 mW/ch @ 60Ω
- Headphone Outputs S/N Ratio
- 96 dB (1 kHz, Max Gain, 20 Hz BW)
- Headphone Outputs THD
- 0.01% (1 kHz, Max Gain, 20 Hz BW)
- Line Outputs Connection Type
- 1/4" TRS Female, Balanced
- Line Outputs Max Level
- +18 dBu (±0.5 dBu)
- Line Outputs Impedance
- 100 Ω
- Tape Max Output Level
- +18 dBu (±0.5 dBu)
- Tape Output Impedance
- 100 Ω
- XLR Outputs Max Level
- +24 dBu (±0.5 dBu)
- XLR Outputs Impedance
- 100 Ω
- Crosstalk (Adjacent Channels)
- -87 dB (Ref = +4 dBu, 20 Hz–20 kHz)
- Digital Audio Bit Depth
- 24-bit
- Digital Audio Dynamic Range
- ADC: 115 dB / DAC: 115 dB (A-Weighted, 48 kHz)
- Digital Audio Ref Level for 0 dBFS
- +18 dBu
- Digital Audio Total System Latency
- 1.9 ms (Analog In–Out, all processing active)
- SD Recorder Bit Depth
- Record: 24-bit / Playback: 16 or 24-bit
- SD Recorder Sampling Rate
- 44.1 or 48 kHz
4.88 reviews
Got something to share?
Rate this product — your experience helps other buyers.
George D. Used for: 3–6 months
Pros
Every musician gets their own monitor mix from their own phone
Cons
Setting up the monitor app for six people took an entire rehearsal
Comment
The monitor mixes are the reason we bought it and they have ended the arguments on stage completely. Each person tweaks their own wedge from their phone and the sound engineer is left alone to mix the room instead of fielding hand signals all night. Should have done it years ago!
Arthur H. Used for: Less than a month
Pros
Scene recall means the desk arrives already knowing the band
Cons
The manual assumes you have used a digital desk before
Comment
Came off an analogue desk and a rack of outboard, and the first rehearsal was slower because everything lives in a layer now. By the second it was quicker than the old rig had ever been!
Amelia W. Used for: 6–12 months
Cons
It weighs enough that the flight case needs two people and a ramp
Comment
Nothing wrong with the desk at all, but nobody warns you about the weight. In a case it is a two person lift up a step, and I have started leaving it in the van and mixing from the tablet rather than carrying it in and out of every venue we play.
Theo M. Used for: 6–12 months
Pros
Sixteen channels that recall a whole night at the press of a button
Comment
Eight months of weddings and function rooms, which means a different room every week and no time to build a mix from nothing. Saving a scene per venue has taken the setup down to about twenty minutes from the van to line check. The faders still track properly, which was the thing I was most worried about with a moving fader desk that lives in a case. The channel processing is enough that the outboard rack has stayed at home since April, though I still take a spare mic.
Sophie K. Used for: Less than a month
Pros
Faders that move on their own still feel like magic
Cons
Needs a network switch and a router before the app is any use
Comment
Unboxed it on a Thursday and ran a service with it on the Sunday, which says something about how quickly it makes sense. The layer button takes a bit of learning, everything else is where you expect it to be.
Leo K. Used for: 3–6 months
Pros
Sounds better than the desk it replaced before you touch anything
Comment
Small venue, sixty capacity, house desk for whoever turns up. Preamps are quiet enough that an opening band with cheap microphones still sounds respectable, and the channel processing is good enough that I have stopped patching in a compressor. My reservation is the screen. It is small, and on a dark stage with a queue at the bar you are prodding at a menu when you want a knob. The app helps if the wifi behaves. Four months in, I would still buy it again, but I would look hard at the bigger screen first.
Poppy H. Used for: More than a year
Pros
Multitrack to a laptop over one USB lead, no extra hardware
Cons
The tablet app drops off the wifi in a busy room
Comment
Recording every show has changed how the band rehearses, because everyone can hear what actually happened rather than what they think happened. Sixteen tracks straight to a laptop over the one cable, no interface, no splitter. A year and a half of weekly use, no faults, no crashes. The only thing that lets it down is the wireless, which in a packed room is a lottery. Bring the cable.
Florence W. Used for: 1–3 months
Pros
The fat channel processing means the outboard rack stayed in the loft
Comment
It replaced a desk, a rack and a snake, and the van is emptier for it
