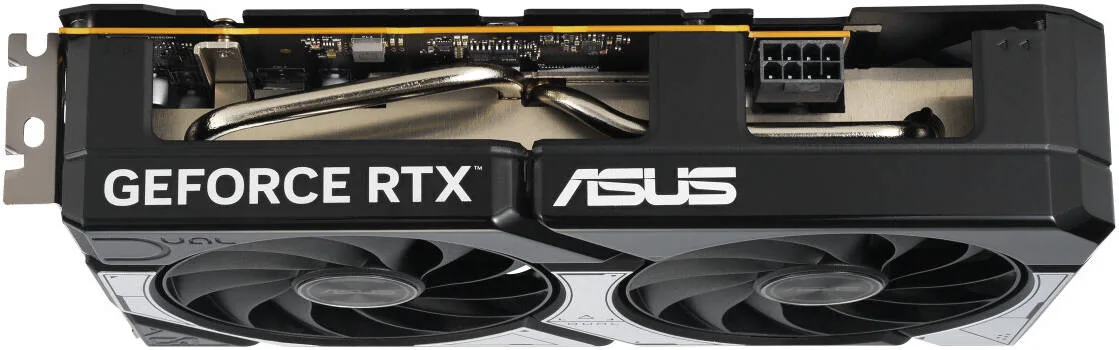

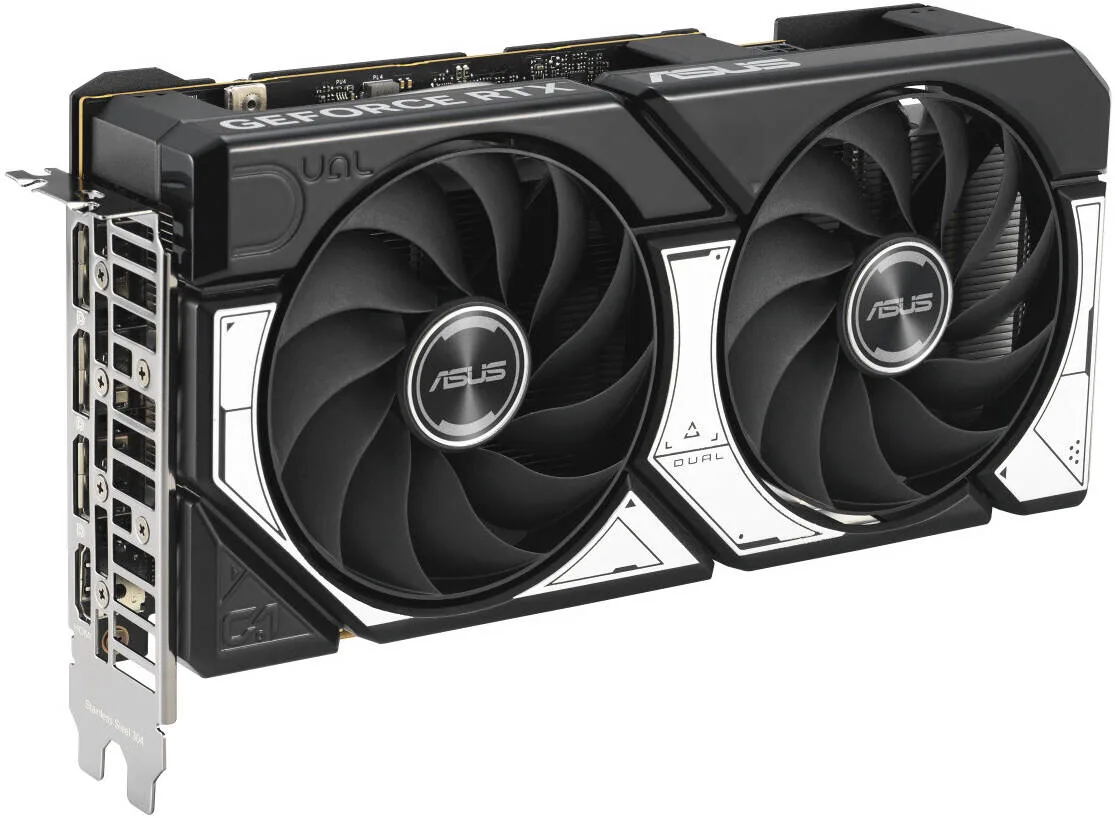

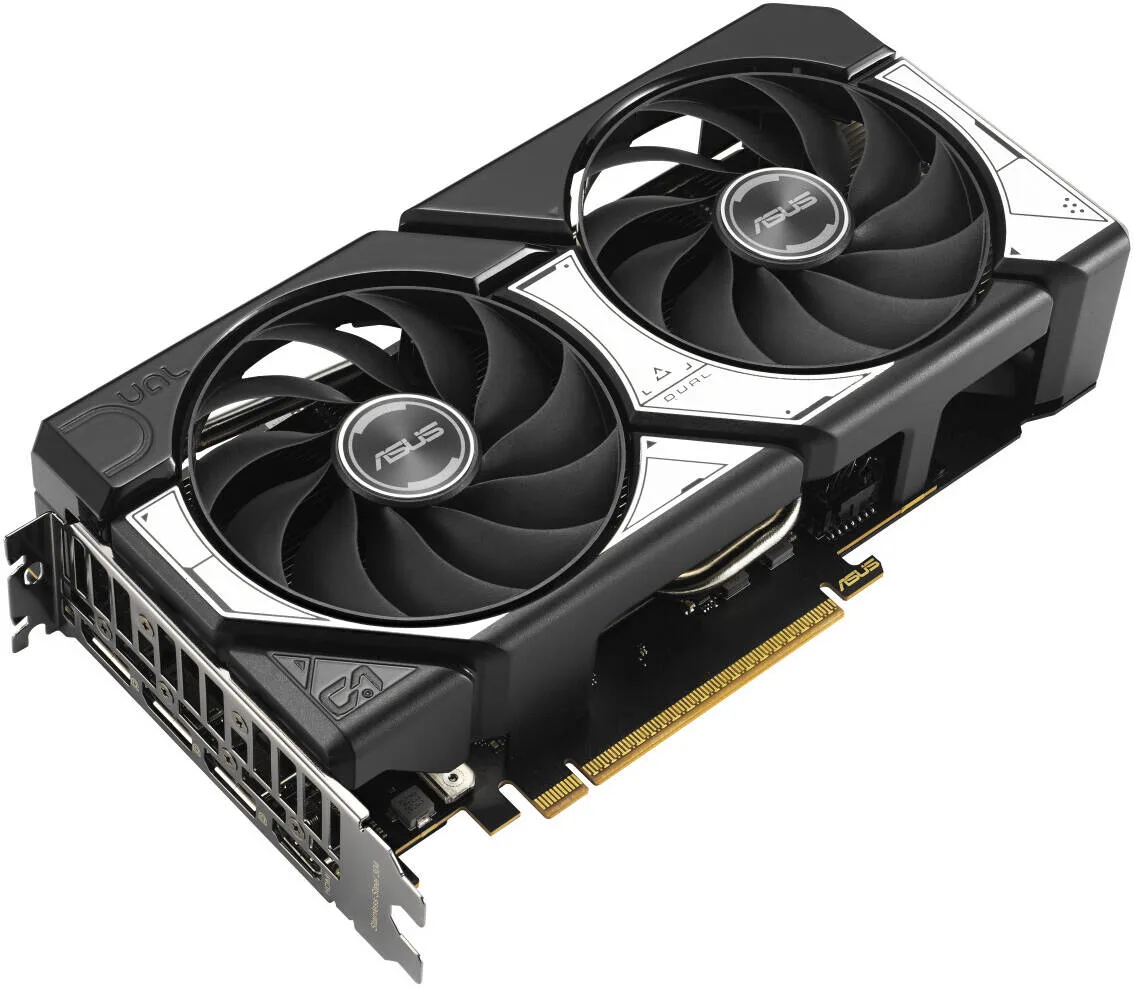

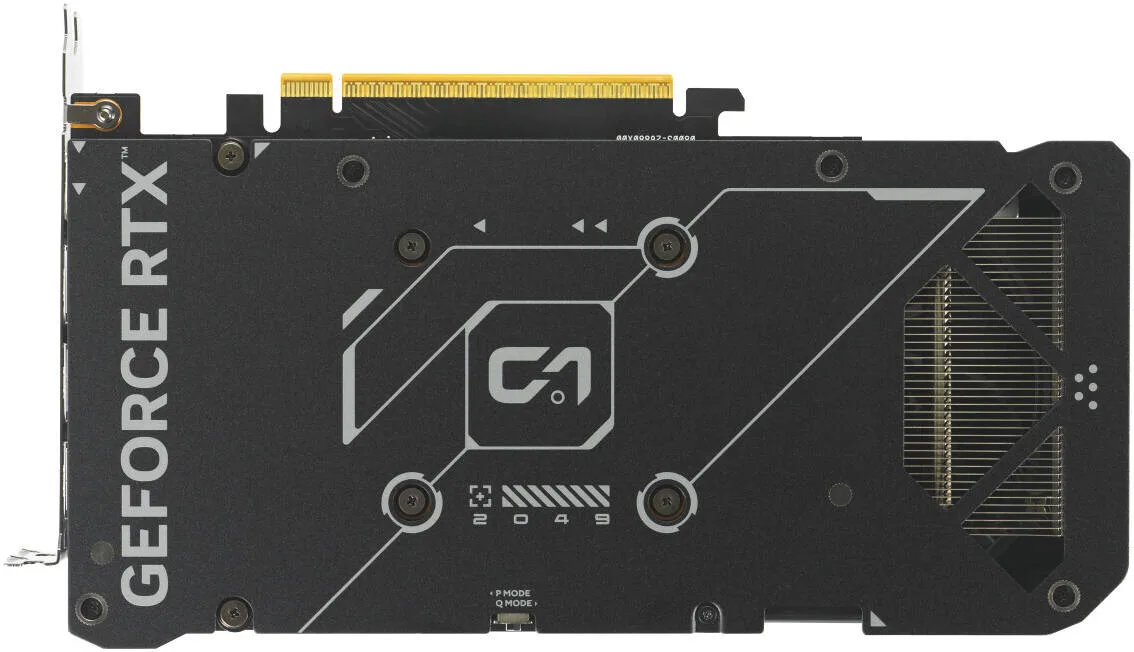

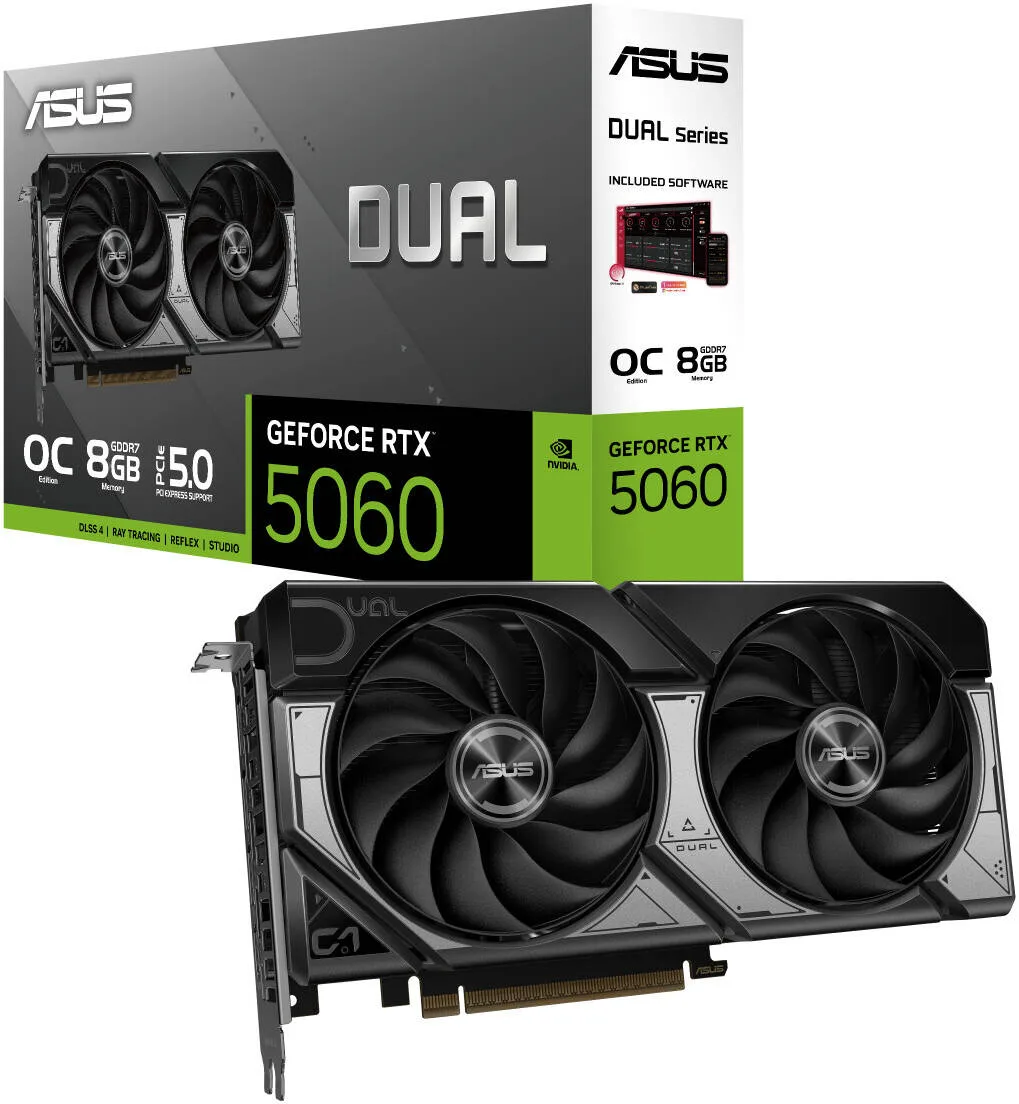

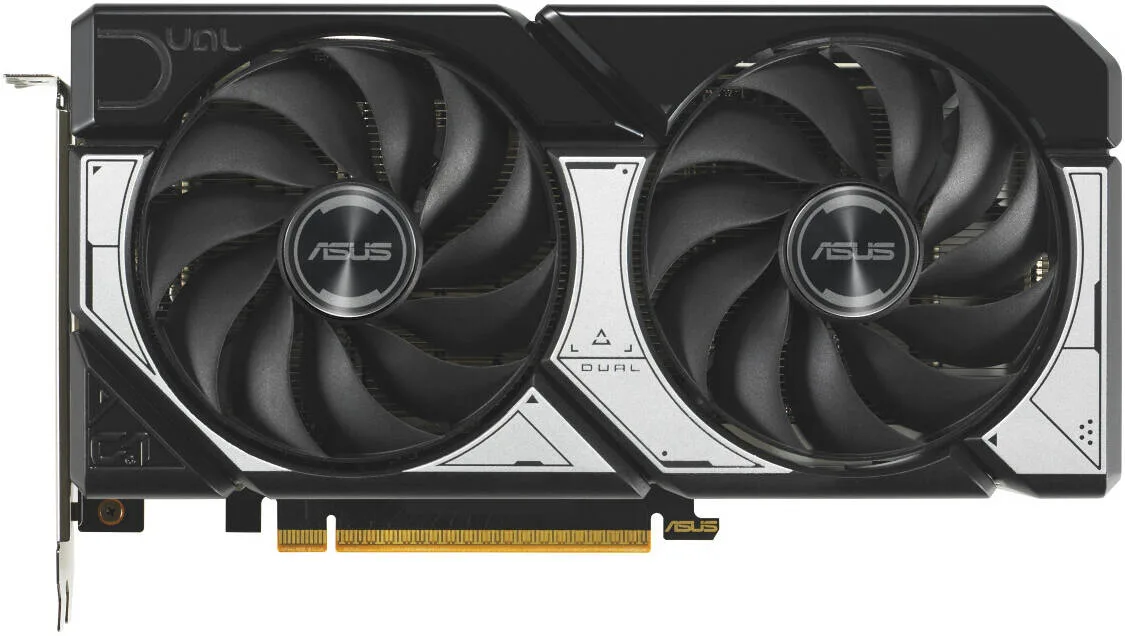

ASUS Dual GeForce RTX 5060 OC Edition Graphics Card, DUAL-RTX5060-O8G, 8GB GDDR7 128-Bit Memory, 2565 MHz Boost Clock, 28 Gbps Memory Speed, 3840 CUDA Cores, PCI Express 5.0
- Performance: 8GB GDDR7 memory, 3840 CUDA cores, 2565 MHz (OC) clock speed, and 623 TOPs AI performance.
- Display & Connectivity: Supports up to 4 displays, max resolution 7680 x 4320, with HDMI 2.1b and three DisplayPort 2.1b outputs.
- Compatibility: PCI Express 5.0, 2.5-slot size, requires 550W PSU, 1x 8-pin power connector, and small form factor compatible.
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Gpu
- RTX 5060
- Memory size
- 8 GB
- Memory type
- GDDR7
- Memory interface
- 128 Bit
- Chipset manufacturer
- NVIDIA
Details
- Shipping Weight
- 1.10 Kg
- Shipping Dimensions
- 7.00 cm x 37.00 cm x 22.00 cm
- Max Resolution
- 7680 x 4320
- HDMI
- Yes
- DVI
- No
- D-SUB (VGA)
- No
- Display Port
- Yes
- Effective Memory Clock
- 28 Gbps
- Form Factor
- RTX
- Interface
- PCI Express 5.0
- TDP
- 550 W
- Maximum Display Support
- 4
- Cooling
- Axial-Tech Fans
- Power Connectors
- 1x 8-Pin
- Specification
- Details
- Graphic Engine
- NVIDIA® GeForce RTX™ 5060
- AI Performance
- 623 TOPs
- Bus Standard
- PCI Express 5.0
- OpenGL
- OpenGL® 4.6
- Video Memory
- 8GB GDDR7
- Engine Clock
- OC mode: 2565 MHz Default mode: 2535 MHz (Boost Clock)
- CUDA Cores
- 3840
- Memory Speed
- 28 Gbps
- HDCP Support
- Yes (2.3)
- Max Display Support
- 4
- NVLink / Crossfire
- No
- Accessories
- 1 x Speedsetup Manual 1 x Thank You Card
- Software
- ASUS GPU Tweak III, MuseTree, GeForce Game Ready Driver, Studio Driver (Download required)
- Dimensions
- 228 x 123 x 50 mm (8.98 x 4.84 x 1.97 inches)
- Recommended PSU
- 550 W
- Slot Size
- 2.5 Slot
- Small Form Factor (SFF)
- Compatible
4.711 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Jack B. Used for: 3–6 months
Pros
Cold and silent
Cons
Memory capacity
Comment
Barely audible, barely warm, but eight gigs is eight gigs!
Theo E. Used for: 3–6 months
Pros
Zero-RPM mode is genuinely silent and the card runs cold
Comment
Hotspot has not gone past 71C in anything I have thrown at it, and the core sits in the low sixties, which for a dual-fan card of this size is very good. Fans do not spin at all until the load starts. Docked a star for the VRAM, since 8GB means turning textures down in things the chip could otherwise manage. Four months in and that is still the only real gripe.
Millie H. Used for: 3–6 months
Pros
Fits anywhere, single 8-pin, no whine at all
Cons
You will be watching the VRAM meter
Comment
For a compact build it is close to ideal. Not a hint of coil whine even at 300fps in menus, which surprised me at this price. Just be honest with yourself about 8GB before buying!
Freya E. Used for: Less than a month
Pros
Two slots, single 8-pin, silent at idle
Comment
Two slots and one 8-pin was the whole reason for choosing it, because the case is a small mATX tower with a 550W unit in it and nothing bigger was going to fit. At 1080p it is comfortably quicker than anything I have run before, sitting around 110fps in Warzone on high. Push to 1440p and the 8GB starts to argue back, with texture settings that the GPU itself could clearly handle. Fans stay completely off below about 55C so the machine is silent for browsing. Two weeks of daily use and it has not put a foot wrong. Four stars because GDDR7 on a 128-bit bus really deserved 12GB.
Millie B. Used for: More than a year
Pros
Silent, small, does the job
Comment
Still the quietest card I have owned and it has never let me down
Leo A. Used for: More than a year
Comment
Went into an office build for a designer and it has been faultless throughout
Theo P. Used for: Less than a month
Pros
Fits a small case without any measuring
Comment
Slotted into an old Fractal Core without touching a single cable. Quiet, cool, and quick enough at 1080p. Only mark against it is the memory, 8GB feels thin at this price
Theo M. Used for: More than a year
Pros
Undervolts beautifully and drops the noise to nothing
Comment
Curve editor at 875mV holds the same clocks as stock and pulls about 20W less at the wall. The card then never gets hot enough to bring the fans up in a normal session. GDDR7 helps it punch above what the 128-bit bus suggests it should manage. Over a year of running it that way and the clocks have never wandered.
Daisy P. Used for: Less than a month
Pros
Quiet and cool
Cons
8GB
Comment
Great little card, shame about the memory
Poppy H. Used for: 6–12 months
Pros
Runs cold and the drivers have been stable
Cons
8GB fills up fast in newer titles
Comment
No complaints about the card itself, it is cool and quiet and the app has never crashed on me. But the frame buffer is the limit at 1440p, not the chip! Eight months in and that has not changed.
Millie F. Used for: More than a year
Pros
Cool, quiet, and still fine at 1080p
Comment
Bought for a lounge machine that mostly plays esports titles and it has never been the bottleneck. Valorant and CS sit above the refresh rate of the telly, and the card idles at 34C with the fans stopped, which matters when the box is a metre from the sofa. No coil whine that I can hear over anything. Drivers have installed cleanly every time. The 8GB will date it eventually but for 1080p it has been exactly right. A year and a half of that now and it still has not been the weak link.
