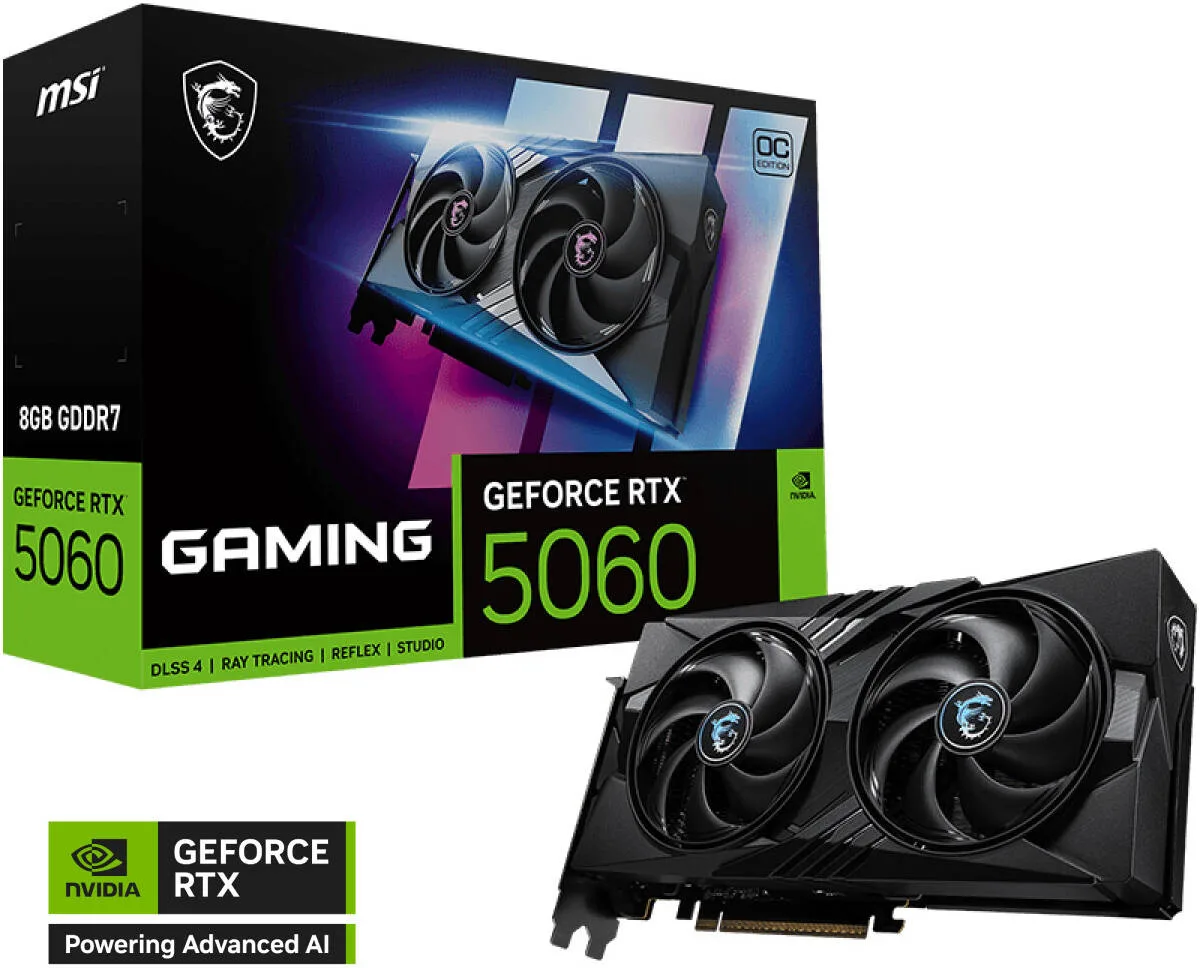

MSI GeForce RTX 5060 GAMING OC 8GB Graphics Card, GDDR7 128-Bit Memory, 2625 MHz Boost Clock, 28 Gbps memory Speed, 3840 CUDA Cores, PCI Express 5
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clocks: Extreme Performance: 2640 MHz (MSI Center), Boost: 2625 MHz

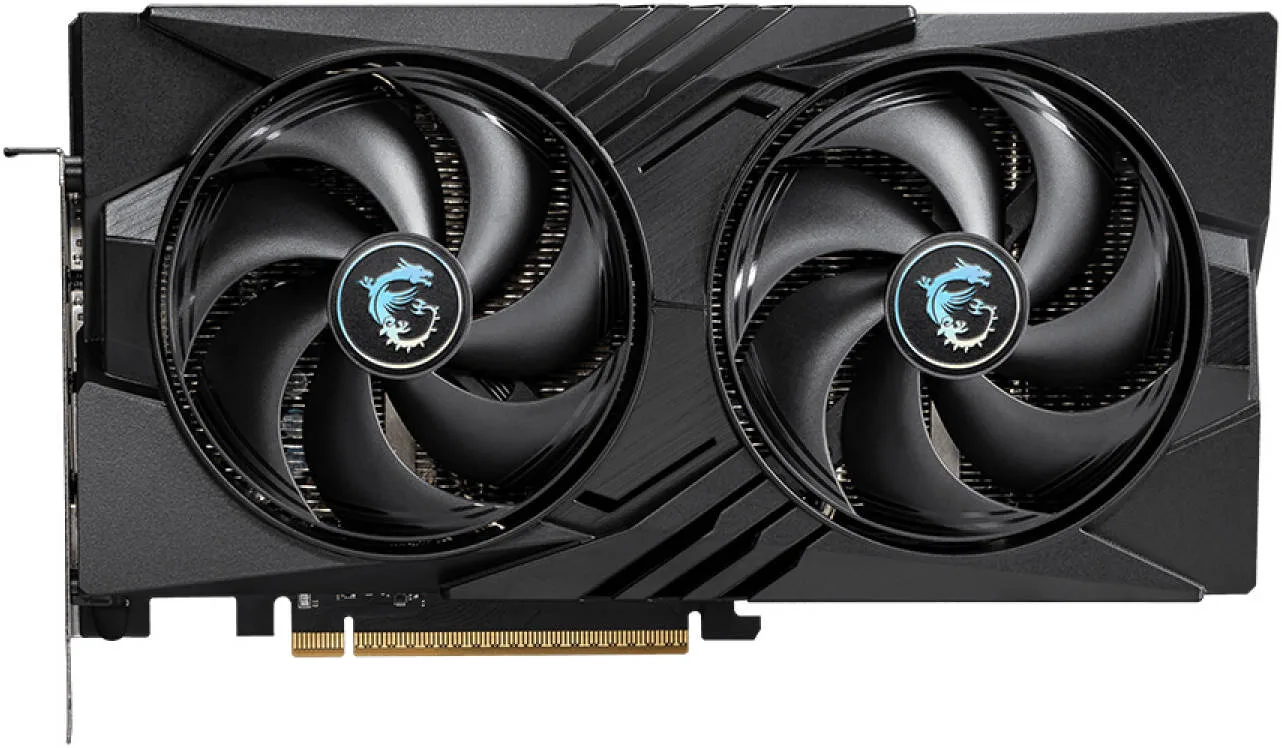

- TWIN FROZR 10: Experience superior cooling and quieter performance with MSI's enhanced fan blade design.
- STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.

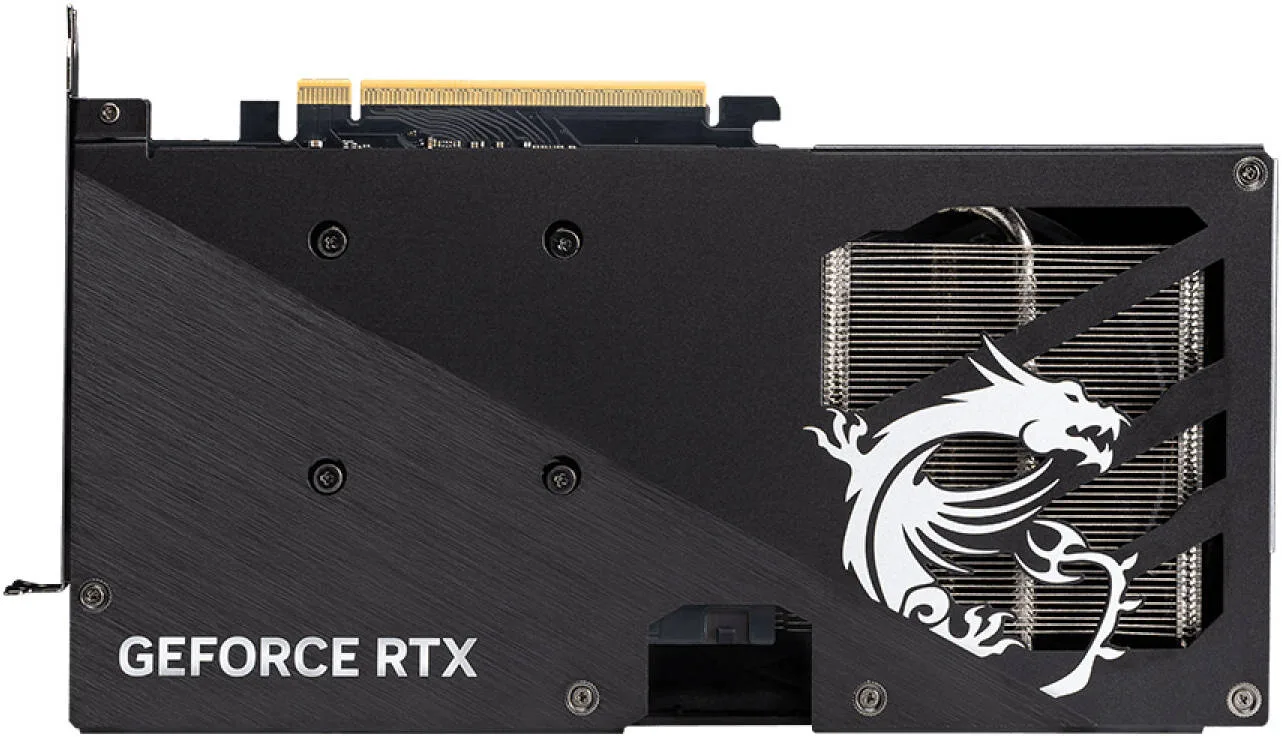

- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Gpu
- RTX 5060
- Memory size
- 8 GB
- Memory type
- GDDR7
- Memory interface
- 128 Bit
- Chipset manufacturer
- NVIDIA
Details
- Shipping Weight
- 1.30 Kg
- Shipping Dimensions
- 9.00 cm x 39.00 cm x 24.50 cm
- Max Resolution
- 7680 x 4320
- HDMI
- Yes
- DVI
- No
- D-SUB (VGA)
- Yes
- Display Port
- No
- Effective Memory Clock
- 28 Gbps
- Form Factor
- RTX
- Interface
- PCI Express 5.0
- TDP
- 155 W
- Maximum Display Support
- 4
- Cooling
- STORMFORCE Fan
- Power Connectors
- 1x 8-Pin
- Marketing Name
- GeForce RTX™ 5060 8G GAMING OC
- Graphics Processing Unit
- NVIDIA® GeForce RTX™ 5060
- Core Clocks
- Extreme Performance: 2640 MHz (MSI Center), Boost: 2625 MHz
- CUDA® Cores
- 3840 Units
- Memory Speed
- 28 Gbps
- Memory
- 8GB GDDR7
- Memory Bus
- 128-bit
- Output

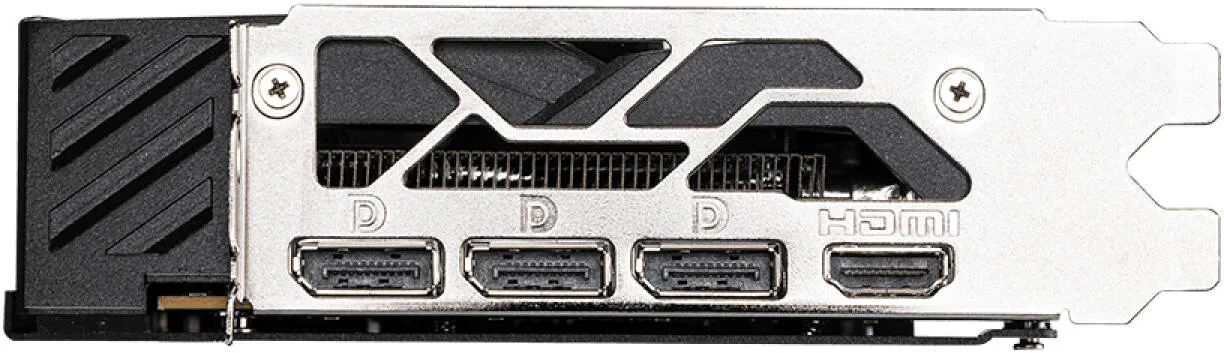

- DisplayPort × 3 (v2.1b), HDMI™ × 1 (Supports 4K@480Hz HDR, 8K@120Hz HDR, VRR per HDMI™ 2.1b)
- HDCP Support
- Yes
- Power Consumption
- 155 W
- Recommended PSU
- 550 W
- Card Dimension (mm)
- 248 × 135 × 41 mm
- Weight (Card / Package)
- 649 g / 966 g
- DirectX Version Support
- 12 Ultimate
- OpenGL Version Support
- 4.6
- Maximum Displays
- 4
- G-SYNC® Technology
- Yes
- Digital Maximum Resolution
- 7680 × 4320
4.710 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Leo M. Used for: Less than a month
Pros
Easy fit, no PSU upgrade needed
Cons
MSI Center wants to install far too much
Comment
First card I have fitted myself and it could not have been simpler. One 8-pin, two screws, done in ten minutes, and the 550W supply already in the machine was plenty. 1080p at high runs above 120fps in everything my group plays. Only mark against it is the MSI Center software, which wants to install four things I did not ask for. Three weeks in and the machine has not missed a beat.
Maya C. Used for: 1–3 months
Pros
Great value
Cons
8GB
Comment
Doubles the frame rate of the card it replaced and costs less than that one did, two months in.
Jack S. Used for: 6–12 months
Pros
Cool and silent
Cons
Only 8GB of VRAM
Comment
Never hear it, never see it above 65 degrees, never had a driver problem
Leo S. Used for: More than a year
Comment
Still doing everything asked of it at 1080p, no complaints
Oscar M. Used for: More than a year
Pros
Faultless hardware that has not aged a degree
Comment
This went into my son's machine and has been the least troublesome part in it. The fans have not developed any noise, the temperatures are where they were on day one at 63 degrees under load, and it has survived being moved between two cases and a house move. 1080p high in everything he plays, still above 100fps. The reason it is four rather than five is entirely the memory. He is starting to hit the 8GB in newer titles and will want a bigger card sooner than the chip itself deserves. As a piece of hardware it has been faultless.
Ella C. Used for: 6–12 months
Pros
Small, one 8-pin, silent at idle
Cons
8GB will be the limiting factor eventually
Comment
Slots into a 20 litre case with room to spare and needs only one 8-pin, which is why I chose it over the bigger cards. 1080p ultra is trivial and 1440p works if you turn on DLSS. Fans are inaudible below 55 degrees and a soft rush above it. The 8GB is the only thing that gives me pause about how long it will last.
Rosie H. Used for: 3–6 months
Pros
Cool and quiet once you are rid of the software
Cons
MSI Center resets the fan curve
Comment
Good little card that does exactly what the reviews said it would. What caught me out was MSI Center, which reset my fan curve twice and pushed a driver I did not want. Uninstalled it, used the NVIDIA panel instead, and the card has been faultless since at 62 degrees and silent. Five months in with no software on the machine at all.
Florence B. Used for: 6–12 months
Pros
Silent, cool, and enough for any 1080p game
Comment
For a 1080p machine this is all the card anyone needs. High settings everywhere, 100fps plus, and the two fans stay stopped until about 55 degrees so the box is silent for homework and video. It also barely warms the case, peaking at 64 degrees with a hotspot delta of 9, which matters when the whole machine lives in a cupboard under the stairs! Seven months of that and the fans have not picked up a rattle.
Oscar P. Used for: 6–12 months
Pros
Best value in the range
Comment
Quiet, cheap, and quicker than I expected at 1080p
Leo K. Used for: 6–12 months
Pros
Cool, quiet and excellent value at 1080p
Cons
8GB forces texture compromises above 1080p
Comment
Very good at what it is meant to do, which is 1080p. The moment you push past that the 8GB becomes the whole story, and in a couple of newer titles I have had to drop textures to medium at 1440p even though the GPU load was sitting at 70 per cent. Thermals and noise are both excellent, and the card itself is a lovely bit of engineering for the money.
