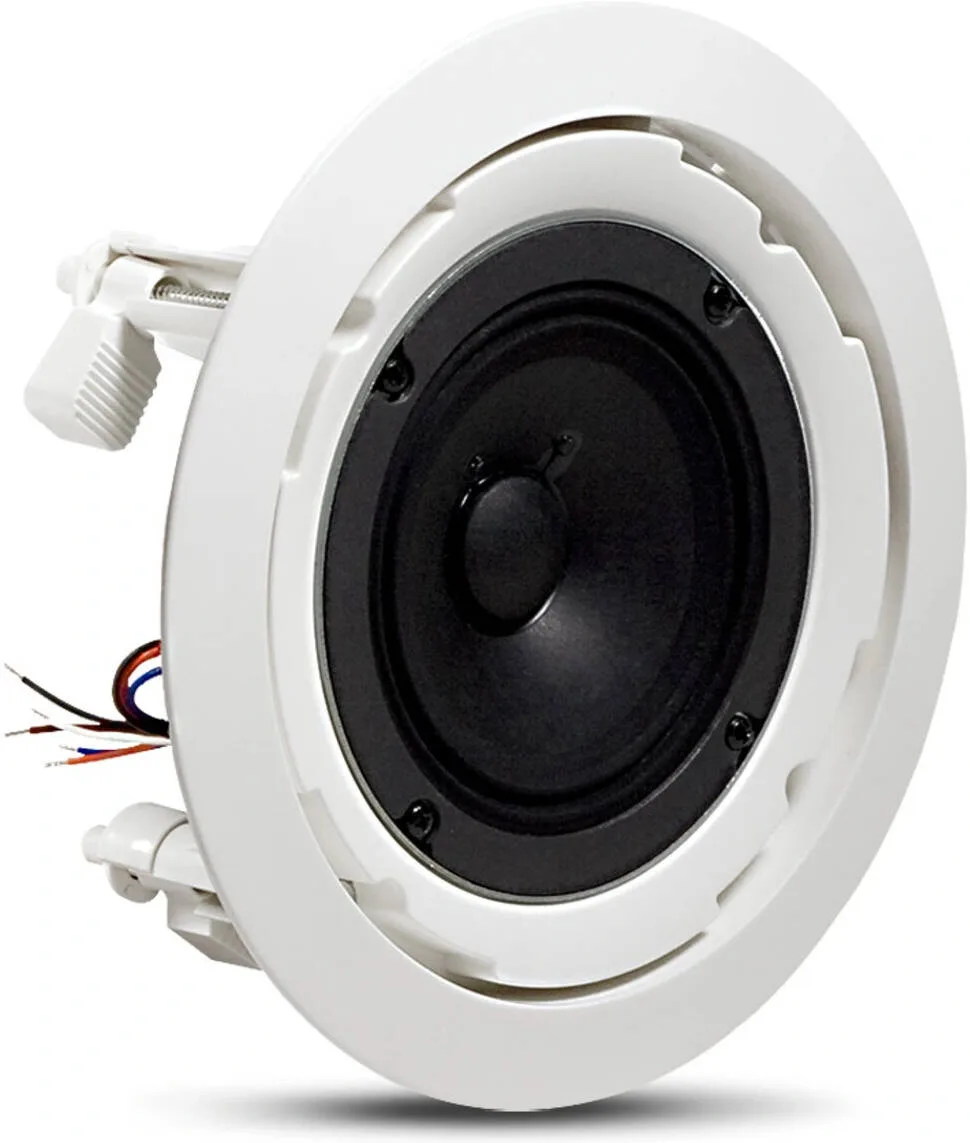

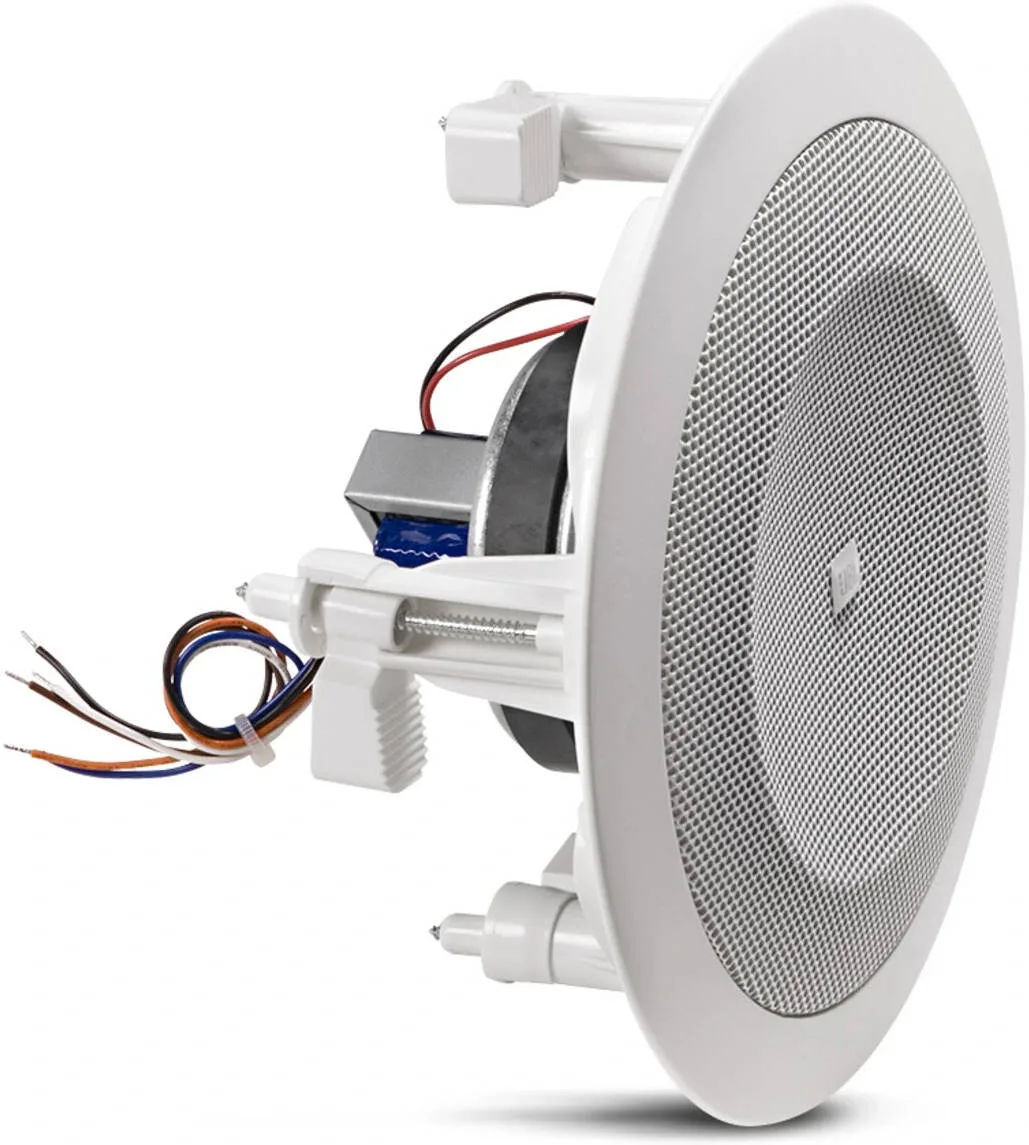

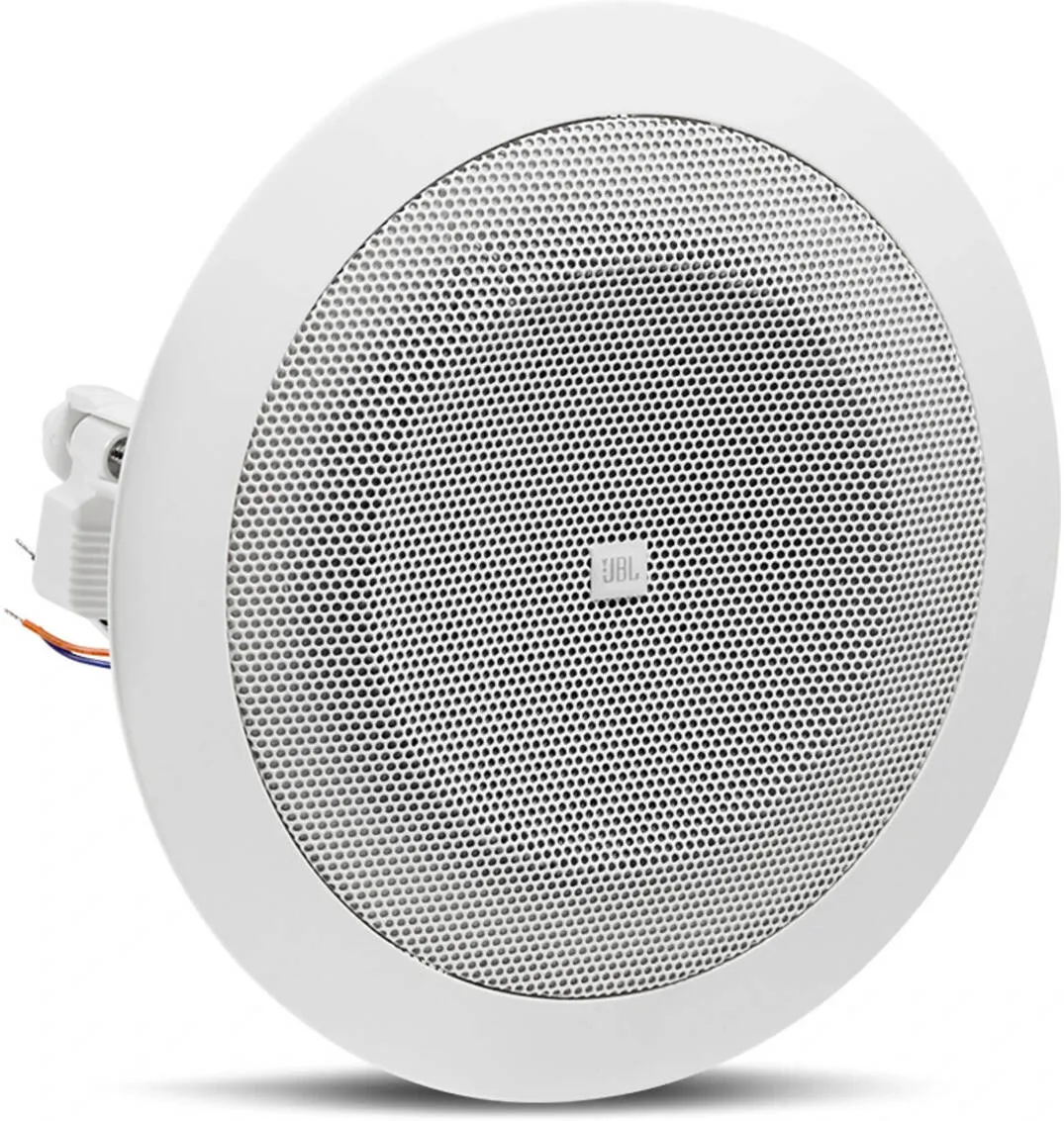

JBL 4" In-Ceiling Loudspeaker, Full-Range Commercial Ceiling Speaker with 60Hz 18kHz Frequency Response, 130° Conical Coverage, 70V/100V Transformer Taps
JBL
- Clear, High-Fidelity Performance
- Dog-ears for easy retrofit installations
- High Sensitivity (93 dB, 1W, 1m) for Maximum Power Efficiency
- 6W Transformer for use of 70V / 100V Distributed Lines
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Mount
- Ceiling
Details
- Shipping Weight
- 1.90 Kg
- Shipping Dimensions
- 12.00 cm x 14.00 cm x 26.00 cm
- Drivers
- 4 in (100 mm) full-range
- Frequency Range
- 60 Hz – 18 kHz
- Sensitivity
- 93 dB (1 kHz – 8 kHz)
- Coverage Angle
- 130° conical
- Transformer Taps
- 6W, 3W, 1.5W (0.75W at 70V only)
- Input Connectors
- Bare wires
- Dimensions (Ø × Depth)
- 8.1 in (206 mm) × 3.5 in (89 mm)
- Weight
- 2.5 lb (1.2 kg)
- Included Accessories
- Sculpted grille
- Optional Accessories
- MTC-8124C C-ring, MTC-Rail tile rails
- Power Rating
- According to transformer taps
- Max SPL (1m)
- 101 dB avg (top 70V/100V tap)
- Color
- White
- Baffle/Rim
- Plastic
- Ceiling Cutout Size
- 175 mm (6.9 in)
- Plenum Usage
- Not for use in return-air plenums
- Backcan
- No
