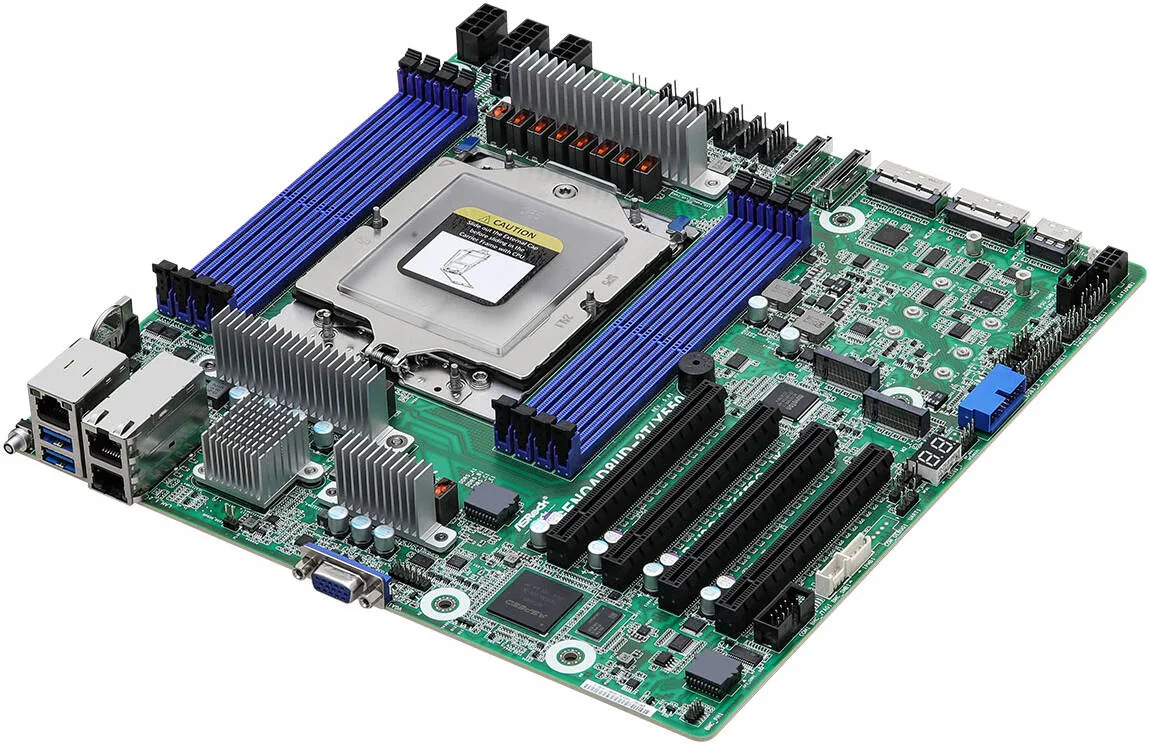

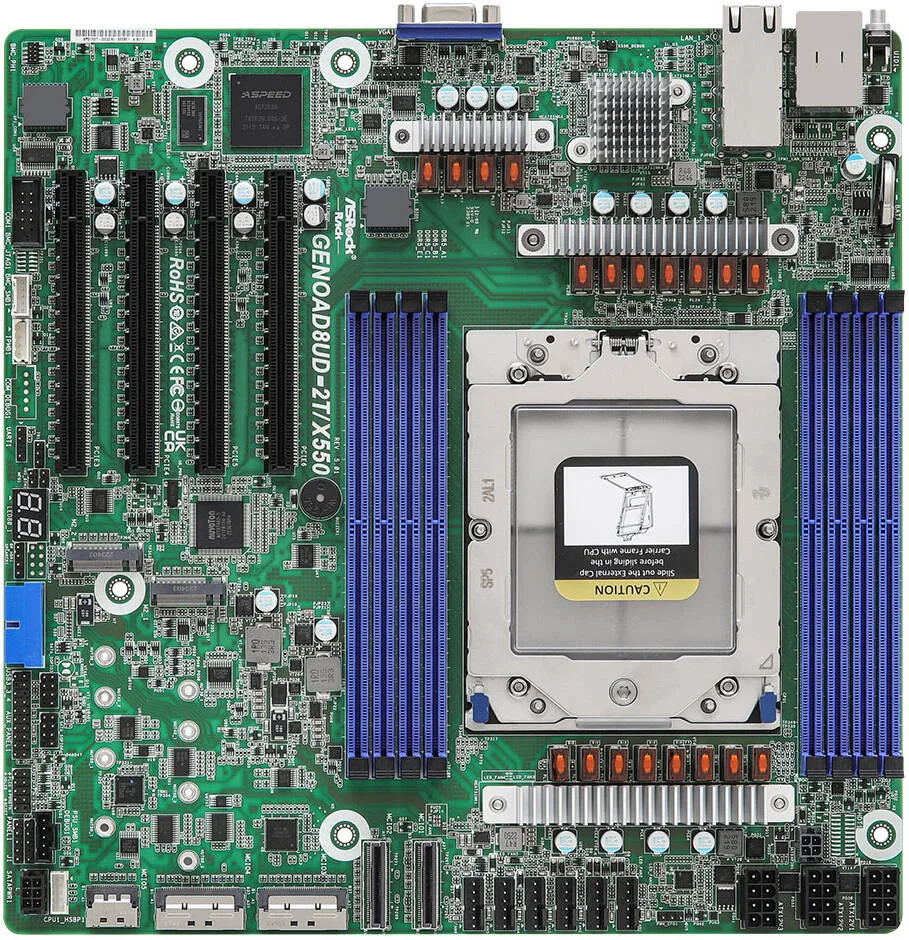

AsRock Rack GENOAD8UD-2T/X550 Deep Micro-ATX Server Motherboard, Single Socket SP5 (LGA 6096),8 x DDR5 DIMM Slots 512GB Max, Dual 10G LAN, PCIe5.0 x4
- Deep Micro-ATX (10.4" x 10.5")
- Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
- 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
- 4 PCIe5.0 / CXL1.1 x16
- 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 2 MCIO (PCIe5.0 x8)
- 1 MCIO (PCIe5.0 x4)
- Supports 2 M.2 (PCIe5.0 x4)
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Socket
- Single Socket SP5 (LGA 6096)
- Chipset
- System on Chip
Details
- Shipping Weight
- 1.60 Kg
- Shipping Dimensions
- 31.50 cm x 35.00 cm x 7.01 cm
- Dimensions
- 10.4" x 10.5"
- CPU
- Supports AMD EPYC™ 9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
- Supported DIMM Quantity
- 8 DIMM slots (1DPC)
- Supported Type
- Supports DDR5 288-pin RDIMM, RDIMM-3DS
- Max. Capacity per DIMM
- RDIMM: 96GB (2R)RDIMM-3DS: 512GB (2S8Rx4)
- Max. DIMM Frequency
- 4800 MHz
- Voltage
- 1.1 V
- PCIe x 16
- SLOT6: PCIe5.0 / CXL1.1 x16SLOT5: PCIe5.0 / CXL1.1 x16SLOT4: PCIe5.0 / CXL1.1 x16SLOT3: PCIe5.0 / CXL1.1 x16
- M.2 slot
- 2 M-key (PCIe5.0 x4); support 2280/2260/2242/2230 form factor
- Others
- 2 MCIO (PCIe5.0 x8)2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s)1 MCIO (PCIe5.0 x4)
- PCH Built-in Storage
- AMD EPYC™ 9004 (16 SATA 6Gb/s):2 MCIO
- Additional GbE Controller
- Intel® X550-AT2: 2 RJ45 (10GbE)
- BMC Controller
- ASPEED AST2600
- IPMI Dedicated GLAN
- 1 Realtek RTL8211F for dedicated management GLAN
- Controller
- ASPEED AST2600
- VRAM
- DDR4 512MB
- UID Button/LED
- 1 UID button w/ LED

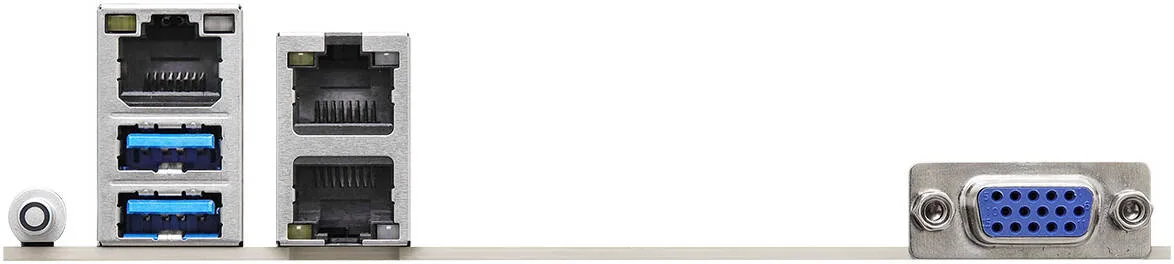

- VGA Port
- 1 DB15 (VGA)
- USB 3.2 Gen1 Port
- 2 Type-A (USB3.2 Gen1)
- RJ45
- 2 RJ45 (10GbE)1 dedicated IPMI
- Power Connector
- 1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 3 (8-pin, ATX 12V) support 12V DC-in
- Other Power Connectors
- 1 (6-pin) for HDD power
- Auxiliary Panel Header
- 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
- System Panel
- 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
- COM Header
- 1
- Speaker Header
- 1 (4-pin)
- Fan Header
- 6 (6-pin)
- Thermal Sensor Header
- 1
- TPM Header
- 1 (13-pin, SPI)
- SGPIO Header
- 2
- HSBP
- 1
- SMBus header
- 1
- PMBus header
- 1
- IPMB Header
- 1
- Clear CMOS
- 1 (contact pads)
- USB 3.2 (Gen1) Header
- 1 (19-pin, 2 USB3.2 Gen1)
- NMI Header
- 1
- Standby PWR LED 5vsb
- 1 (5VSB)
- Fan Fail LED
- 6
- BMC heartbeat LED
- 1
- BIOS Type
- AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
- BIOS Features
- ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP)
- Temperature
- CPU, MB, TR1 Temperature sensing
- Fan
- CPU/Rear/Front Fan TachometerCPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)CPU/Rear/Front Fan Multi-Speed Control
- OS
- Microsoft® Windows:- Server 2019 (64bit)- Server 2022 (64 bit)Linux:- RedHat Enterprise Linux Server 8.6 (64bit) / Server 8.7 (64bit) / Server 9.0 (64bit) / Server 9.1 (64bit)- SUSE SLES 15.4(64 bit)- UBuntu 20.04.5 (64 bit) / 22.04 (64 bit) / 22.10 (64 bit)Hypervisor::- VMWare® ESXi/ 7.0 U3i / 8.0- CITRIX Hypervisor 8.2.1
- Humidity
- Non operation humidity: 20% ~ 90% ( Non condensing)
5.02 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Harry R. Used for: More than a year
Pros
SP5 in a small chassis with proper IPMI as standard
Cons
Headers expect server fans, so quiet ones run flat out
Comment
IPMI works properly out of the box. Be warned that the headers want PWM server fans or everything screams. Two years in, no other complaints
Leo K. Used for: 1–3 months
Comment
An EPYC socket on a micro ATX board, which is exactly why I bought it!
