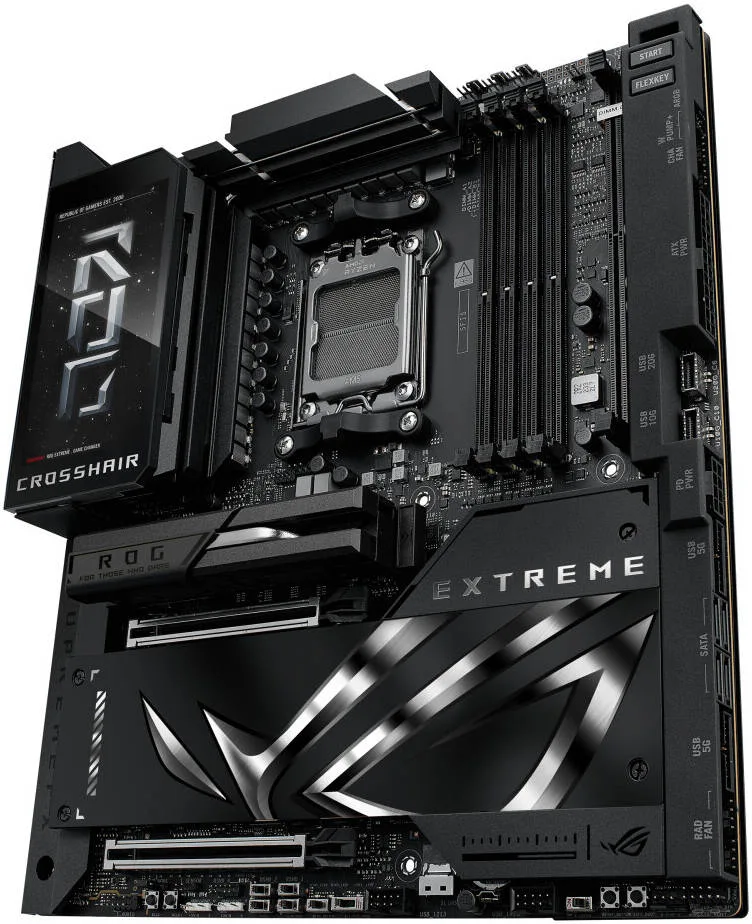

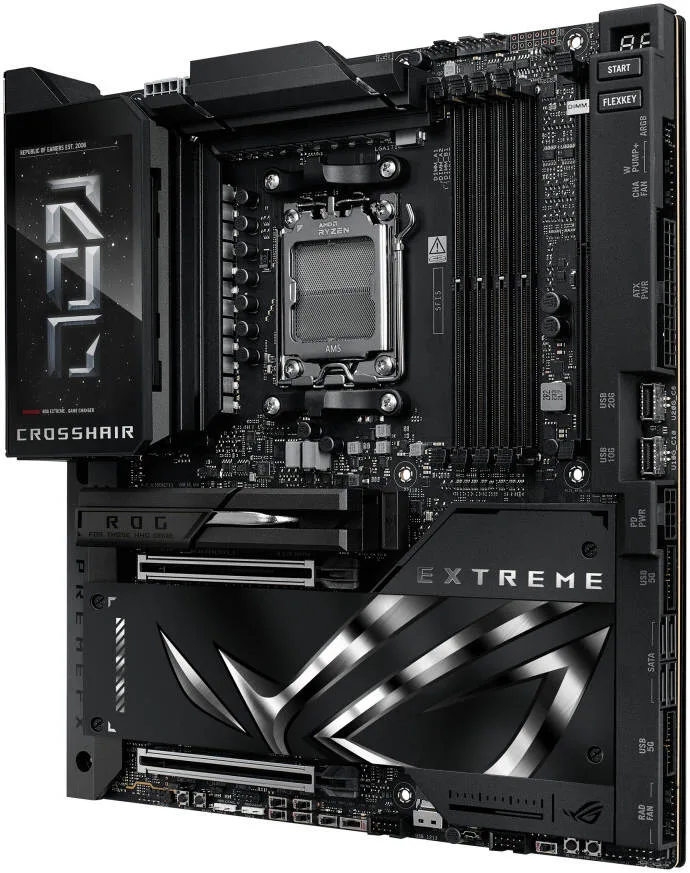

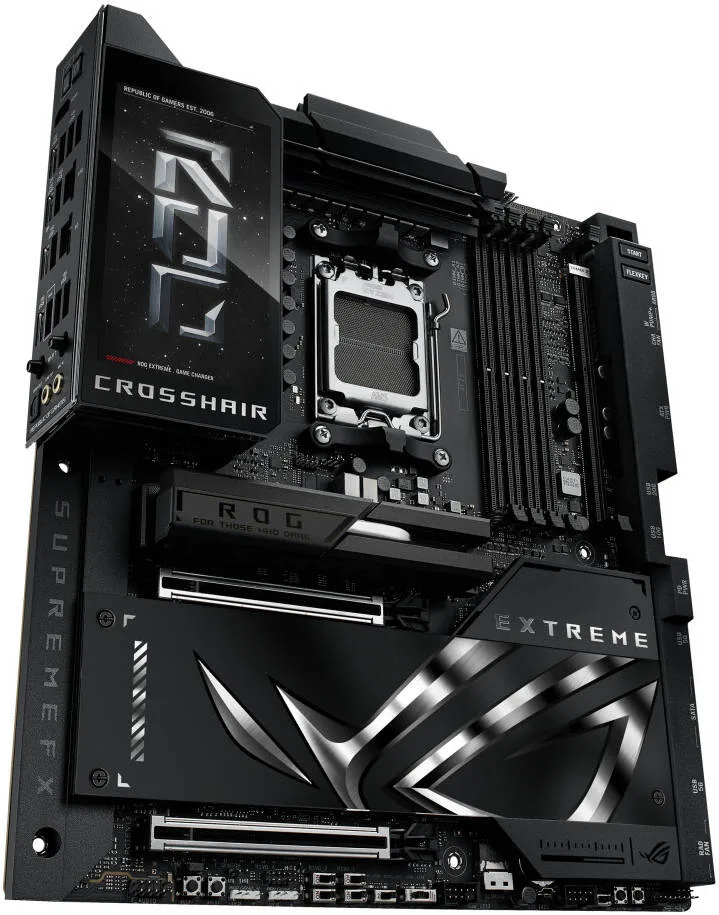

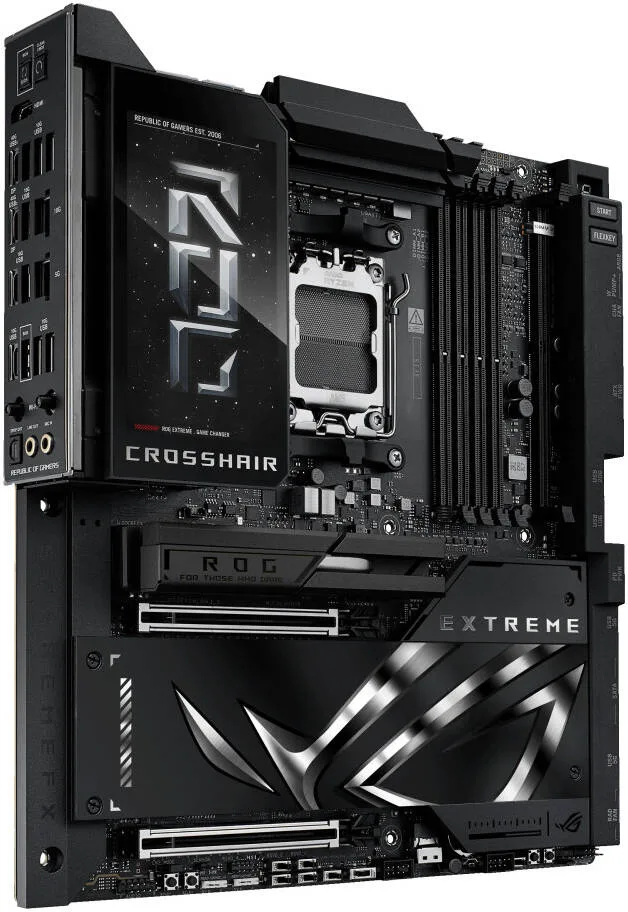

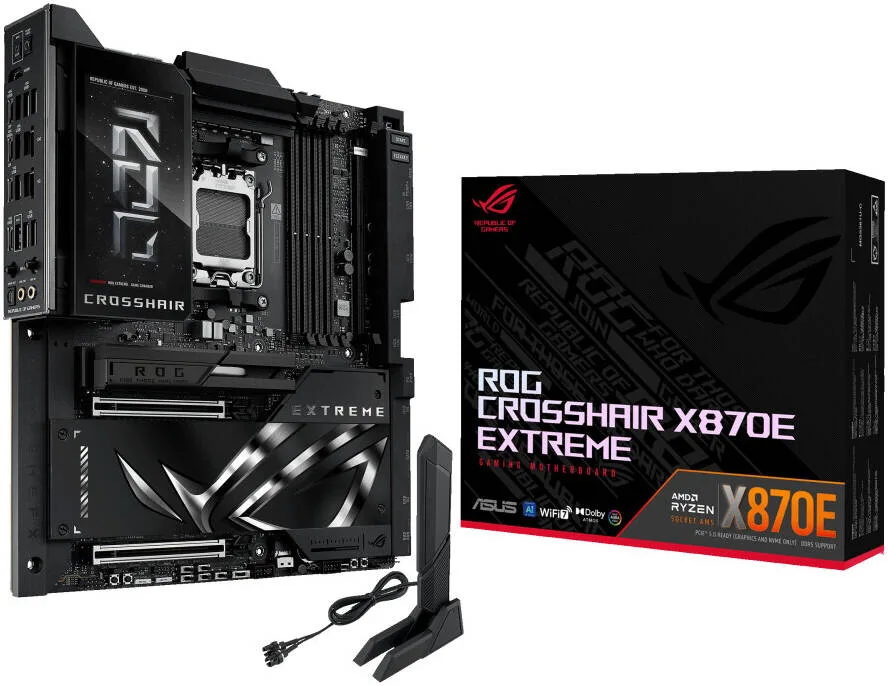

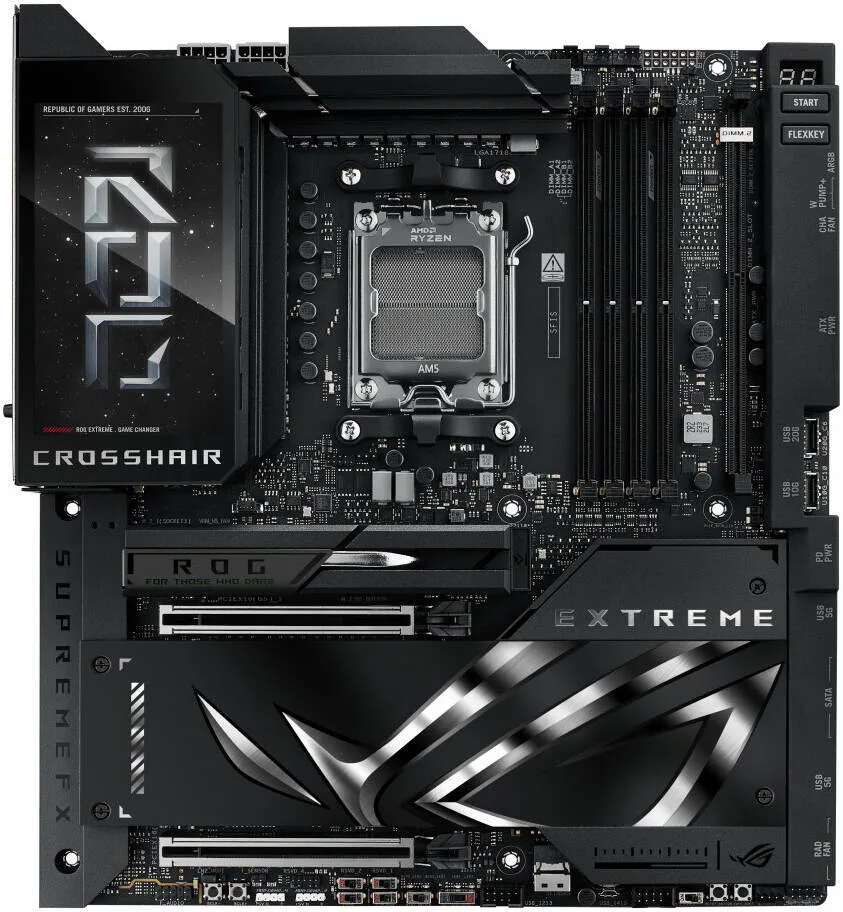

ASUS ROG Crosshair X870E Extreme AM5 E-ATX Motherboard, AMD X870E Chipset, 4x DDR5 DIMM Slots, 256GB Max Memory, x2 PCIe 5.0 x16 slots, 5 x M.2 Slots
- CPU support for AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors with AMD Socket AM5 and AMD X870E chipset.
- Memory: 4 DIMM slots supporting up to 256GB DDR5 with speeds up to 9000+ MT/s (OC) depending on CPU generation, supporting AMD EXPO, ASUS AEMP, and NitroPath DRAM Technology.
- Storage: Up to 5 M.2 slots (3 PCIe 5.0 slots), 1 SlimSAS connector, and 4 SATA 6Gb/s ports.
- USB: Rear has 2 USB4 (40Gbps) Type-C ports and 10 USB 10Gbps ports; front has USB 20Gbps & USB 10Gbps Type-C connectors with Quick Charge 4+ (up to 60W charging).
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Socket
- AM5
- Chipset
- AMD X870E
- Form factor
- E-ATX
- Memory type
- DDR5
- Memory slots
- 4
Details
- Shipping Weight
- 5.30 Kg
- Shipping Dimensions
- 12.50 cm x 38.00 cm x 32.00 cm
- M.2 Slots
- 5
- Maximum Memory
- 256 GB
- PCI Express x16
- 2
- CPU Support
- AMD Socket AM5 for Ryzen™ 9000, 8000, 7000 Series Desktop Processors
- Memory
- 4×DIMM slots, up to 256GB DDR5; Speeds: 8200+MT/s (Ryzen 9000), 9000+MT/s (Ryzen 8000), 8000+MT/s (Ryzen 7000); Supports ECC & Non-ECC; Dual Channel; EXPO™, AEMP, NitroPath
- Graphics
- 1× HDMI 2.1 (4K@60Hz) 2× USB4® Type-C (DisplayPort 1.4a, 4K@60Hz)
- Expansion Slots
- Ryzen 9000/7000: 2× PCIe 5.0 x16 (x16, x8/x8, x8/x4/x4 depending on M.2 use) Ryzen 8700/8600/8400: 2× PCIe 4.0 x16 (x8 only, second slot disabled) Ryzen 8500/8300: 2× PCIe 4.0 x16 (x4 only, second slot disabled)
- Storage
- Up to 5× M.2 + 1× SlimSAS + 4× SATA 6Gb/s Ryzen 9000/7000: M.2_1,2,3 support PCIe 5.0 x4 Ryzen 8000: M.2_1 PCIe 4.0, M.2_2 & M.2_3 not supported DIMM.2 (2 slots) PCIe 4.0 x4 SlimSAS PCIe 4.0 x4 via adapter
- RAID Support
- Ryzen 9000: RAID 0/1/5/10 Ryzen 8000: RAID 0/1 Ryzen 7000: RAID 0/1/10
- Ethernet
- 1× Realtek 5GbE 1× Marvell® AQtion 10GbE ASUS LANGuard
- Wireless & Bluetooth
- Wi-Fi 7 (2×2, 2.4/5/6GHz, up to 6.5Gbps) Bluetooth 5.4
- USB (Rear I/O)
- 2× USB4® 40Gbps (Type-C) 10× USB 10Gbps (8× Type-A, 2× Type-C)
- USB (Front I/O)
- 1× USB 20Gbps Type-C (up to 60W PD/QC4+) 1× USB 10Gbps Type-C 2× USB 5Gbps headers (4 ports) 2× USB 2.0 headers (4 ports)
- Audio
- ROG SupremeFX 7.1 (ALC4082) ESS® ES9219 Quad DAC 120 dB SNR playback, 32-Bit/384kHz support Optical S/PDIF out, LED jacks
- Back Panel I/O
- 2× USB4 Type-C, 10× USB 10Gbps, 1× HDMI, 1× Wi-Fi, 1× 5GbE, 1× 10GbE, 2× audio jacks, 1× Optical S/PDIF, BIOS FlashBack™, Clear CMOS
- Internal I/O
- CPU/Chassis/Radiator fan headers, W_PUMP, VRM Fan, 24-pin ATX, 2× 8-pin CPU power, 8-pin PCIe power, 3× onboard M.2, 1× DIMM.2 (2× M.2), SlimSAS, 4× SATA, USB headers, ARGB headers, Debug buttons/switches
- Special Features
- Extreme OC Kit (LN2, Safe Boot, ReTry, Slow Mode, ProbeIt, FlexKey, Start button) ASUS Q-Design (Q-Latch, Q-Release, Q-Slide, Q-Antenna, Q-Code, Q-LED, Q-DIMM.2) ASUS Thermal Solution (M.2 & VRM heatsinks, metal backplate, 3D VC M.2 Heatsink) Dual BIOS Full Color 5" LCD
- Software Features
- ROG CPU-Z, Dolby Atmos, Armoury Crate, Fan Xpert 4, Aura Sync/Creator, AI Cooling II, GameFirst, AIDA64 (1yr), Internet Security (1yr), BIOS utilities
- BIOS
- Dual 256Mb UEFI AMI
- Manageability
- WOL by PME
- Accessories
- Wi-Fi Q-Antenna, Q-Connector, ROG DIMM.2 w/ Heatsink, Fan Kit, ARGB splitters, Fan splitters, SATA cables, Thermistor cables, ROG stickers, screwdriver, logo plate, bottle opener, USB drive (drivers), Quick Start Guide
- Operating System
- Windows 11
4.73 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Rosie G. Used for: Less than a month
Cons
The bundled fan extension card is another thing to find room for
Comment
Superb board, but the fan hub card has nowhere obvious to mount in my case and it came with no adhesive pads.
Charlie P. Used for: Less than a month
Pros
Every part of the build was easier than it should have been
Cons
It costs as much as a decent graphics card
Comment
This is my first build in a long time and I deliberately overspent on the board to make the rest easy, which turned out to be the right decision. The Q-Release button pops the graphics card out with one press. The M.2 drives clip in with no screws and the heatsinks come off with a latch. The front panel connector is one block. The BIOS flashback button meant the firmware was current before the processor came out of its packaging. Every one of those took a job that used to be fiddly and made it trivial. Electrically it has been perfect from the first boot, 6400 memory profile enabled, both drives detected, network up before Windows finished. Only the first few weeks so far, but nothing has wobbled. The only argument against it is money, and there is no getting round that.
Jack P. Used for: 6–12 months
Pros
Two USB4 ports, 10G LAN and the tidiest layout ASUS has done
Cons
Armoury Crate, again
Comment
Built around a 9950X3D for work that is half rendering and half gaming, and this has been the board that stopped me thinking about the platform. Memory training with 96GB took one attempt and has been instant on every cold boot since. The 10G port feeds a NAS at full speed, both USB4 ports drive displays and an enclosure at the same time, and the VRM has not been above 50 no matter what I run. That is most of a year now with no change in any of it. The software is still the weak point. Armoury Crate wants to own the machine, so I set the fan curves and the lighting in the firmware and left it off entirely.
