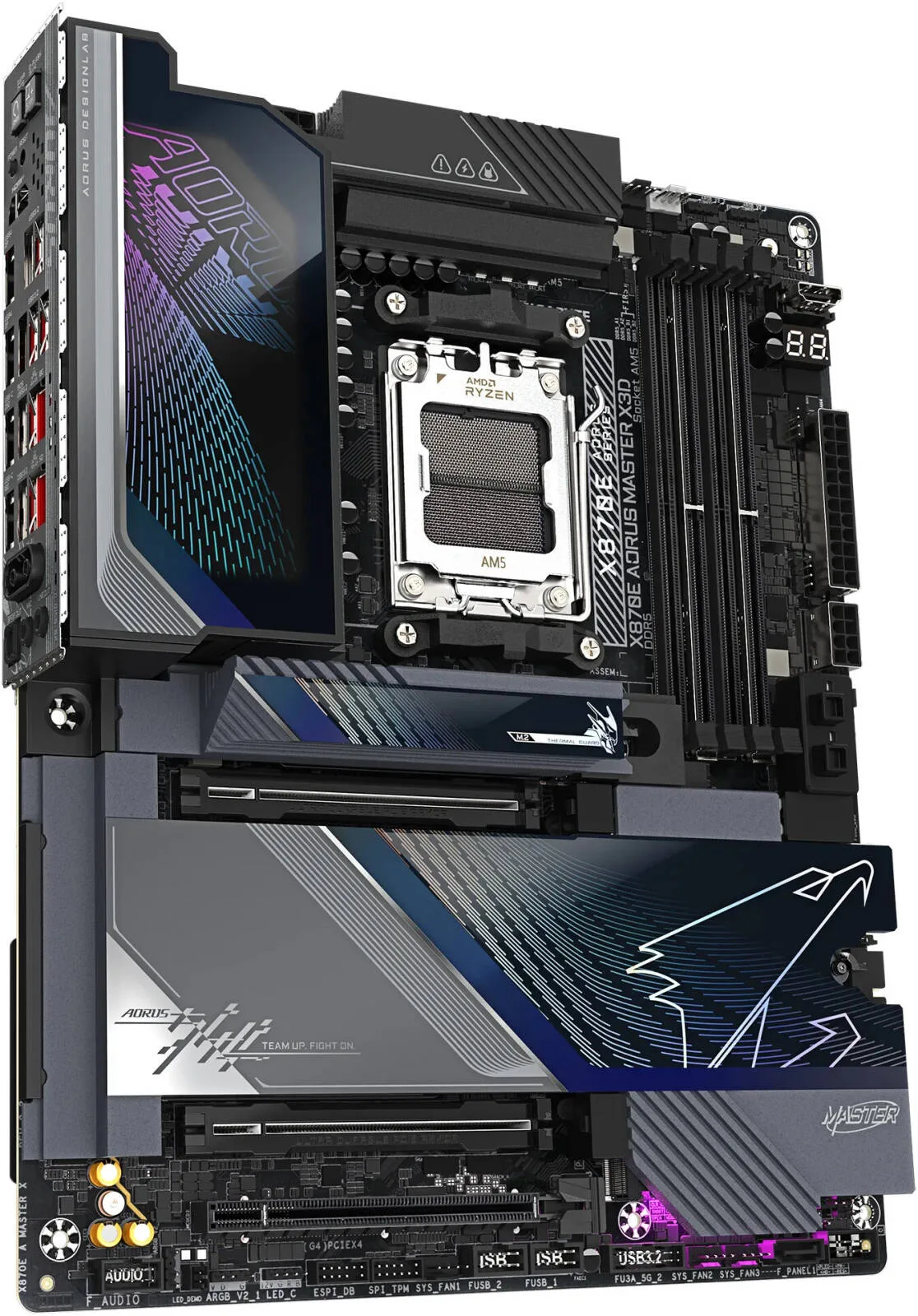

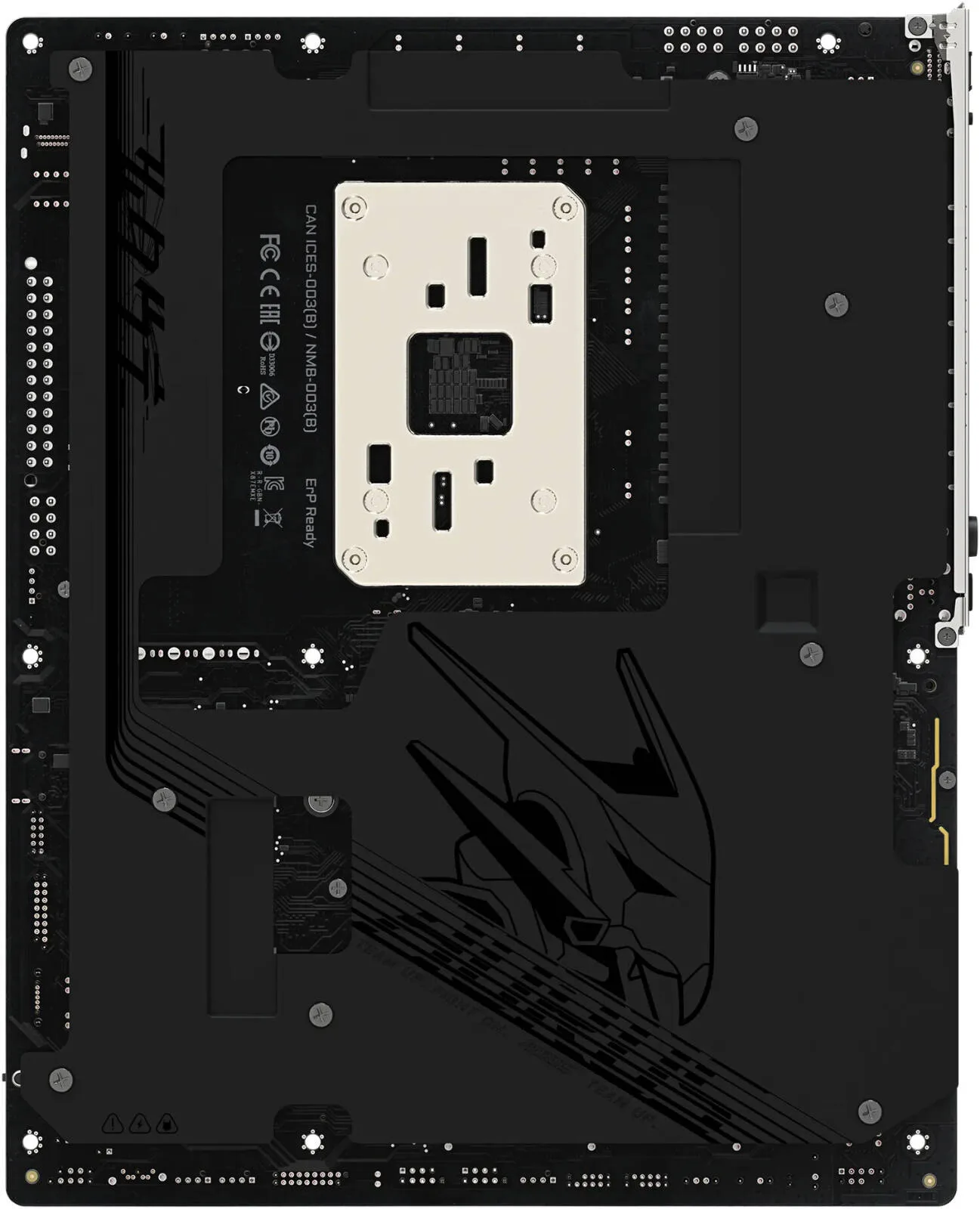

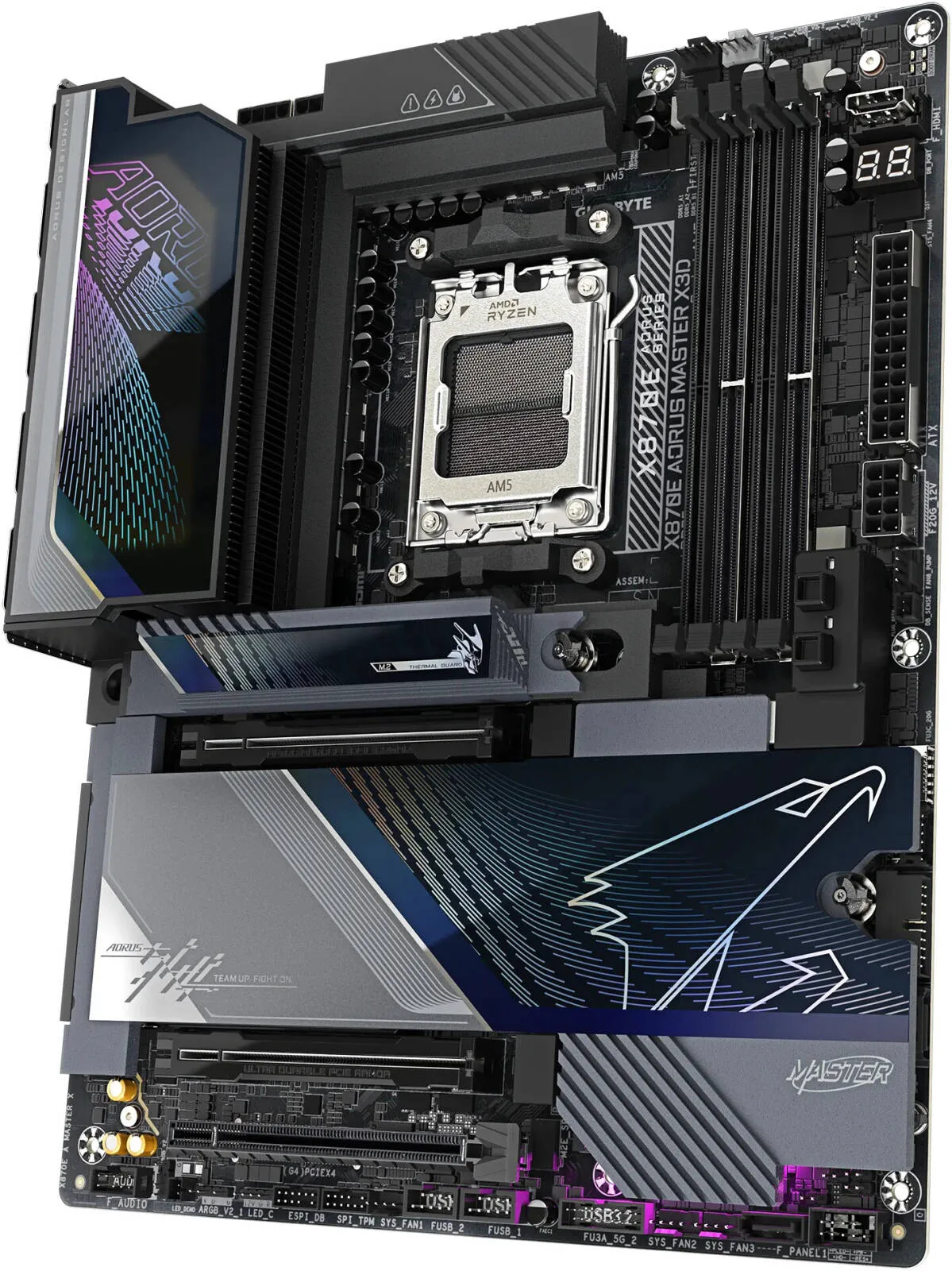

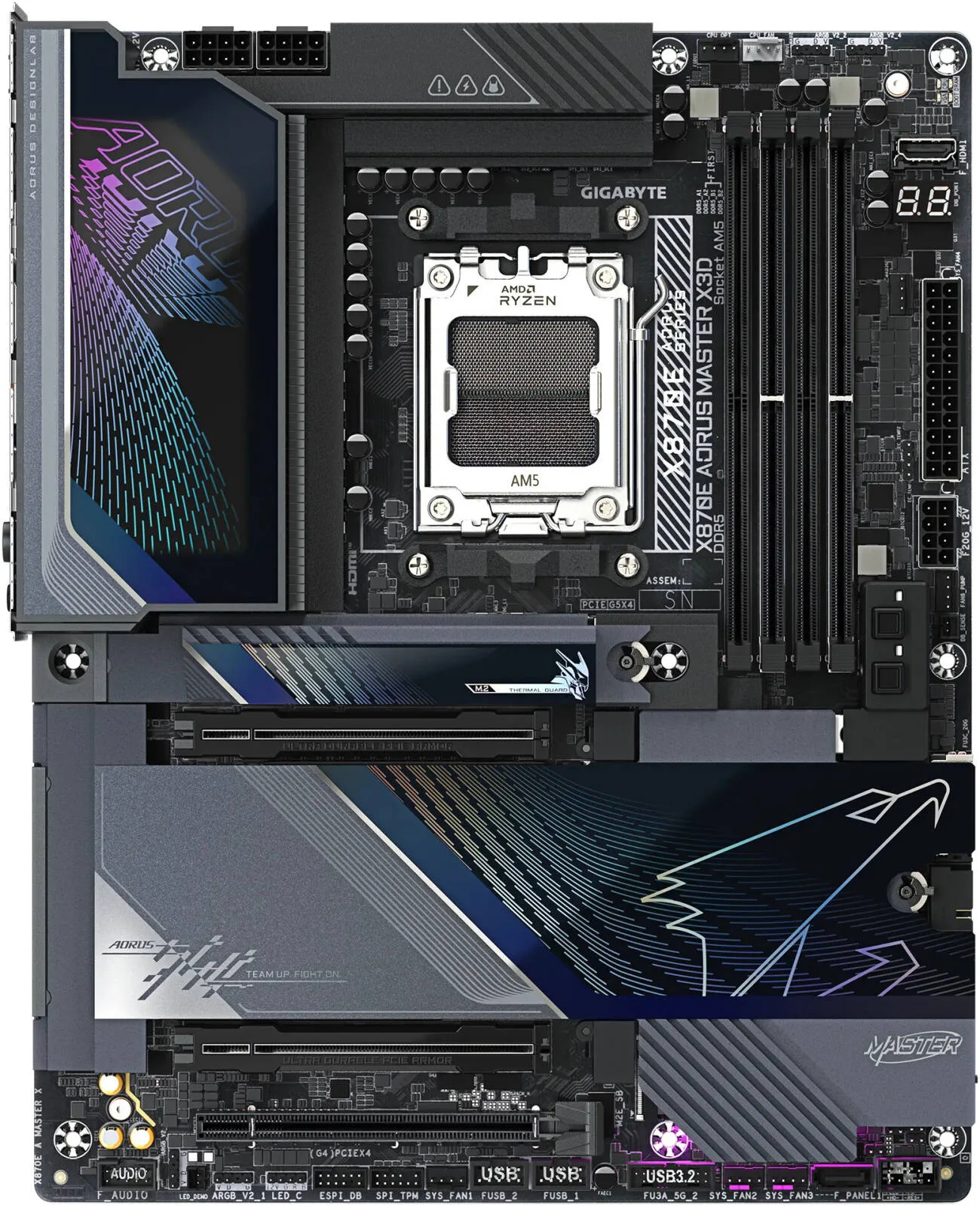

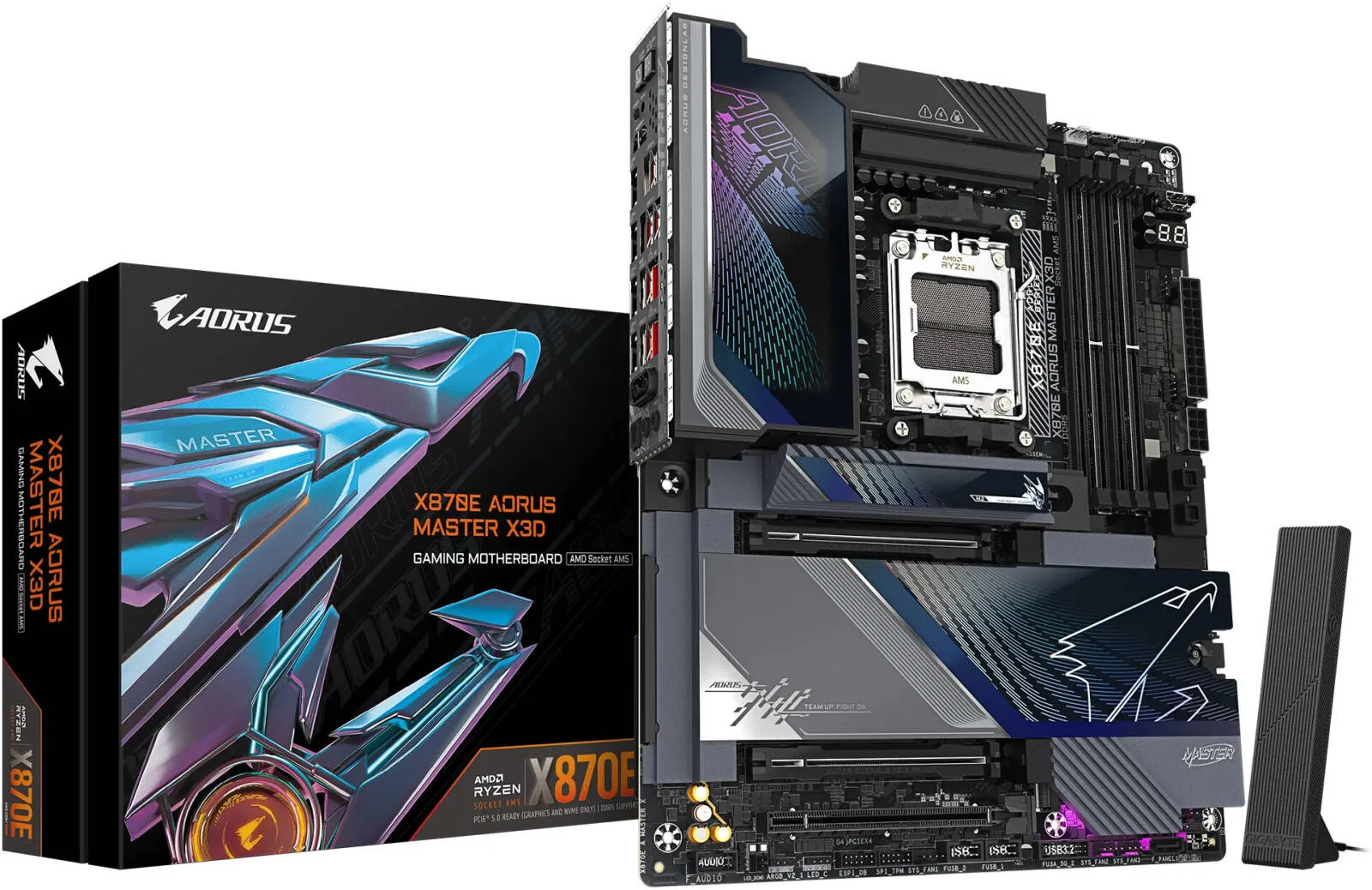

GIGABYTE X870E Aorus Master X3D AM5 AMD Motherboard, AMD X870E Chipset, 4x DDR5 DIMM Slots, Up ro 256GB Max Memory, 1x PCI Express x16 Slot, 5 x M.2 Slots, Black
- X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
- DDR5 OC up to 9000MT/s
- DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 18+2+2 phases VRM solution
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Socket
- AM5
- Chipset
- AMD X870E
- Form factor
- ATX
- Memory type
- DDR5
- Memory slots
- 4
Details
- Shipping Weight
- 1.50 Kg
- Shipping Dimensions
- 27.00 cm x 27.00 cm x 7.00 cm
- M.2 Slots
- 5
- Maximum Memory
- 256 GB
- PCI Express x16
- 1
- CPU Socket
- AMD Socket AM5
- CPU Support
- AMD Ryzen™ 9000 / 8000 / 7000 Series
- Memory Speed
- Up to 9000 MT/s (O.C.)
- Max Memory Capacity
- 256 GB (64 GB per DIMM)
- Memory Architecture
- Dual Channel
- Memory Support
- Non-ECC Unbuffered, AMD EXPO™, XMP
- Onboard Graphics (USB4)
- 2 × USB4 Type-C (DP 1.4, HDR, up to 3840×2160@240Hz)
- Onboard Graphics (HDMI Rear)
- 1 × HDMI 2.1, up to 4096×2160@60Hz
- Onboard Graphics (HDMI Front)
- 1 × HDMI 1.4, up to 1920×1080@30Hz
- Audio Codec
- Realtek® ALC1220 + ESS ES9118 DAC
- Audio Features
- DTS:X® Ultra, Hi-Res, S/PDIF Out
- Audio Channels
- 2 / 4 / 5.1
- LAN (LAN1)
- Realtek® 5GbE
- LAN (LAN2)
- Realtek® 10GbE
- Wi-Fi Module
- MediaTek Wi-Fi 7 MT7927 (RZ738)
- Wi-Fi Standards
- 802.11 a/b/g/n/ac/ax/be (2.4/5/6 GHz)
- Bluetooth
- Bluetooth® 5.4
- Primary PCIe Slot
- 1 × PCIe x16 (PCIe 5.0 / 4.0 depending on CPU)
- Secondary PCIe Slot
- 1 × PCIe x16 (x8 mode)
- Chipset PCIe Slot
- 1 × PCIe 4.0 x4
- M.2 Slots (CPU)
- 2 × PCIe 5.0 / 4.0
- M.2 Slots (Chipset)
- 3 × PCIe 4.0
- SATA Ports
- 2 × SATA 6 Gb/s
- RAID (NVMe)
- RAID 0/1/5/10 (RAID 5 Ryzen 9000 only)
- RAID (SATA)
- RAID 0 / 1
- USB4 Ports
- 2 × USB4 Type-C (rear)
- USB 3.2 Gen 2 Type-A
- 7 × rear
- USB Type-C (Gen 2x2)
- Rear + Internal (65W PD support)
- USB Headers (Internal)
- USB 3.2 Gen 1 ×2, USB 2.0 ×2
- Power Connectors
- 24-pin ATX, 2 × 8-pin CPU, PCIe power
- Fan Headers
- CPU, CPU Pump, 6 × System fan
- RGB Headers
- 4 × ARGB Gen2, 1 × RGB
- Internal Headers
- TPM, Noise detection, Temp sensors, Front panel
- Back Panel Buttons
- Power, Reset, Clear CMOS, Q-Flash Plus

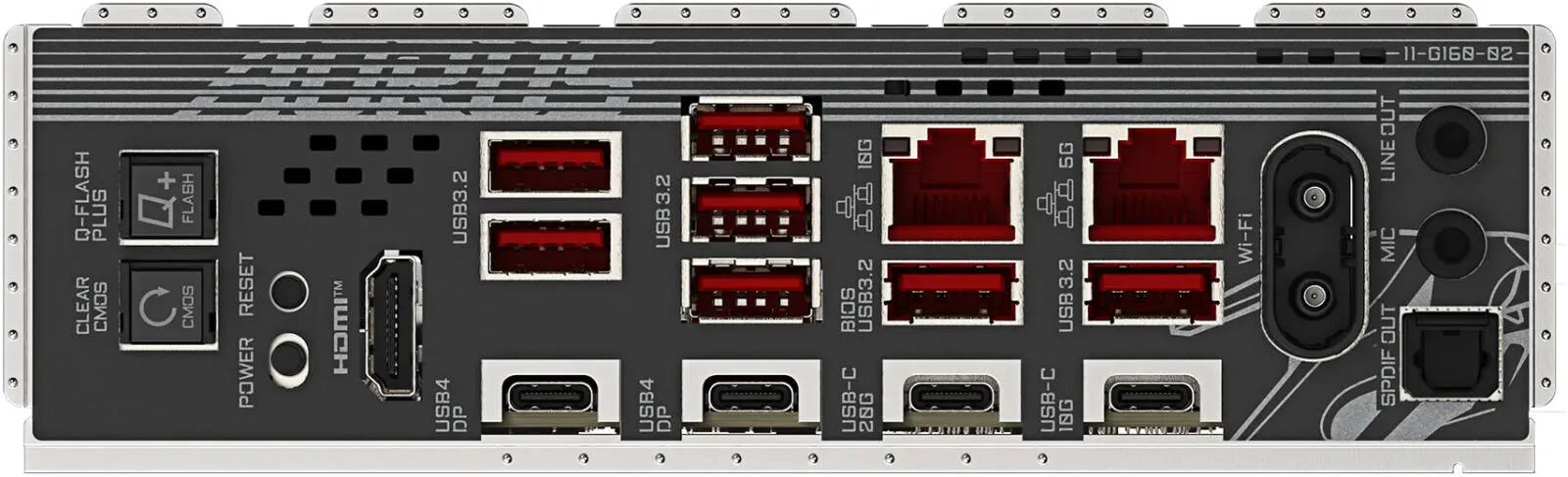

- Back Panel Ports
- HDMI, USB4 ×2, USB-C ×2, USB-A ×7
- Ethernet Ports
- 2 × RJ-45
- Audio Ports
- 2 × Audio jacks + Optical S/PDIF
- I/O Controller
- iTE® I/O Controller
- Hardware Monitoring
- Voltage, Temp, Fan, Flow, Noise
- BIOS
- AMI UEFI, 512 Mbit flash
- BIOS Features
- Q-Flash, Q-Flash Plus, Smart Backup
- Bundled Software
- Norton® Internet Security (OEM)
- Operating System
- Windows 11 64-bit
- Dimensions
- 30.5 × 24.4 cm
4.79 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Daisy B. Used for: 6–12 months
Pros
Wi-Fi 7 and the wired port have both been faultless
Comment
Networking has been the standout, which is not something I usually say about a motherboard. Wi-Fi 7 gives me around 1.5Gbps two rooms away and has never dropped a session, and the wired port has been invisible in the good sense. Four stars only because the audio, while fine, is a step behind what ASUS put on boards at this price.
Alfie G. Used for: 1–3 months
Comment
Good board but mine needed a BIOS update before it would see the CPU
Louie S. Used for: 1–3 months
Cons
Manual could explain the M.2 lane sharing far better
Comment
Brilliant board, shame about the vague manual
Ivy N. Used for: More than a year
Pros
Sensible price for a board that does everything
Comment
The one to buy unless you need a second network port!
George H. Used for: 1–3 months
Pros
The debug readout and onboard buttons saved a bad evening
Cons
Rear IO shroud makes the top M.2 fiddly
Comment
First press of the power button gave me nothing at all except a debug code sitting on memory, which turned out to be a stick that had not clicked fully into the far slot. Ten seconds of diagnosis instead of an hour of swapping parts. Since then it has been perfect. EXPO at 6000, four drives, and a 9800X3D that never pushes the VRM past the mid forties. Only awkward moment in the build was the top M.2, which sits tight against the IO shroud, so do that drive first.
Charlie M. Used for: Less than a month
Comment
Dropped a 9950X3D onto this and enabled the X3D Turbo profile, and the difference in the games that care about cache is obvious without touching anything else. Four M.2 slots, all tool free, and the top one is not buried under the graphics card for once. Straightforward build, no surprises anywhere, though the paper manual is thin
Arthur H. Used for: 1–3 months
Pros
Everything the XTREME has that you would actually notice, for a lot less
Comment
Spent ages comparing this against the XTREME and could not find a difference that would show up in my daily use, so the money went on memory instead. What you get here is the same VRM class, the same tool free storage, Wi-Fi 7 and the debug readout. What you give up is the second network port and some of the rear USB count, neither of which I have missed once. In use it has been exemplary, and that is seven weeks in. Memory at 6400 with EXPO on the first attempt, VRM in the low forties with a 9950X3D under a long render, all four drives cool under sustained writes, and not one failed post from cold. If you are staring at the price gap between the two, save your money.
Millie H. Used for: 6–12 months
Cons
Lighting software is the usual bloated nonsense
Comment
Board is excellent, the RGB utility is not. Set a static colour in the firmware and forget the app exists
Amelia A. Used for: 6–12 months
Pros
Tool free M.2 heatsinks and drive retention
Cons
Only one USB-C on the rear panel
Comment
Changing a drive means popping two latches, no screwdriver and no dropped screws. Rear panel could do with a second type C port, since the front header takes the only other one.
