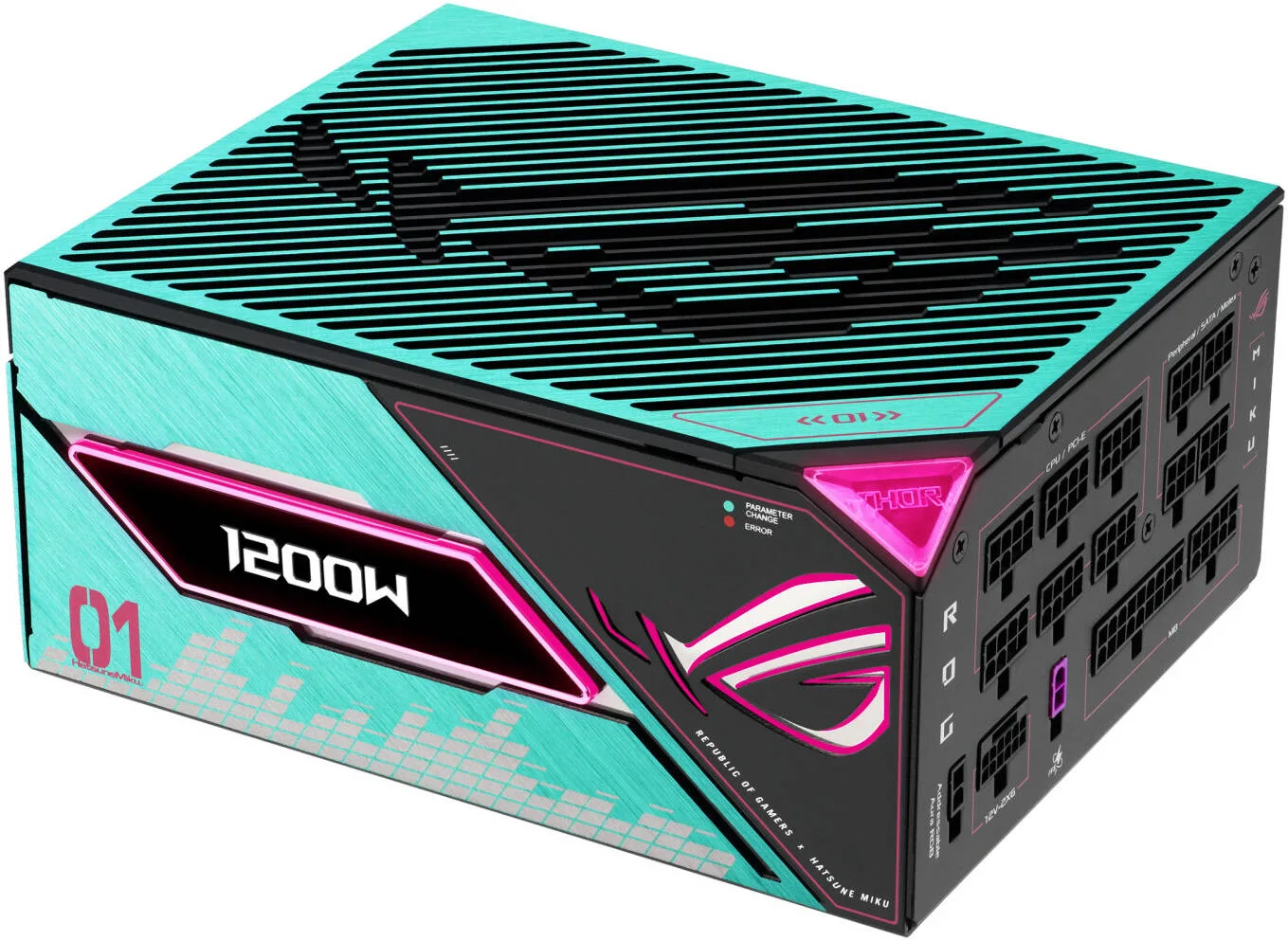

ASUS ROG Thor 1200W Platinum III Hatsune Miku Edition Power Supply, 80 PLUS Platinum Efficiency, Active PFC, ATX 3.1 Standard, Cybenetics Lambda A++ Certification
- Co-branded edition combines unbeatable ROG performance and sci-fi-inspired aesthetics with the signature blue-green and pink Hatsune Miku color scheme
- GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation.
- "GPU-First" voltage sensing with patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance.
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- Multicolor
- Power
- 1200 W
- Modular
- Full Modular
- Efficiency
- 80 Plus Platinum
- Form factor
- ATX
Details
- Shipping Weight
- 5.10 Kg
- Shipping Dimensions
- 13.00 cm x 38.50 cm x 24.50 cm
- PFC
- Active
- Fanless
- No
- Length
- 190 mm

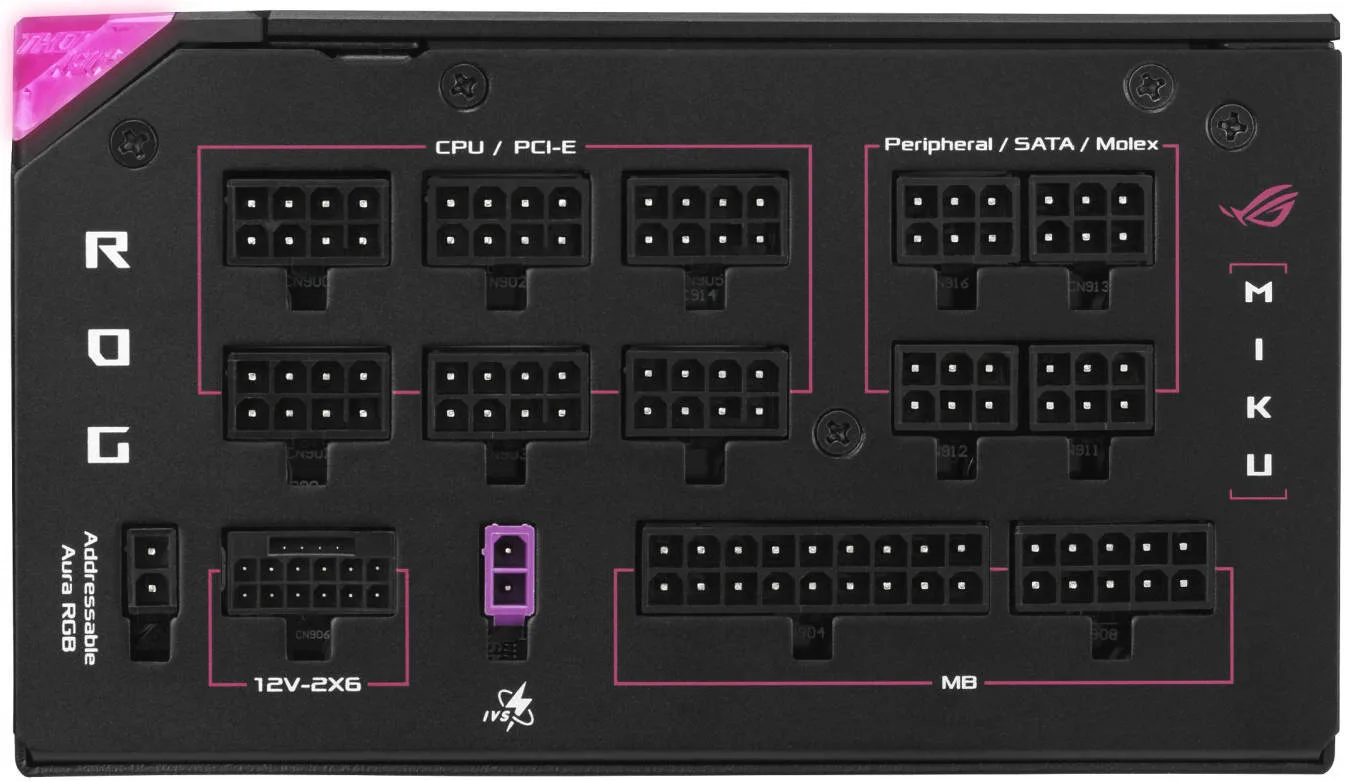

- Main Connectors
- 1 x 24 pin (20+4) ATX
- EPS/CPU Connectors
- 2 x 8 pin (4+4) EPS (CPU)
- SATA Power Connectors
- 7
- Molex Connectors
- 6
- PCIe 6-Pin Connectors
- 0
- PCIe 6+2-Pin Connectors
- 4
- PCIe 8-Pin Connectors
- 0
- PCIe 12-Pin Connectors
- 0
- PCIe 12+4-Pin 12VHPWR Connectors
- 4
- Intel Form Factor
- ATX12V
- PFC Type
- Active PFC
- ATX Standard
- ATX 3.1
- Dimensions
- 190 × 150 × 86 mm
- MTBF
- >120000 hrs @ 25°C
- Protection Features
- OPP, OVP, UVP, SCP, OCP, OTP
- Hazardous Materials
- ROHS
- AC Input Range
- 100–240Vac
- DC Output Voltage
- +3.3V, +5V, +12V, –12V, +5Vsb
- Maximum Load
- 30A / 25A / 100A / 0.3A / 3A
- Combined Load
- 125W / 125W / 1200W / 3.6W / 15W
- Total Output
- 1200 W
- Cable – MB
- 24/20-pin × 1
- Cable – CPU
- 4+4-pin × 2
- Cable – PCI-E 16-pin
- 1
- Cable – PCI-E 6+2-pin
- 4
- Cable – SATA
- 7
- Cable – Peripheral
- 6
- Package – Power Cord
- 1
- Package – Motherboard Cable
- 610 mm
- Package – CPU Cables
- 2 × 1000 mm
- Package – PCI-E Gen 5 16-pin
- 750 mm
- Package – PCI-E 1-to-1
- 4 × 750 mm
- Package – SATA 1-to-4
- 400+120+120+120 mm
- Package – SATA 1-to-3
- 400+120+120 mm
- Package – Peripheral 1-to-3
- 2 × (400+150+150 mm)
- Addressable RGB Cable
- 800 mm
- ROG Sticker
- Included
- ROG Cable Ties
- 6
- Chassis Screws Package
- Included
- Cable Ties
- 12
- Thank You Card
- Included
- User Manual
- Included
- Weight
- 2.37 kg
- AURA SYNC
- ARGB
- Cybenetics Noise Certification
- A++
- 0dB Technology
- Fan stops under certain load
- 0dB Fan Button
- Yes (ON = semi-fanless, OFF = fan always spins)
4.73 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Freddie H. Used for: 1–3 months
Cons
You only get the artwork if your case actually shows the supply
Comment
The supply itself is the same Thor 1200 everyone already knows, so the only real question is whether the Miku dress is worth the premium over the black one, and that depends entirely on how visible your PSU is. Mine sits behind a shroud with a small window, so I see maybe a third of it. The OLED animation is lovely and the teal accents look excellent against a white build. If your case has a solid shroud, save the money. The practical gripe is the same as the black version: it is 190mm long and the cables are stiff. In a mid tower with a bottom chamber you will be fighting the 24 pin. Electrically it has been silent and steady, no whine, fan off at anything under a heavy game. Two months on, the display is as crisp as it was in the box.
Jack O. Used for: More than a year
Cons
The novelty wears off before the warranty does
Comment
Still the centrepiece of the build and the OLED has not burned in at all, which was my one worry. Twelve hundred watts is more than a 4080 build needs, but headroom is never wasted.
Maya S. Used for: 3–6 months
Pros
The animated display is properly well done
Cons
Priced as a collectable
Comment
Bought for my daughter's build and the reaction when she opened the box made the extra worth it. Runs a 4070 Ti Super without ever making a sound!
