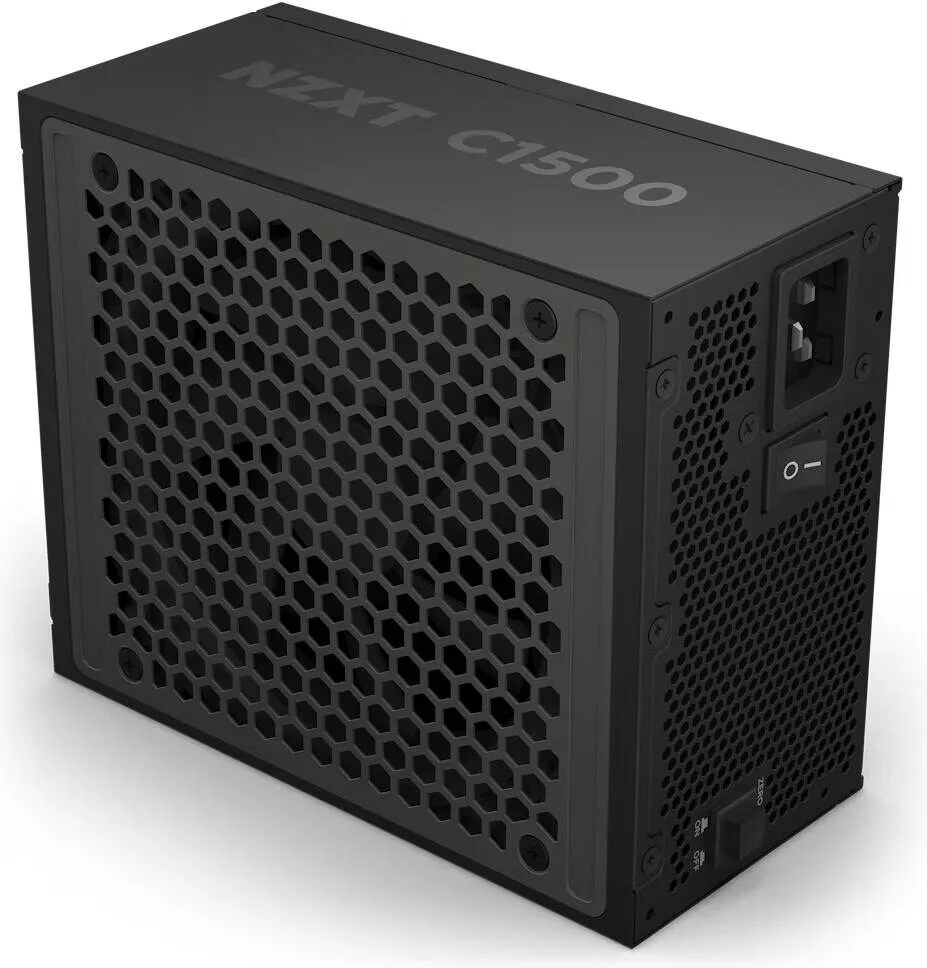

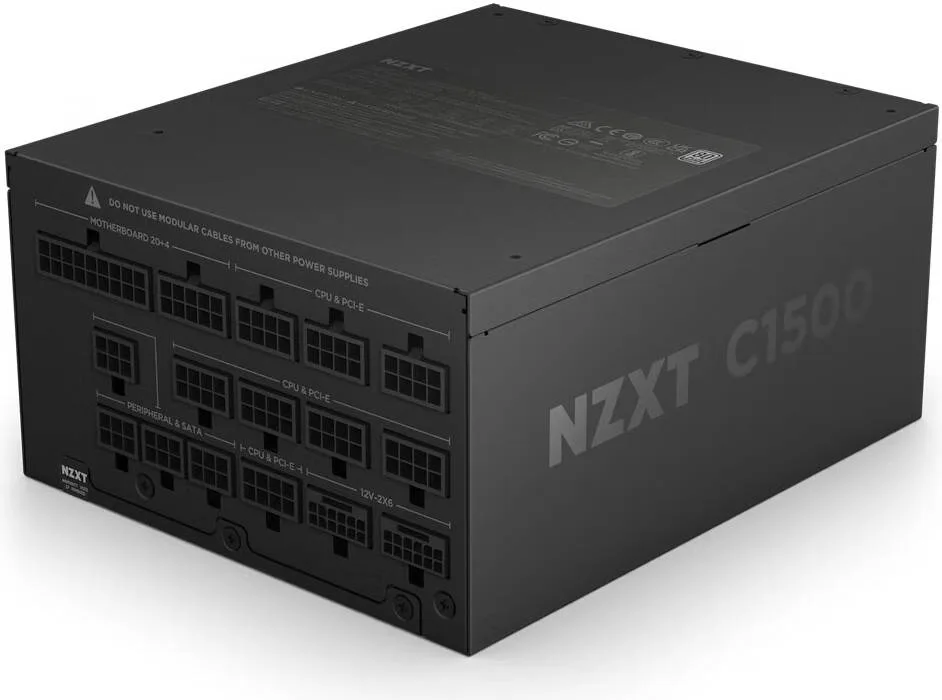

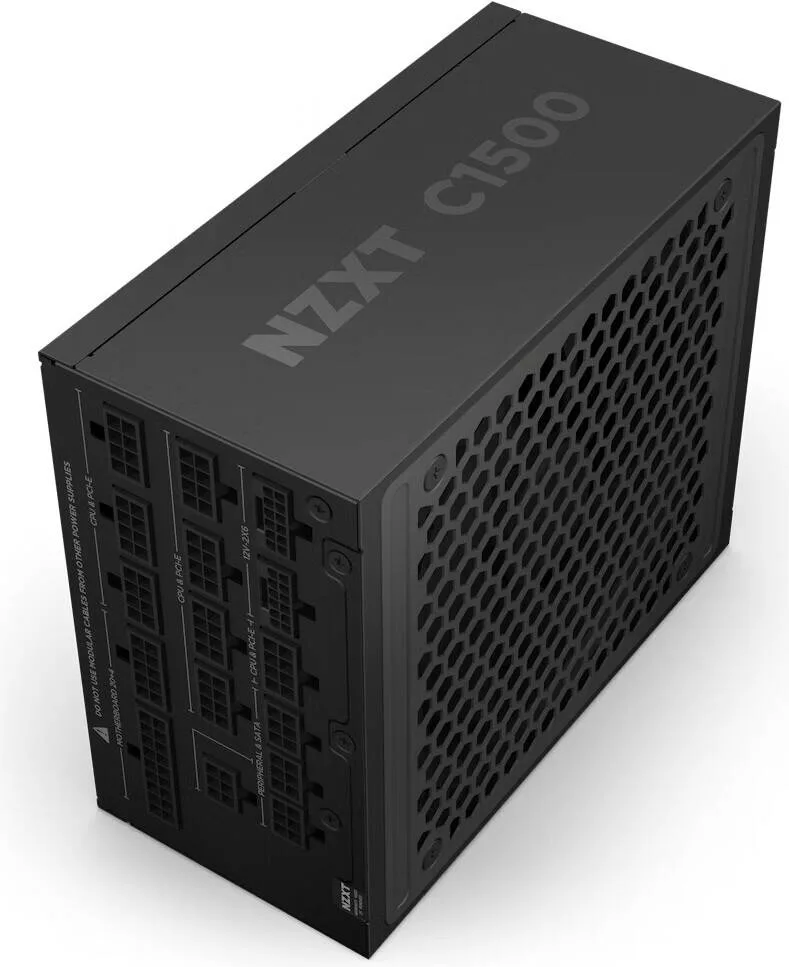

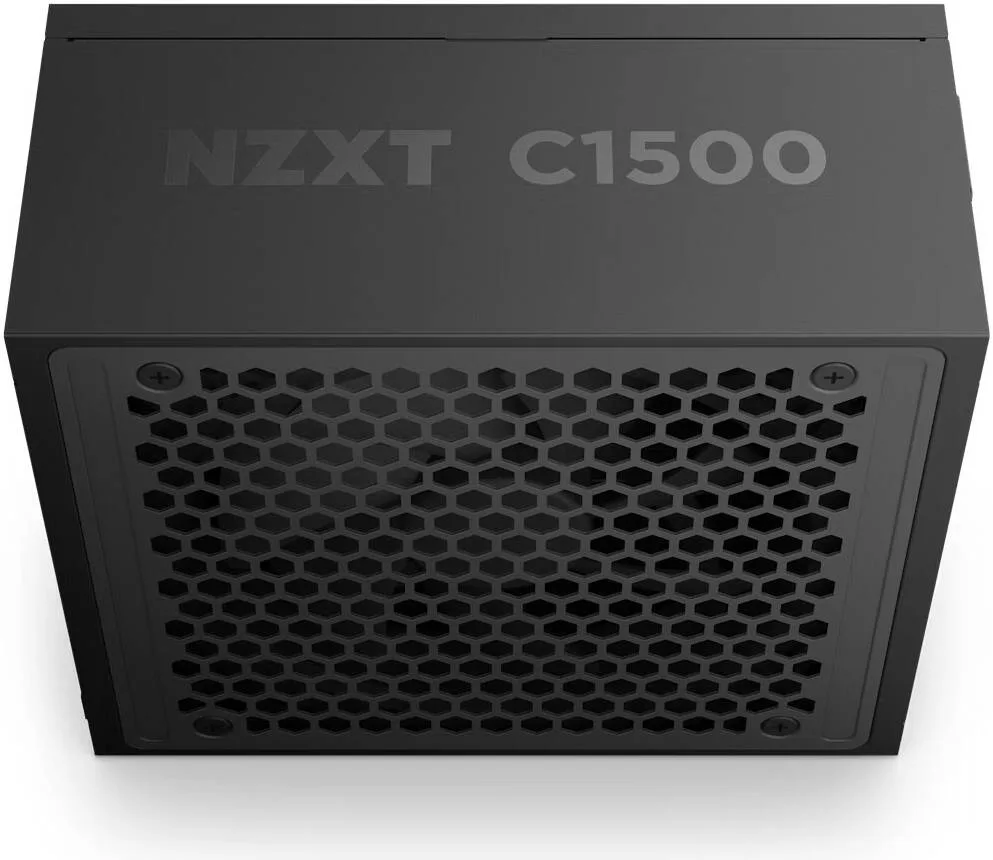

NZXT C1500 Platinum ATX Fully Modular PSU, 80 PLUS Platinum Efficiency, 1500W Power, Dual PCIe 5.1 Connectors, Magnetic Levitation Bearing Fan, 140mm Size, 125 CFM Airflow, Black
- Designed with ATX 3.1 and PCIe 5.1 compliance to power current and future generations of high-performance GPUs and CPUs.
- Includes two 16-pin 12V-2x6 PCIe 5.1 cables, each capable of delivering over 600 watts to power-hungry GPUs.
- Digital power enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.
- Exceeding 80 Plus Platinum standards, the 94% efficiency reduces power consumption for lower monthly bills and cooler, quieter operation.
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- Black
- Power
- 1500 W
- Modular
- Full Modular
- Efficiency
- 80 Plus Platinum
- Form factor
- ATX
Details
- Shipping Weight
- 5.45 Kg
- Shipping Dimensions
- 15.00 cm x 33.00 cm x 22.00 cm
- PFC
- Active
- Fanless
- No
- Length
- 180 mm

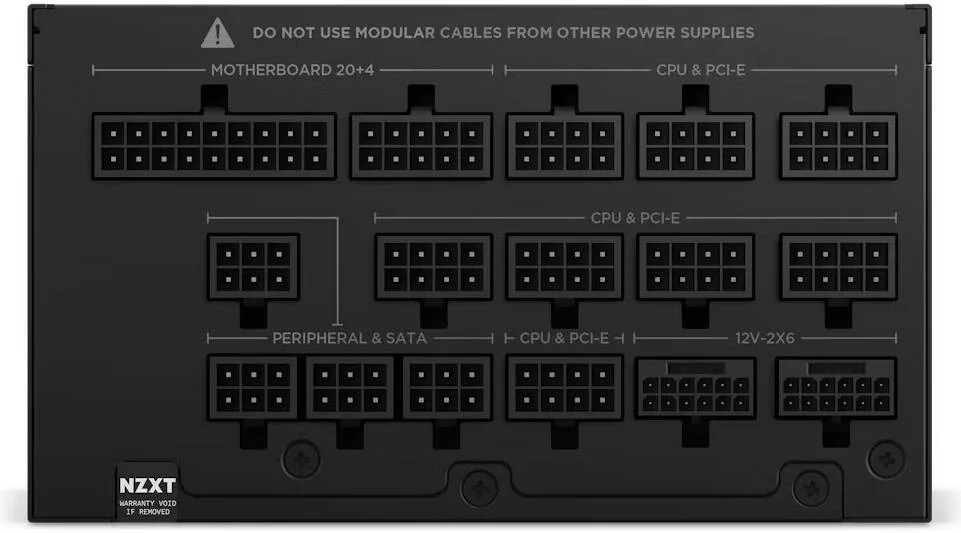

- Main Connectors
- 1 x 24 pin ATX
- EPS/CPU Connectors
- 2 x 8 pin (4+4) EPS (CPU)
- SATA Power Connectors
- 12
- Molex Connectors
- 4
- PCIe 6-Pin Connectors
- 0
- PCIe 6+2-Pin Connectors
- 6
- PCIe 8-Pin Connectors
- 0
- PCIe 12-Pin Connectors
- 0
- PCIe 12+4-Pin 12VHPWR Connectors
- 2
- 24-pin ATX Power Cable
- 1
- 4+4-pin CPU Power Cable
- 1
- 8-pin CPU Power Cable
- 1
- 6+2-pin PCIe Power Cable
- 6
- 16-pin (12+4) 12V-2x6 PCIe Cable
- 2
- SATA Cable
- 12
- Peripherals Cable
- 4
- 100 - 240Vac
- 15A-9A 50Hz-60Hz
- 200 - 240Vac
- 9A 50Hz-60Hz
- 3.3V / +5V
- 22A (120W)
- 12V
- 125A (1500W)
- 5Vsb
- 3A (15W)
- Total
- 1500W (115-240Vac) / 1300W (100-115Vac)
- Rating
- 80 Plus Platinum
- 10% loading
- 92% @115Vac
- 20% loading
- 94% @115Vac
- 50% loading
- 93.8% @115Vac
- 100% loading
- 90.8% @115Vac
- PF Correction
- Active @0.99
- Protections
- OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection)
- Dimensions
- 140 x 140 x 25 mm
- Speed
- 2500 ± 10% RPM
- Airflow
- 125 CFM (Typ.)
- Noise
- 41.0 dBA max
- Bearing
- Magnetic Levitation Bearing (ML)
- MTBF
- 100000 hours
- Temperature
- 0 - 50 °C
- Width
- 5.91 in / 150 mm
- Height
- 3.39 in / 86 mm
- Depth
- 7.09 in / 180 mm
- Material(s)
- Steel, PCB and Plastic
- Compliance Standard
- ATX12V v3.1 / EPS12V v2.92
